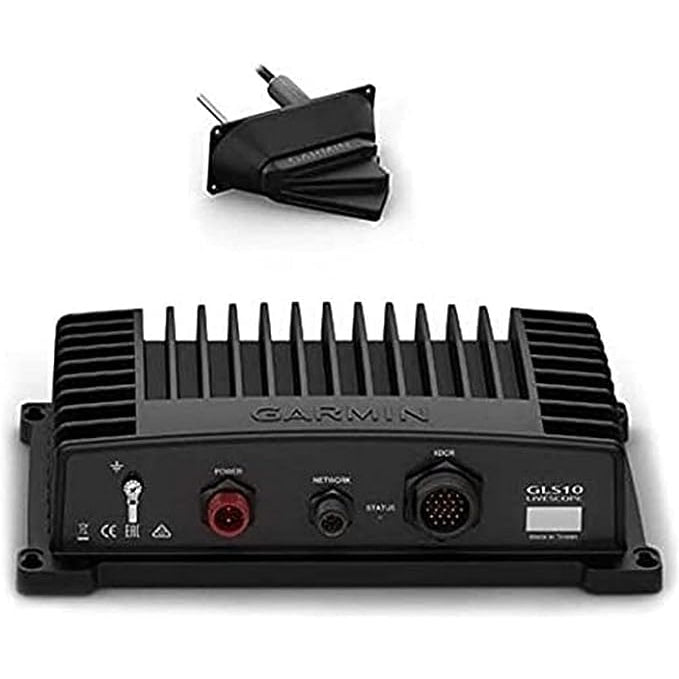

Garmin Panoptix LiveScope System W/Thru-Hull Mount Transducer - Boatyard Malaysia
  • Garmin Panoptix LiveScope System W/Thru-Hull Mount Transducer - Boatyard Malaysia
  • LiveScope™ System
LiveScope™ System

Garmin

LiveScope™ System

SKU: 010-02233-00
Pre Order
RM12,480.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

CLEARLY THE MOST AMAZING SONAR TECHNOLOGY EVER

You’ve never fished like this before, with a view below your boat so clear you even see your lure as you retrieve it.
SIZES & DIMENSIONS
  • GLS 10 Sonar Black Box: 9.6” x 5.9” x 2.6” (24.5 x 14.9 x6.5 cm);
  • LVS32-TH Transducer Without Fairing Block: 9.6” x 1.8” x 5.4” (24.4 x 4.6 x 13.7 cm);
  • LVS32-TH Transducer With Fairing Block: 9.6” x 3.4” x 8.1” (24.4 x 8.6 x 20.6 cm)
WHAT'S IN THE BOX
  • LiveScope GLS 10 sonar black box
  • Panoptix LVS32 transducer
  • Thru-hull mount hardware
  • Power cable
  • 2 meter Garmin marine network cable, small connector
  • Network adapter cable
  • Mounting hardware
  • Documentation
FEATURES

Who wouldn’t want stunning, real-time imagery below and around their boat?

Up to 200’ down. Up to 200’ away. That’s an impressive view for real-time sonar.

Even if the waters are rough, this system stabilizes the view on your chartplotter screen.

No matter your setup, the simple plug-and-play connector makes install a breeze.
SPECIFICATIONS

General

  • Dimension: GLS 10 Sonar Black Box: 9.6” x 5.9” x 2.6” (24.5 x 14.9 x6.5 cm); LVS32-TH Transducer Without Fairing Block: 9.6” x 1.8” x 5.4” (24.4 x 4.6 x 13.7 cm); LVS32-TH Transducer With Fairing Block: 9.6” x 3.4” x 8.1” (24.4 x 8.6 x 20.6 cm)
  • Weight: GLS 10 Sonar Black Box: 4.3 lbs (2.0 Kg); LVS32-Th Transducer Without Fairing Block: 4.4 lbs (2.0 Kg); LVS32-Th Transducer with Fairing Block: 5.0 lbs (2.3 Kg)
  • Water Rating: Ipx7
  • Temperature Range: GLS 10 Black Box: Operating: -15 C To 70 C
  • Panoptix Livescope Lvs12 Transducer: Operating: 0 C To 40 C



Electrical Features

  • Power Input: 10-32 V
  • Power Usage: 21 W Typical, 58 W Max
  • Fuse: 7.5 A



Sonar Features

  • Frequency: 530 - 1,100 Khz
  • Transmit Power: 500 W
  • Maximum Depth: Forward: 200’ (61.0 M)



Connections

  • Garmin Marine Network Ports: 1 (Small Connector)
DOCUMENTATIONS

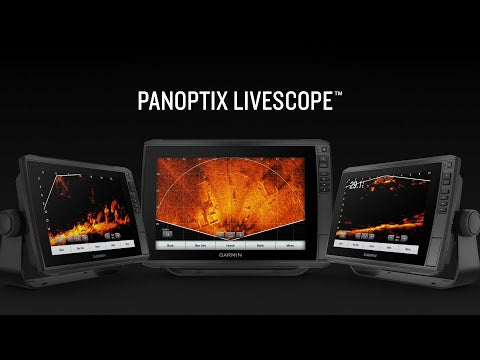

Clear sonar. Real time.

Scout and fish out ahead of your cast with live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat.

Not only can you see crystal-clear imagery around your boat, you can also see at a distance of up to 200’ in both modes — even while your boat is stationary.

Attitude Heading Reference System stabilizes the sonar view on your chartplotter screen, even in rough conditions.

Seamlessly integrate this system with your compatible Garmin chartplotter using the simple plug-and-play Garmin Marine Network connector.
