HD-Series Heavy Duty 3 Position Selector Battery Switch with AFD boatyardmalaysia

Blue Sea System

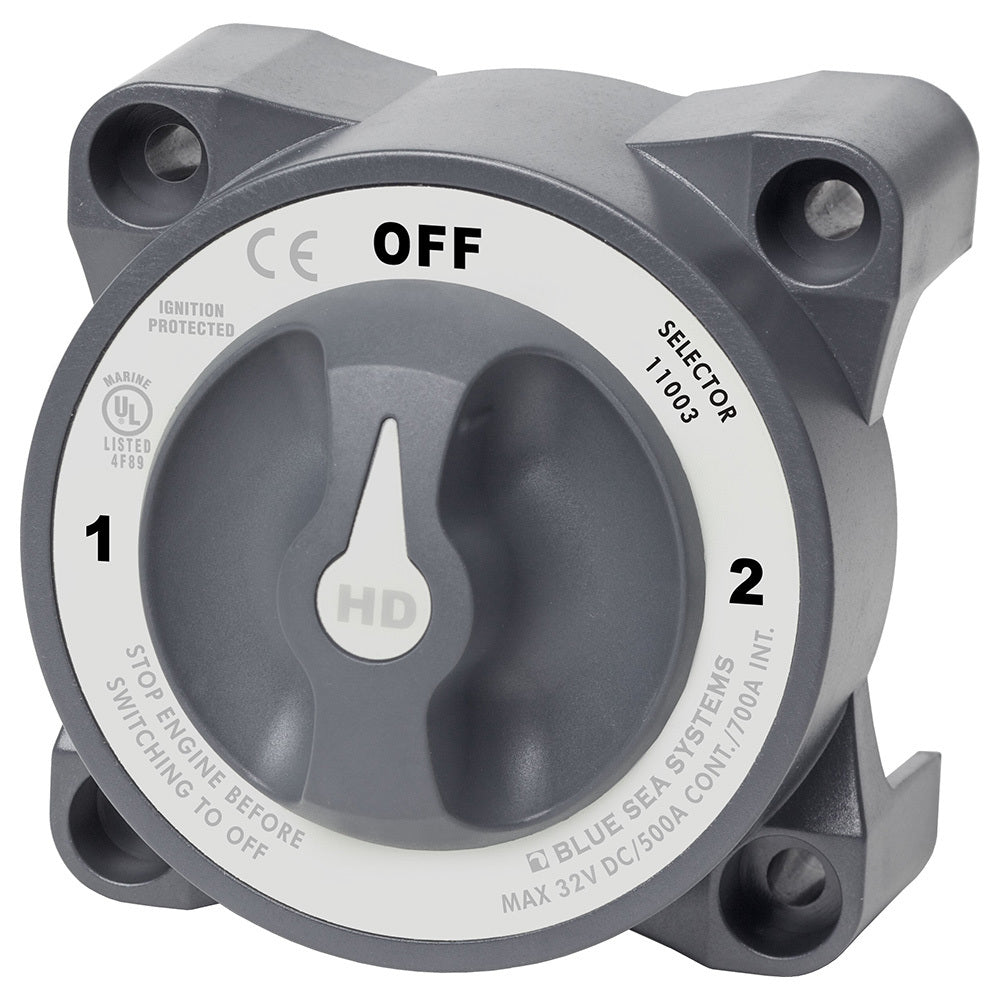

HD-Series Heavy Duty 3 Position Selector Battery Switch with AFD

SKU: 11003
Pre Order
RM134.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 monthsLearn more.

Switches isolated battery banks to all loads.

ColorGray
SIZES & DIMENSIONS
WHAT'S IN THE BOX
FEATURES
  • Includes AFD (Alternator Field Disconnect)
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Accepts two 4/0 AWG (95mm²) battery cables
SPECIFICATIONS

Switch Type : Selector 3 Position

Color: Grey

Switch Positions: 3

Battery Combine: No

Alternator Field Disconnect : Yes

Maximum Voltage: 32V DC

Terminal Stud Torque: 220 in-lb (24.86 Nm)

Continuous Rating : 400A

Intermittent Rating : 700A (5 min)

Starting Rating 30 sec : 1600A

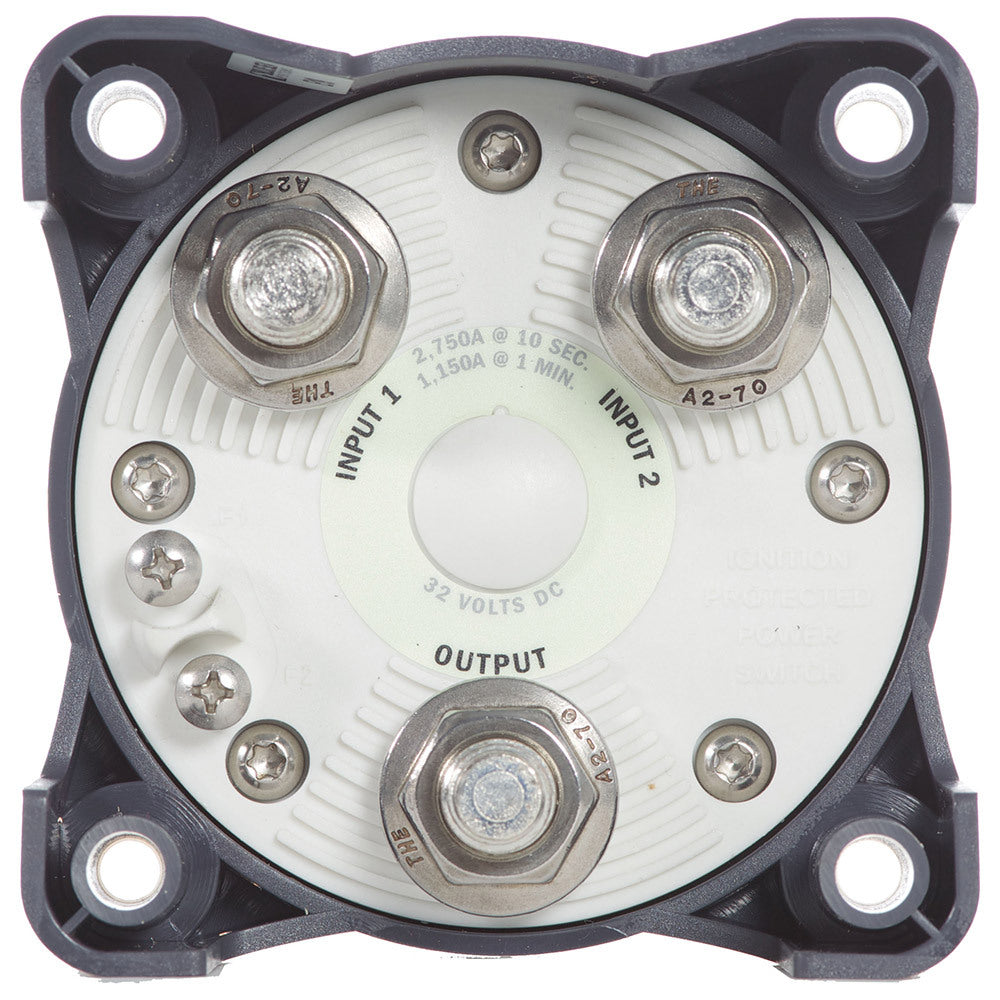

Battery Inputs: 2

Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)

Cable Quantity to Meet Ratings: Two Cables / Terminal

Cable Size to Meet Ratings: 4/0 AWG (120mm²)

Mounting Holes: Accept 1/4" (M6) Screw

Stud Material: Tinned Copper

Switching Rating: 25A

Terminal Stud Size: 1/2" (M12)

Weight: 1.25lb (0.57 kg)

Weight: 1.30lb (0.59 kg)

DOCUMENTATIONS
