12 Volt DC Brand Circuit Square

Blue Sea System

12 Volt DC Brand Circuit Square

1216

Pre-order

RM2,169.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months.

4 to 32 branch circuits with installed 15 Ampere circuit breakers

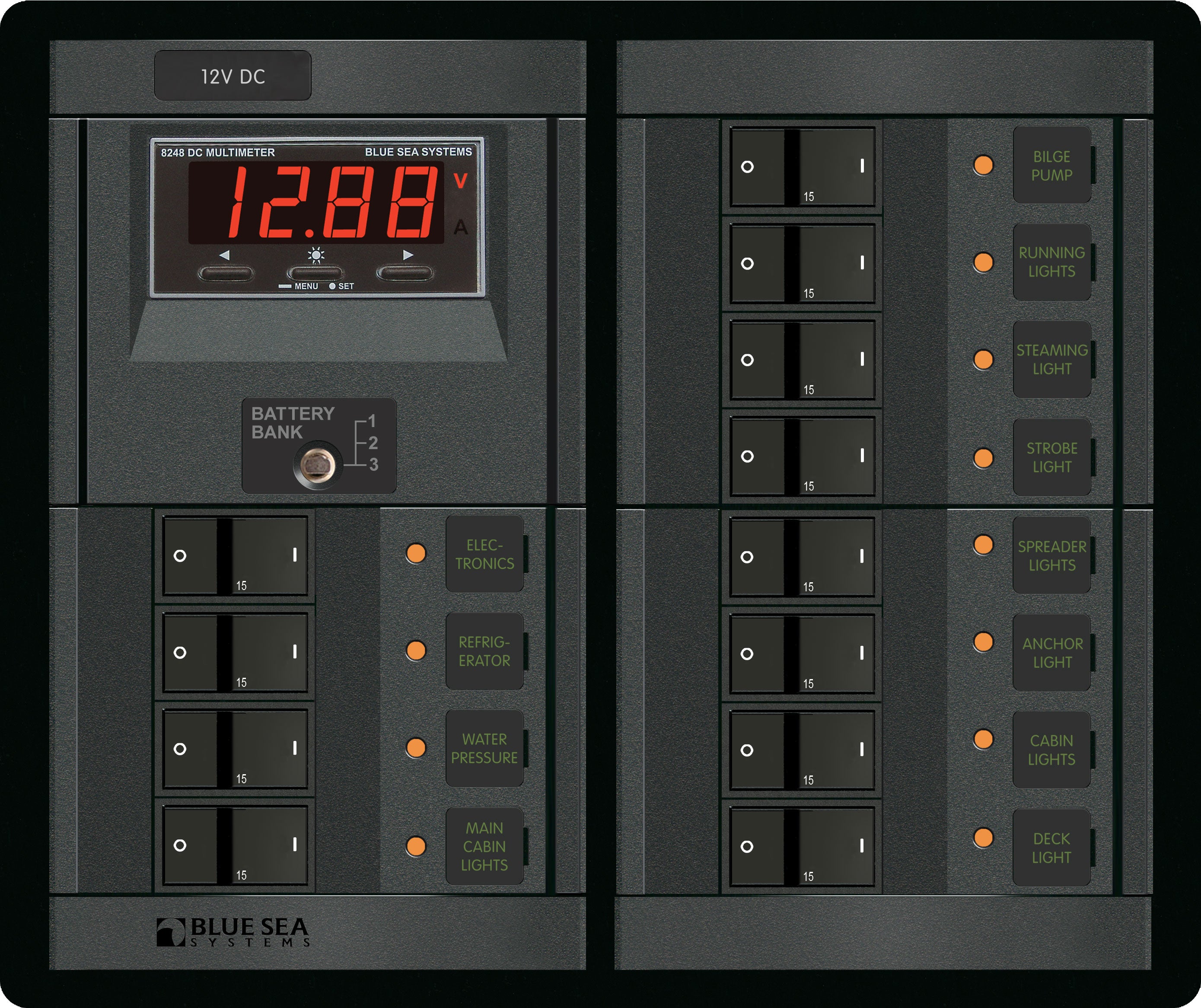

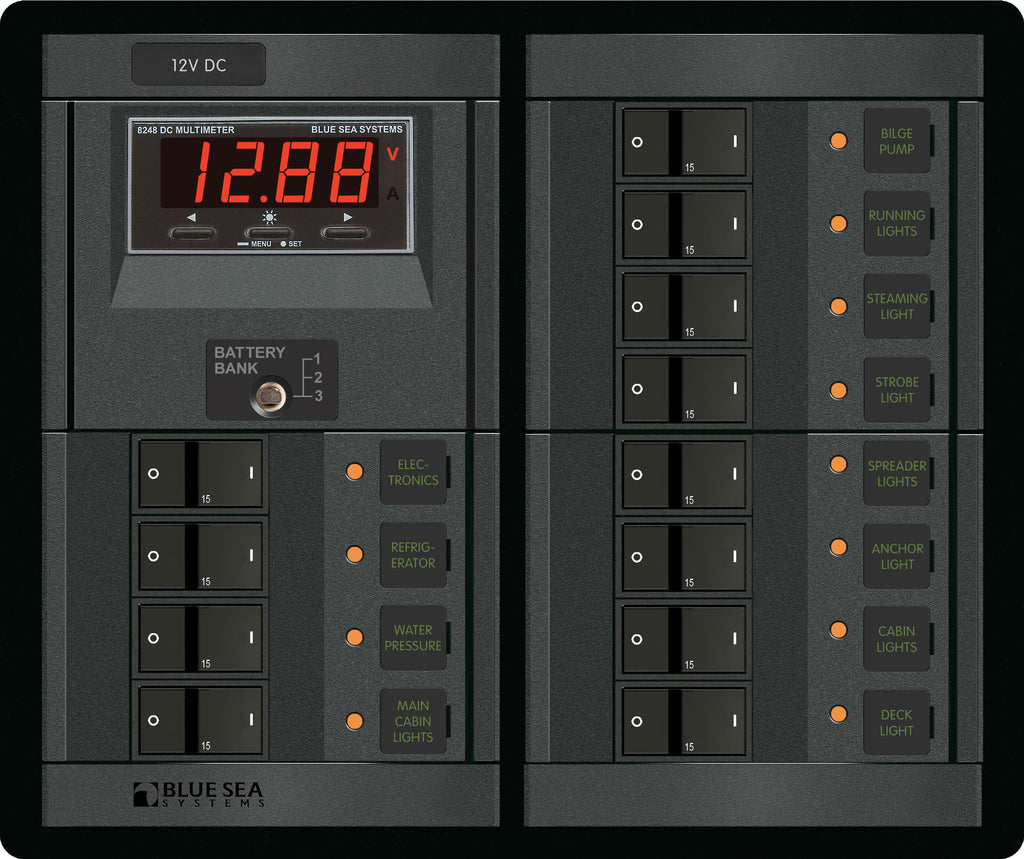

Available with voltmeters, ammeters, and digital multimeters
Includes 4205—Square Format Label Set

Item TypeBranch Circuits

ShapeSquare

Positions 4 8 12 16

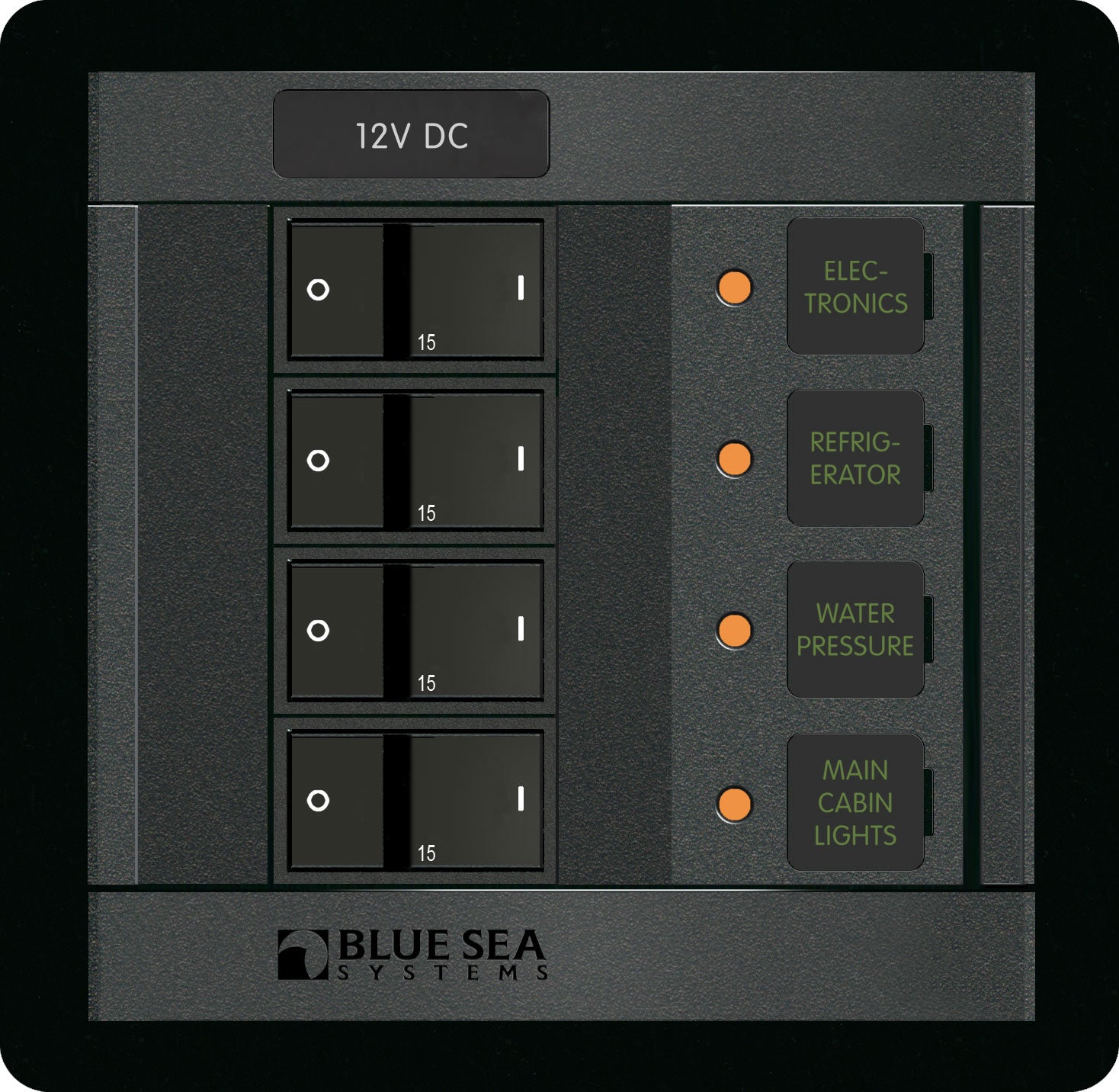

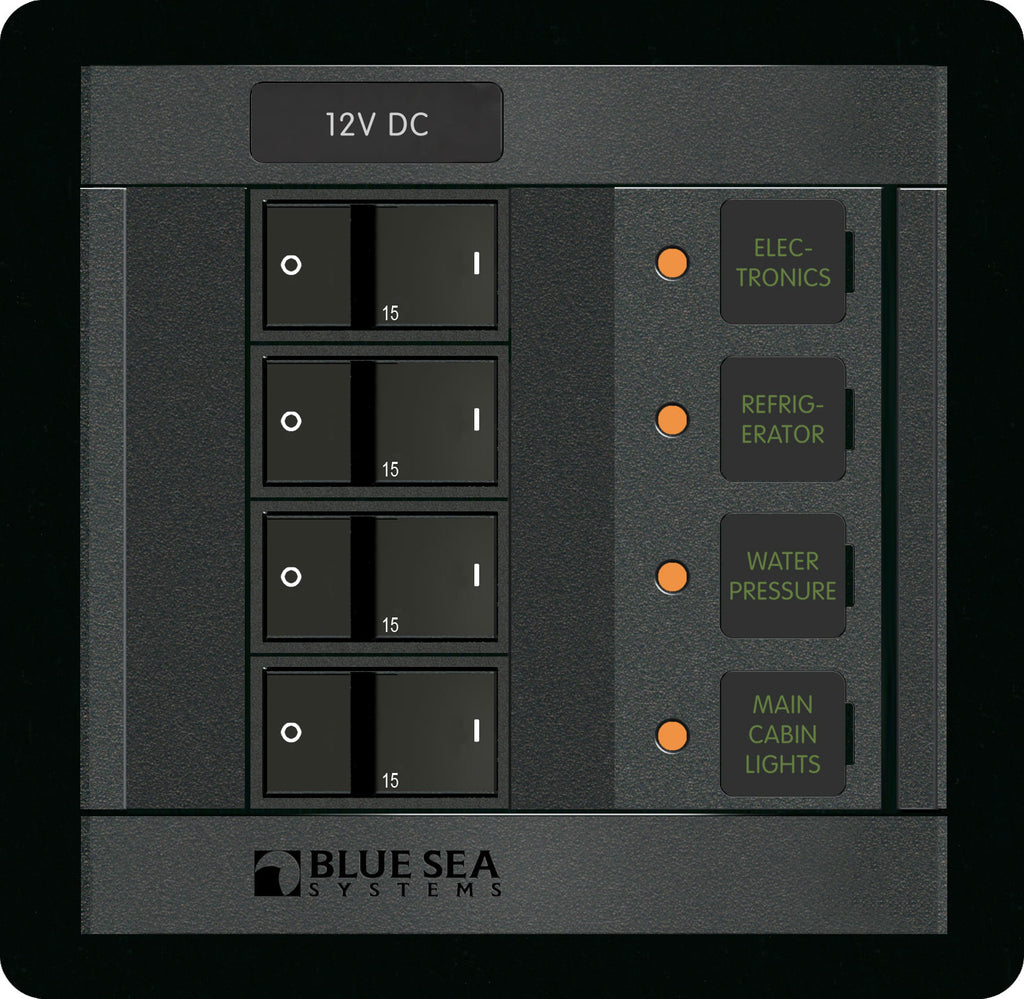

12 Volt DC 4 Position Square

Height: 4.75 in (120.65 mm)
Width: 4.88 in (123.95 mm)
Depth: 3.00 in (76.2 mm)
Weight: 1.35 lb (0.61 kg)

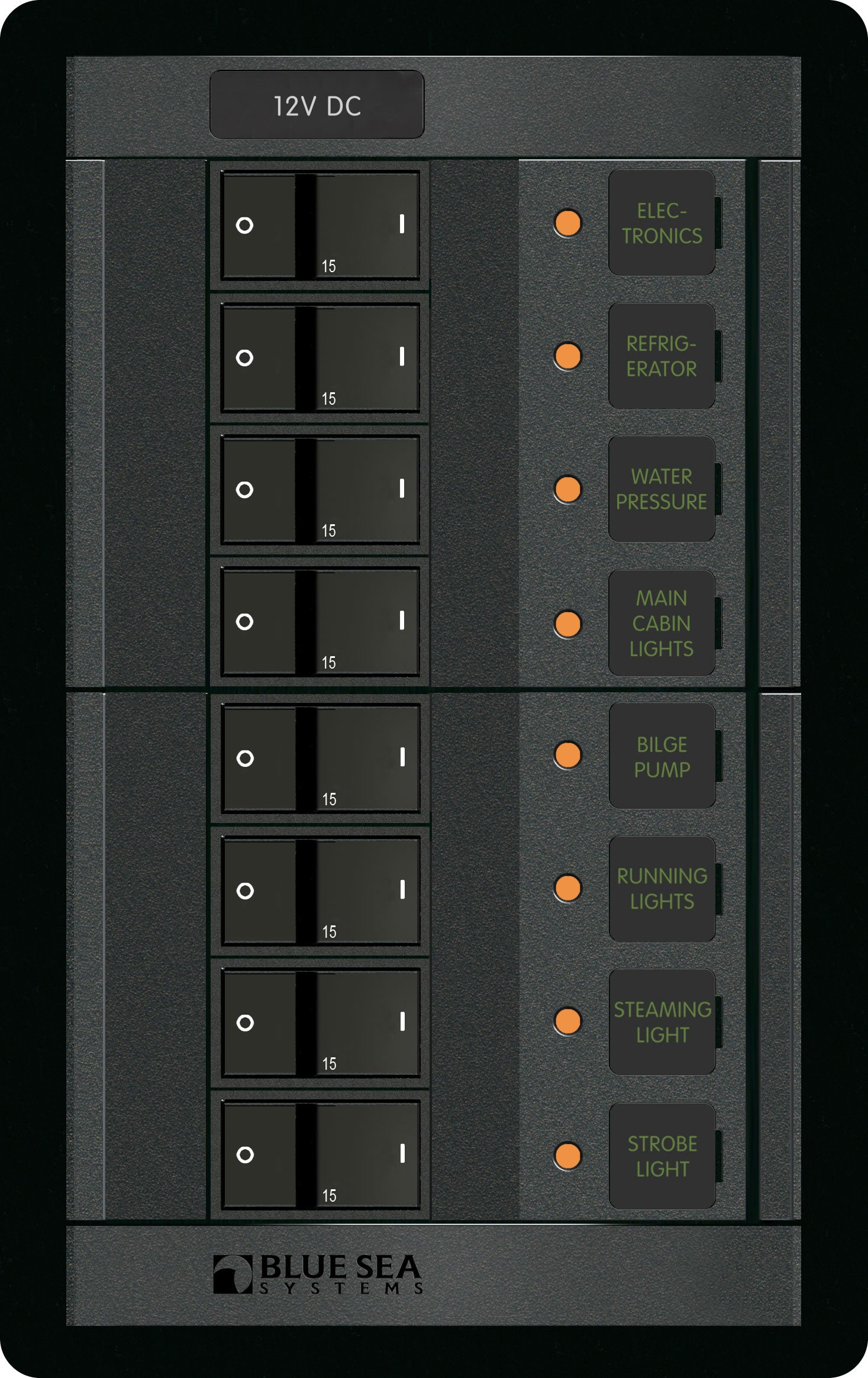

12 Volt DC 8 Position Square

Height: 7.75 in (196.85 mm)
Width: 4.88 in (123.95 mm)
Depth: 3.00 in (76.2 mm)
Weight: 2.60 lb (1.18 kg)

12 Volt DC 12 Position Square

Height: 7.75 in (196.85 mm)
Width: 9.25 in (234.95 mm)
Depth: 4.00 in (101.6 mm)
Weight: 5.99 lb (2.72 kg)

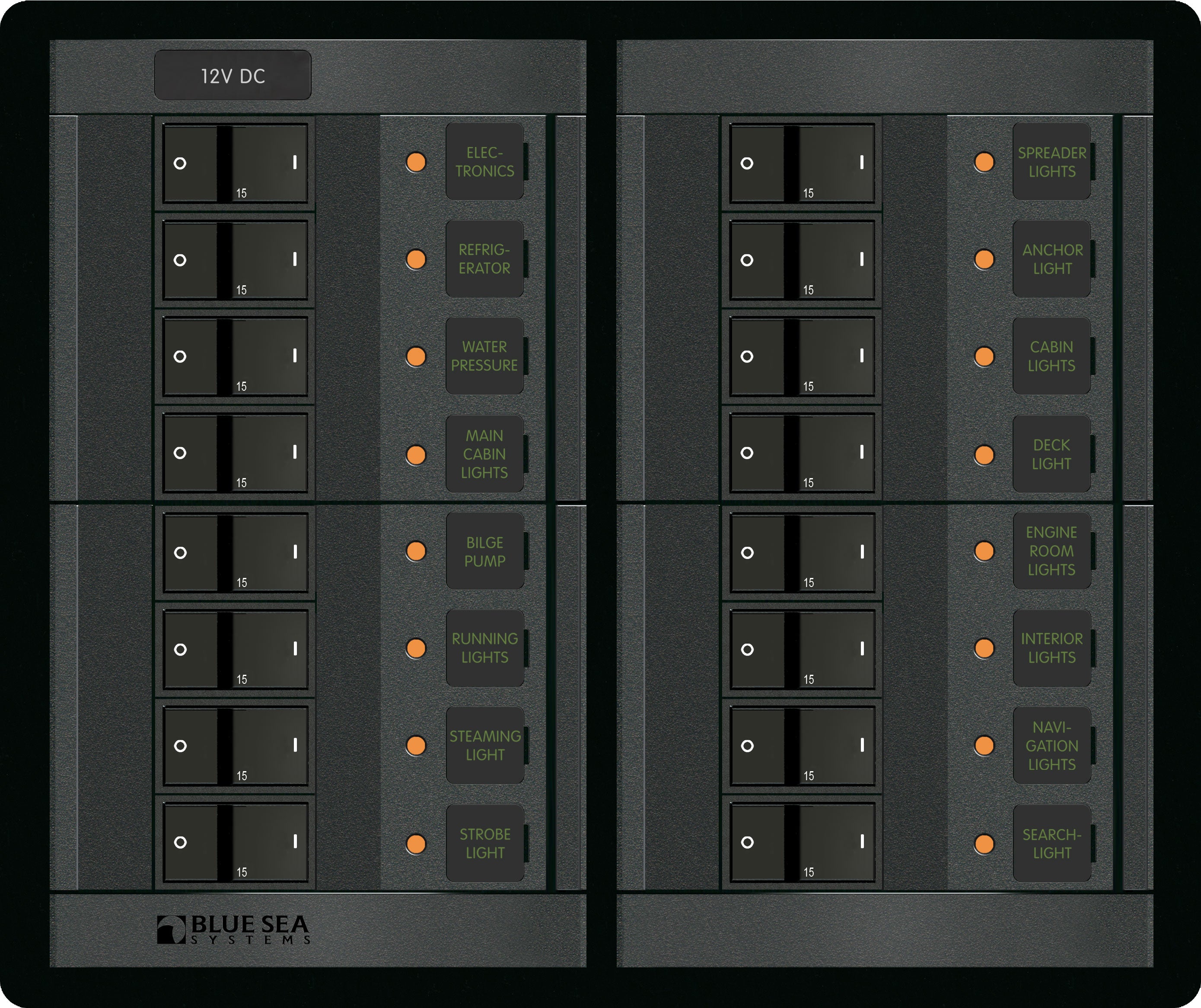

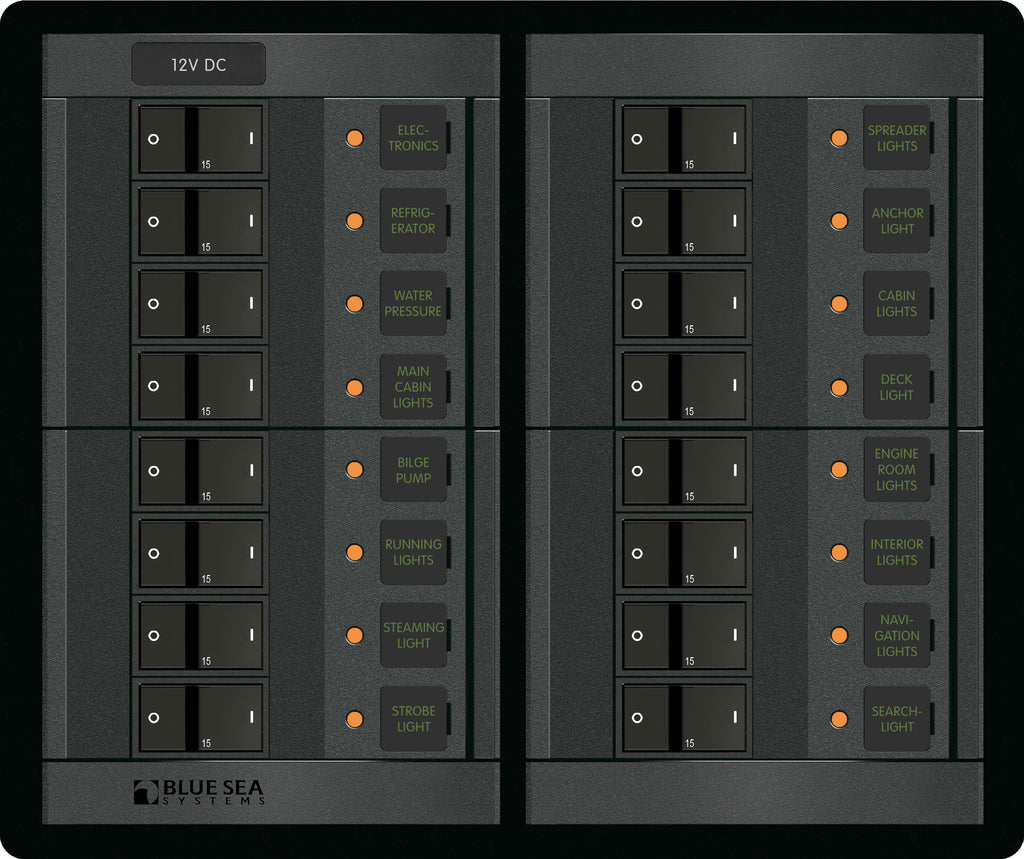

12 Volt DC 16 Position Square

Height: 7.75 in (196.85 mm)
Width: 9.25 in (234.95 mm)
Depth: 3.00 in (76.2 mm)
Weight: 6.27 lb (2.84 kg)

4 to 32 branch circuits with installed 15 Ampere circuit breakers
Available with voltmeters, ammeters, and digital multimeters
Includes 4205—Square Format Label Set

12 Volt DC 4 Position Square

Positions: 4
Nominal Voltage: 12V DC
Maximum Amperage: 100A
Height: 4.75 in (120.65 mm)
Width: 4.88 in (123.95 mm)
Depth: 3.00 in (76.2 mm)
Weight: 1.35 lb (0.61 kg)

12 Volt DC 8 Position Square

Positions: 8
Nominal Voltage: 12V DC
Maximum Amperage: 100A
Height: 7.75 in (196.85 mm)
Width: 4.88 in (123.95 mm)
Depth: 3.00 in (76.2 mm)
Weight: 2.60 lb (1.18 kg)

12 Volt DC 12 Position Square

Positions: 12
Nominal Voltage: 12V DC
Maximum Amperage: 100A per bus
Height: 7.75 in (196.85 mm)
Width: 9.25 in (234.95 mm)
Depth: 4.00 in (101.6 mm)
Weight: 5.99 lb (2.72 kg)

12 Volt DC 16 Position Square

Positions: 16
Nominal Voltage: 12V DC
Maximum Amperage: 100A per bus
Height: 7.75 in (196.85 mm)
Width: 9.25 in (234.95 mm)
Depth: 3.00 in (76.2 mm)
Weight: 6.27 lb (2.84 kg)

12 Volt DC 4 Position Square

360 Panel System

Installation Manual Wiring Schematic

12 Volt DC 8 Position Square

360 Panel System

Installation Manual Wiring Schematic

12 Volt DC 12 Position Square

Wiring Schematic

360 Panel System Installation Manual

12 Volt DC 16 Position Square

360 Panel System

Installation Manual Wiring Schematic
