24-Volt Aftermarket (BRK) Conversion Kit

Lenco Bennett Retrofit Kit - 24V

Bennett Hydraulic-to-Lenco Electric Conversion and Performance Upgrade Kits are designed as a direct replacement for the Bennett hydraulic power unit (HPU) on systems using Bennett 4-ring standard trim tab actuators.

•  24-Volt

• Use existing Bennett trim planes, lower bracket and switch

• Use all existing mounting holes

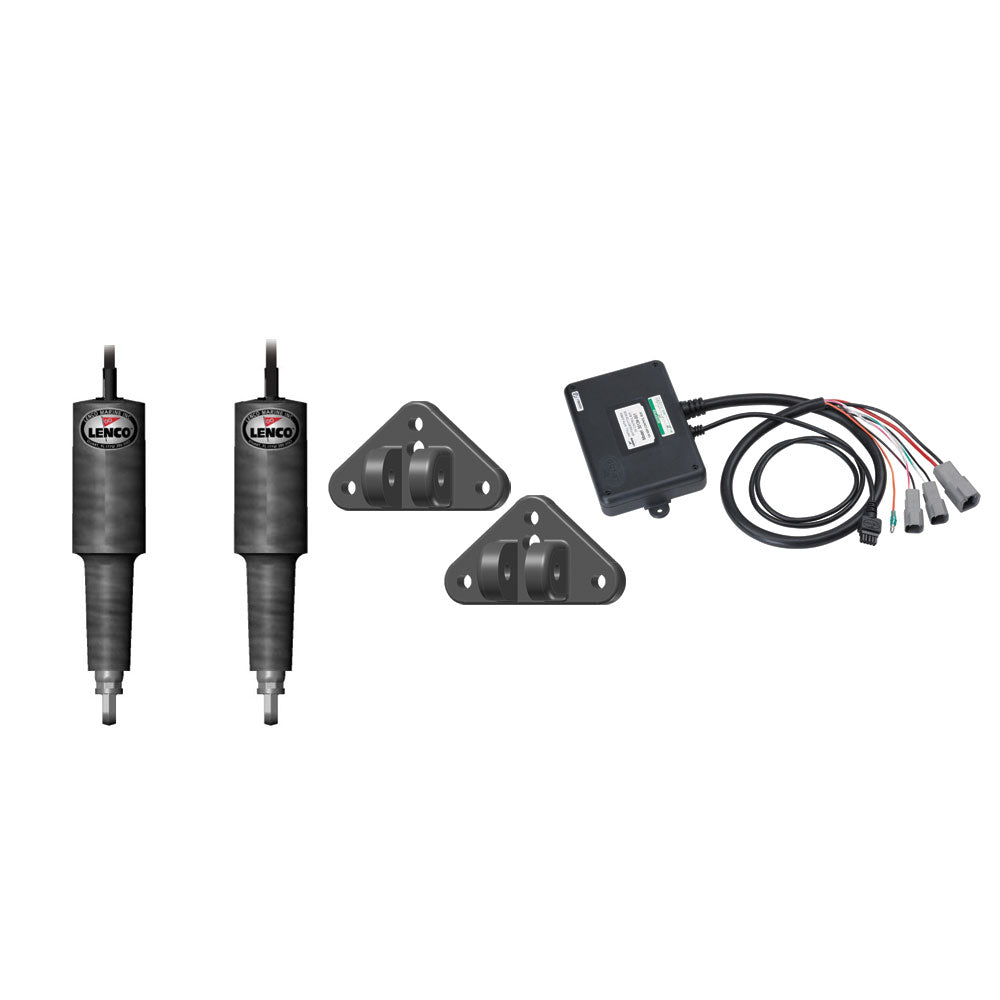

• 2 electric actuators

• 2 upper mounting brackets

• Switch wiring kit

• All mounting hardware

• Lenco wire feeds through existing oil line hole in transom

• Lenco upper mounting bracket fits existing Bennett mounting holes

• Existing Bennett trim tab plane and hinge

• Existing Bennett lower bracket

• Remove Bennett actuators, and install Lenco upper mounting brackets on transom

• Feed Lenco wires through holes in brackets and through existing oil line holes in transom

• Mount Lenco actuators on to new upper brackets and existing Bennett lower brackets

• Connect Lenco actuator wires to existing harness.
