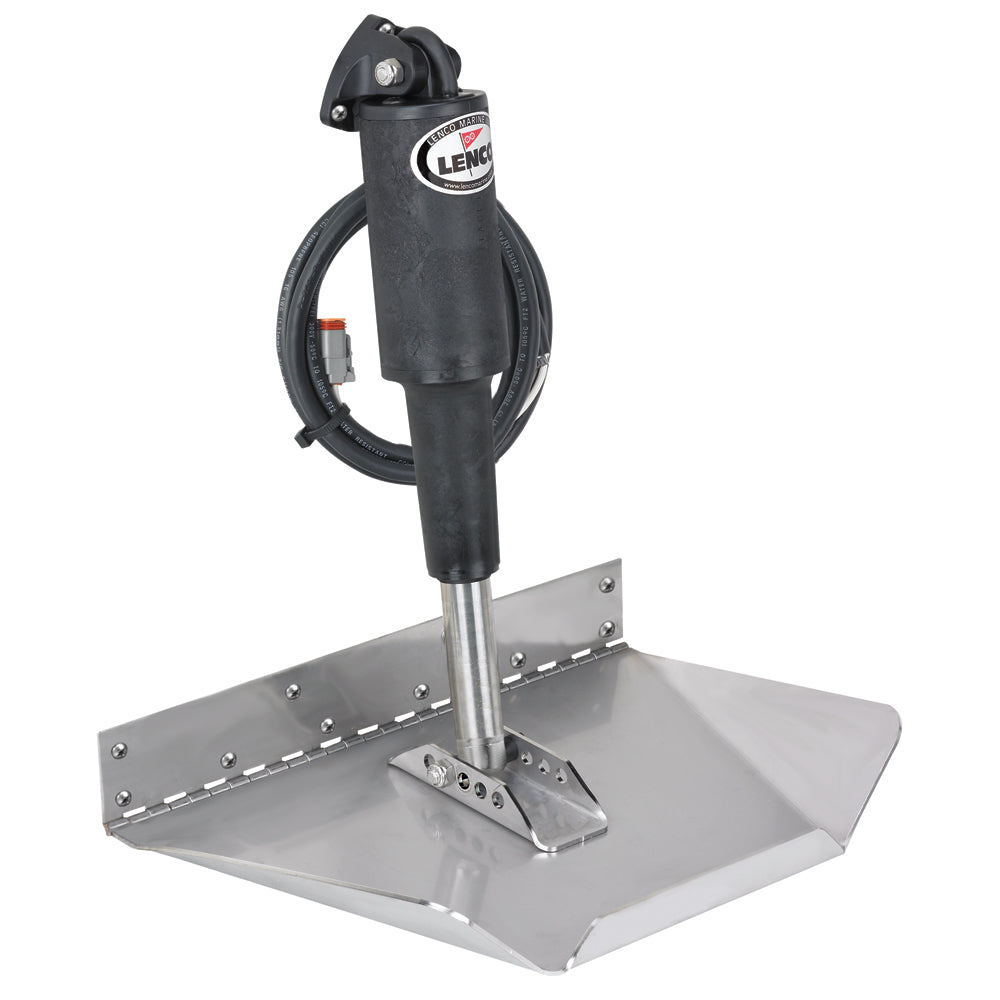

Lenco Marine 9" X 14" Airboat Trim Tab Kit W/O Switch - Boatyard Malaysia
  • Lenco Marine 9" X 14" Airboat Trim Tab Kit W/O Switch - Boatyard Malaysia
Airboat Trim Tab Kit

Lenco Marine

Airboat Trim Tab Kit

15112-101
Pre Order
RM3,076.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Trim Tab Size

The world’s first Airboat specific design. The planing surface provides greater lift and less drag. Engineered to prevent the tab from digging in during hard turns resulting in a safer ride.
SIZES & DIMENSIONS
WHAT'S IN THE BOX

Kit includes:

  • (1) 12-gauge 304 stainless steel standard finish blade with 2" (5.1 cm) hinge height
  • (1) actuator with 6' (1.8 m) lead and Deutsch connector
  • (1) 30133-002 actuator extension wiring harness - 14' (4.3 m) length
  • (1) 15085-001 upper mounting bracket with gland seal
  • Lower mounting bracket included
FEATURES

Blade is constructed of 12-gauge (2.7 mm) laser cut 304 stainless steel with a welded on stainless steel adjustable lower actuator mounting bracket & 1/8" (3.2 mm) diameter hinge pin. High impact corrosion proof upper mounting bracket with mechanical cable gland seal.
SPECIFICATIONS
DOCUMENTATIONS
