Rigid Industries
D-SS Series Pro Spot Surface Mount
D-SS Series Pro Spot Surface Mount
SKU: Part Number: 261213
Pre-Order
Description & Specification

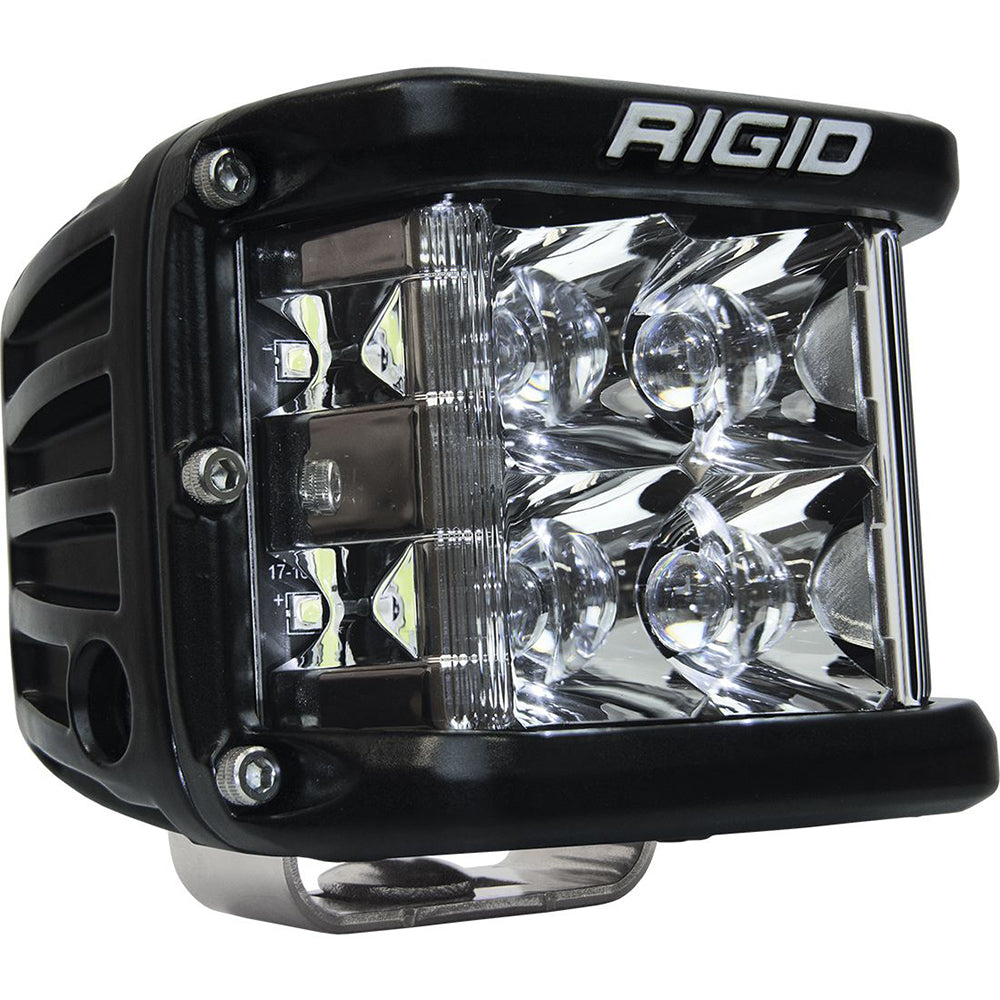

One of RIGIDs most versatile, compact lighting solutions just got better with the RIGID D-SS PRO, Dually-Side Shooter PROfessional Race Output LED pod. Perfect for any application that requires a wide spread beam, including A-Pillars, Fog Lights, and motorcycle applications. The D-SS PRO incorporates powerful optics and recently improved LED technology for greater output with the added benefit of additional LEDs aimed to the side for a much broader beam. The D-SS PRO packs a powerful punch with up to 102% more raw lumens depending on the optics chosen The D-SS PRO fixtures boast up to 120-degrees of horizontal lighting coverage when used in pairs or when used in the single light applications. The main forward-facing LEDs are available with RIGIDs advanced Spot, Flood, or Driving optics, so theres a D-SS PRO lighting solution for nearly any application. The D-SS PRO LED lights are available in pairs with three side-shooting LEDs on one side of each fixture, or in single applications with a pair of side-shooting LEDs on both sides of the fixture. Only RIGID provides a broad, powerful lighting solution in such a compact package.
- 50,000 Plus Hour Lifespan
- 9-36 V DC
- Durable UV Resistant Powder Coat
- High-Grade Aluminum Alloy
- Integrated Thermal Management System
- Impact Resistant Polycorbonate Lens
- Over/Under Voltage Protection
- RFI/EMI Protection
- Reverse Polarity Protection
- RoHS Compliant
- IP68 Compliant - Dust/Water Ingress
- Operating Temp -40 Deg F To +145 Deg F
- SAE J575 Compliant - Shock/Vibration
- Available In White And Black Housing
- Pressure Equalizing Vent
- Waterproof Connector (Exclusions Apply)
- Limited Lifetime Warranty
- Off Road Use Only
Product comes with:
- Lights come as Singles or Pairs
- Mounting Hardware
- Stainless Steel, U-Shape Bracket
- Harness w/Switch
- Deutsch Connector

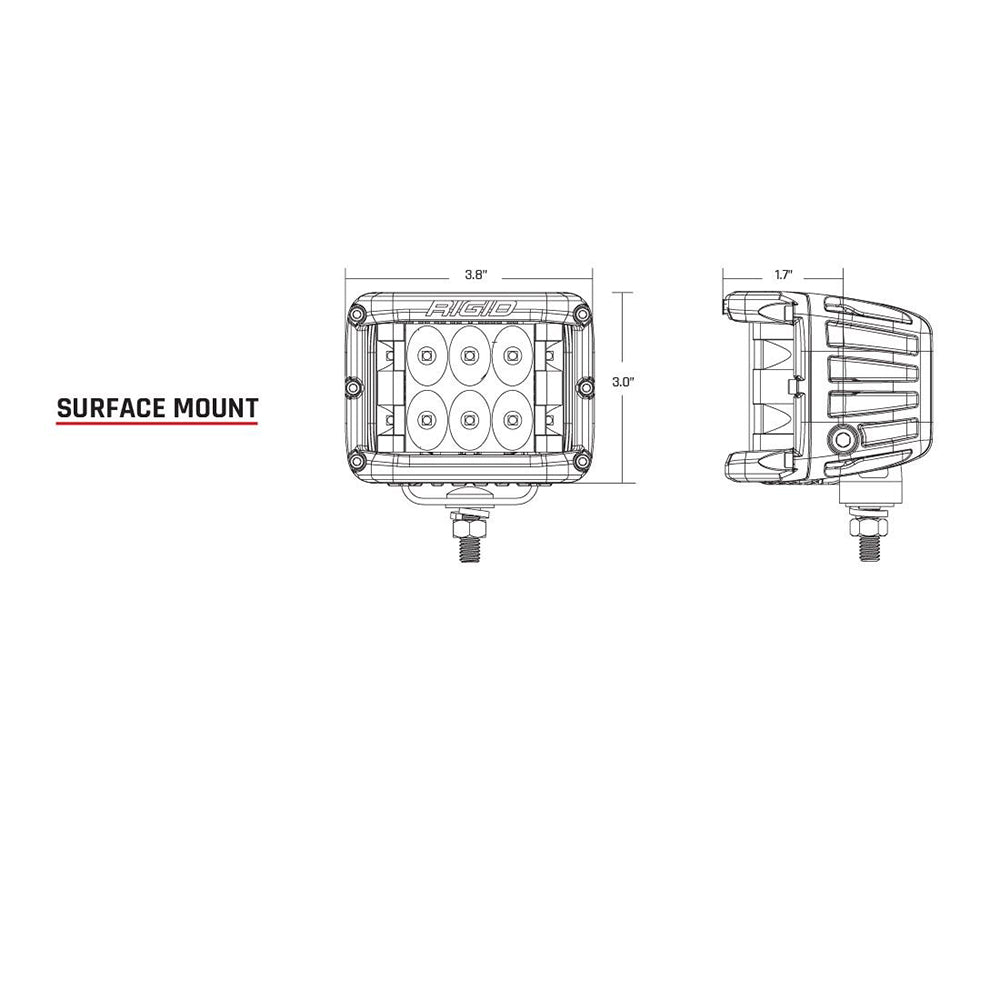

Specifications:
| Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | Voltage Max | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3"X4" | 261213 | 2.50 | SPOT | 54 | 3.86 | 36 | 6336 | 652.00 | 255.00 | 510.00 | 7.80 |
