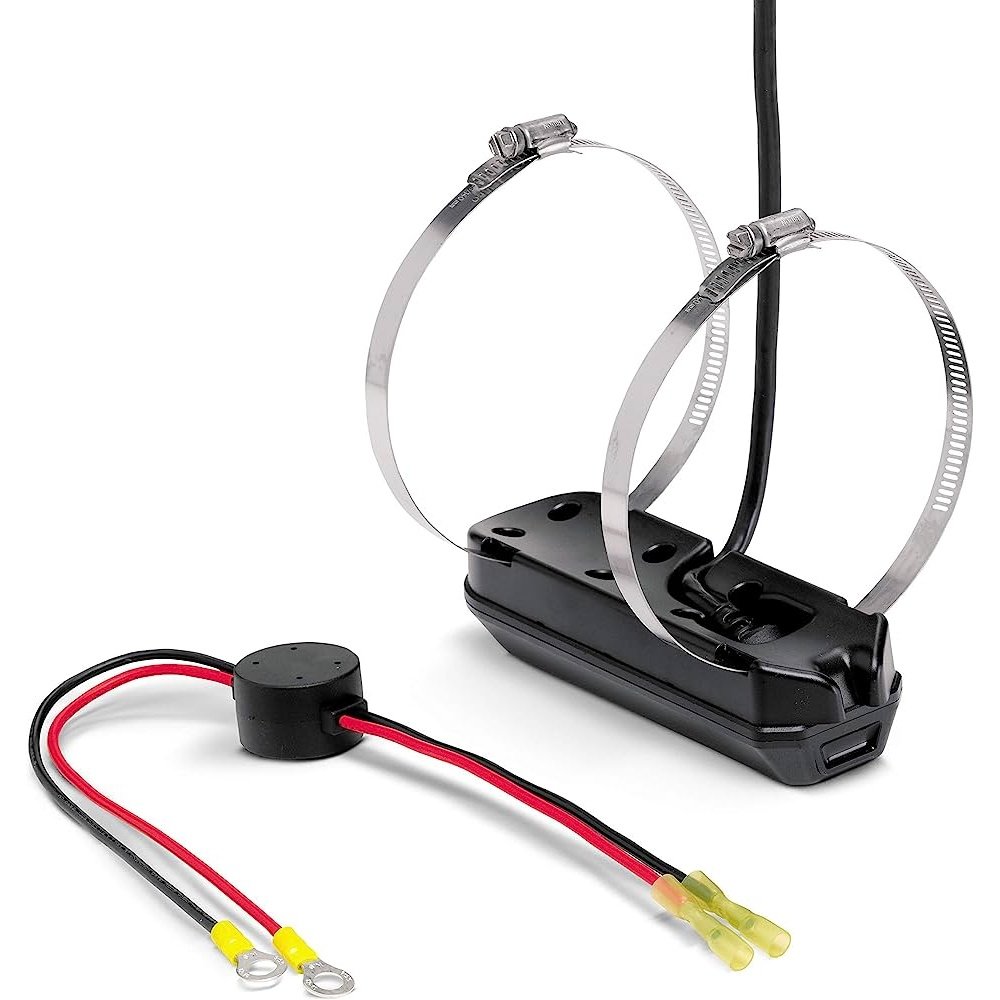

XTM-14-HW-MDI-T Trolling Motor Mt Transducer

Trolling Motor Mount, MEGA Down Imaging+ 800kHz/455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor

• Compatible with: All APEX models, All SOLIX 10, 12, 15 models to the maximum capability of the transducer
• Cable Length: 15 Feet
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
• Note: This transducer will not fit Minn Kota trolling motors with less than 80 pounds of thrust as it measures 7.15" long by 2.3" wide and will not fit between the prop and the skeg.
• 1-Year Limited Warranty
