Black Oak Single Row Slim 5W Dual Color Combo Beam

SKU: 10C-AW
Pre Order
RM1,433.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 monthsLearn more.

Black Oak LED Single Row Dual Color Light Bar – Power Meets Precision


Light up the road, trail, or worksite with the Black Oak LED Single Row Light Bar, engineered for off-road trucks, ATVs, UTVs, and work vehicles. This high-performance LED bar delivers maximum illumination in a sleek, low-profile design, making it the perfect choice for those who need serious brightness without bulk.

SIZES & DIMENSIONS

Height (5) x Length (14) x Width (5) Inch

WHAT'S IN THE BOX
  • 10" Slim Dual Color Bar
  • Complete Wiring HarnessFuseRelaySwitch
  • Mounting Hardware
FEATURES
  • Ultra Compact Design: Sleek and compact at only 1-3/4" tall and 2-1/2" deep—built to mount virtually anywhere.
  • Dual Color Output: Seamlessly shift from pure white to crisp yellow lighting with a simple flip of the switch.
  • Engineered for Extreme Conditions: IP69K-rated to resist dust, water, pressure, and whatever else you throw at it.
  • Combo Beam: Combo optics built in to offer the best of the spot and flood world. Spot in the center for extra long distance reach with the flood on the sides to offer a nice wide angle.

Slim Design, Maximum Output

The single-row configuration offers high-output illumination in a compact, streamlined form, making it easy to mount on bumpers, grilles, roof racks, and roll cages without compromising aerodynamics or aesthetics.

Engineered for Extreme Conditions

With an IP69K waterproof rating, this light bar is built to withstand heavy rain, mud, dust, and high-pressure washing. The rugged aluminum housing and impact-resistant polycarbonate lens provide maximum durability for even the toughest environments.

Dual-Mode White & Yellow Lighting

This light bar features a built-in dual-color LED system, allowing you to switch between bright white for clear visibility in normal conditions and intense yellow for enhanced performance in fog, dust, rain, and snow. The yellow mode cuts through harsh weather and glare, providing better contrast and visibility when conditions are at their worst.

Ceramic-Coated, Hydrex-Sealed Construction

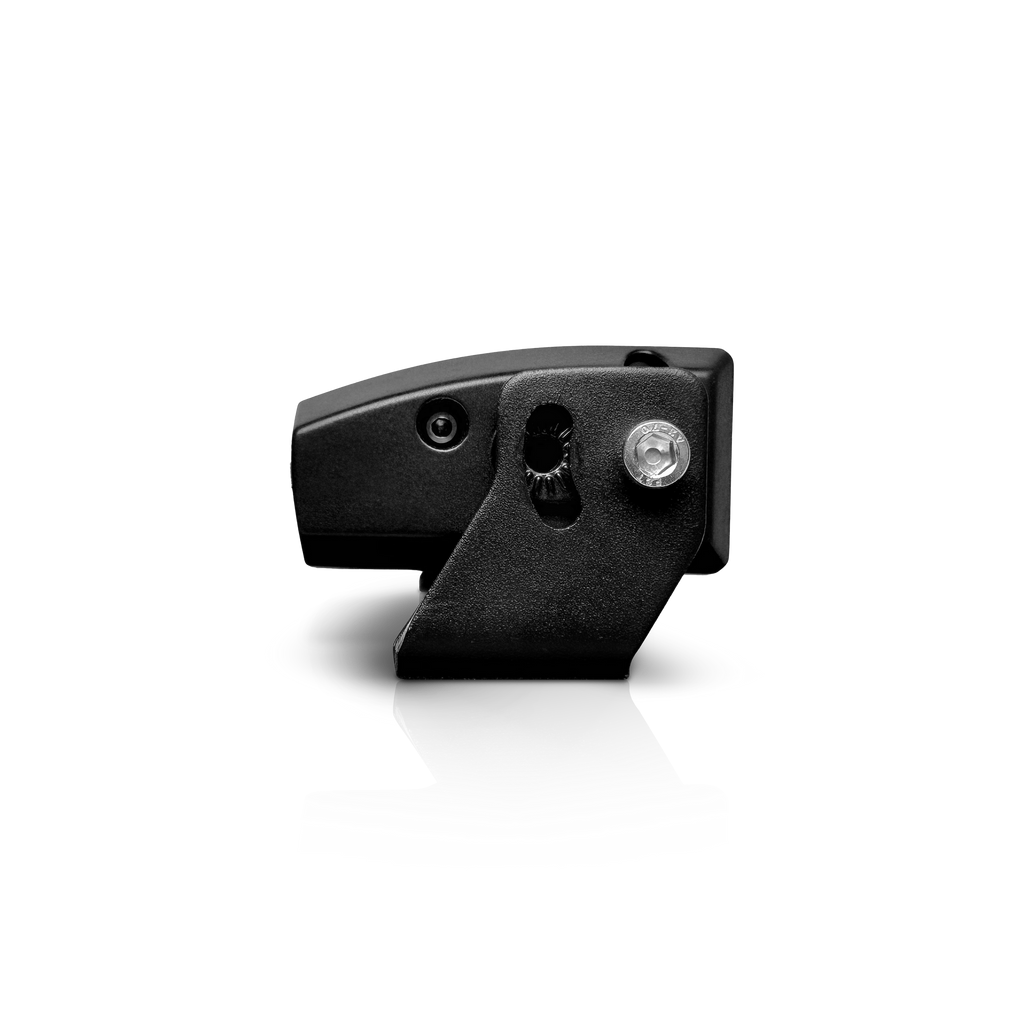

Finished with a corrosion-resistant ceramic coating and sealed with our Hydrex gasket system for true IP69K performance. 316 stainless bolt-in mounts provide unmatched strength and durability in saltwater or off-road environments.



Lifetime Warranty

Enjoy complete peace of mind knowing your light is backed by our industry-leading lifetime warranty. We stand behind every product we build — if it ever fails due to workmanship or materials, we’ll repair or replace it, guaranteed.



SPECIFICATIONS

Power & Performance

  • Total Wattage: 150
  • Total Amp Draw: 3.5
  • Operating Voltage: 10 - 30V DC
  • Lumens:White - 5,475Yellow - 5,075
  • Color Temperature:White - 6,000KYellow - 3,000K
  • LED Diode Quantity: 15
  • LED Chip: Osram
  • Beam Pattern: Combo
  • Beam Angle: 45° Combo
  • Mode: On/Off White or Yellow
  • Dimmable: Yes! (Separate Dimming Module Required, Not Included)

Durability & Lifespan

  • Life Expectancy: 50,000 Hours
  • Operating Temp: -40° to 145° F
  • -40° to 62° C
  • Waterproof Rating: IP69K
  • Warranty: Limited Lifetime
  • Guarantee: 30 Day Money Back

Wiring & Installation

  • Cord Lead From Light: 16”
  • Wire Harness Included? Yes
  • Wire Harness Length: 12’
  • Wire Gauge: 16 AWG
  • Fuse Size: 15
  • Connector Type: 4 Pin Deutsch
  • Hole Size for Switch: ¾”

General

  • Weight: 2.0 Lbs
  • SKU: 10AW-S
