Quiet Flush E2 Marine Toilet

• Rotatable base and discharge pump for flexibility in tight spaces
• Quick-release system provides easy access to the discharge pump
• Touch sensor panel with three settings, including water-saving, eco flush cycle
• Quiet soft-close seat on regular bowls
• Compact or regular bowl sizes available
• Fresh or raw water rinse models
• Easy-to-clean shroud

Easy 2 Install

The Quiet Flush E2 boat toilet base can be rotated to the left, right or rear of the bowl to suit multiple installation options. The discharge pump can be rotated 180 degrees to suit base orientation and ensure pipework is routed to the rear of the toilet. Straight or 90-degree discharge ports are available for easy install.

Easy 2 Service

The Quiet Flush E2 features a quick-release system that allows for fast and easy removal of the discharge pump and hose when servicing is necessary. The C-Clip design releases the pump assembly from the toilet base without the need for tools, resulting in fast service time.

Easy 2 Operate

The stylish, low-profile design of the multi-function touch panel is engineered for wet room installations and allows for eco flush and full flush functions. Only 1 litre (1 quart) is used per flush using eco mode. The touch panel also allows for a no spill ‘empty’ function to leave the bowl dry when the boat is in motion.

Flushing Options

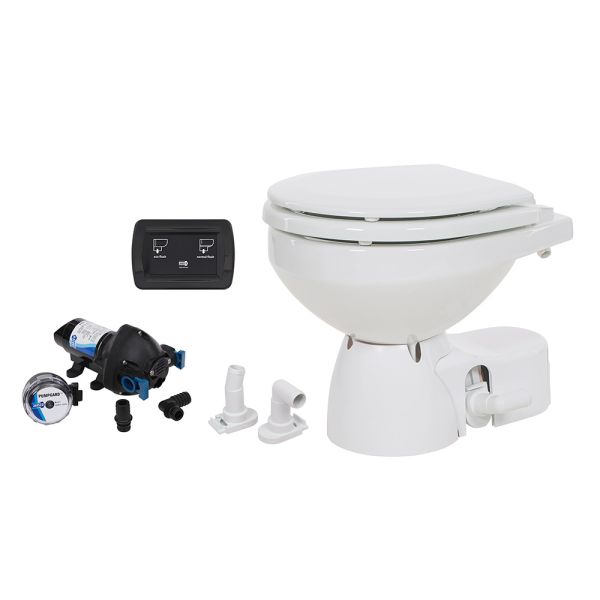

For sea, lake or river water flushing the Quiet Flush E2 electric toilet includes a 12V or 24V 3GPM (11 LPM) Jabsco Par-Max 3 rinse pump, 40 mesh in-line strainer, and ½ inch (15mm) hose barb ports.

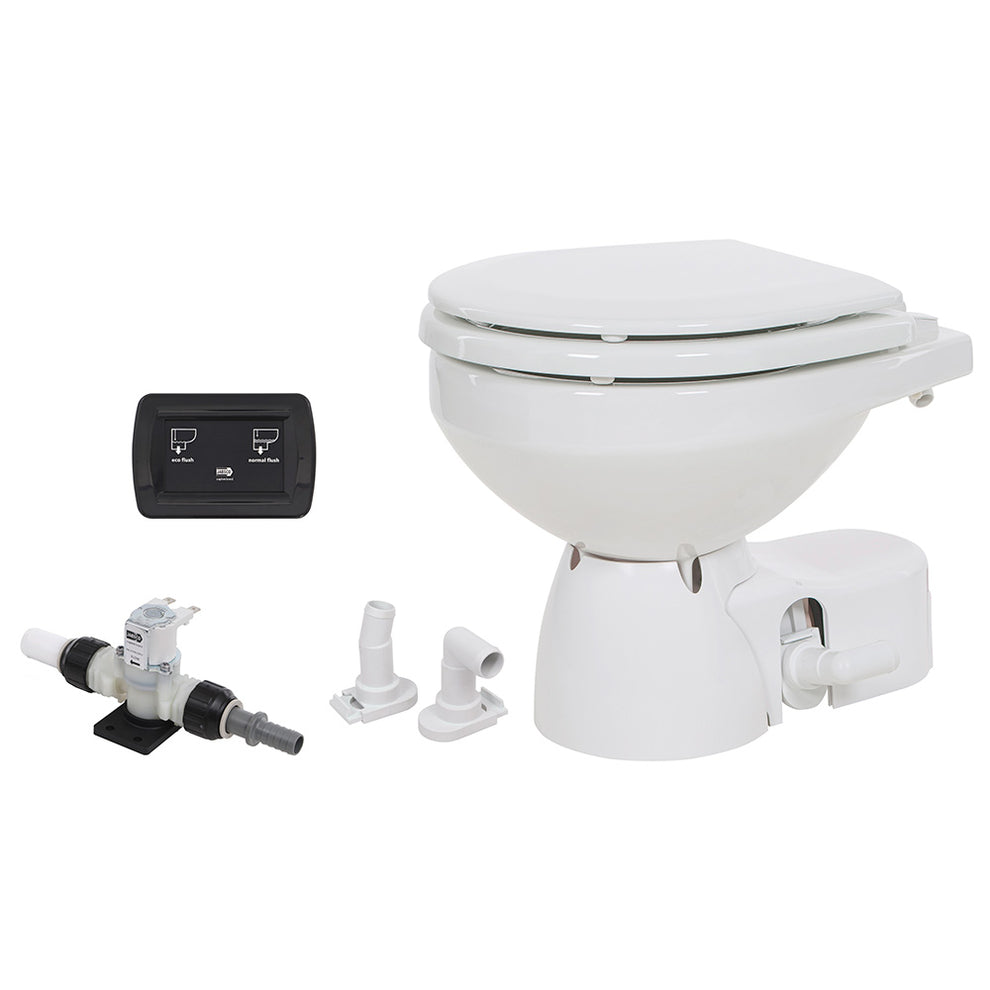

For on-board freshwater flushing, the Quiet Flush E2 includes a solenoid valve, quick-connect port fittings, ½ inch (15mm) inlet, ¾ inch (19mm) outlet, and integral mesh filter. A double check valve protects against potable water contamination, and it’s mountable in any orientation.
