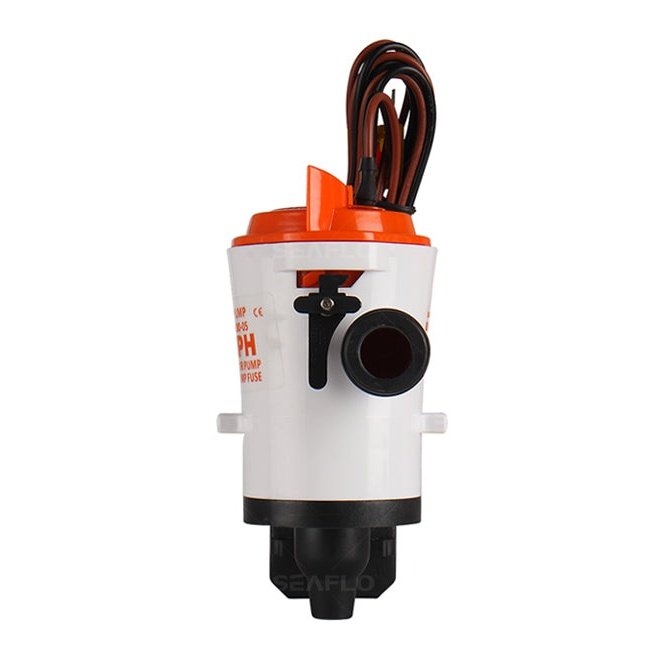

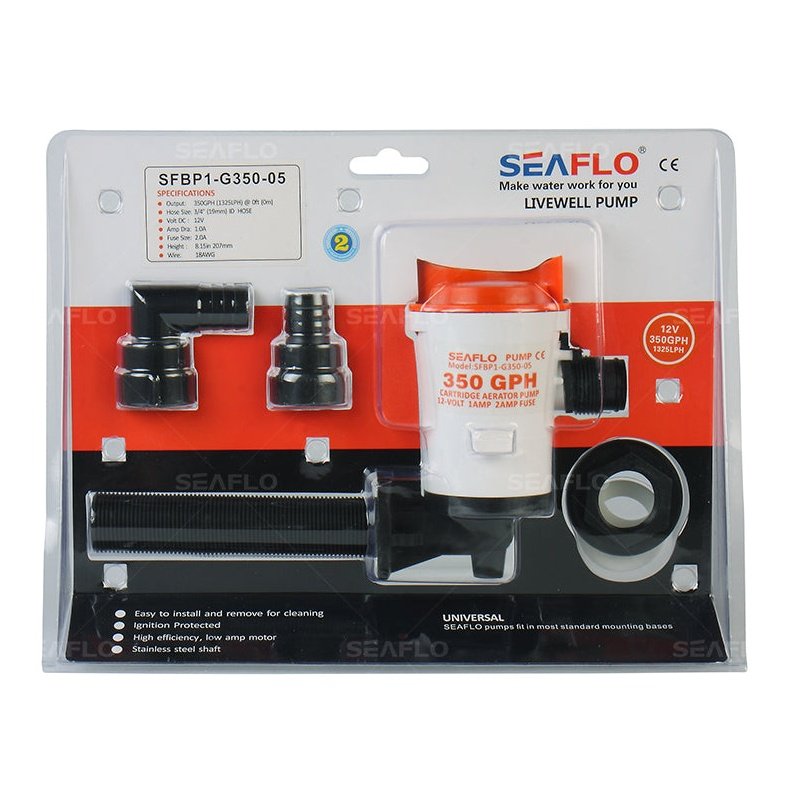

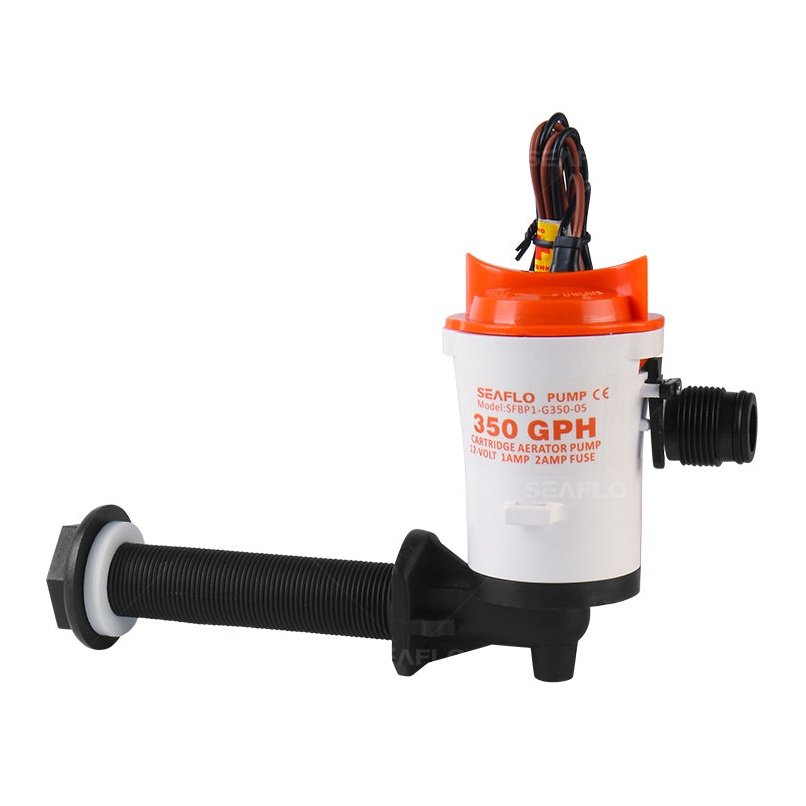

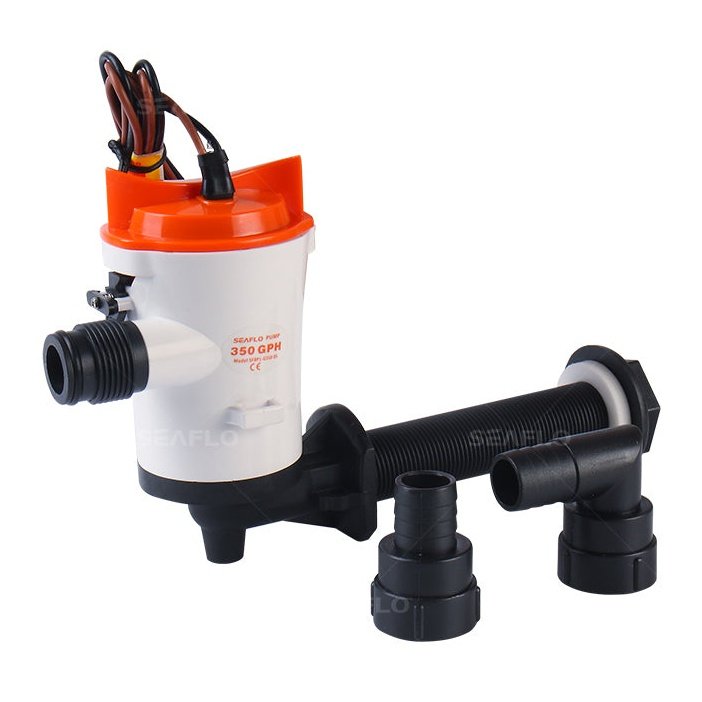

05 Series 350GPH Seaflo Baitwell/ Livewell Pump
05 Series 350GPH Seaflo Baitwell/ Livewell Pump
SKU: Part Number: SFBP1-G350-05
12 in stock
Description & Specification
The Livewell / Baitwell pumps are built on SEAFLO unsurpassed quality and leadership in pump design and technology. The innovative design includes many new and exciting features including: a quick,one hand push button motor cartridge removal system and threaded nylon hose barb attachments which allow for various hose mounting options. Other features include a built-in dual port option, water-cooled housing and positive snap motor cartridge locking mechanism. Pumps are available in 350 GPH, 600 GPH and 800 GPH and are fitted for transom or seacock mounting options.
More Features
- 2 Year Warranty
- Easy, click-in replaceable motor
- Built in through-hull
- Water-cooled motor housing
- 110F (43C) temperature limits
- Entirely submersible
- Run dry capable for normal workloads
- Quiet operation
- Stainless steel shaft
Dimesions
STANDARD PUMP CONFIGURATIONS
Model | Flow Rate | Voltage | Max Draw | Fuse Amps | Head | Wire Lead | Outlet Dia | N.W. / G.W. |
SFBP1-G350-05 | 421GPH | 12 V | 1.6 A | 2.0 A | 3.9' (1.2 m) | 3' (1 m) | 3/4" | 0.4/0.5 kg |
PERFORMANCE
Voltage(V)
|
Current(A)
|
Flow
|
Head(M)
|
|
GPH |
LPH |
|||
OPEN | 0.72 | 421 | 1593 | 0 |
12 | 1.45 | 288 | 1090 | 0.5 |
12 | 2.08 | 113 | 428 | 1 |
12 | 2.2 | 0 | 0 | 1.2 |
Key | Description | Quantity |
1 |
Wire Buckle |
1 |
2 |
Pump Cover |
1 |
3 |
Motor Bracket |
1 |
4 |
Motor |
1 |
5 |
Seal Base |
1 |
6 |
Seal 1 |
1 |
7 |
Motor Cover |
1 |
8 |
Seal 2 |
3 |
9 |
Impeller |
1 |
10 |
Spring Knob |
1 |
11 |
Pump Housing |
1 |
12 |
90 Degree Threaded Hose |
1 |
??? |
Tapping Screw |
1 |
??? |
Tablet Button |
1 |
??? |
Spring |
1 |
??? |
Button |
1 |
