Stainless Steel Thru-Hull Short Standard Straight Barbed

Attwood

Stainless Steel Thru-Hull Short Standard Straight Barbed

66540-3

Pre-order

RM153.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months.

Polish your image with these beautiful, durable stainless steel fittings designed for long-lasting performance on the water. Built to outlast plastic parts, these short, straight, barbed thru-hulls offer strength, corrosion-resistance, and easier installs—ideal for tight spaces and above-the-waterline applications.

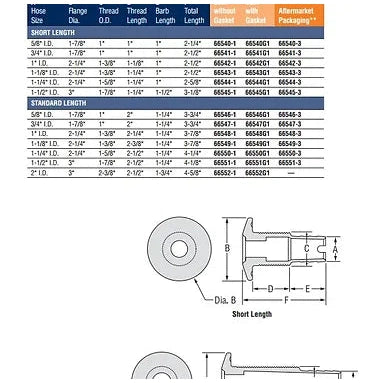

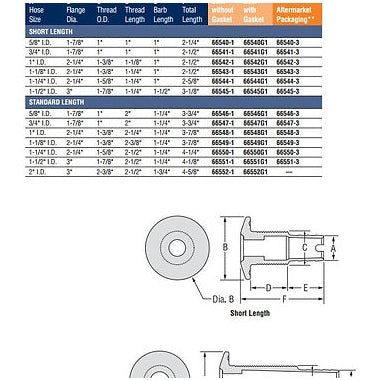

Hose ID 5/8 Inch 3/4 Inch 1 Inch 1 1/8 Inch 1 1/4 Inch 1 1/2 Inch

Hose size: (inch) 1-1/2" inner diameter
Flange Diameter: (inch) 3"
Thread O.D. (outside diameter): (inch) 1-7/8"
Thread Length: (inch) 1-1/4"
Barb Length: (inch) 1-1/2"
Total Length: (inch) 3-1/8"
Install Hole Saw Size: (inch) 2"
Thread NPSM: (inch) 1-1/2"
Max Hull Thickness: (inch) 5/8"

1 x Stainless Steel Thru-Hull Short Standard Straight Barbed

Mirror-finish marine-grade stainless steel enhances appearance and durability
Lifetime corrosion resistance and weather-ready performance
Saves time and cleanup with a reliable one-piece gasket and smart sealing channel

Caution: Thru-Hull connectors are designed for installation above the water line only.

Rugged Stainless Construction

Cast from certified enhanced 316 Stainless Steel for strength and lifetime corrosion-resistance
All visible areas polished to a mirror finish, then passivated for additional protection
Thick steel sidewalls withstand continual stress and hose flexing

Solid Silicone Gasket

Dimensionally stable—will not deteriorate or shrink over time
Excellent resistance to UV and weather-aging
Watertight, fool-proof, one-piece seal
Eliminates the need to form and apply sealant or caulk
No more chemicals, solvent-soaked rags, or cleanup
Guaranteed good looks with perfect fit and concealment built into the gasket

Faster, Simpler Installation

A channel under the flange holds a bead of sealant for a trouble-free seal
Wrench flats or end notch provide a secure gripping surface—tighten from inside the hull
Barbed tail ends offer ample room for multiple clamps
Short thread design fits near corners and in confined areas
