Humminbird

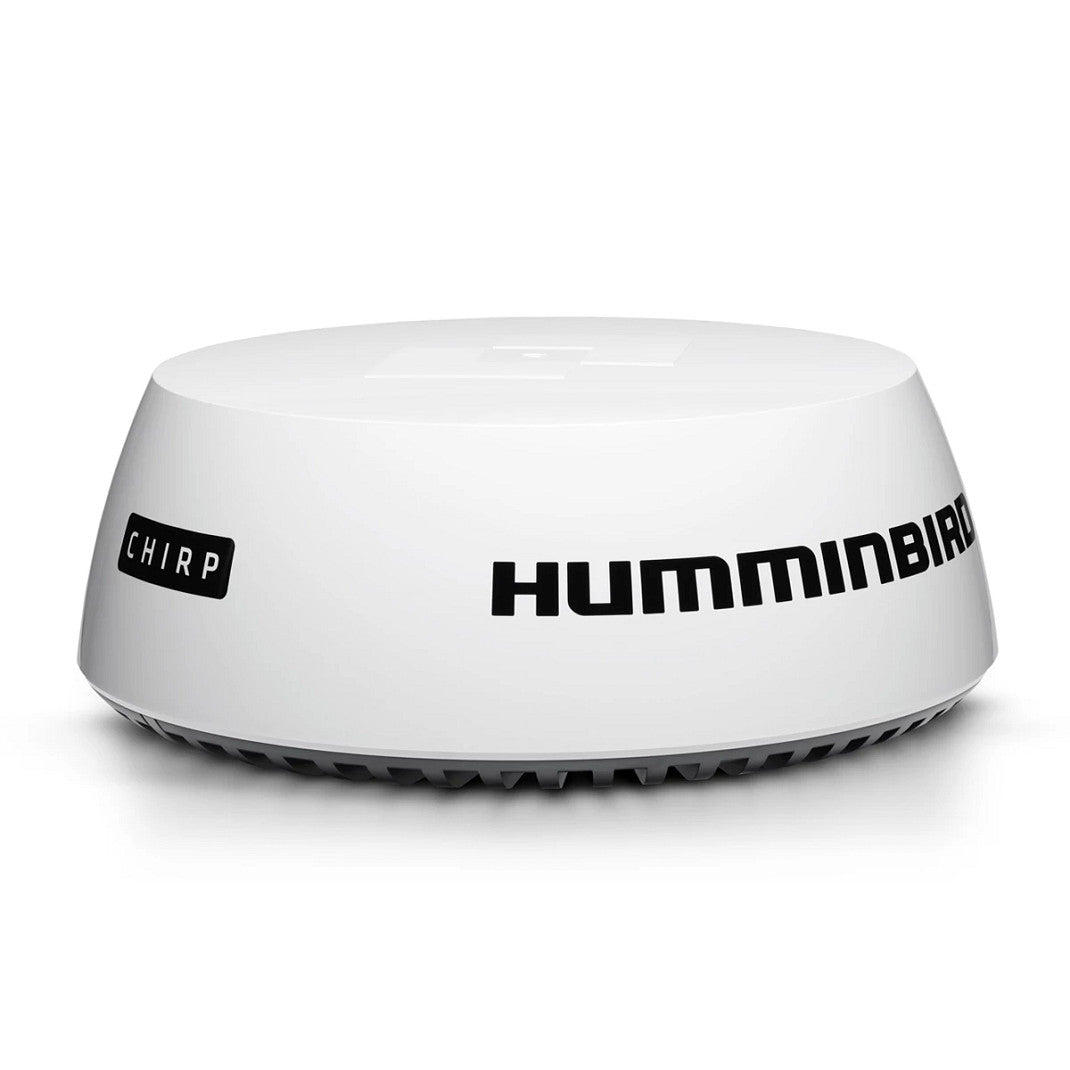

HB2124 CHIRP Radar

HB2124 CHIRP Radar

Part Number: 750013-1

Pre-Order

RM10,800.00
RM10,800.00
% Off Sold out
Shipping calculated at checkout.

Description & Specification

Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid-state radar. It delivers superior radar imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definition.

Features
  • Antenna Dimension - 21" Enclosed Dome; Antenna Type - Patch Array; Peak Power Output - 20 Watts, Transmit Frequency - 9354 to 9446 MHz
  • Beam width (nominal) - 4.9 Horizontal and 20 Vertical; Input Voltage - 12 or 24 VDC (Minimum - 10.8 Volts, Maximum - 31.2 Volts)
  • Networking - Ethernet; Maximum Range Scale - from 1/16 to 24 nautical miles; Power Consumption - Transmit mode - 17 Watts; Standby Mode - 7 Watts; Sleep Mode - 2 Watts
  • Duplexer - Circulator; Pulse Widths @ 3 dB - 40 ns to 14.7s; CHIRP Lengths - 400 ns to 20s; CHIRP Bandwidth - Up to 32 MHz
  • IF Bandwidth - 26 MHz; Noise - Less than 4 dB; Polarization - Horizontal
  • Data Cable Length: 32.8'
  • Power Cable Length: 32.8'
  • Waterproofing - IPX6
  • Weight - 12.3 lbs (5.6 kg)
  • Compatible with all SOLIX Series, all HELIX 12 Series, all HELIX 10 Series, all HELIX 9 Series, select networking HELIX 7 Series models (HELIX 7 CHIRP GPS G2N, HELIX 7 CHIRP DI GPS G2N, HELIX 7 CHIRP SI GPS G2N), all ONIX Series, all ION Series
  • 1-Year Limited Warranty

⚠️ IMPORTANT NOTE:
Product dimensions are subject to change without prior notice due to updates in manufacturer safety guidelines and standards. As a result, the size of the product delivered may vary slightly from the specifications provided at the time of order. We recommend reviewing the latest information before purchase to ensure compatibility. This policy is in place to prioritize your safety and the quality of our products.

Product images are for illustration purposes only and may vary based on your monitor’s resolution. Actual colors and details of the product may differ from what is displayed. Please consider this when making your purchase.
