B45-DT-HB 600W 50/200kHz Bronze Thru-Hull Transducer Humminbird 9-Pin Connector

Airmar B45-DT-HB 600W Thru-Hull Transducer Humminbird #9 Connector

Fits: All 800, 900 and 1100 series except 967 3D

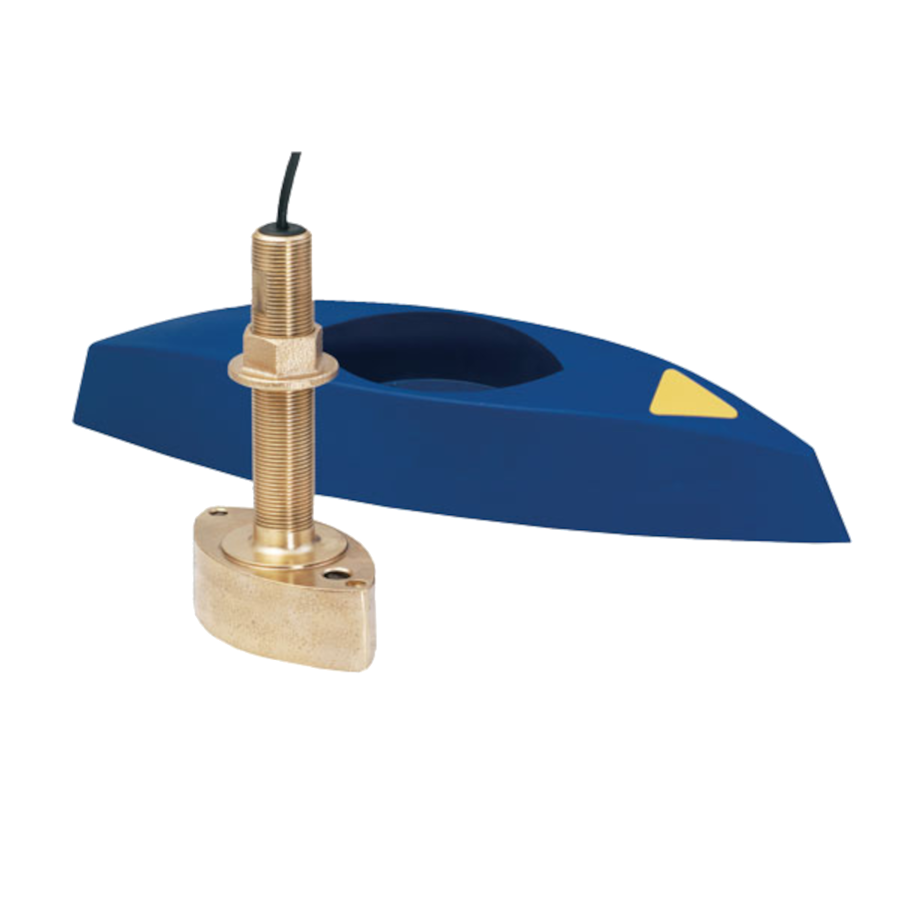

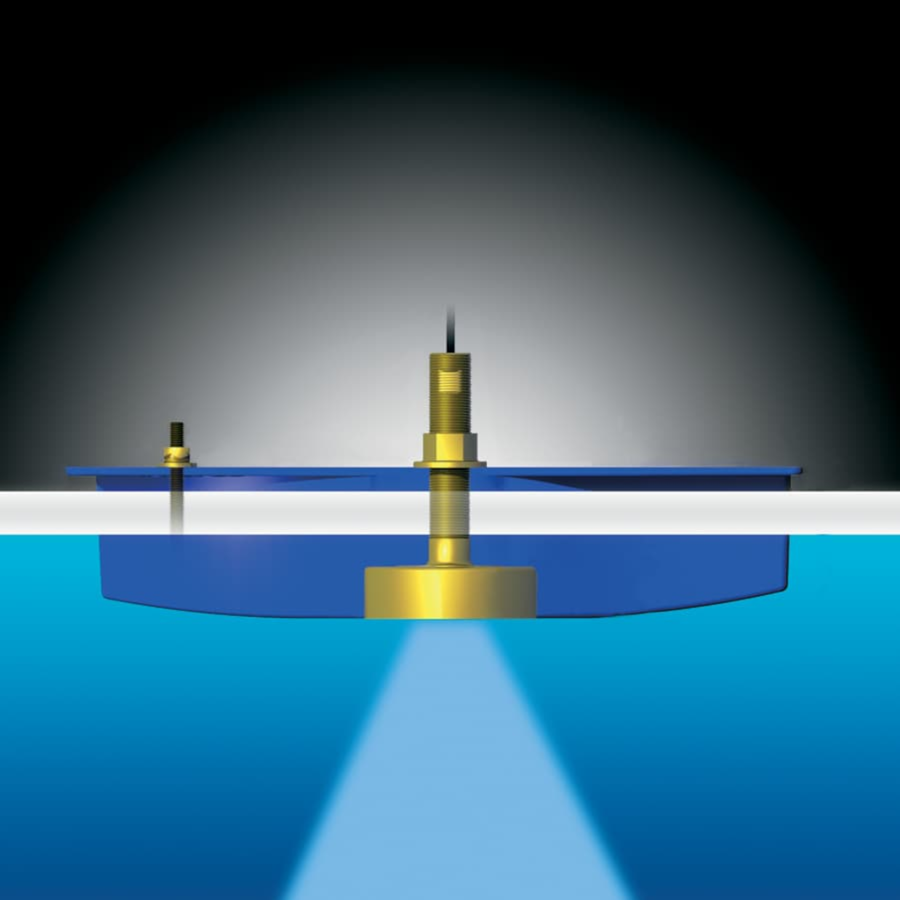

The B45 is our smallest and most economical, dual-frequency, bronze, stem transducer. Its streamlined shape and High Performance fairing block deflects aerated water from the transducer's face for strong return echoes and clear display images.

Downloads:

• Brochure / Specifications
• Installation Instructions (pdf)

Features:

• Bronze housing
• Depth and Temperature

• Recommended for planing-hull powerboats and cruising sailboats up to 9 m (30")
• Good sensitivity in a compact housing
• Fast-response water-temperature sensor provides 0.2C (0.1F)
• High-Performance Fairing included

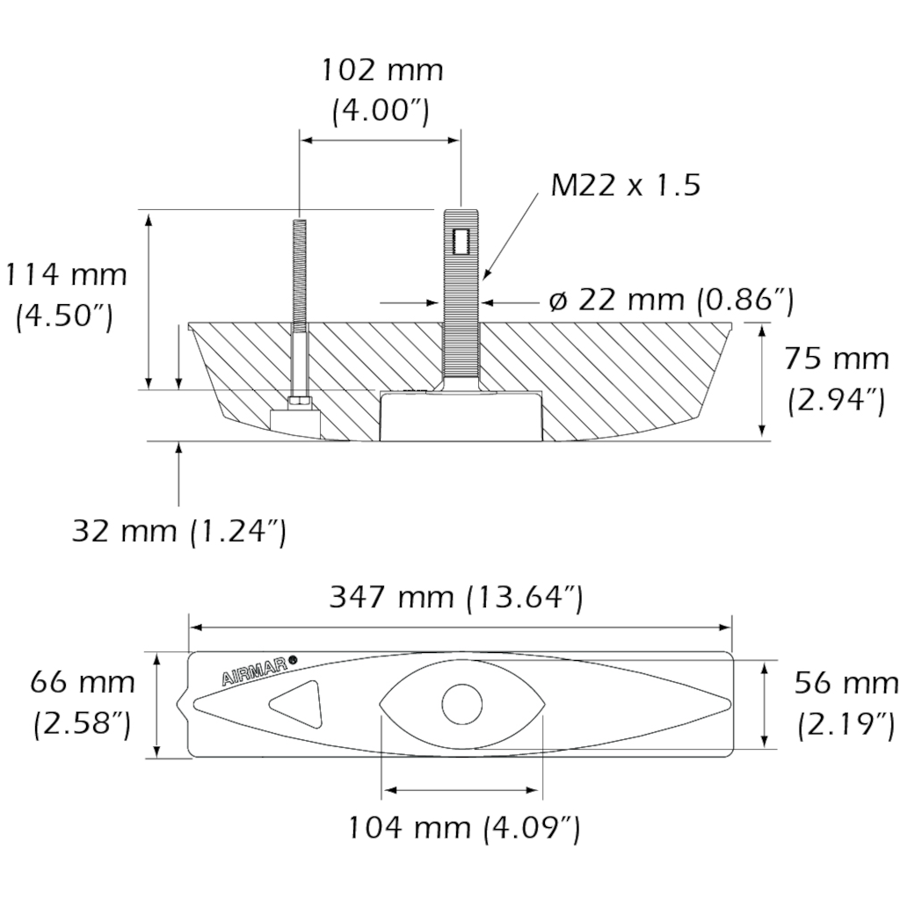

• Usable Shaft Length: ~92 mm (3.62)
• Standard fairing block (Airmar p/n 33-351-01)
• Frequency: 50/200 kHz
• Maximum Depth Range:
• 50 kHz 235 m to 353 m (800 to 1,200)
• 200 kHz118 m to 206 m (400 to 700)
• Cone: 50 kHz 45, 200 kHz 12
• RMS Power: 600 W
