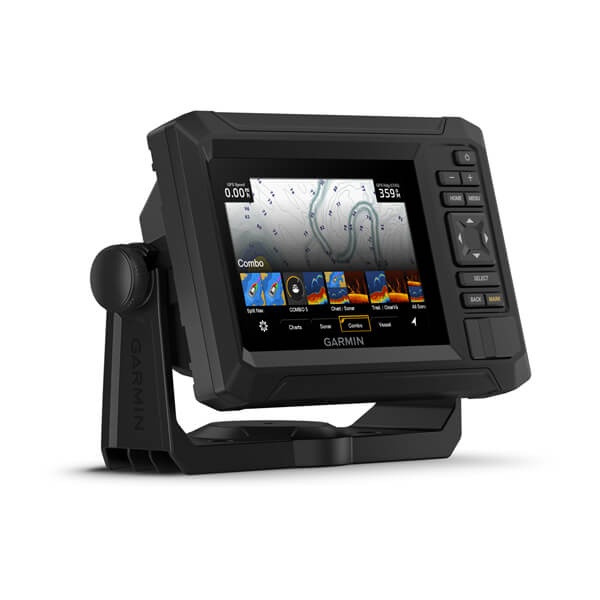

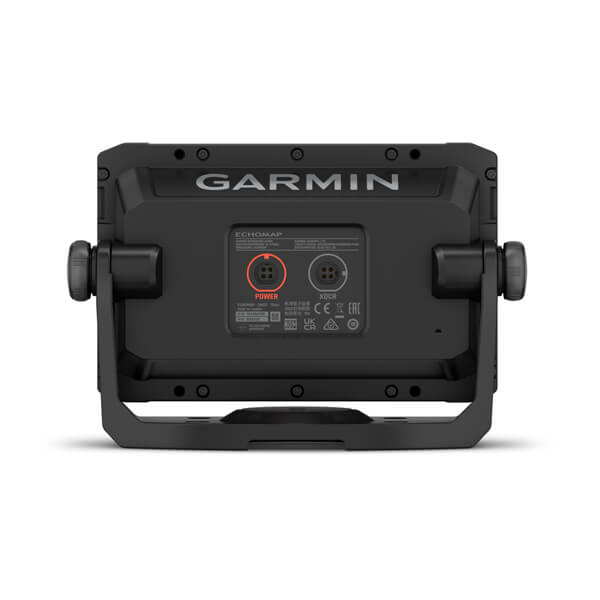

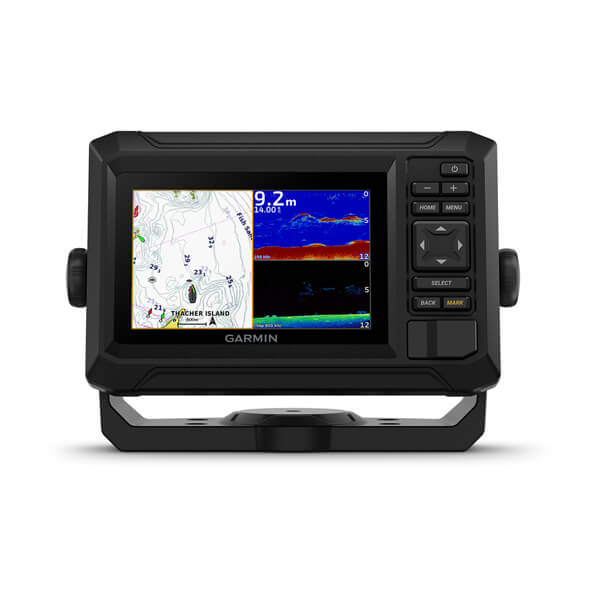

EchoMap UHD2 52CV With GT20-TM (+ BlueChart G3 Map)

Garmin

EchoMap UHD2 52CV With GT20-TM (+ BlueChart G3 Map)

SKU: 010-02589-001
Pre Order
RM3,460.00 RM3,740.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 5” chartplotters with clear, crisp sonar and mapping.
SIZES & DIMENSIONS
  • Dimension: 7.4" x 4.8" x 2.4" (18.8 x 12.2 x 6.2 cm)
  • Weight: 1.1 lbs (0.5 kg)
WHAT'S IN THE BOX

With Transducer

  • ECHOMAP UHD2 (device varies depending on selection)
  • GT20-TM transducer
  • Power/data cable
  • Tilt mount
  • Flush mount
  • Hardware
  • Documentation
FEATURES

The bright 5” keyed display is made for convenience.

Get double the views1 with Garmin CHIRP traditional and ClearVü scanning sonars.

What’s under the water looks even better with high-contrast vivid color palettes.

Enjoy No. 1 in mapping3 with our LakeVü g3 and BlueChart® maps with Navionics® data.

Know the waters, catch more fish.

SONAR SUPPORT

With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide.

VIVID COLOR PALETTES

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

BUNDLE YOUR TRANSDUCER

Your ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.
SPECIFICATIONS

General

  • Dimension: 7.4" x 4.8" x 2.4" (18.8 x 12.2 x 6.2 cm)
  • Weight: 1.1 lbs (0.5 kg)
  • Water rating: IPX7
  • Display Type: WVGA, IPS
  • Display Size: 4.3" x 2.6" (10.9 x 6.6 cm)
  • Display Resolution: 800 x 480 pixels
  • Mounting Options: Bail or flush
  • Input: yes

Maps & Memory

  • Accepts Data Cards: 1 microSD™ card; 32 GB maximum size
  • Waypoints: 5,000
  • Track points: 50,000
  • Tracks: 50 saved tracks
  • Navigation Routes: 100

Sensors

  • GPS: yes
  • Galileo: yes
  • Has built-in receiver: yes
  • Receiver: 5 Hz
  • Supports WAAS: yes

Built-in Maps

  • Built-in Auto Guidance+: yes (downloadable via ActiveCaptain app)
  • Garmin Navionics+ Inland & Coastal: yes (see Additional)
  • Garmin Navionics+ (Coastal): yes (see Additional)
  • Garmin Navionics+ (Inland): yes (see Additional)

Optional Map Support

  • BlueChart g3: yes
  • BlueChart g3 Vision: yes
  • LakeVü g3: yes
  • LakeVü g3 Ultra: yes
  • Garmin Navionics+: yes
  • Garmin Navionics Vision+: yes
  • TOPO 100K: yes
  • Standard Mapping: yes
  • Garmin Quickdraw Contours: yes

Electrical Features

  • Power Input: 9 to 18 Vdc
  • Typical current draw at 12 Vdc: 1.0 A
  • Maximum current draw at 12 Vdc: 1.5 A
  • Maximum power usage at 10 Vdc: 18W

Sonar Features

  • Displays sonar: yes
  • Power output: 500 W
  • Traditional sonar (dual frequency/beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
  • ClearVü: Built-in 260/455/800/1000/1200 kHz

Networking & Connections

  • 4-pin transducer ports: 1

Additional

  • Garmin Navionics+ (inland and coastal): 55cv Canada, 55cv Australia/New Zealand
  • Garmin Navionics+ (coastal): 54cv U.S., 55cv U.K./Ireland
  • Garmin Navionics+ (inland): 53cv U.S. lakes
  • Tide tables: 53cv, 54cv, 55cv, 73cv, 74cv, 75cv
