e-Series Battery Switch

Blue Sea System

e-Series Battery Switch

SKU: 9004E
Pre Order
RM581.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Switches a single battery to a single load group and Switches isolated battery banks to all loads or combines battery banks to all loads
AFD
Switching Action
SIZES & DIMENSIONS
WHAT'S IN THE BOX
FEATURES

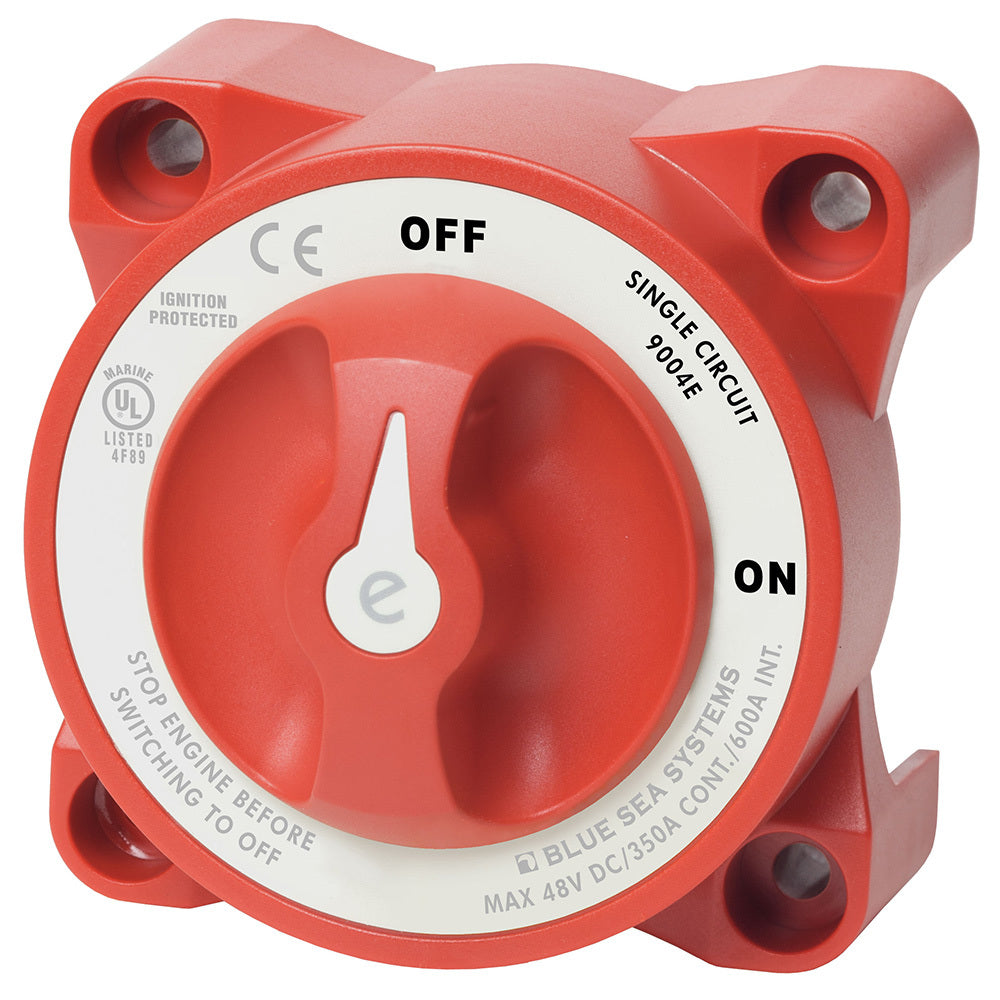

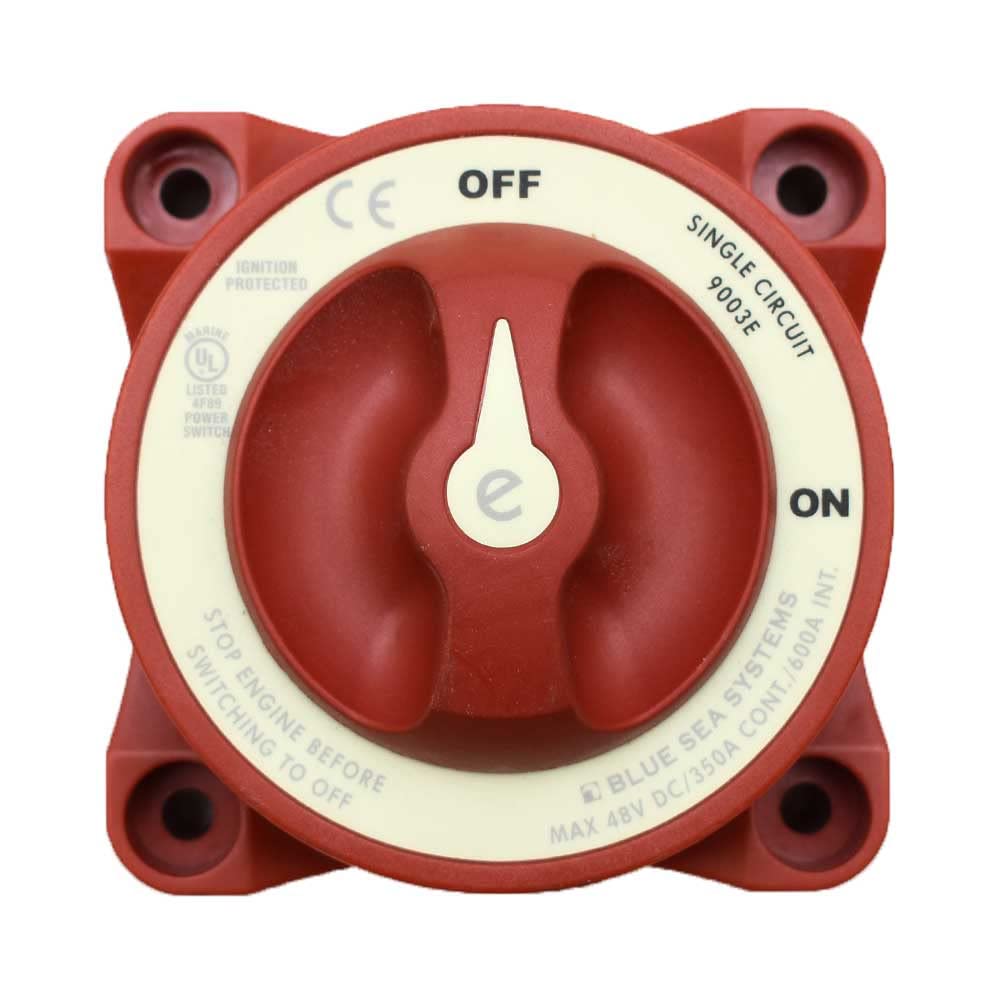

Switches a single battery to a single load group

  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting

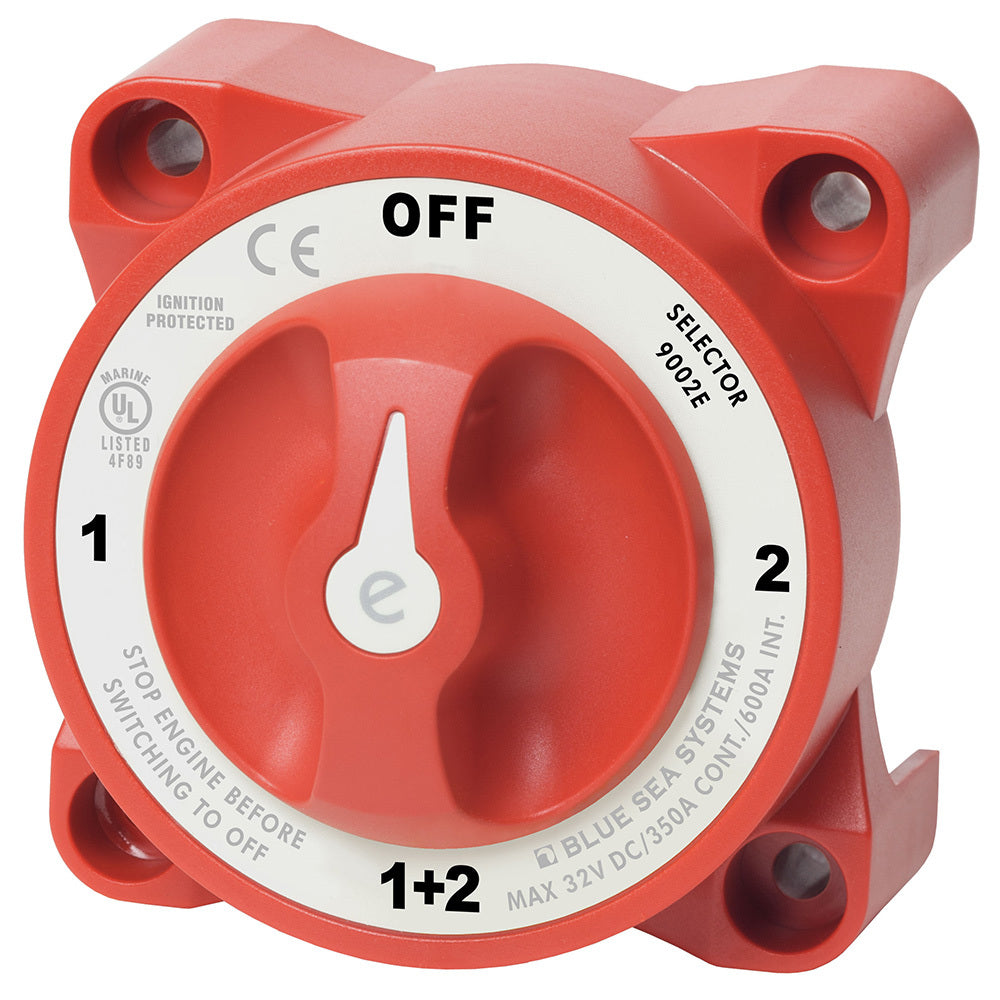

Switches isolated battery banks to all loads or combines battery banks to all loads

  • Make-before-break contact design allows switching between battery banks without power interruption
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
SPECIFICATIONS

Switch Type : Single Circuit ON-OFF / Selector 4 Position

Color: Red

Switch Positions: 2 or 4

Battery Combine: No / Yes

Alternator Field Disconnect : No

Maximum Voltage: 32V DC

Terminal Stud Torque: 140 in-lb (15.82 Nm)

Continuous Rating : 325A

Intermittent Rating : 600A (5 min)

Starting Rating 30 sec : 1200A

Battery Inputs: 2

Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)

Cable Size to Meet Ratings: 4/0 AWG (120mm²)

Mounting Holes: Accept 1/4" (M6) Screw

Stud Material: Tinned Copper

Switching Rating: 25A

Terminal Stud Size: 3/8" - 16 (M10)

Weight: 1.15lb (0.52 kg)

Weight: 1.30lb (0.59 kg)
DOCUMENTATIONS

Instructions

Mounting Diagram
