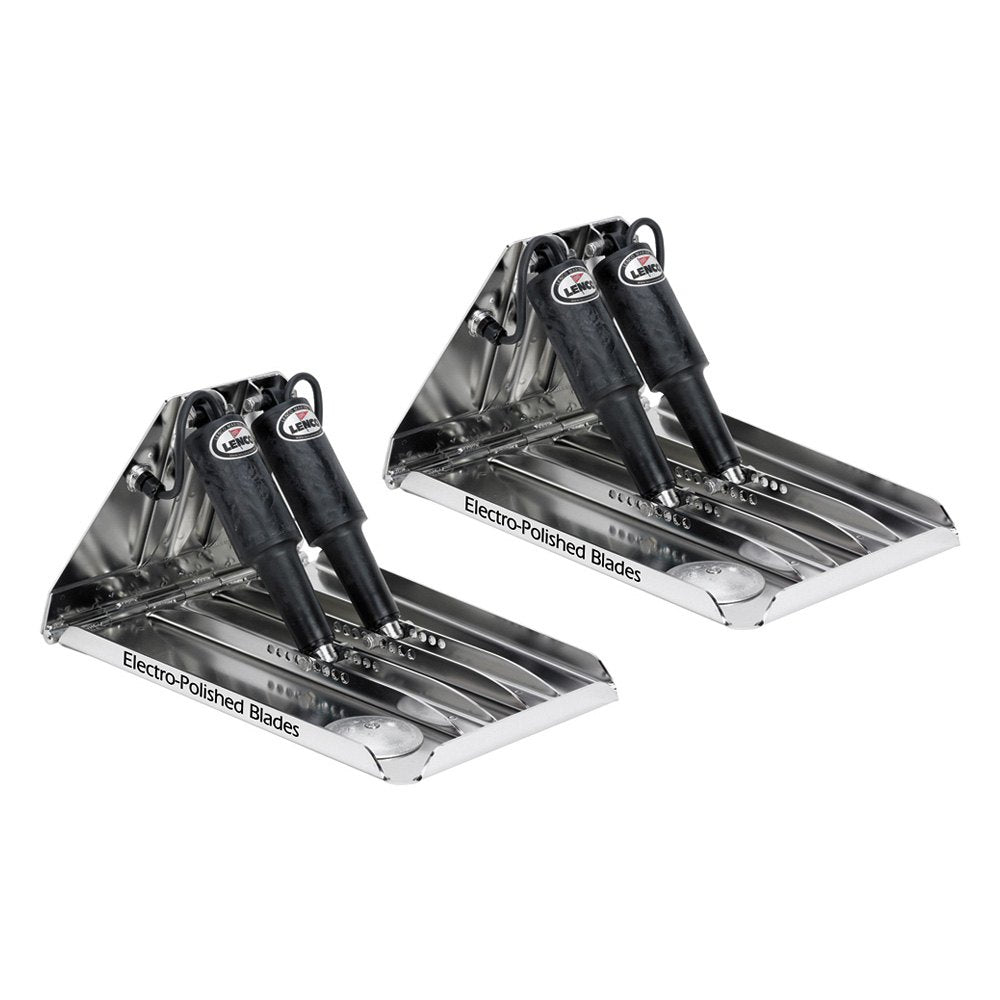

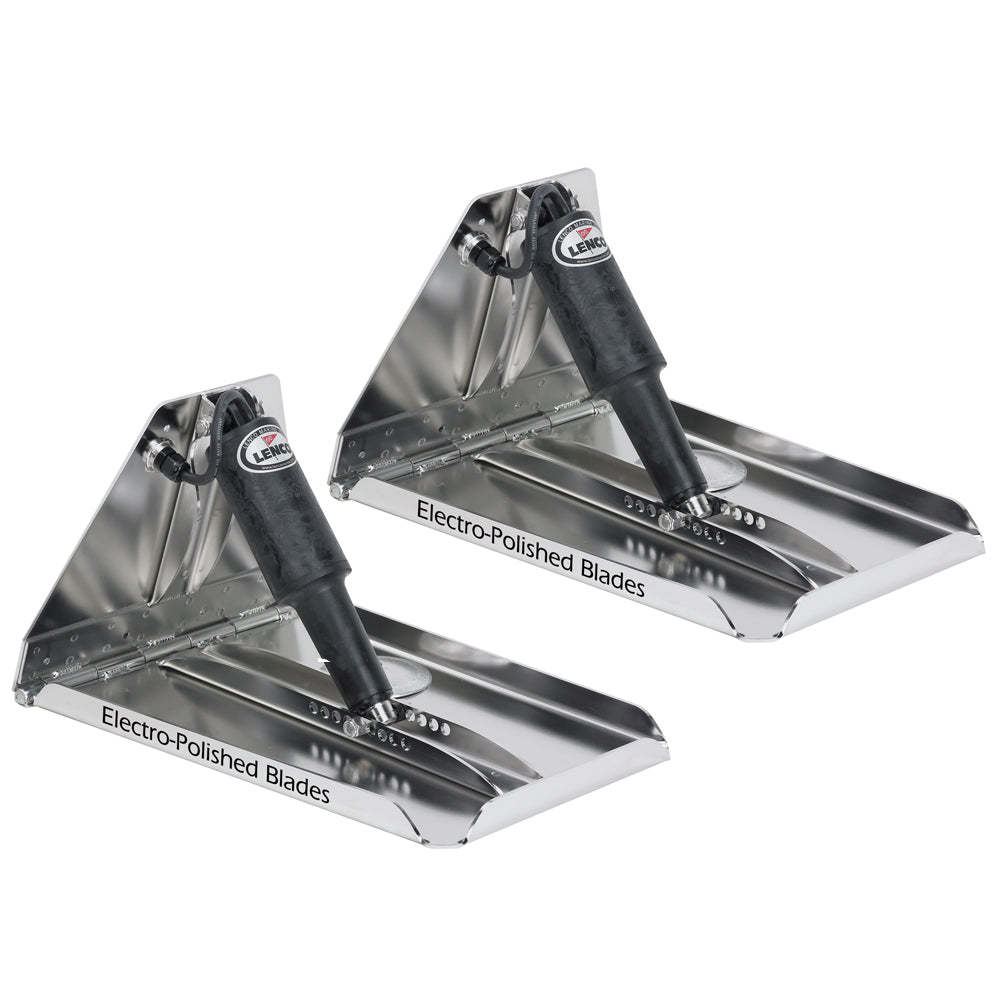

Extreme Duty (XD) Performance Trim Tab Kits

Lenco Marine

Extreme Duty (XD) Performance Trim Tab Kits

SKU: 15045-101
Pre Order
RM11,530.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

This kit is similar to our Heavy Duty Performance series with a thicker, stronger blade for those boaters who run hard in extreme conditions.
Actuator
Trim Tab Size
Boat Length
SIZES & DIMENSIONS
WHAT'S IN THE BOX

Kits include:

  • (2) 10-gauge 304 stainless steel Electro-Polished blades
  • (2) 15056-001 XD Extreme Duty actuators with 6' (1.8 m) leads & Deutsch connectors

Note: Boat-mounting hardware to be supplied by the customer.
Note: Actuator extension harnesses not in kits, must be purchased separately (2 required for single actuator and 4 required for dual actuator). See page 56.
FEATURES

Blades are constructed of Electro-Polished 10-gauge (3.4 mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 3/8" (9.5 mm) diameter hinge pin. Full transom back plate with mechanical strain-relief cable seals, welded on stainless steel upper & adjustable lower actuator mounting brackets, 3/8" (9.5 mm) stainless steel mounting bolts. 3.75" (9.5 cm) sacrificial anodes installed.
SPECIFICATIONS
DOCUMENTATIONS

View catalog
