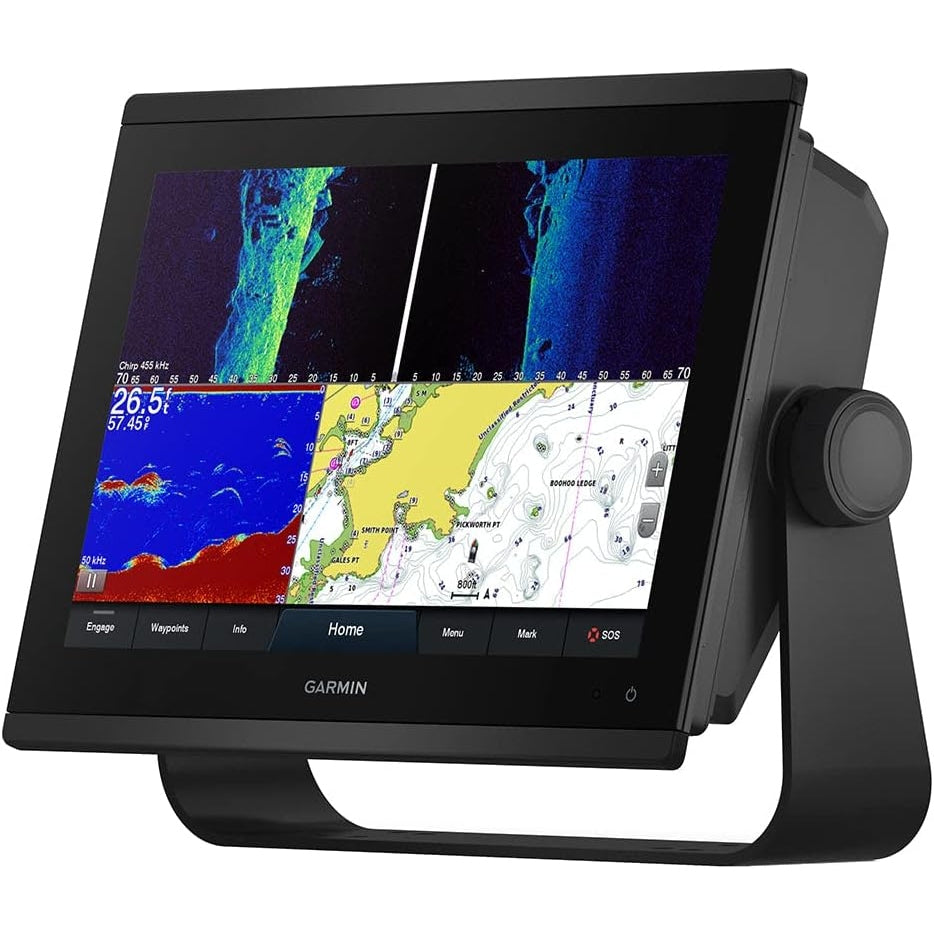

GPSMAP® 1223/1243

Garmin

GPSMAP® 1223/1243

SKU: 010-02367-02
Pre Order
RM18,720.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

GET A SHARPER VIEW FROM YOUR CONNECTED HELM

With its sleek design, powerful processing and upgraded IPS display, this advanced 7”, 9”, 12” or 16” chartplotter integrates seamlessly into your Garmin marine system.
Model
Display Size
Charts & Maps, Sonar Type and Radar
SIZES & DIMENSIONS

12.1” x 8.9” x 3.2” (30.8 x 22.8 x 8.2 cm)
WHAT'S IN THE BOX
  • GPSMAP 1223xsv chartplotter
  • microSD™ card preinstalled
  • Power cable
  • NMEA 2000® T-connector
  • NMEA 2000 drop cable (2 meters)
  • 8-pin transducer to 12-pin sounder adapter cable
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation

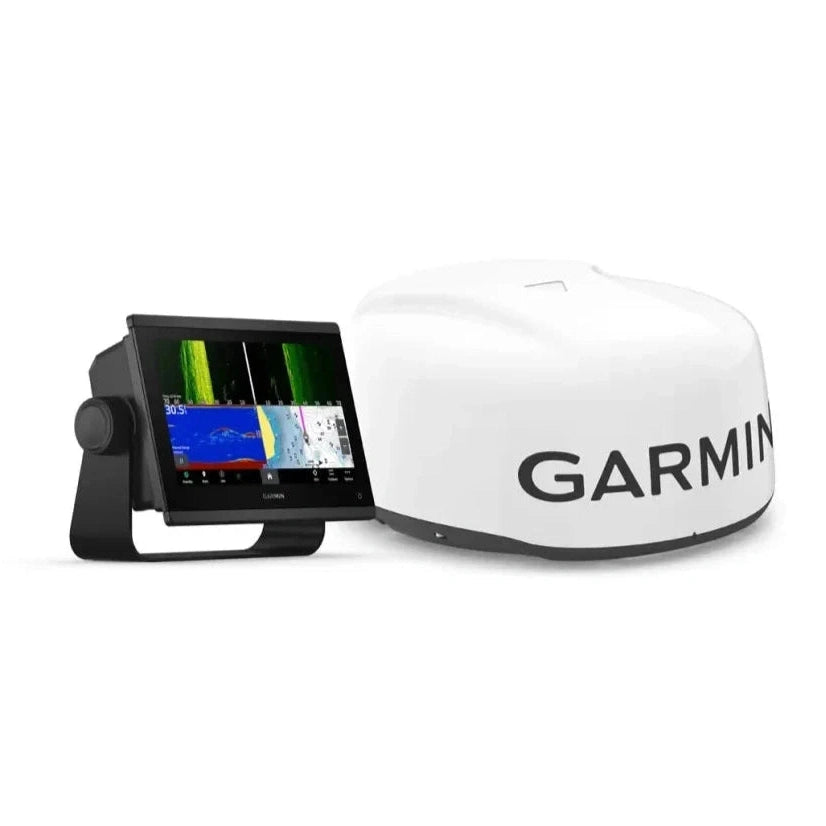

With GMR 18 HD3 Radome

Above contents plus:

  • GMR 18 HD3 dome radar
  • Power cable (49.21 ft)
  • Network cable (49.21 ft)
  • Mounting hardware kit and template
  • Installation instructions
FEATURES
  • Easily integrate with more engines.
  • Connect to compatible third-party devices with digital switching and OneHelm™ integrations.
  • Easily build your marine system by using our advanced network connectivity.
  • Navigate any waters with preloaded Garmin Navionics+™ charts on select models.
  • See below your boat with built-in sonar capabilities on select models.
  • Manage your marine experience from nearly anywhere1.
SPECIFICATIONS

General

  • Dimension: 12.1” x 8.9” x 3.2” (30.8 x 22.8 x 8.2 cm)
  • Weight: 6.6 lbs (3.0 kg)
  • Water Rating: IPX7
  • Touchscreen: Yes
  • Display Type: WXGA
  • Display Size: 10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)
  • Display Resolution: 1280 x 800 pixels
  • Mounting Options: Bail, Flush Or Flat (Garmin Does Not Offer Any Hardware Or Accessories For A Flat-Mount Installation. Professional Tools And Knowledge Is Required.)
  • Input: Touchscreen



Maps & Memory

  • Accepts Data Cards: 2 Microsd Cards (Back Of Unit)
  • Waypoints: 5000
  • Track Points: 50,000
  • Tracks: 50 Saved Tracks
  • Navigation Routes: 100



Sensors

  • GPS: Yes
  • Glonass: Yes
  • Galileo: Yes
  • Has Built-In Receiver: Yes
  • Receiver: 10 Hz
  • Nmea 2000 Compatible: Yes
  • Nmea 0183 Compatible: Yes
  • Supports Waas: Yes



Built-In Maps

  • Built-In Auto Guidance+: Yes
  • Garmin Navionics+ Inland & Coastal: Yes
  • Tide Tables: Yes



Optional Map Support

  • Garmin Navionics+™: Yes
  • Garmin Navionics Vision+™: Yes
  • Topo 100k: Yes
  • Standard Mapping: Yes
  • Garmin Quickdraw Contours: Yes
  • Raster Chart Support: Yes



Chartplotter Features

  • Smart Mode Compatible: Yes
  • Ais: Yes
  • Dsc: Yes
  • Supports Fusion-Link™ Compatible Radios: Yes
  • Gsd Black Box Sonar Support: Yes
  • Gcv Black Box Sonar Support: Yes
  • Activecaptain® Compatible: Yes
  • Grid (Garmin Remote Input Device) Compatible: Yes
  • Wireless Remote Compatible: Yes
  • Sailing Features: Yes
  • Spoken Audio Alerts: Yes
  • Onehelm Support: Yes



Electrical Features

  • Power Input: 10 To 32 Vdc
  • Typical Current Draw At 12 Vdc: 1.68 A
  • Maximum Current Draw At 12 Vdc: 3.56 A
  • Maximum Power Usage At 10 Vdc: 43.0W



Sonar Features

  • Displays Sonar: Yes
  • Power Output: 1 kW
  • Traditional Sonar (Dual Frequency/Beam): built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
  • Clearvü: Built-in 260/455/800/1000/1200 kHz
  • Sidevü: Built-in 260/455/800/1000/1200 kHz
  • Panoptix™ Sonar: Yes
  • Livescope: Yes



Connections

  • NMEA 2000® Ports: 1
  • NMEA 0183 Input (Rx) Ports: 1
  • NMEA 0183 Output (Tx) Ports: 1
  • Video Input Ports: 1 (BNC Composite)
  • Video Output Ports: 1 HDMI
  • J1939 Ports: 1
  • Garmin Marine Network Ports: 1
  • USB Ports: Yes
  • Bluetooth® Pairing: Yes
  • Ant® (Connectivity): Yes
  • Garmin Wi-Fi Network (Local Connection): Yes
DOCUMENTATIONS

See the world below.

Get built-in Ultra High-Definition SideVü™ and ClearVü™ scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. The GPSMAP X3 chartplotter series also supports 1 kW traditional sonar capabilities.

Pair with Panoptix™ or LiveScope™ easy-to-interpret live sonar (transducer required, sold separately) to see all around your boat in real time.
