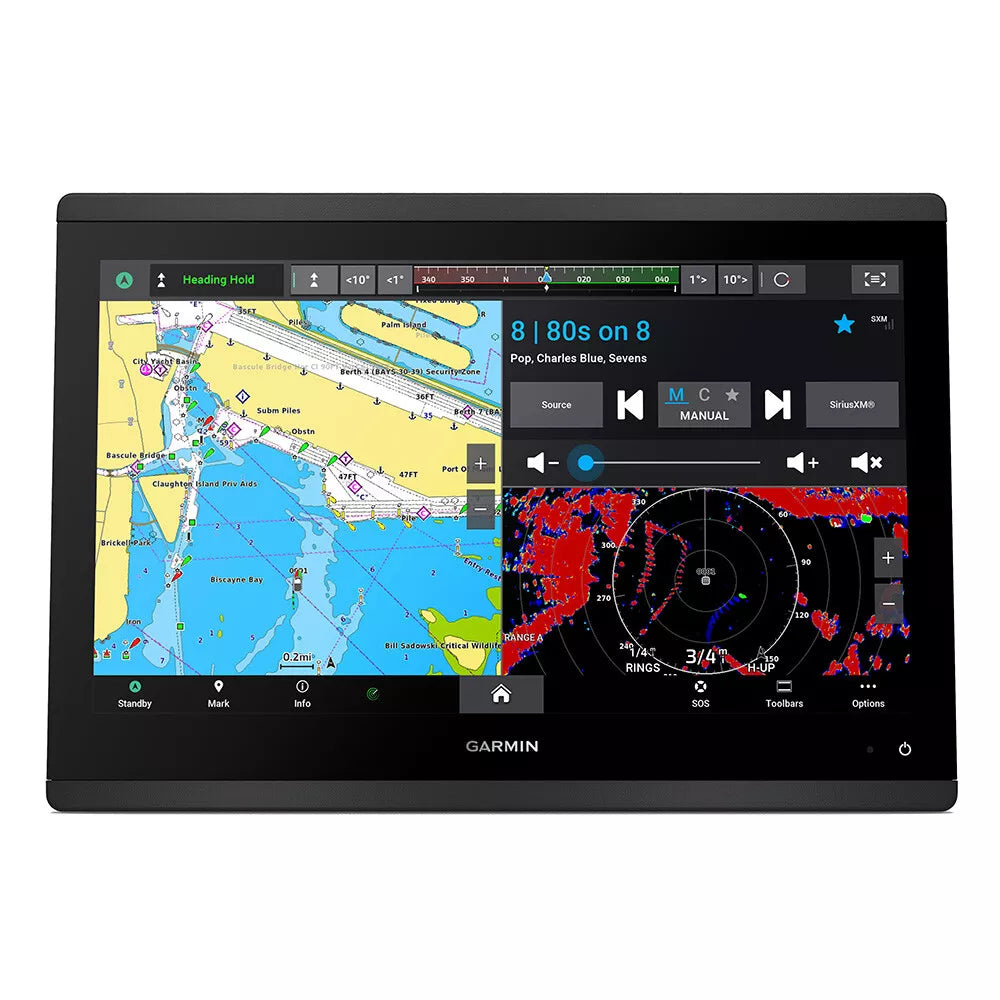

GPSMAP® 1623/1643

Garmin

GPSMAP® 1623/1643

SKU: 010-02919-00

Pre Order

RM29,952.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

GET A SHARPER VIEW FROM YOUR CONNECTED HELM

With its sleek design, powerful processing and upgraded IPS display, this advanced 7”, 9” or 12” chartplotter integrates seamlessly into your Garmin marine system.

Model GPSMAP® 1623 GPSMAP® 1623xsv GPSMAP® 1643xsv GPSMAP® 1643

Display 16"

Charts & Maps, Sonar Type and Radar Worldwide Basemap / No / No Worldwide Basemap / SIDEVÜ, CLEARVÜ and Traditional CHIRP / No Garmin Navionics+ / SIDEVÜ, CLEARVÜ and Traditional CHIRP / No Garmin Navionics+ / No / No

15.1” x 10.3” x 3.0” (38.4 x 26.2 x 7.6 cm)

Selected GPSMAP chartplotter
microSD™ card preinstalled
Power cable
Flush mount kit with gasket
Protective cover
Trim piece snap covers
Backbone/drop cable (2 meters) and T-connector for the NMEA 2000® network
Documentation

Easily integrate with more engines.

Connect to compatible third-party devices with digital switching and OneHelm™integrations.

Easily build your marine system by using our advanced network connectivity.

Navigate any waters with preloaded Garmin Navionics+™charts on select models.

See below your boat with built-in sonar capabilities on select models.

Manage your marine experience from nearly anywhere1.

General

Dimension: 15.1” x 10.3” x 3.0” (38.4 x 26.2 x 7.6 cm)
Weight: 9.7 lbs (4.4 kg)
Water Rating: IPX7
Display Type: FHD, IPS
Display Size: 13.6" x 7.7"; 15.6" diagonal (34.5 cm x 19.5 cm; 39.7 cm diagonal)
Display Resolution: 1920 x 1080 pixels
Mounting Options: Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Input: Touchscreen

Maps & Memory

Accepts Data Cards: 2 microSD cards (back of device)
Waypoints: 5000
Track Points: 50,000
Tracks: 50 Saved Tracks
Navigation Routes: 100

Sensors

GPS: Yes
GLONASS: Yes
Has Built-In Receiver: Yes
Receiver: 10 Hz
NMEA 2000 Compatible: Yes
NMEA 0183 Compatible: Yes
Supports Waas: Yes

Built-In Maps

Built-In Auto Guidance+: Yes
Garmin Navionics+ Inland & Coastal: Yes
Tide Tables: Yes

Optional Map Support

Garmin Navionics+™: Yes
Garmin Navionics Vision+™: Yes
Topo 100k: Yes
Standard Mapping: Yes
Garmin Quickdraw Contours: Yes
Raster Chart Support: Yes

Chartplotter Features

Smart Mode Compatible: Yes
AIS: Yes
DSC: Yes
Supports Fusion-Link™ Compatible Radios: Yes
GSD Black Box Sonar Support: Yes
GCV Black Box Sonar Support: Yes
Activecaptain® Compatible: Yes
Grid (Garmin Remote Input Device) Compatible: Yes
Wireless Remote Compatible: Yes
Sailing Features: Yes

Electrical Features

Power Input: 10 To 32 Vdc
Typical Current Draw At 12 Vdc: 2.9 A
Maximum Current Draw At 12 Vdc: 3.73 A
Maximum Power Usage At 10 Vdc: 46.0w

Sonar Features

Displays Sonar: Yes
Power Output: 1 Kw
Traditional Sonar (Dual Frequency/Beam): Built-In (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)
Clearvü: Yes With Chirp (Built-In)
Sidevü: Yes With Chirp (Built-In)
Panoptix™ Sonar: Yes
Livescope: Yes

Connections

NMEA 2000® Ports: 1
NMEA 0183 Input (Rx) Ports: 1
NMEA 0183 Output (Tx) Ports: 1
Video Input Ports: 1 (BNC Composite)
Video Output Ports: 1 HDMI
Garmin Marine Network Ports: 2
12-Pin Transducer Ports: 1
Bluetooth® Pairing: Yes
Ant® (Connectivity): Yes
Garmin Wi-Fi Network (Local Connection): Yes

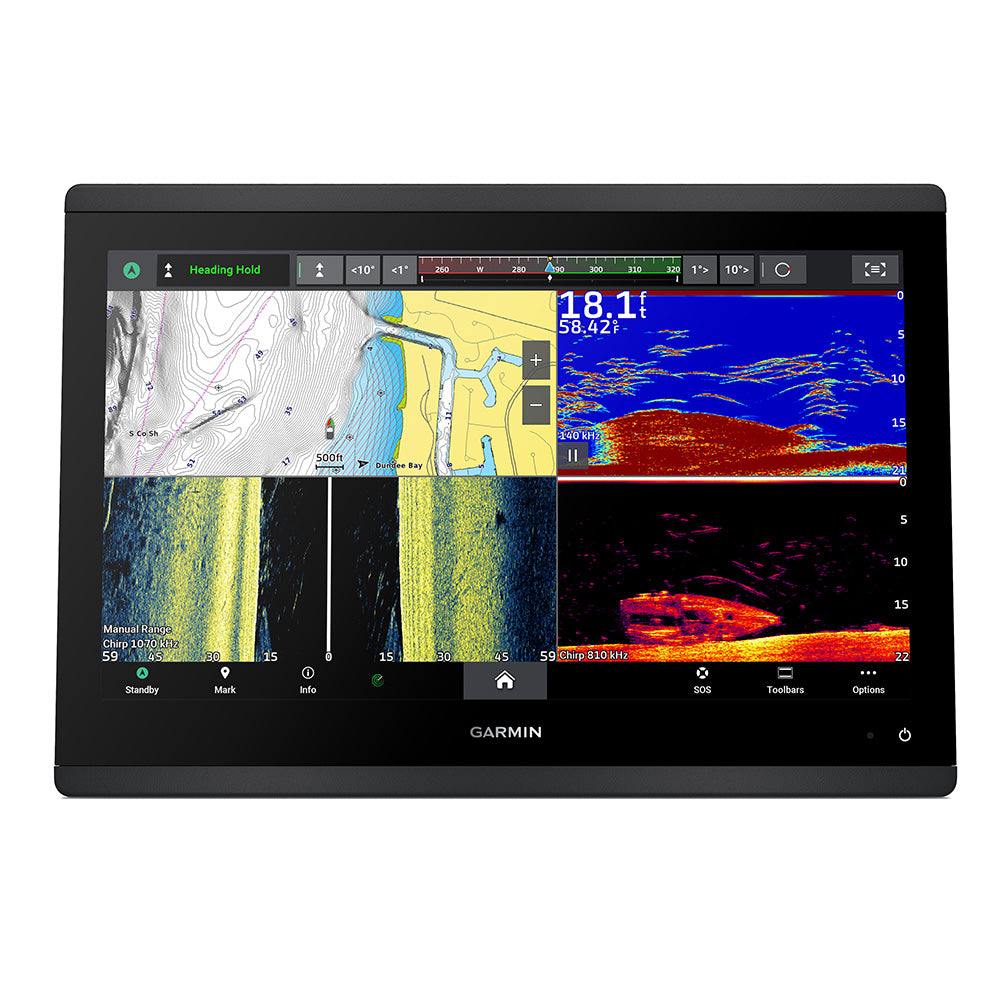

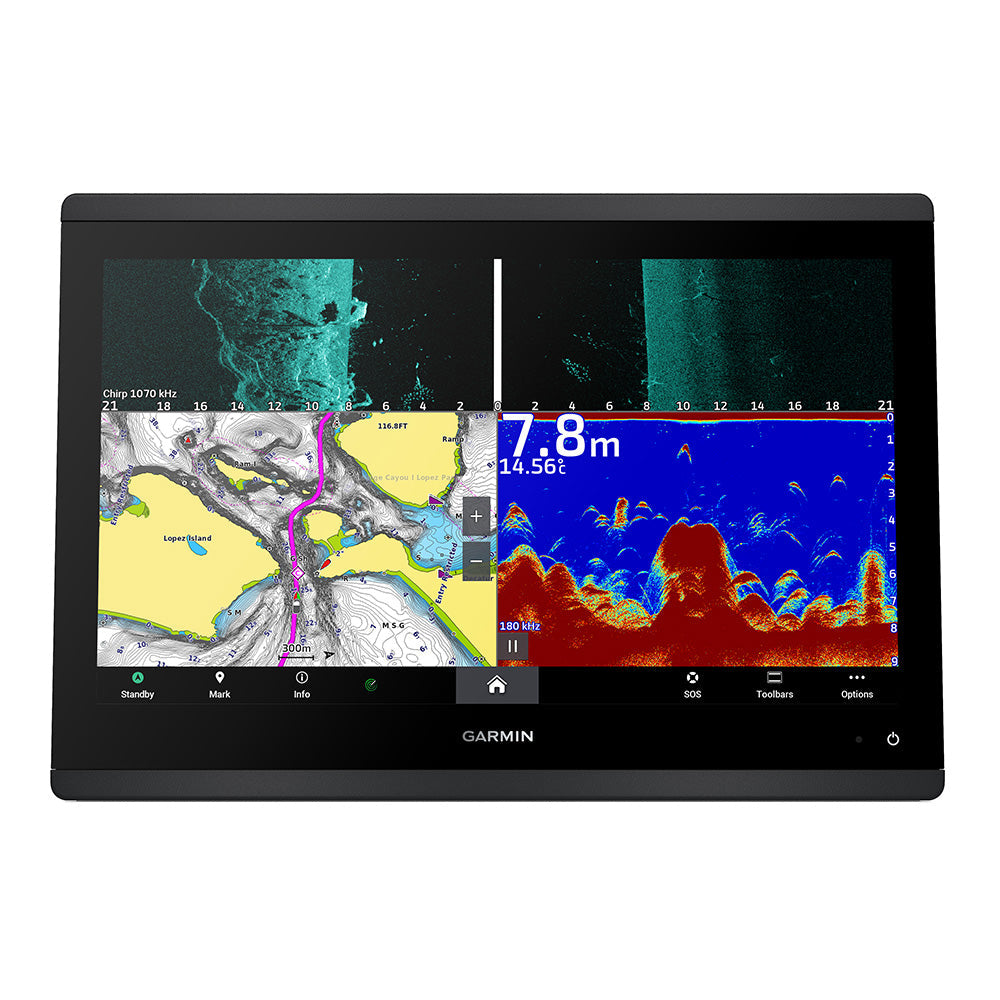

See the world below.

Get built-in Ultra High-Definition SideVü™ and ClearVü™ scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. The GPSMAP X3 chartplotter series also supports 1 kW traditional sonar capabilities.

Pair with Panoptix™ or LiveScope™ easy-to-interpret live sonar (transducer required, sold separately) to see all around your boat in real time.
