Garmin

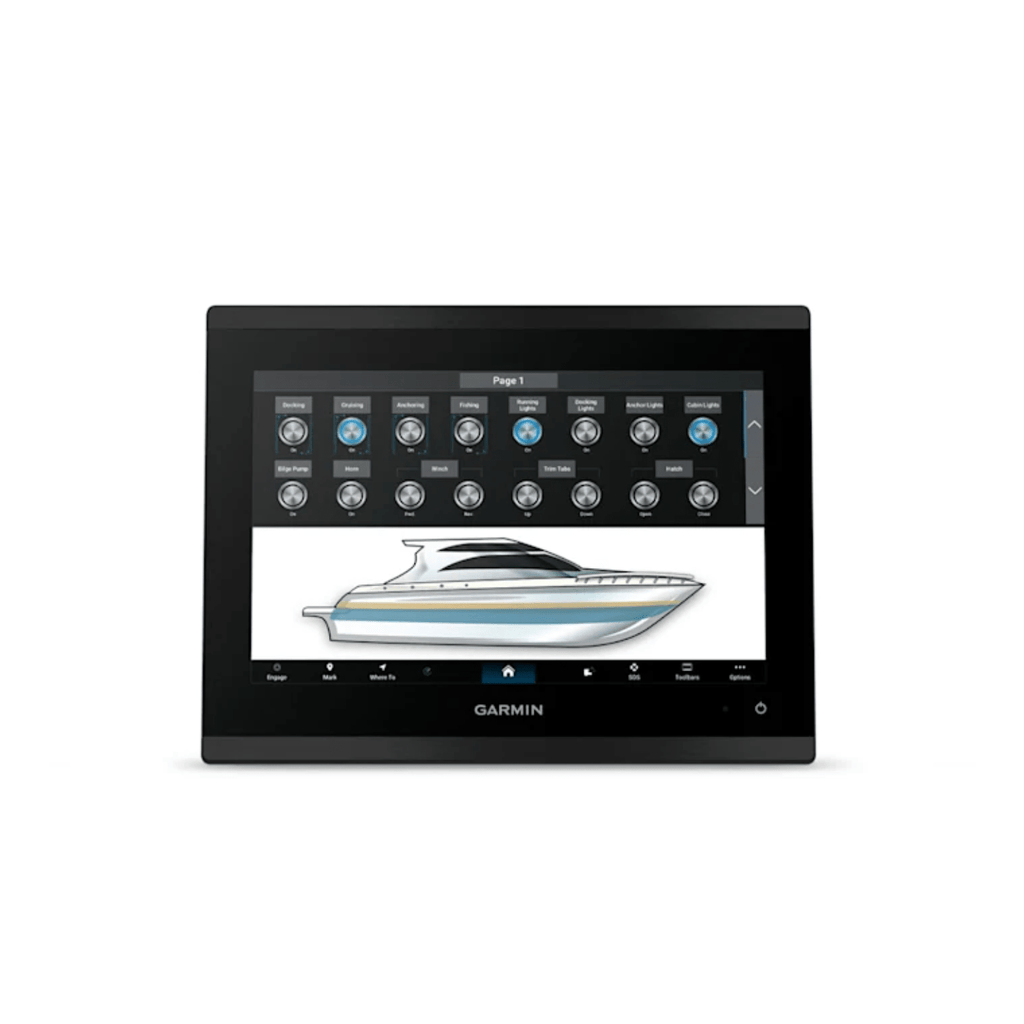

GpsMap 9210 GN+ ChartPlotter

Name: GpsMap 9210 GN+ ChartPlotter
Brand: Garmin
SKU: 010-03175-01
Price: 18304.00 MYR
Availability: InStock

SKU: 010-03175-01

Pre Order

RM18,304.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

It’s the integrated high-resolution touchscreen chartplotter for captains and anglers who demand the best. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials.

Dimension: 10.24" x 7.87" x 3.54" (26.0 cm x 20 cm x 9.1 cm)
Weight: 5.55 lbs (2.52 kg)

GPSMAP 9210 premium chartplotter
Power cable
Backbone/drop cable (2 meters) and T-connector for the NMEA 2000® Network

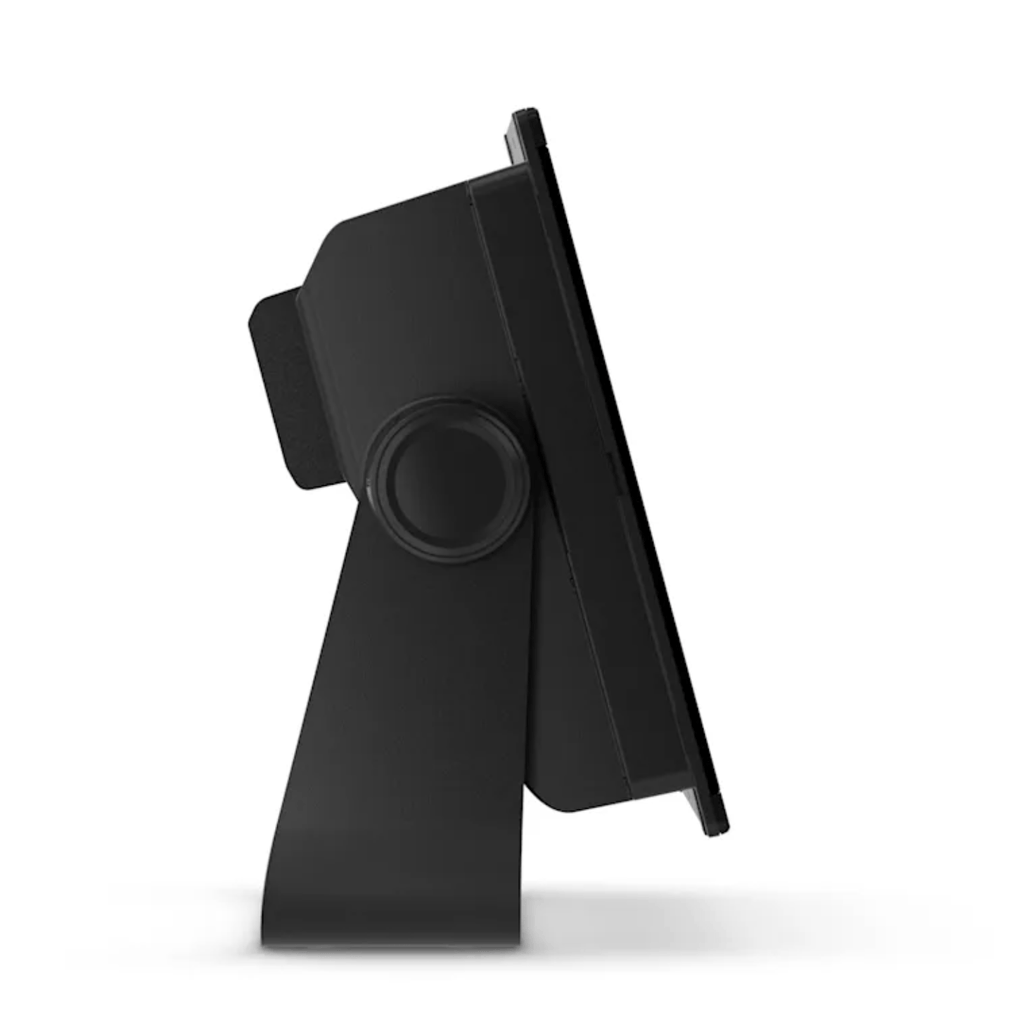

Bail mount with knobs
Flush mount kit
Protective cover
Trim piece snap covers
Documentation

PREMIUM IPS SUNLIGHT-READABLE TOUCHSCREEN DISPLAY

UP TO 7 TIMES FASTER PROCESSING POWER THAN PREVIOUS GENERATIONS

GET CLARITY LIKE NEVER BEFORE ON A HIGH-RESOLUTION DISPLAY

PRELOADED GARMIN NAVIONICS+ CHARTS WITH AUTO GUIDANCE+™ TECHNOLOGY1

GIGABIT SPEEDS ON THE GARMIN BLUENET™ NETWORK

NETWORK WITH MULTIPLE CHARTPLOTTERS, CAMERAS AND MORE

WHAT YOU'LL LOVE

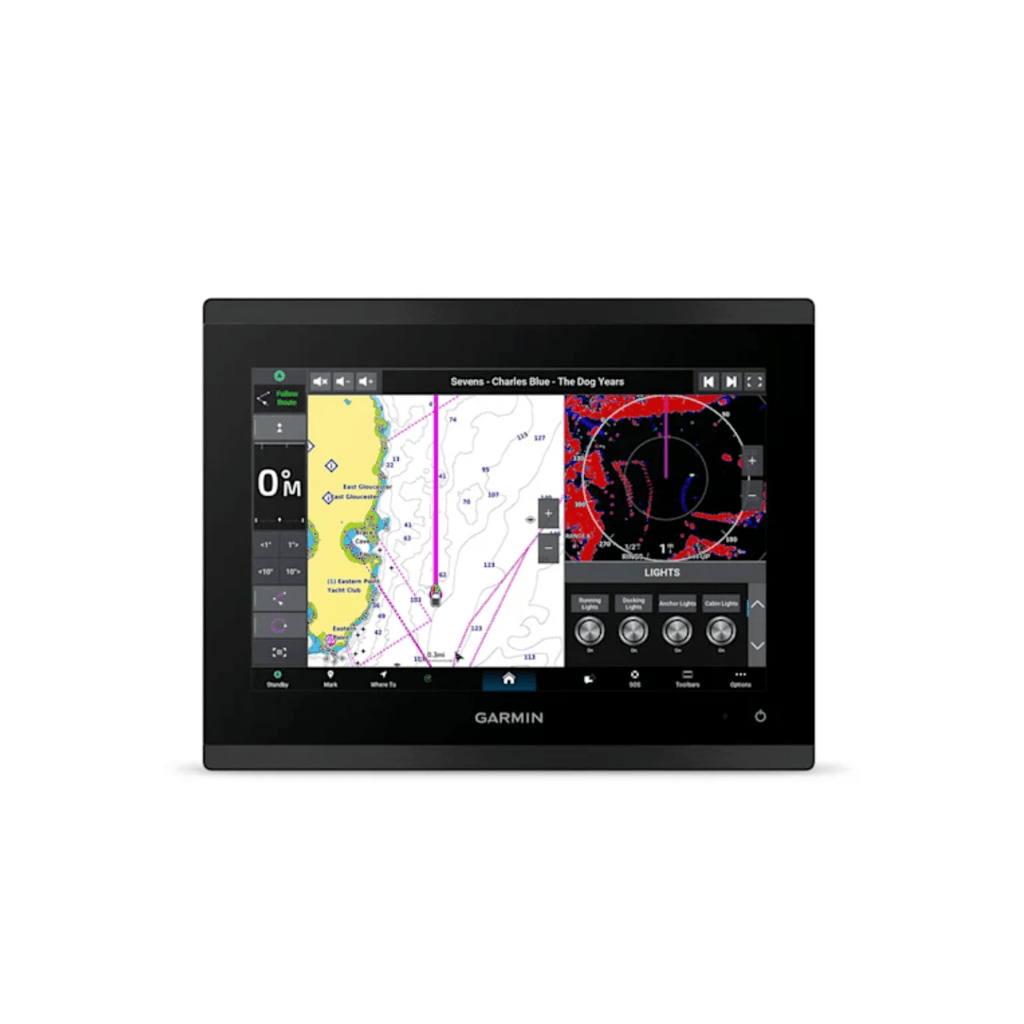

PREMIUM CHARTPLOTTER

The HD IPS sunlight-readable touchscreen display and edge-to-edge design provide a seamless and luxurious modern look.

FASTER. MUCH FASTER.

Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+ routes1 with lightning speed with a Garmin Navionics+ subscription.

GARMIN BLUENET NETWORK

Build extensive networks with multiple chartplotters, cameras, radars and sonars — and enjoy gigabit-speed networking.

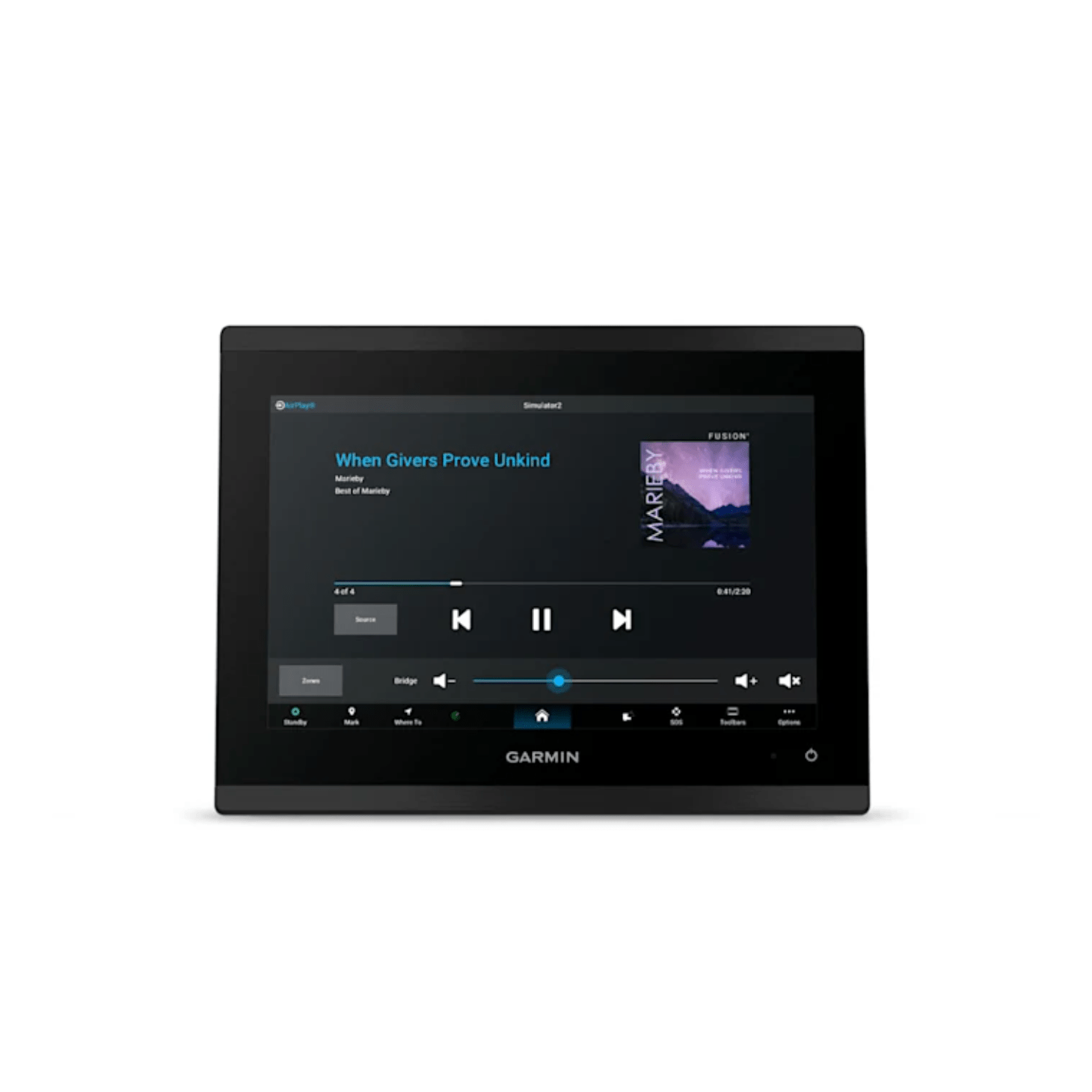

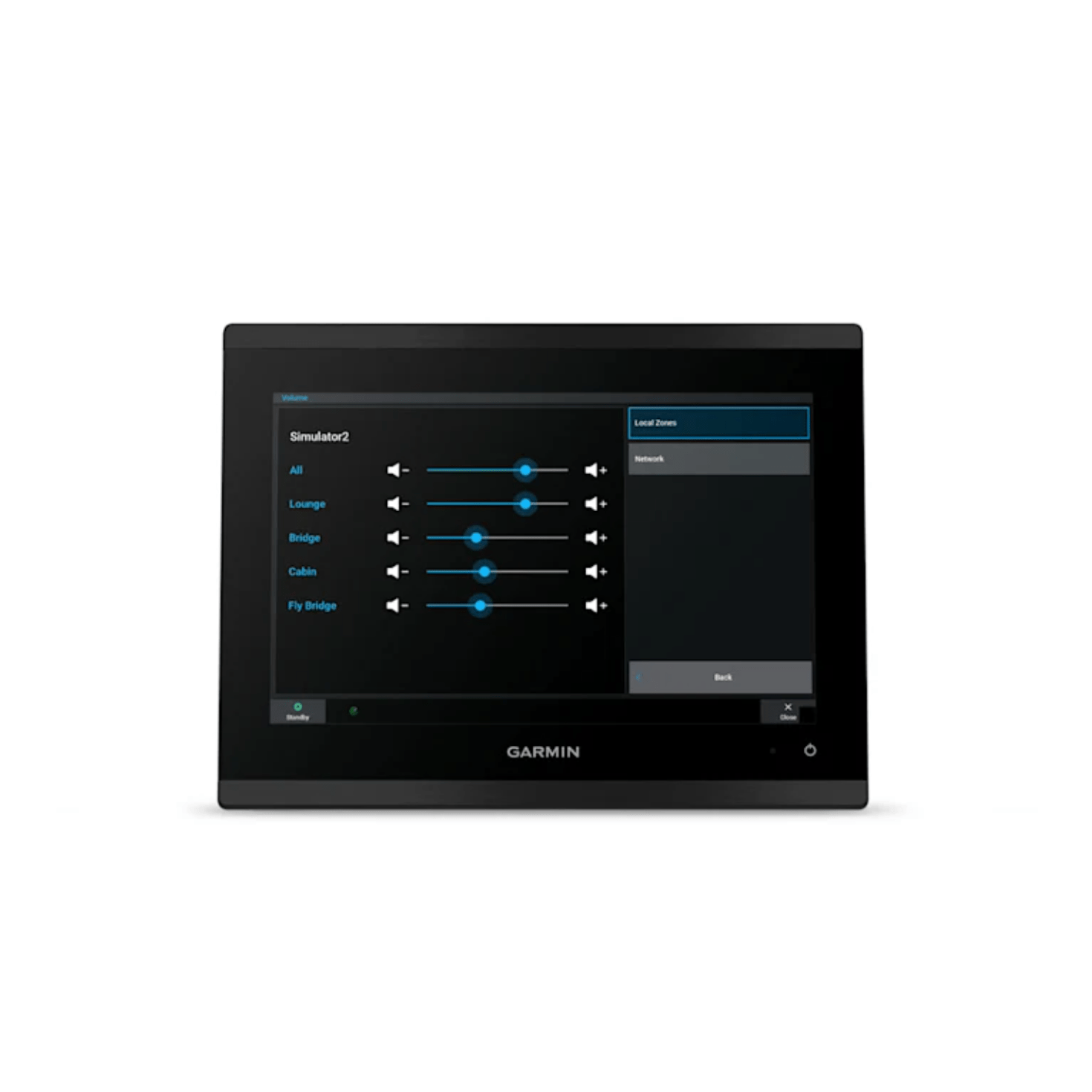

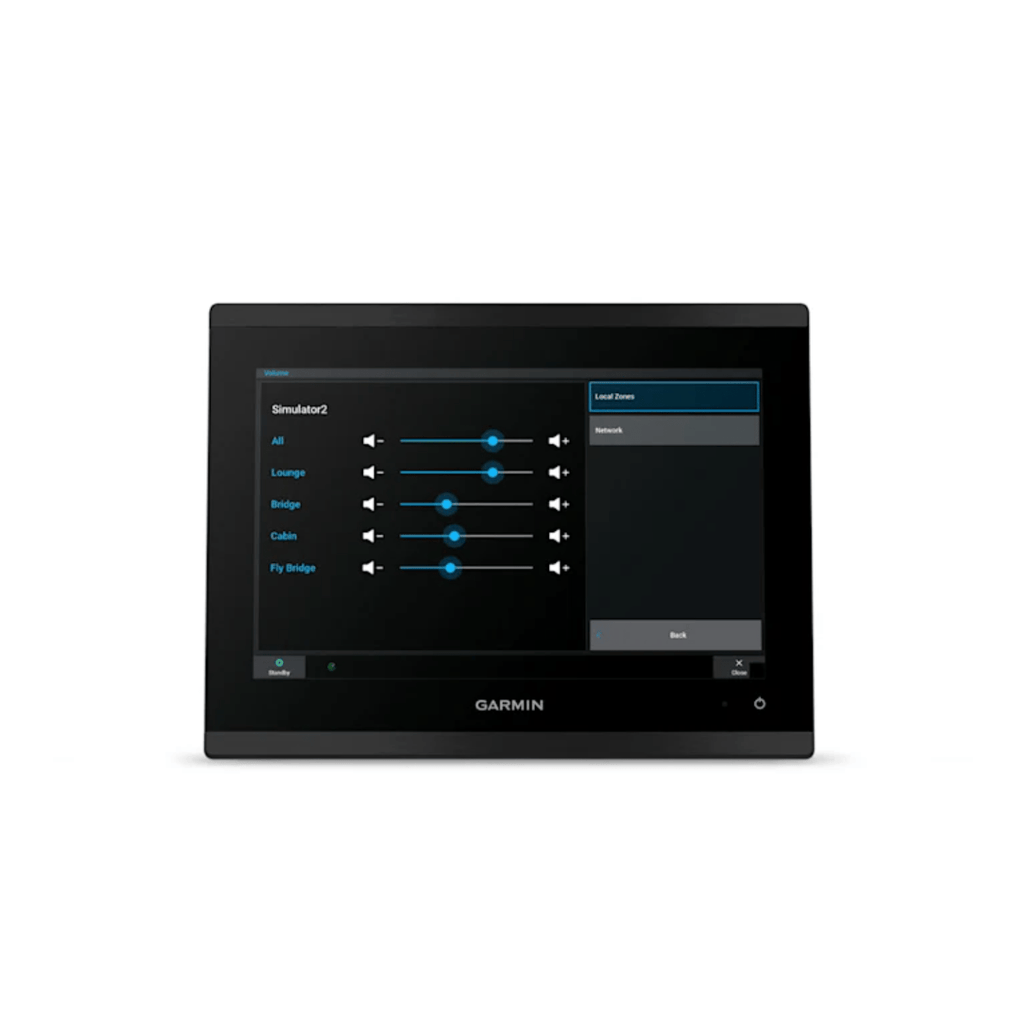

ENTERTAINMENT OPTIONS

Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

GARMIN SAILASSIST™ SAILING FEATURES AND SAILING POLARS

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, and more. Plus the polar table shows key data, so you know whether you need to adjust sail trim.

CONNECT YOUR ECOSYSTEM

Take command through digital system integrations to monitor, automate and control your vessel. The chartplotter uses the NMEA 2000® network to connect to your compatible accessories.

LUXURY ON YOUR HELM

CONNECT

SOFTWARE UPDATES

Get wireless software updates via the ActiveCaptain® app with your compatible smartphone or tablet.

ENGINE MONITORING

Keep tabs on engine performance with extensive engine integration.

CUSTOM LOOK

Manufacturers can customize the homepage layout and splash screen for a brand tailored experience.

NAVIGATE

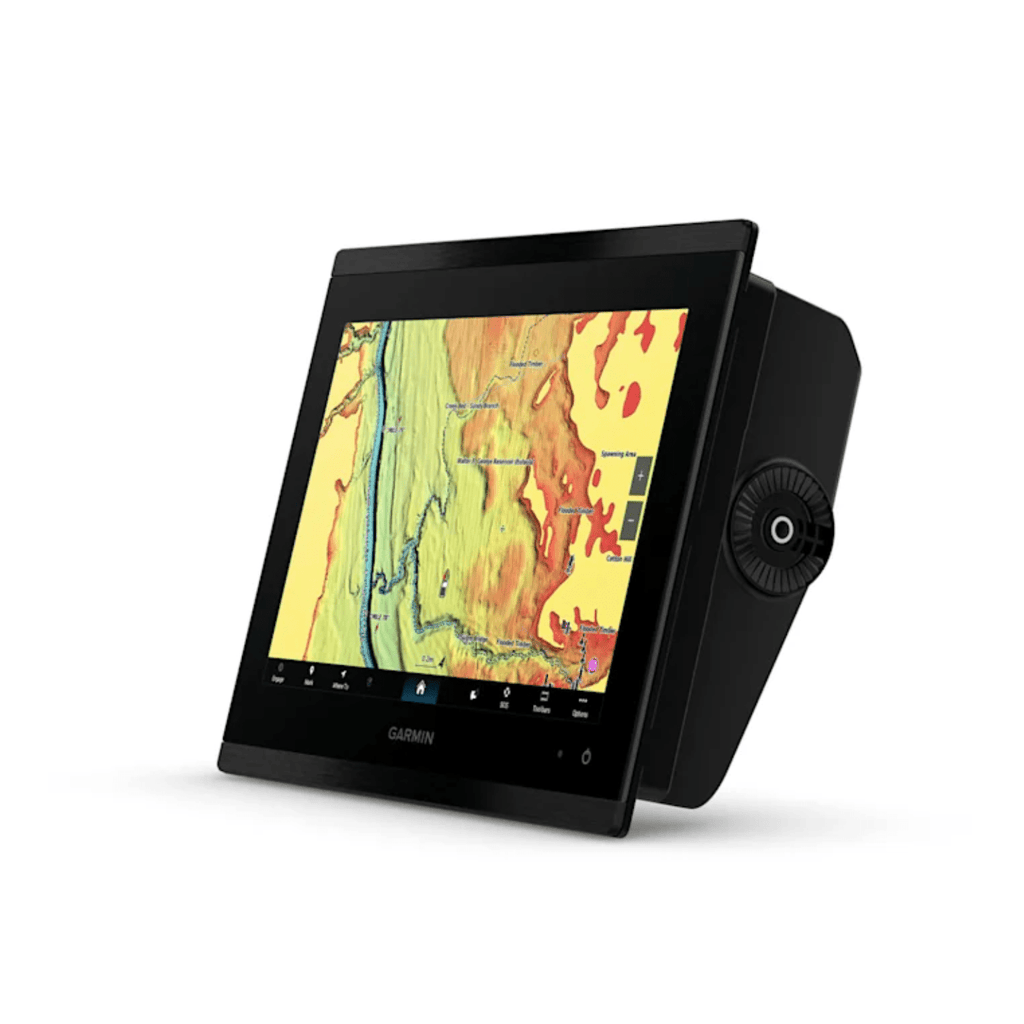

MAPPING

Navigate with optional Garmin Navionics+ charts that include Auto Guidance+ technology, daily updates and more1 (subscription required).

PREMIUM CHARTS

Get support for Garmin Navionics Vision+™ charts with premium relief shading and satellite imagery.

KNOW WHERE YOU ARE

Get your precise location with the built-in dual-frequency 10 Hz GPS.

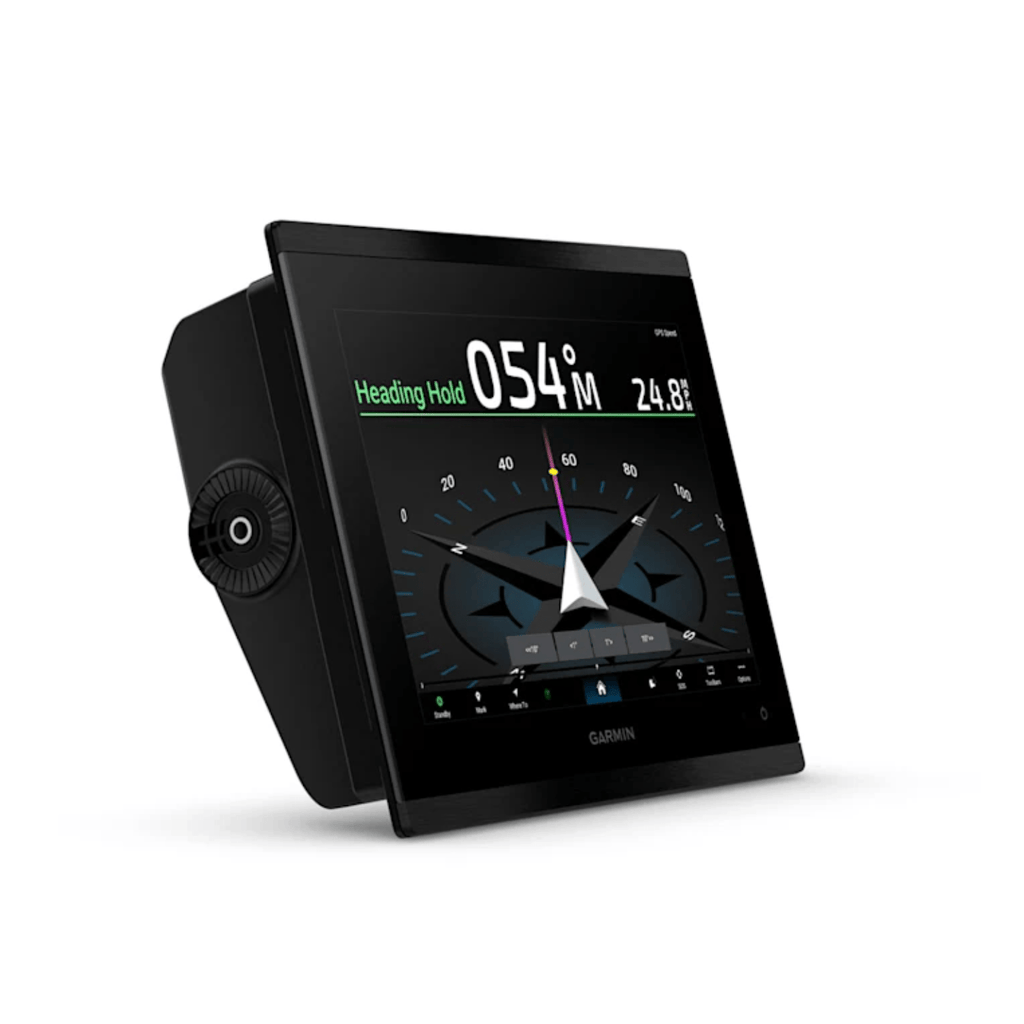

AUTOPILOT

Control the autopilot with any compatible chartplotter on the network with autopilot integration.

INTEGRATE

CONNECT CAMERAS

Get extensive camera support and control to see footage directly on the chartplotter.

CONTROL WITH YOUR WATCH

Connect to your chartplotter with your compatible Garmin smartwatch.

WIRELESS CONNECTIVITY

Connect compatible devices with integrated Bluetooth® and ANT® technologies.

FISH MAPPING

Get comprehensive fishing data with the Fish Mapping™ feature from SiriusXM® Radio (accessory purchase and subscription required).

VERBAL COMMANDS

Use spoken commands to control the chartplotter through your compatible headset or quatix® smartwatch.

WEATHER-RESISTANT

The GPSMAP 9000xsv chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.

General

Dimension: 10.24" x 7.87" x 3.54" (26.0 cm x 20 cm x 9.1 cm)
Weight: 5.55 lbs (2.52 kg)
Water rating: IPX7

Touchscreen

Display Type: WUXGA, IPS; Edge Lit backlight
Display Size: 8.54" x 5.34" x 10.1" diagonal (21.7 cm x 13.6 cm x 25.6 cm diagonal)
Display resolution: 1920 x 1200 pixels
Mounting Options: Bail, flat or flush
Input: Touchscreen
Polarized lens viewability

Maps & Memory

Accepts Data Cards: 2 microSD™ cards (on rear of product)
Supports USB card reader
Waypoints: 5,000
Track points: 50,000
Tracks: 50 saved tracks
Navigation Routes: 100

Sensors

GPS
GLONASS
Galileo
BeiDou
Has built-in receiver
Receiver: 10 Hz
NMEA 2000 Compatible
NMEA 0183 Compatible
Supports WAAS
Supports multi-band, multi-constellation GPS

Built-in Maps

Built-in Auto Guidance+
Garmin Navionics+ Inland & Coastal
Garmin Navionics+ (Coastal)
Garmin Navionics+ (Inland)
Tide tables

Optional Map Support

BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours
Raster chart support

Chartplotter Features

Smart Mode Compatible
AIS
DSC
Supports Fusion-Link™ compatible radios
GCV Black Box Sonar Support
ActiveCaptain® compatible: yes
Supports voice commands
GRID (Garmin Remote Input Device) compatible
GRID 20 compatible
Wireless Remote Compatible
Sailing Features
Spoken audio alerts
OneHelm support

Electrical Features

Power Input: 10 to 32 Vdc
Typical current draw at 12 Vdc: 2.43 A
Maximum current draw at 12 Vdc: 2.8 A
Maximum power usage at 10 Vdc: 29 W

Sonar Features

Displays sonar
Traditional sonar (dual frequency/beam): yes (with GCV™ black box, sold separately)
Supports built-in xCHIRP: yes (with compatible black box sonar)
Supports built-in RapidReturn: yes (with compatible black box sonar)
ClearVü: yes (with compatible black box sonar)
SideVü: yes (with compatible black box sonar)
Panoptix™ sonar
LiveScope

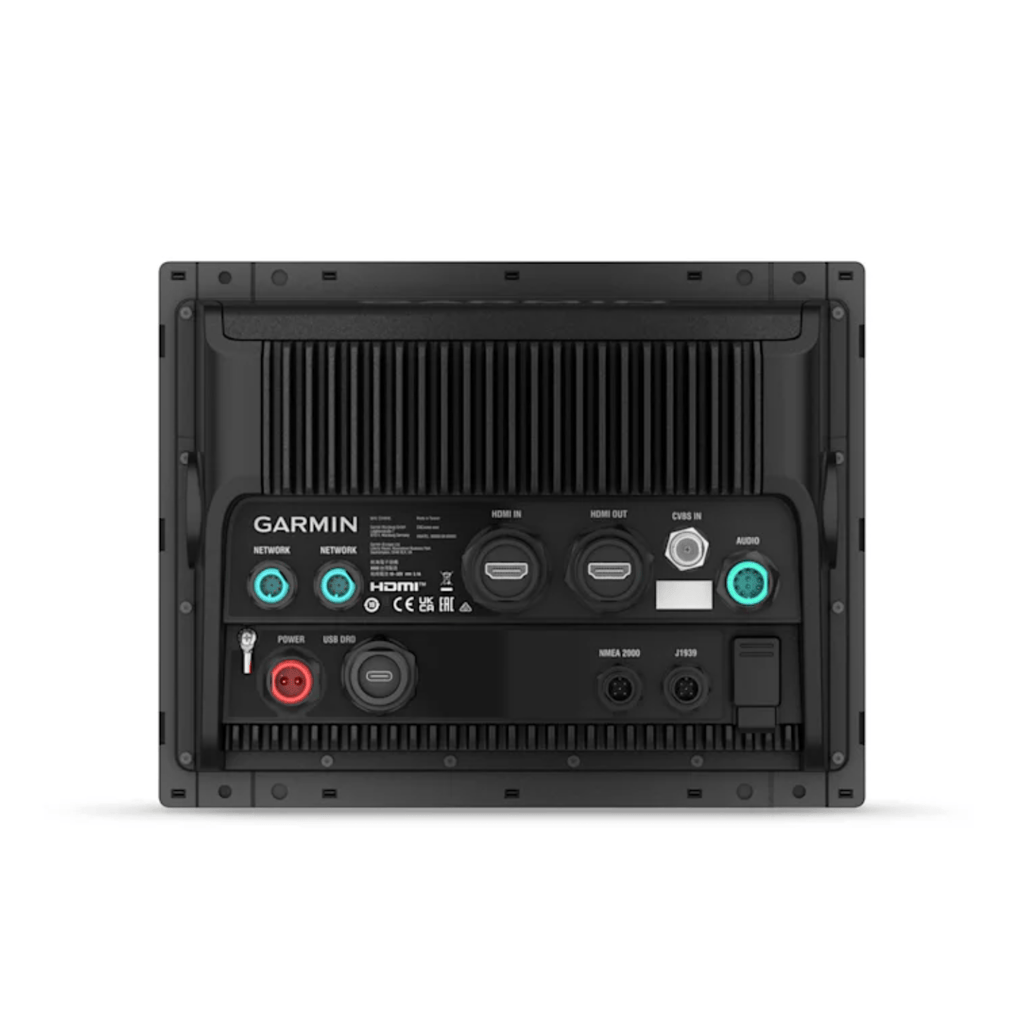

Connections

NMEA 2000® ports: 1
NMEA 0183 Input (Rx) Ports: 1
NMEA 0183 Output (Tx) Ports: 1
Video input ports: 1 (BNC composite); 1 HDMI (HDCP compliant)
Video output ports: 1 HDMI
J1939 ports: 1
Garmin BlueNet network ports: 2
USB ports: yes (1x USB-C)
Bluetooth® pairing
ANT® (Connectivity)
Garmin Wi-Fi network (local connection)
Wi-Fi frequency bands: 2.4 GHz & 5 GHz
Audio output
