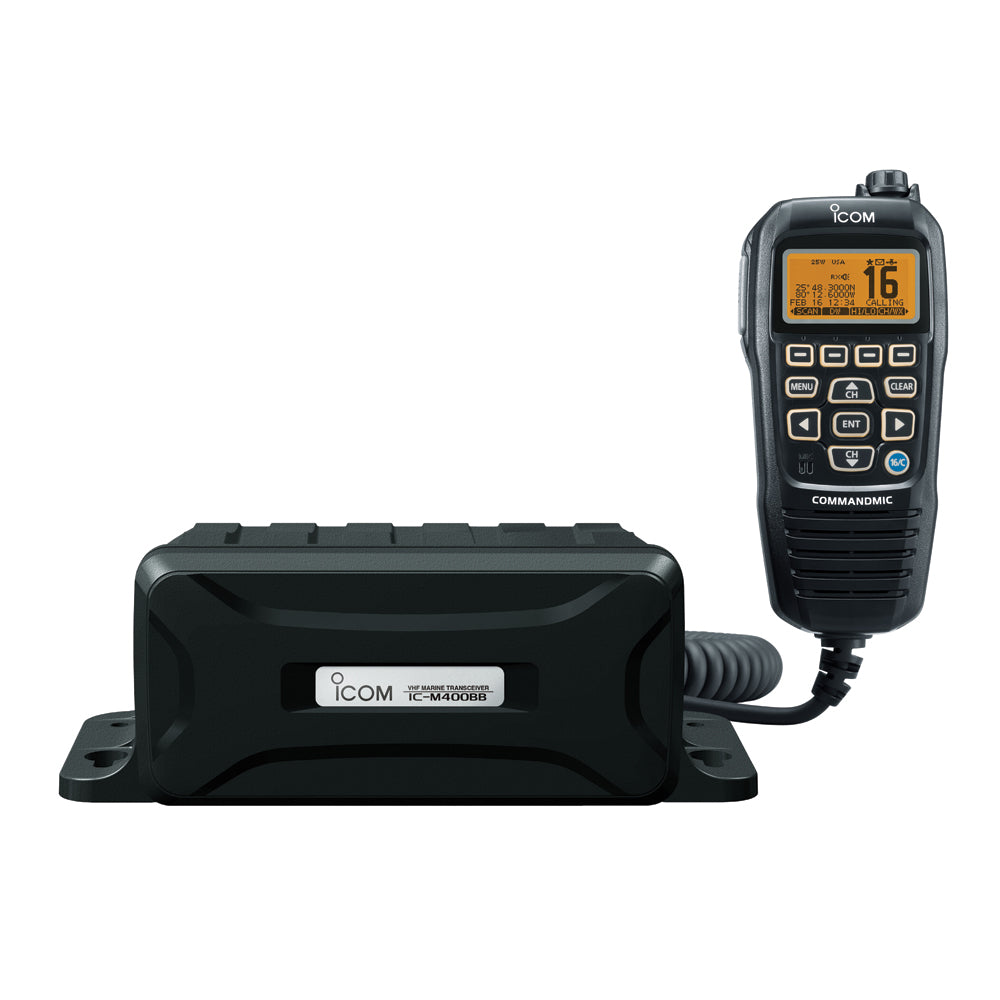

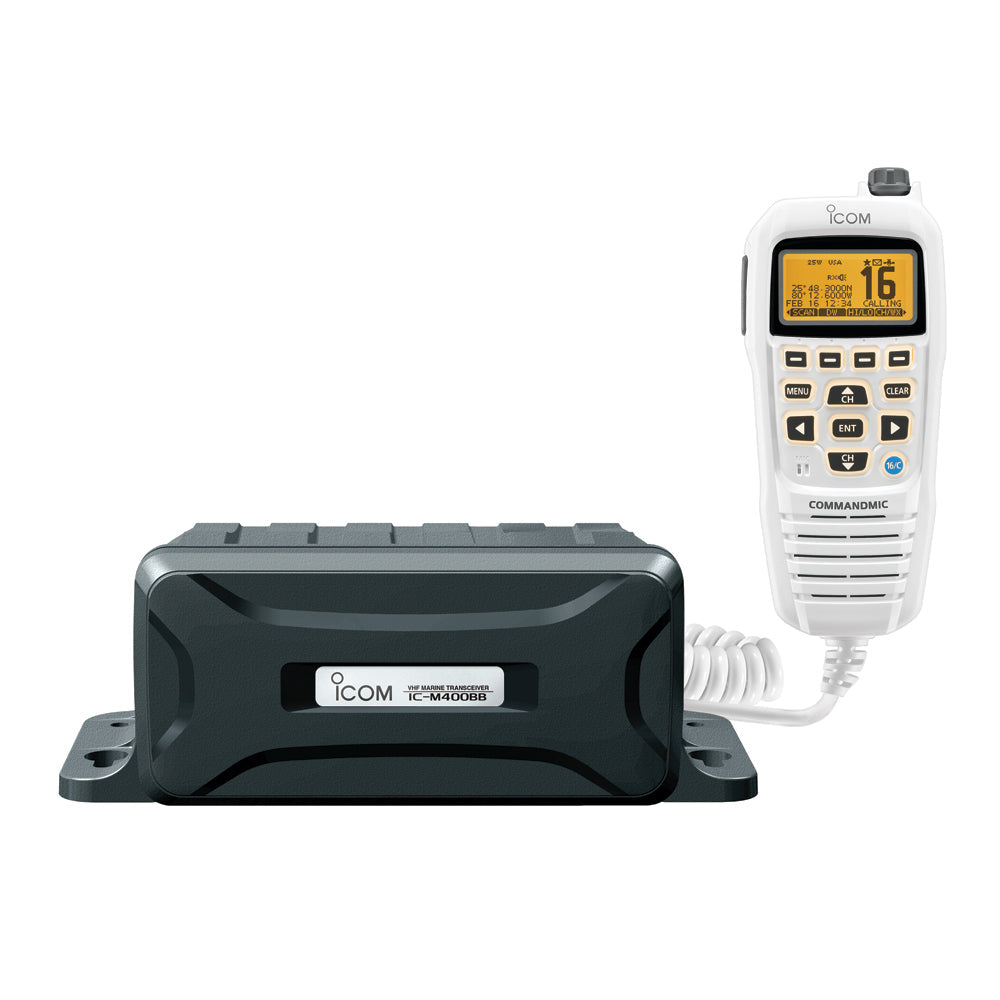

IC-M400BB VHF Marine Transceiver (USA version)

ICOM

IC-M400BB VHF Marine Transceiver (USA version)

SKU: M400BB
1 left
RM3,600.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Black Box Transceiver When Space is at a Premium
ColorBlack
SIZES & DIMENSIONS

Dimensions (W×H×D) (Projections not included):

  • IC-M400BB: 216×79×125 mm; 8.5×3.11×4.92 in
  • HM-195B/SW: 67.5×144.5×37 mm; 2.66×5.69×1.46 in
WHAT'S IN THE BOX
  • COMMANDMIC, HM-195B/SW*
  • DC power cable

* COMMANDMIC, HM-195B (black color) or HM-195SW (white color) is supplied depending on version.
FEATURES

Space-Saving, Two-Piece Configuration

The IC-M400BB consists of a two-piece, black box configuration. All function control including DSC operation, can be made from the COMMANDMIC™, HM-195B/SW, and the RF unit, IC-M400BB, can be installed in an out-of-sight place.

New Intuitive User Interface

The new menu system is shared with Icom's latest models. The bottom line of the dot-matrix display shows the software key functions which can be toggled with the left and right buttons.

Active Noise Cancelling

The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. Hear and be heard more clearly.

10 W Loud Audio, Public Address and Foghorn

The IC-M400BB has a built-in 10 W amplifier that increases the audio output from an additional external speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, and the foghorn can also be emitted from the external speaker.

Built-in Class D DSC

The built-in DSC watch function monitors Ch. 70 (DSC channel) activity, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.

Common NMEA Interface

When connected to an external GPS receiver, current position and time are shown on the COMMANDMIC display. When receiving DSC information from another vessel, the radio can transfer it to a navigational device via NMEA 0183 connectivity.

AIS Target Call with MA-510TR/MA-500TR

When connected to the optional MA-510TR/MA-500TR Class B AIS transponder, the AIS target call function allows you to set up an individual DSC call from the MA-500TR.

Other Features

  • MarineCommander™ compatible
  • AquaQuake™ water draining function (HM-195B/SW)
  • IPX7 submersible protection both for IC-M400BB and HM-195B/SW (1 m depth for 30 minutes)
  • Dual/tri-watch function for monitoring Ch.16 and/or call channel
  • Priority and normal scan
  • Supports 4-digit channels
SPECIFICATIONS
  • Frequency range: TX: 156.025–157.425 MHz; RX: 156.050–163.275 MHz; Ch. 70: 156.525 MHz
  • Power supply requirement: 13.8 V DC nominal (11.7–15.9 V DC)

Dimensions (W×H×D) (Projections not included):

  • IC-M400BB: 216×79×125 mm; 8.5×3.11×4.92 in
  • HM-195B/SW: 67.5×144.5×37 mm; 2.66×5.69×1.46 in
  • Weight: IC-M400BB: 830 g; 1.83 lb; HM-195B/SW: 400 g; 14.1 oz
  • Current drain: TX 25W output: 5.5 A Max.; RX Max. audio: 3.5 A Max.
  • Sensitivity: Main: 0.22 μV typical (at 12 dB SINAD); Ch. 70: −5 dBμ emf typ. (1% BER)
  • Intermodulation: Main: More than 70 dB; Ch. 70: More than 68 dBμ emf (1% BER)
  • Audio output power (at 10% distortion, 4 Ω load): More than 2 W (HM-195B/SW); More than 10 W (RX speaker)
  • RF output power: 25 W, 1 W (High, low)



Applicable IP Rating

  • Ingress Protection Standards
  • Water:  IPX7 (Waterproof protection)

**All stated specifications are subject to change without notice or obligation.
DOCUMENTATIONS

IC-M400BB(USA)

Instruction Manual
