LiveScope™ Plus

Garmin

LiveScope™ Plus

SKU: 010-02706-00
Pre Order
RM10,296.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

THE BEST OF THE BEST JUST GOT BETTER

The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
Sonar Module Included
SIZES & DIMENSIONS
  • GLS 10 Sonar Black Box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm);
  • Livescope Plus Lvs34-If Transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm)
WHAT'S IN THE BOX
  • LiveScope GLS 10 sonar black box

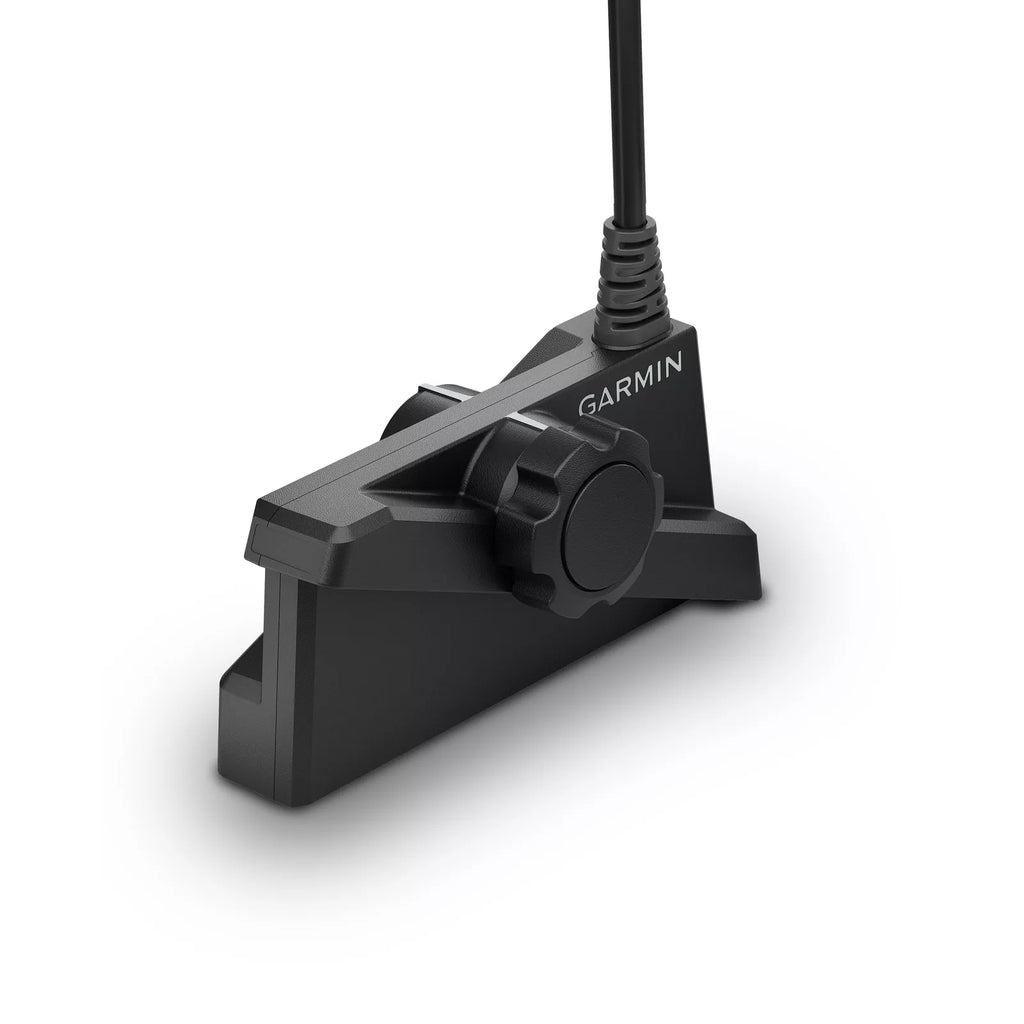

  • LiveScope Plus LVS34 transducer
  • Perspective mount (LiveScope Plus LVS34 Transducer Only)
  • Trolling motor barrel mount
  • Shaft mount
  • Power cable
  • 2 meter Garmin Marine Network cable (small connector)
  • Network adapter cable
  • Documentation
FEATURES

See images clearly with improved screen clarity, transducer sensitivity and target separation.

Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.

Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.

Get maximum contrast and clarity in your images with vivid color palettes.

Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.
SPECIFICATIONS

General

  • Transducer Beamwidth: 20° x 135°
  • Transducer Cable Length: 20 ft
  • Transducer Number of Pins: 21
  • Dimension: GLS 10 Sonar Black Box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); Livescope Plus Lvs34-If Transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm)
  • Weight: GLS 10 Sonar Black Box: 4.3 Lbs (2.0 Kg); Livescope Plus Lvs34-If Transducer: 2.25 Lbs (1.02 Kg)
  • Water Rating: IPX7
  • Temperature Range: GLS 10 Black Box: Operating: -15 C To 70 C; Livescope Lvs34-If Transducer: Operating: 0 C To 40 C



Electrical Features

  • Power Input: 10-32 V
  • Power Usage: 21 W Typical, 58 W Max
  • Fuse: 7.5 A
  • Compass-Safe Distance: 4" (0.1 M)



Sonar Features

  • Frequency: 530 - 1,100 Khz
  • Transmit Power: 500 W
  • Maximum Depth: Down And Forward: 200’ (61.0 M)
  • Sonar Type: Live
  • Target Separation @100': 14"
  • Perspective Mode Mount Included: Yes



Connections

  • Garmin Marine Network Ports: 1 (Small Connector)
DOCUMENTATIONS

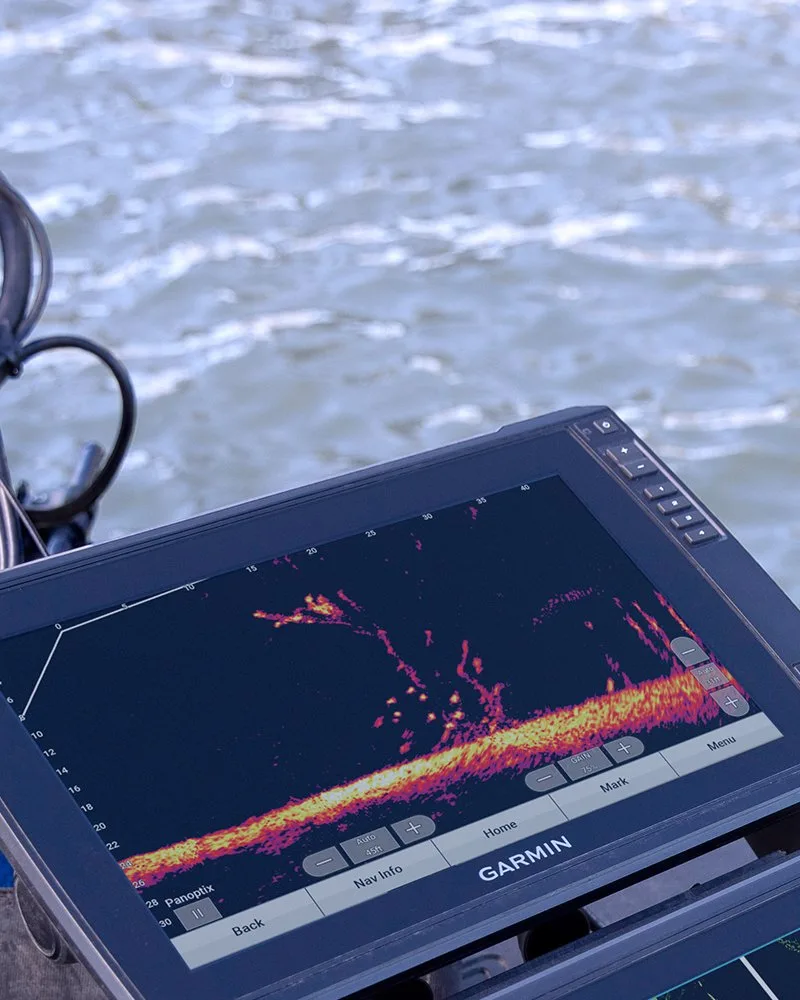

Image definition like you’ve never seen.

Real-time sonar ensures that your live images are as accurate as possible.

See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.

A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

Choose from seven vivid color options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity.
