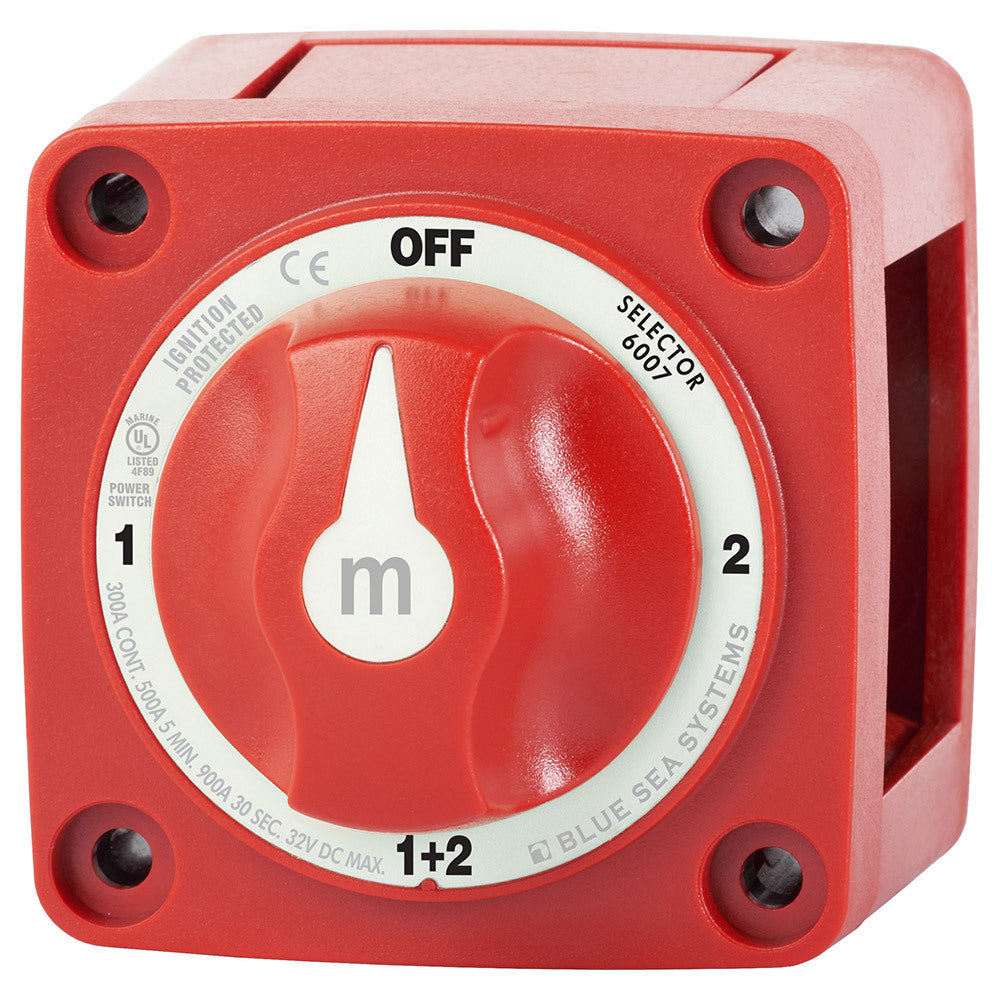

m-Series Mini Selector Battery Switch

Blue Sea System

m-Series Mini Selector Battery Switch

SKU: 6007
Pre Order
RM11,710.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Switches isolated battery banks to all loads or combines battery banks to all loads
ColorRed
SIZES & DIMENSIONS
WHAT'S IN THE BOX
FEATURES

Make before break contact design allows switching between battery banks without power interruption
SPECIFICATIONS

Switch Type : Selector 4 Position

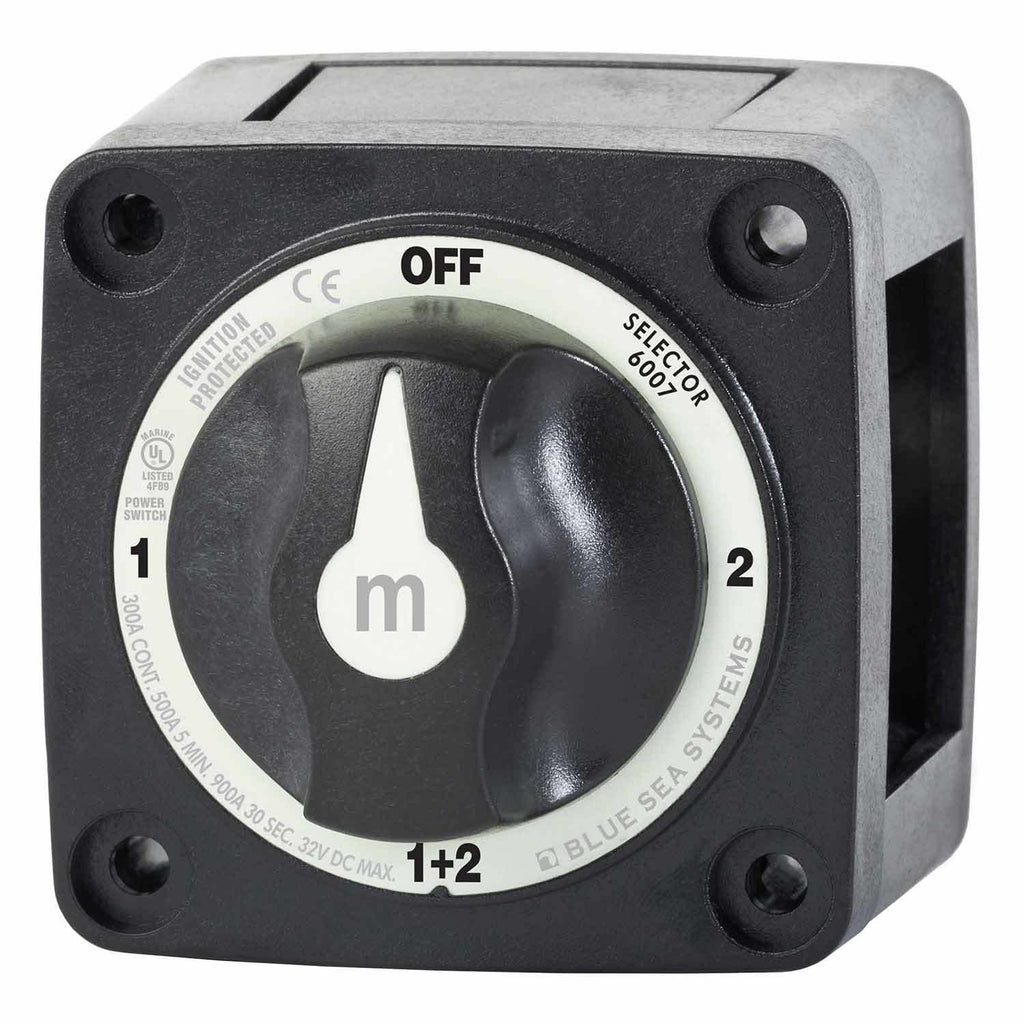

Color: Red or Black

Switch Positions: 4

Battery Combine: Yes

Alternator Field Disconnect : No

Maximum Voltage: 32V DC

Stud Size: 3/8"

Terminal Stud Torque: 120 in-lb (13.56 Nm)

Continuous Rating : 300A

Intermittent Rating : 500A (5 min)

Starting Rating 30 sec : 900A

Battery Inputs: 2

Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)

Cable Size to Meet Ratings: 4/0 AWG (120mm²)

Mounting Holes: Accept #10 Screw

Stud Material: Tinned Copper

Stud Torque: 120 in-lb (13.56 Nm)

Switching Rating: 25A

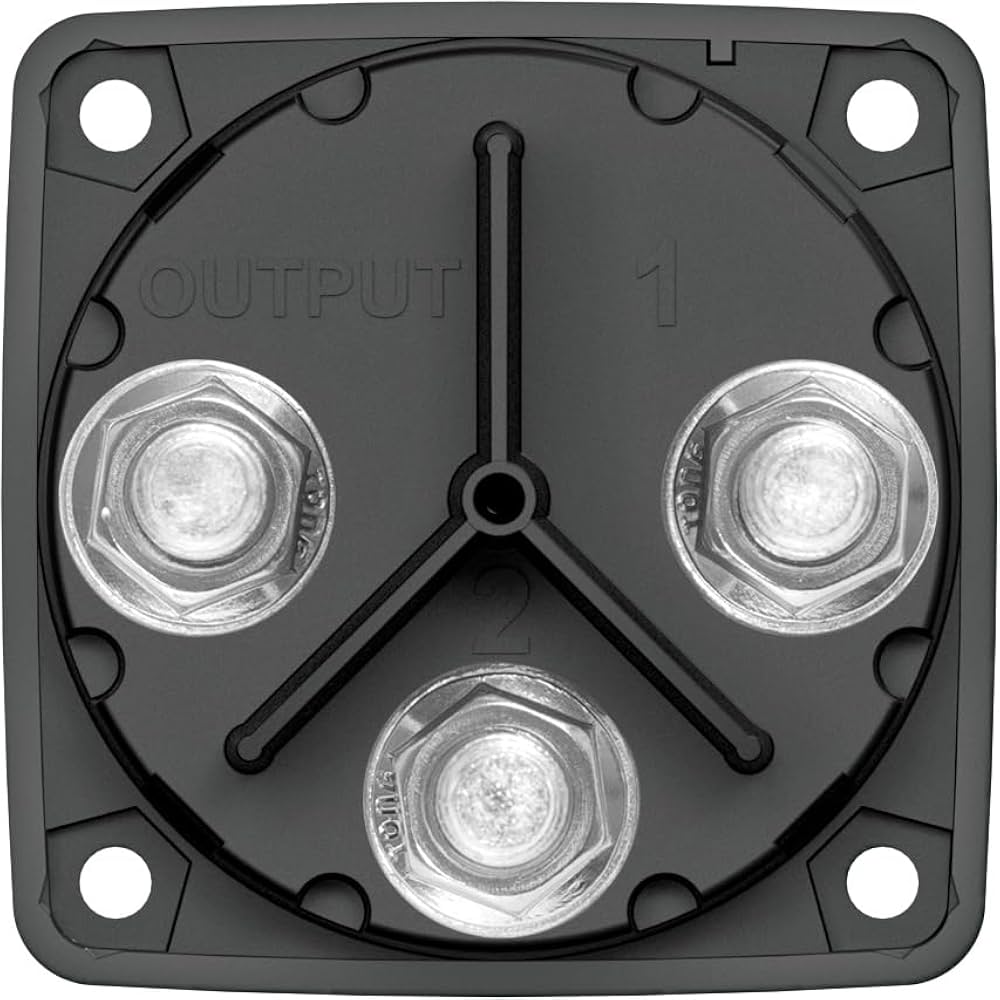

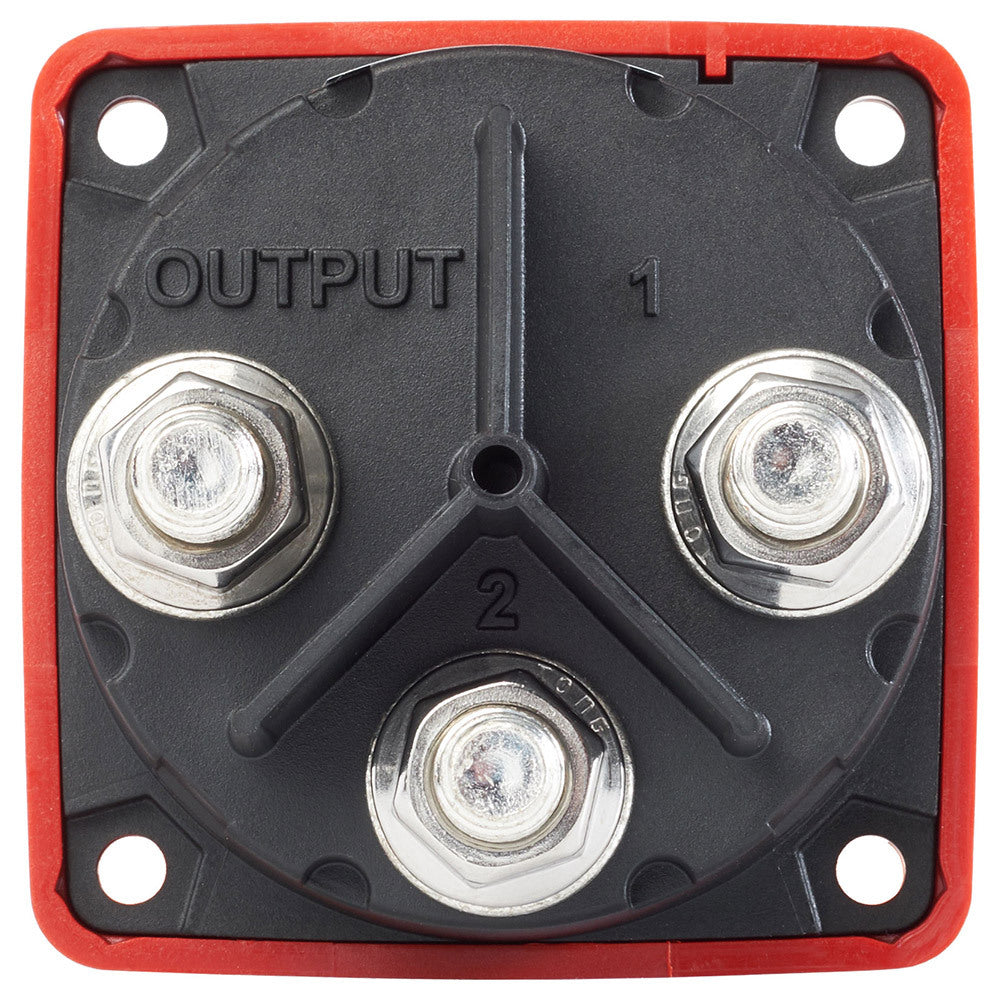

Terminal Stud Size: 3/8" - 16 (M10)

Weight: 0.77lb (0.35 kg)

Weight: 0.77lb (0.35 kg)
DOCUMENTATIONS

Dimensioned Drawing

Instructions
