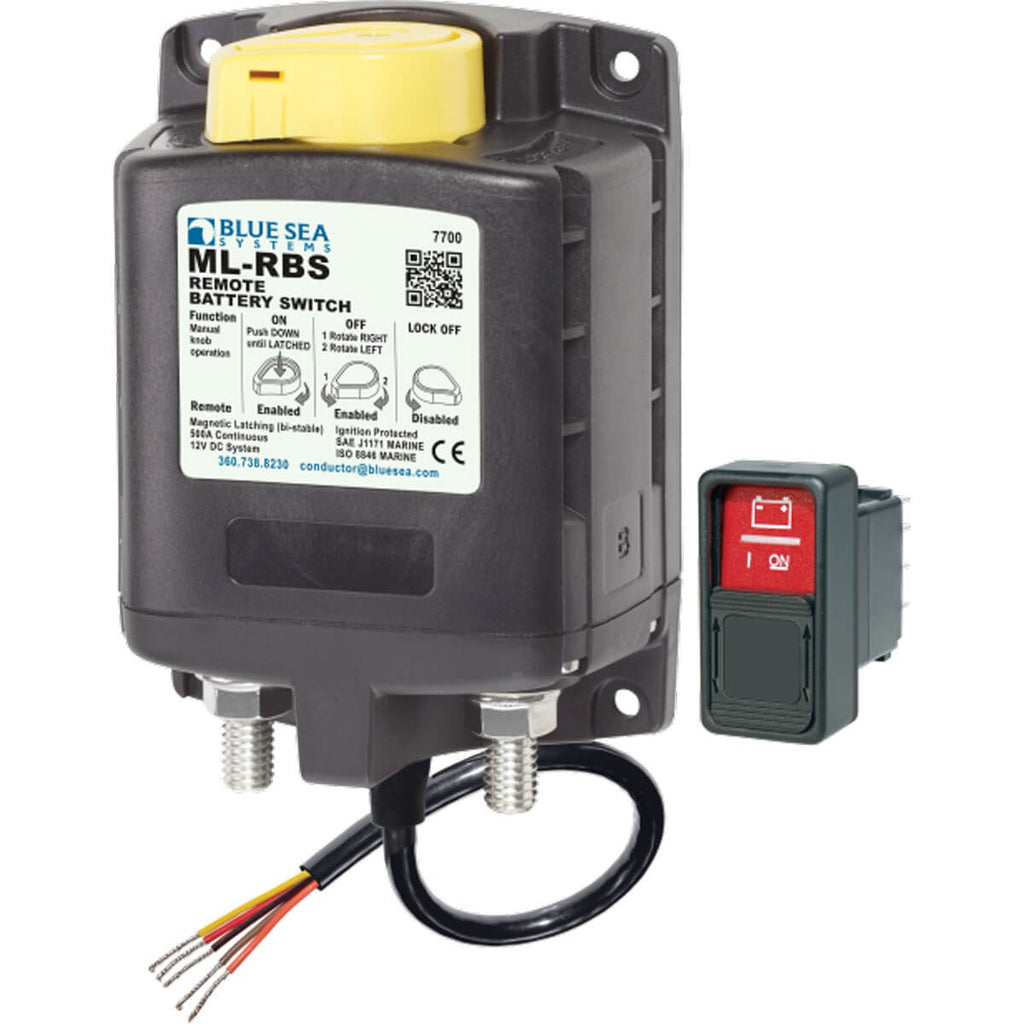

ML-RBS Remote Battery Switch

Blue Sea System

ML-RBS Remote Battery Switch

SKU: 7700
Pre Order
RM1,778.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations
Manual Control
Voltage
Control Circuit Connection
SIZES & DIMENSIONS
WHAT'S IN THE BOX
FEATURES

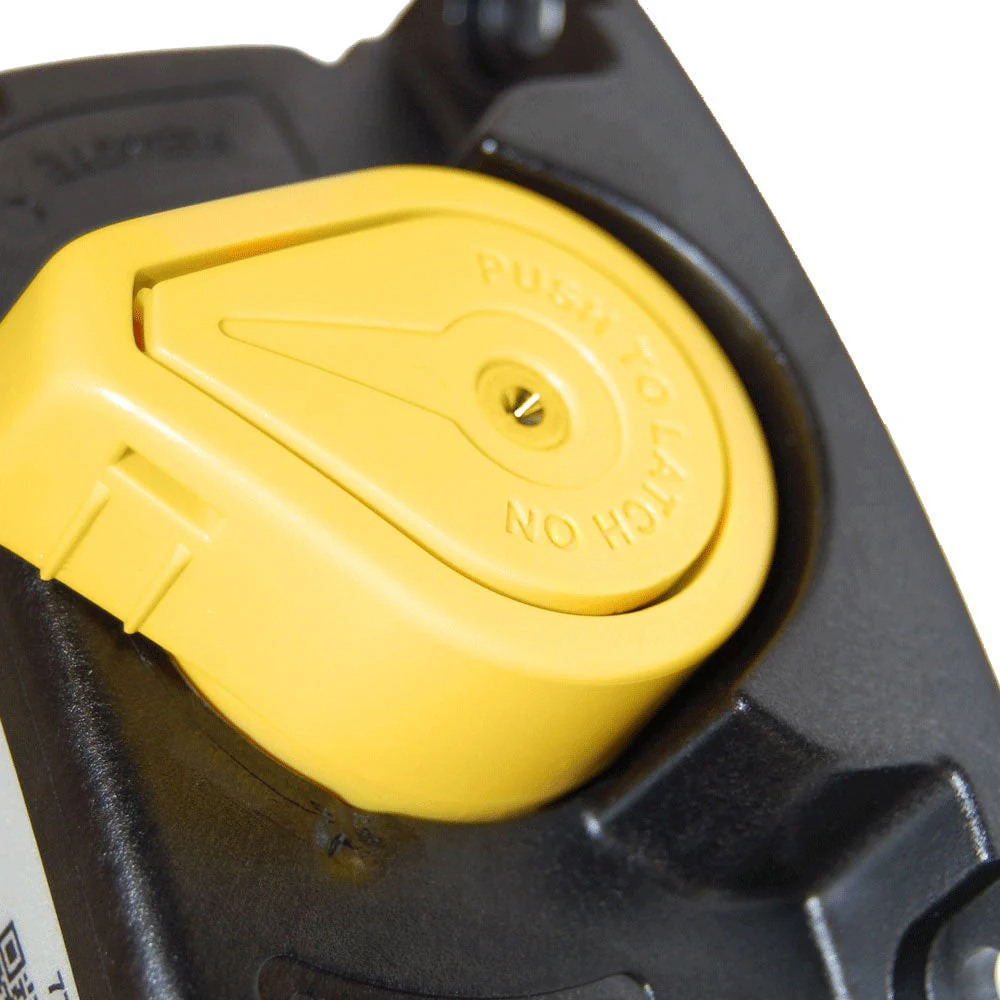

  • Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
  • LED output to remotely indicate switch state - requires optional LED
  • 3∕ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7∕ 8" (22 mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification
  • Silver alloy contacts provide high reliability for switching live loads

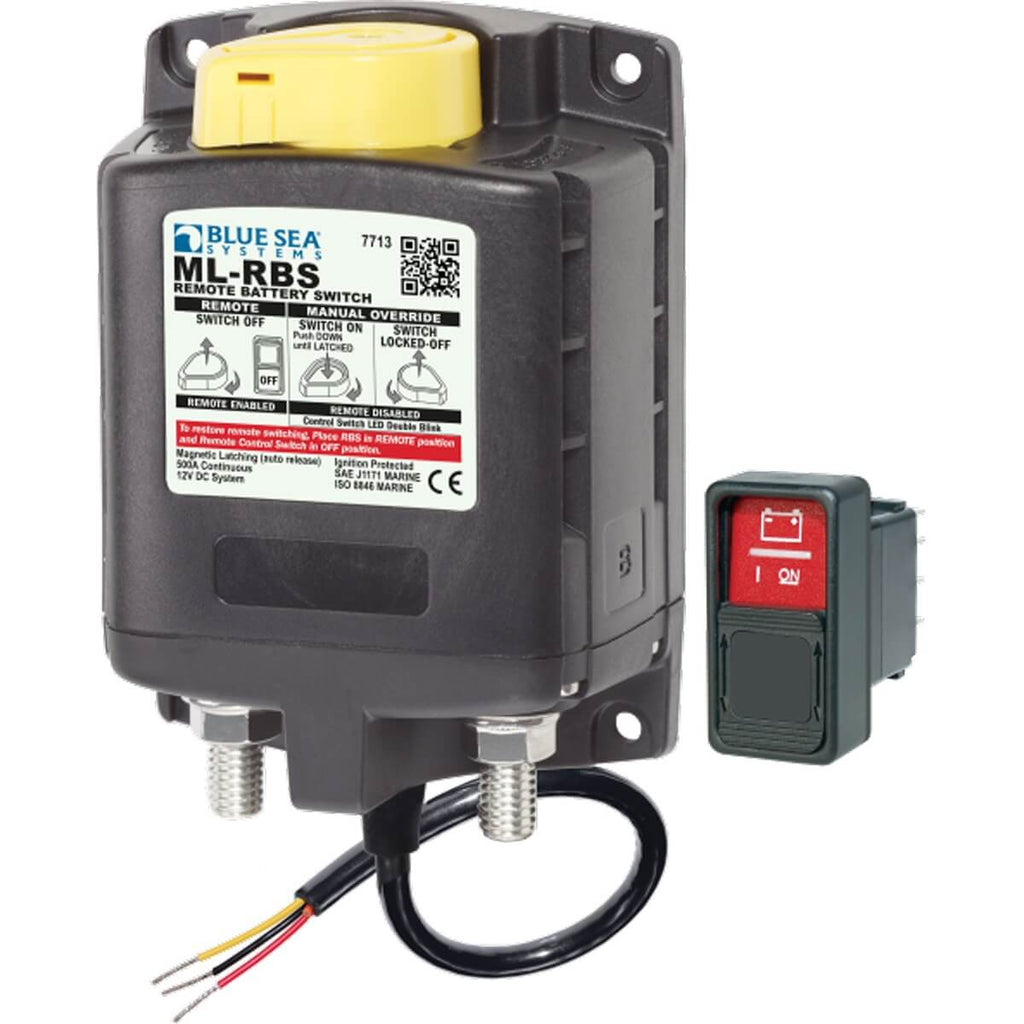

Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired
SPECIFICATIONS

Control Circuit Voltage: 10.1 to 16.5V DC

Control Circuit Connection : Tinned Wire / Deutsch DTM / Amphenol ATM

Nominal Voltage: 12V DC / 24V DC

Coil Function : Auto-Releasing / None

Mounting: #10

Amperage Operating Current: 8mA when OFF; 13mA when ON

Amperage Operating Current when changing state: <7A (40 ms)

Terminal Stud Torque: 140 in-lb (15.82 Nm)

Continuous Rating : 500A

Intermittent Rating : 700A (5 min)

Cranking Rating 30 sec : 1450A DC

Minimum Operating Temperature: -10° C

Maximum Operating Temperature: 60° C

Cable Size to Meet Ratings: 2x (4/0)

Live Current Switching: 300A @ 12V DC

Master Control Switch Capability: Yes

Mechanical Endurance: 100,000 Cycles

Terminal Ring Diameter Clearance: 1.18in (29.97 mm)

Terminal Stud Length: 0.875in (22.23 mm)

Terminal Stud Size: 3/8" - 16 (M10)

Weight: 2.07lb (0.94 kg)
DOCUMENTATIONS

Dimension Drawing

Instructions
