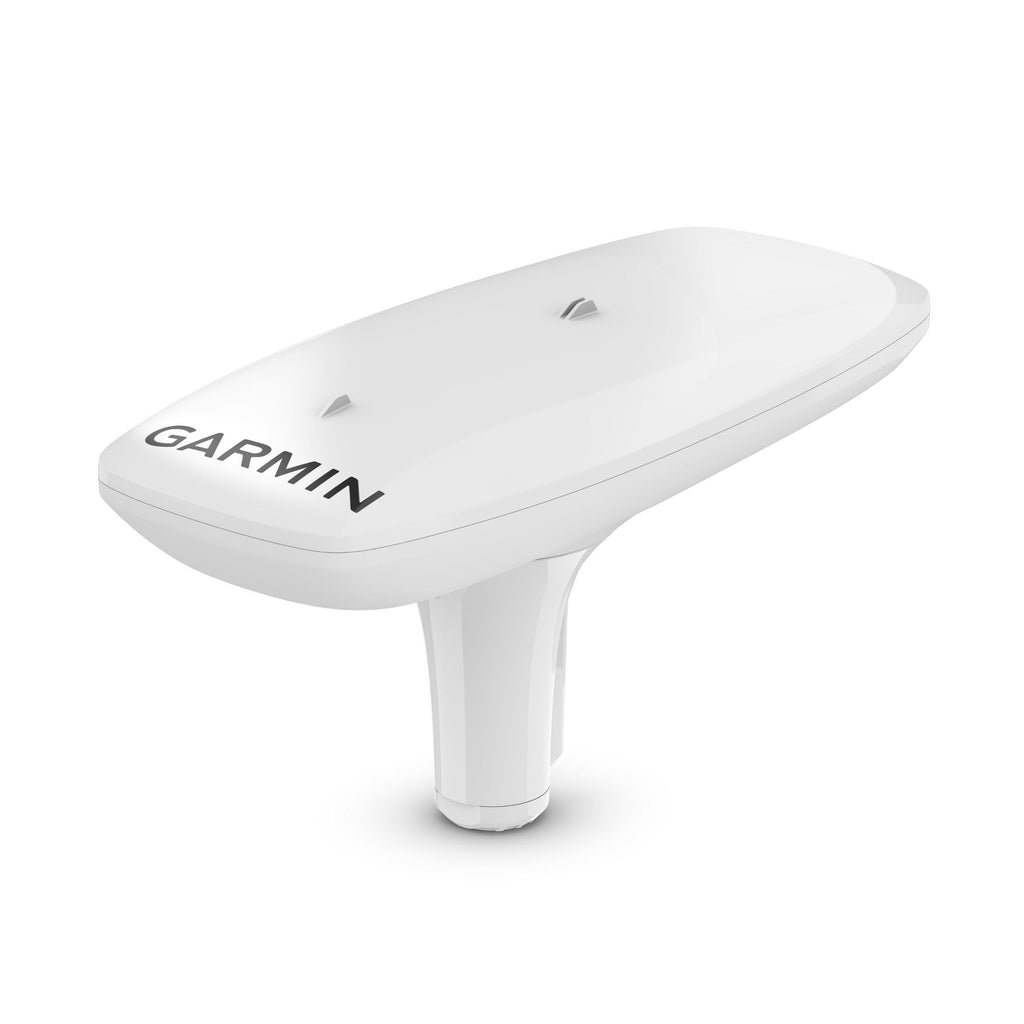

MSC™ 10 Marine Satellite Compass

Garmin

MSC™ 10 Marine Satellite Compass

SKU: 010-02407-00
Pre Order
RM6,864.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

KNOW EXACTLY WHERE YOU'RE HEADED

Get reliable, accurate heading information with the easy-to-install GPS-based MSC 10 marine satellite compass.
ColorWhite
SIZES & DIMENSIONS
  • Dimensions (W x D x H): 6.1” x 13.1” x 3.0” (155.5 x 333.6 x 76.2 mm)
WHAT'S IN THE BOX
  • MSC-10 Marine Satellite Compass
  • Pole mount
  • Mounting hardware
  • NMEA 2000® backbone/drop cable (6 meters)
  • NMEA 2000 T-connector
  • Documentation
FEATURES
  • Accuracy comes easy when you’ve got a multi-band GNSS receiver on board.
  • Faster updates. More detailed tracking.
  • Rough waters got you worried? MSC 10 delivers pitch, roll and heave info, too.
  • If other onboard systems need a heading sensor, we’ve got you covered.
SPECIFICATIONS
  • Dimensions (W x D x H): 6.1” x 13.1” x 3.0” (155.5 x 333.6 x 76.2 mm)
  • Weight: 28.6 oz (810 g)
  • Cable length: 19 ft 8 in (6 m)
  • Temperature range: 5° F to 158° F (-15° C to 70° C), white; 5° F to 140° F (-15° C to 60° C), black
  • Case material: Glue sealed, high-impact plastic alloy; waterproof to IPX7
  • Compass-safe distance: 0" (0 mm)
  • Power source input: 9-32 Vdc, unregulated
  • Input current: 180 mA at 12 Vdc
  • NMEA 2000 Load Equivalency Number (LEN): 6 (300 mA max)
  • Position accuracy, typical marine use: < 1 meter CEP, < 3 meters, 95%
  • Heading accuracy: 2° RMS
  • Heave accuracy: 8 cm RMS
DOCUMENTATIONS

Head out confidently.

The multi-band GPS (L1 and L5 GPS) and multi-constellation (GPS, Galileo, GLONASS and BeiDou) receiver delivers precise positioning1.

Get reliable, accurate boat heave, pitch and roll information — even in rough waters.

With a fully integrated attitude and heading reference system for better GPS heading at all speeds, including pitching in rough seas, taking sharp turns or standing still.

Multiple receivers deliver heading accuracy within 2 degrees. Because it uses satellite signals, you don’t have to worry about magnetic interference.

You can use MSC 10 as the primary sensor for autopilots and other onboard systems that need accurate heading information.

Get heading, pitch, heel and heave information delivered straight to your compatible Garmin chartplotter via the NMEA 2000 network.
