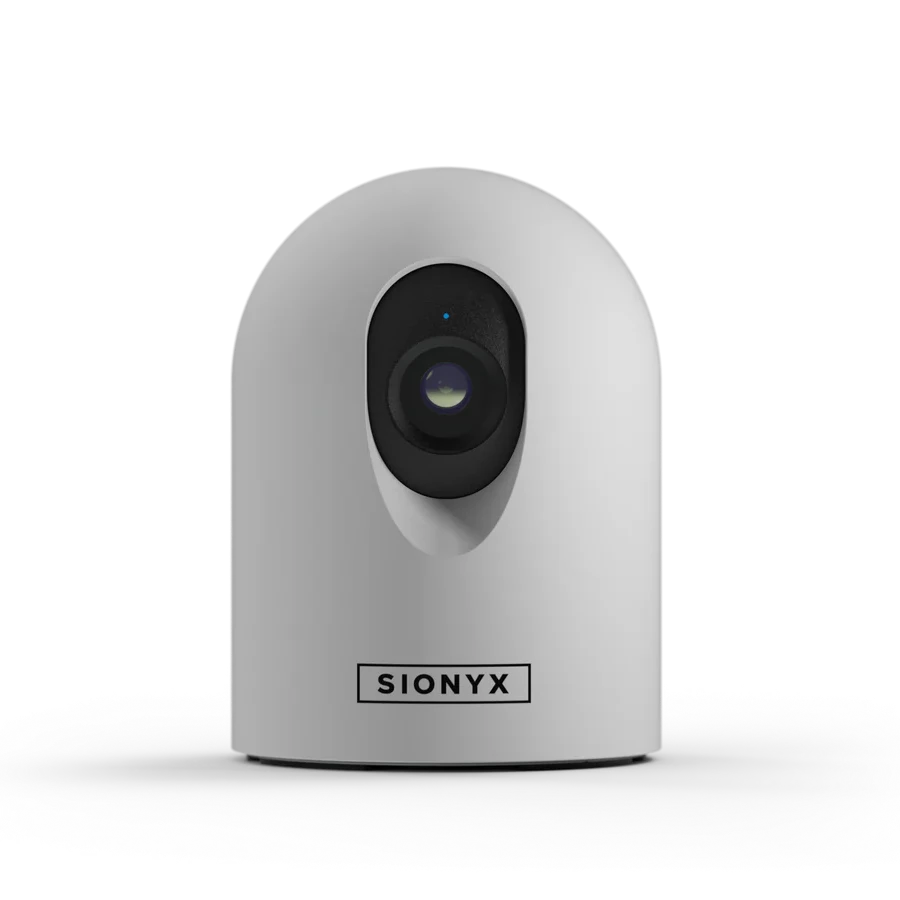

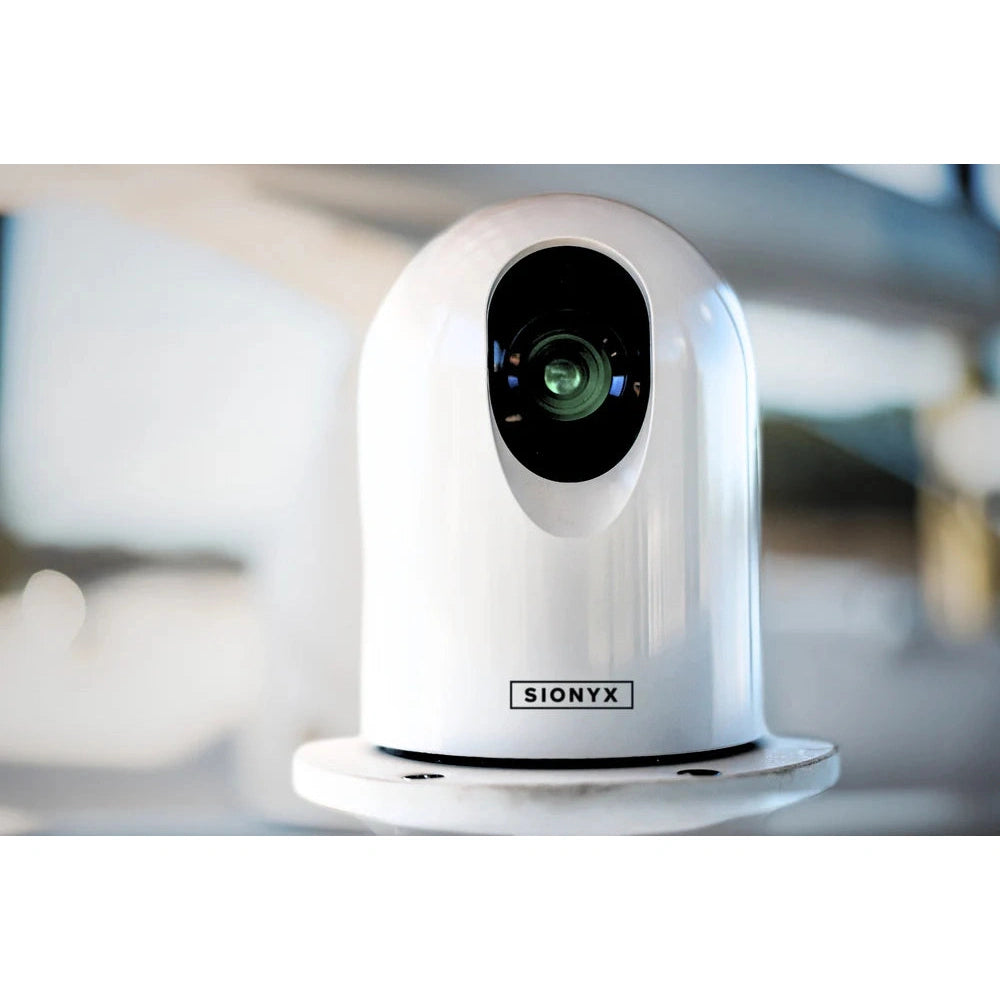

Nightwave IP Digital Camera

Sionyx

Nightwave IP Digital Camera

SKU: C018900
Pre Order
RM16,173.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Meet the next generation of ultra-low-light marine imaging - SIONYX Nightwave Digital.
ColorBlack
SIZES & DIMENSIONS
WHAT'S IN THE BOX
  • Nightwave Digital marine night vision camera : Advanced ultra-low light imaging system with network connectivity and MFD compatibility.
  • Mounting hardware : Complete 4-bolt mounting system for secure installation on fiberglass, wood, or metal surfaces.
  • Power over Ethernet (PoE) cable : Single-cable solution for both power and data transmission.
  • Installation guide : Step-by-step instructions for quick setup and MFD integration.
  • Mobile app access : iOS and Android compatibility for wireless control and configuration.
FEATURES
  • Network (PoE) digital connectivity
  • Seamless MFD integration with major brands
  • Mobile app connectivity via Wi-Fi for installation and service
  • Auto day/night mode switching
  • Engineered for large screen displays with high definition output
SPECIFICATIONS

SYSTEM:

  • MAN-SIZED OBJECT DETECTION: 300M / 984FT
  • MARINE VESSEL DETECTION: 4.02KM / 2.5 MILES
  • MINIMUM ILLUMINATION: MOONLESS STARLIGHT (<0.001 LUX) - TOTAL DARKNESS CAPABILITY
  • IMAGE RESOLUTION: 1280 X 1024 HIGH DEFINITION
  • FRAME RATE: UP TO 30HZ
  • HORIZONTAL FIELD OF VIEW: 44°
  • FOCUS RANGE: FIXED 10M TO INFINITY
  • LENS: 16MM F/1.4 GLASS LENSES
  • WEIGHT: 1KG (2.2 LBS)
  • VISIBLE SPECTRUM: 400-1200NM (INCLUDES INFRARED LIGHT)

ENVIRONMENTAL:

  • IP67 WATER/DUST RESISTANT
  • SHOCK & VIBRATION: 20G VERTICAL, 10G HORIZONTAL
  • OPERATING TEMPERATURE: -20°C TO +50°C
  • WIND RESISTANCE: 100 MPH (161 KPH)
  • SOLAR UV EXPOSURE: MIL-STD-810G

OPERATIONS

  • POWER: PoE (9 V DC - 36 V DC)
  • POWER CONSUMPTION: 5W NOMINAL
  • VIDEO OUTPUT: H264 MAIN PROFILE
  • DIMENSIONS: 127 X 175MM (5 X 6.9 IN)
  • DAYTIME USE: OPTIMIZED FOR ALL LIGHTING CONDITIONS

OTEHRS:

  • NETWORK COMPATIBILITY: GARMIN | RAYMARINE | NAVICO (SIMRAD) | WINDOWS PC | MAC
  • MOUNTING OPTIONS: BALL UPRIGHT OR BALL DOWN
  • MATERIAL: UV RESISTANT POLYCARBONATE
  • WARRANTY: 2 YEARS
  • IMAGE SETTINGS: BRIGHTNESS, CONTRAST, SHARPNESS, SATURATION, ADVANCED FILTERS
DOCUMENTATIONS

Night Vision, Redefined

SIONYX sets a new standard in digital night vision with advanced low-light imaging designed for explorers, boaters, and professionals who refuse to slow down after sunset. From navigation to surveillance to outdoor adventure, SIONYX cameras reveal the world in crisp detail—even in near-total darkness—giving you the clarity and confidence to move with precision.
