Panoptix™ PS70

Garmin

Panoptix™ PS70

010-02768-00
Pre Order
RM29,172.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Fairing Block Included

SEE FISH LIVE. CATCH FISH DEEP.

The Panoptix PS70 stainless steel thru-hull transducer is powered by Garmin RapidReturn™ sonar, which gives you live sonar views up to 1,000’ below the surface.
SIZES & DIMENSIONS

8.50" x 4.49" x 9.61" (21.6 x 11.4 x 24.4 cm)
WHAT'S IN THE BOX

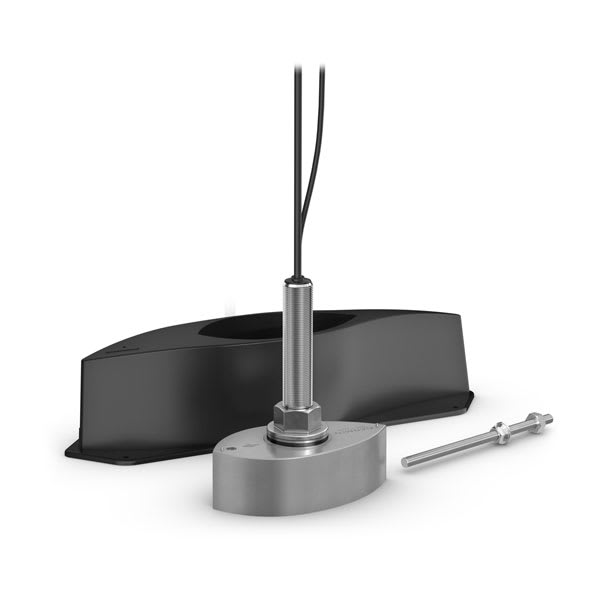

  • PS70 down-looking thru-hull down transducer
  • Fairing block
  • Stainless steel thru-hull mounting hardware
  • Power cable
  • Network cable 40 ft (12 meters) with network adapter
  • Documentation
FEATURES
  • Live sonar up to 1,000'
  • Multiple sonar modes
  • Wide sonar beam
  • Image stabilization
  • Thru-hull mounting
  • 800-watt power output
SPECIFICATIONS

General

  • Transducer Beamwidth: 120° X 8°
  • Transducer Cable Length: 8 Ft + 40 Ft Extension
  • Dimension: 8.50" X 4.49" X 9.61" (21.6 X 11.4 X 24.4 Cm)
  • Weight: 10.12 Lbs (4.6 Kg)
  • Temperature Range: 0° C To 40° C



Electrical Features

  • Power Input: 10-35 V
  • Power Usage: 35 W
  • Fuse: 7.5 A



Sonar Features

  • Frequency: 190-210 Khz
  • Transmit Power: 800 W
  • Maximum Depth: Saltwater: 1000' (304.8 M)
  • Sonar Type: Multi-Beam Phased Array



Connections

  • Garmin Marine Network Ports: 1 (Small Connector)



Sonar Modes

  • Realvü 3d Historic: Yes
  • 3-Beam Traditional: Yes
  • Traditional Sonar Source: Yes
DOCUMENTATIONS
