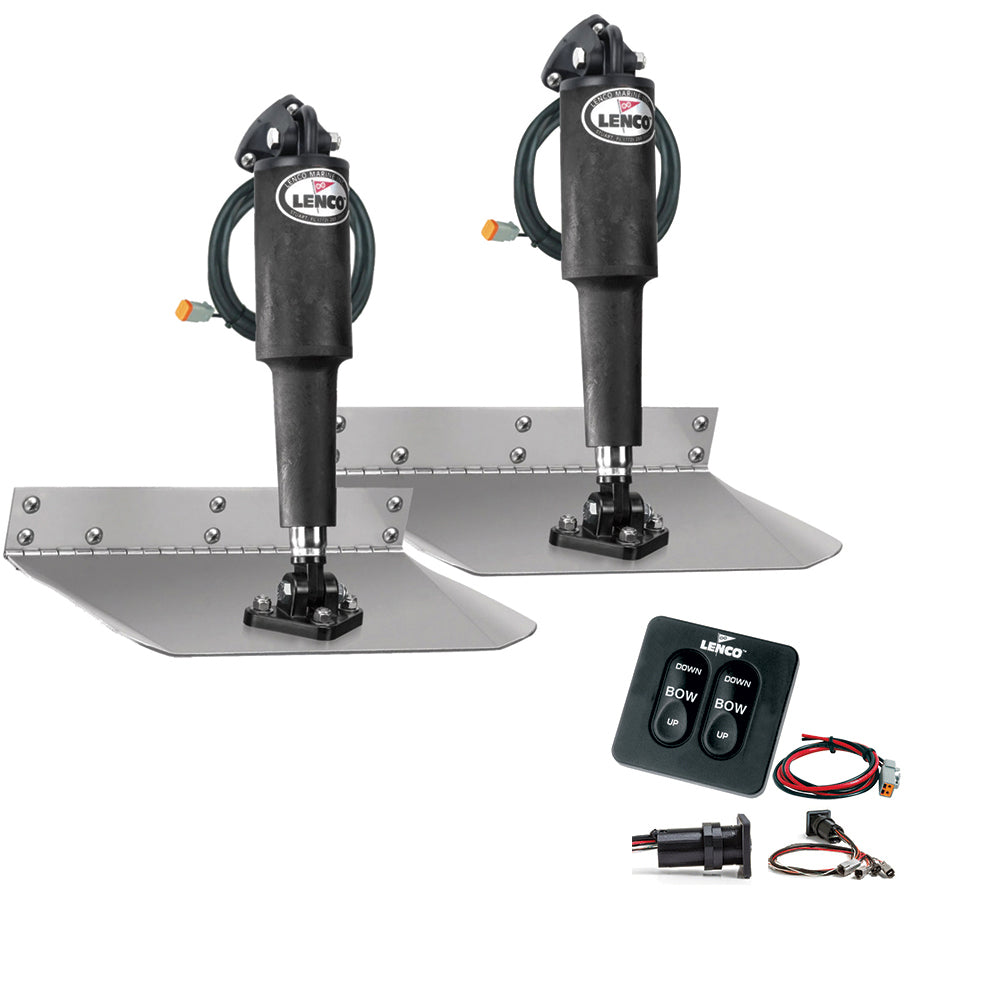

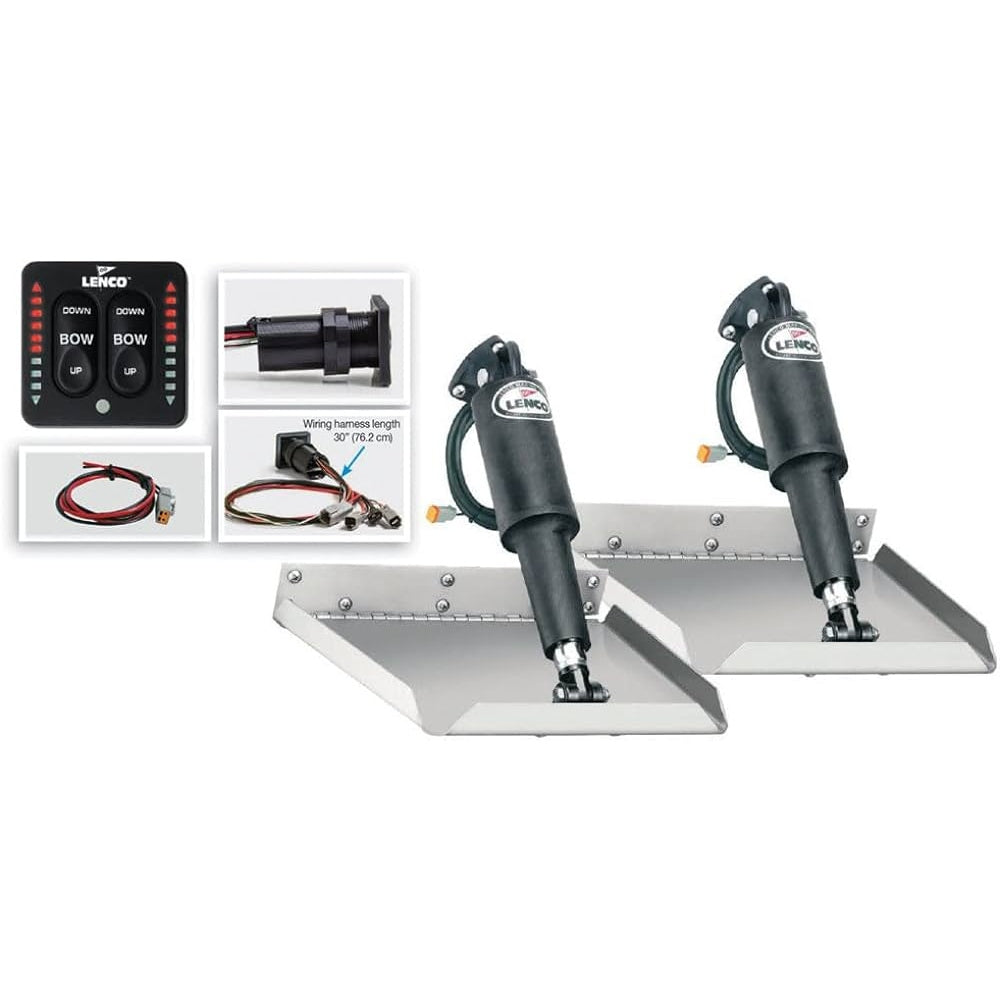

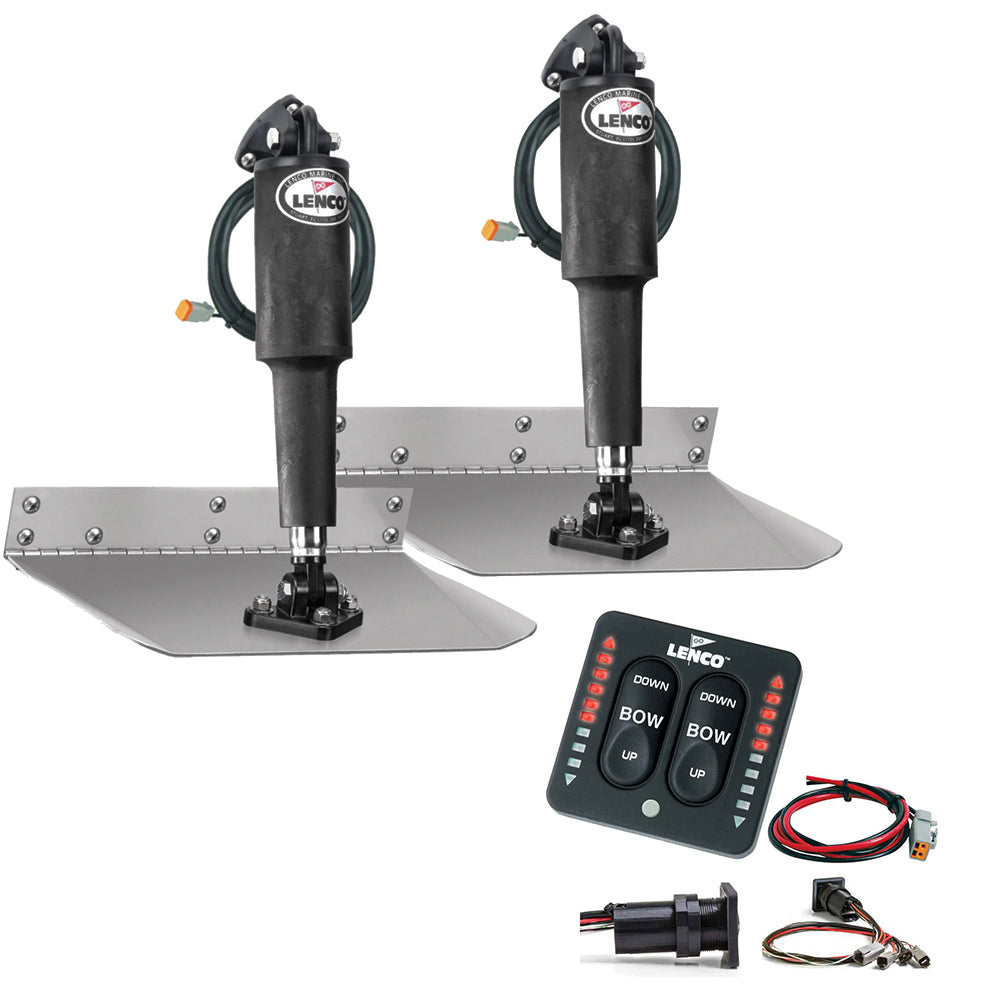

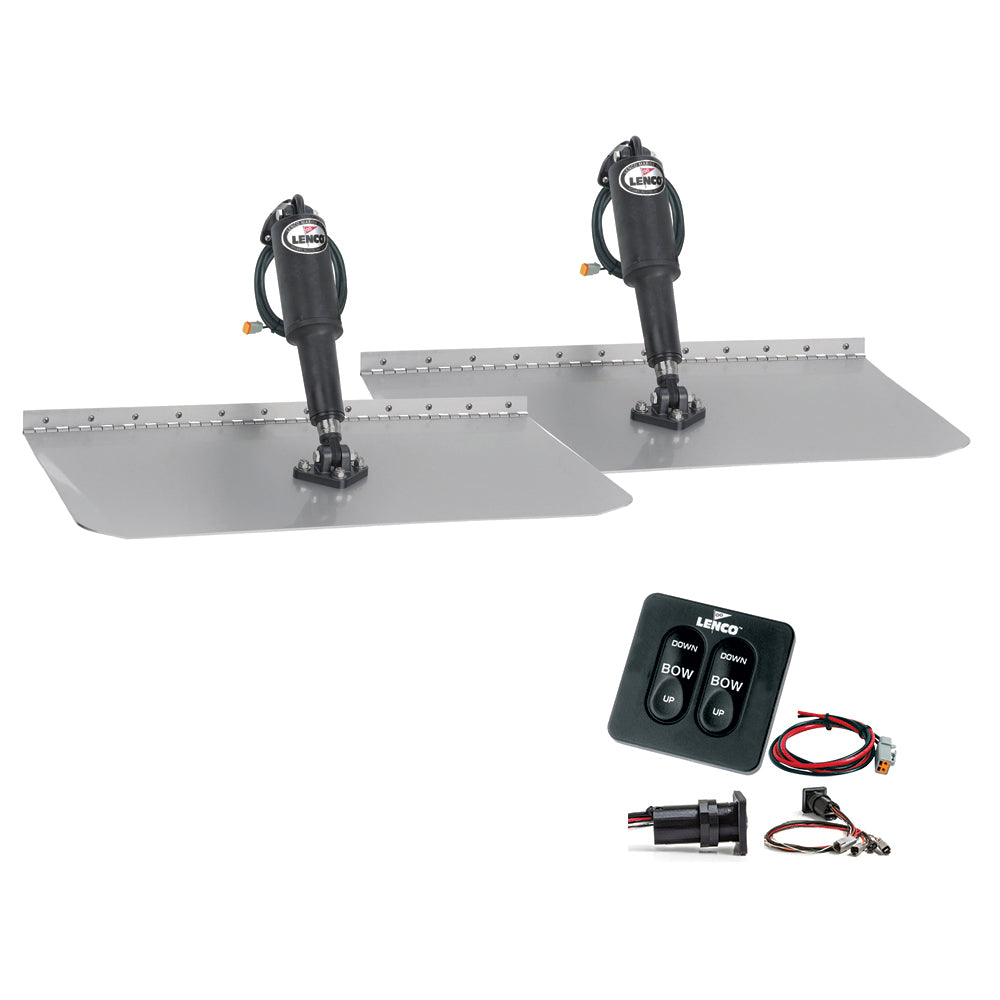

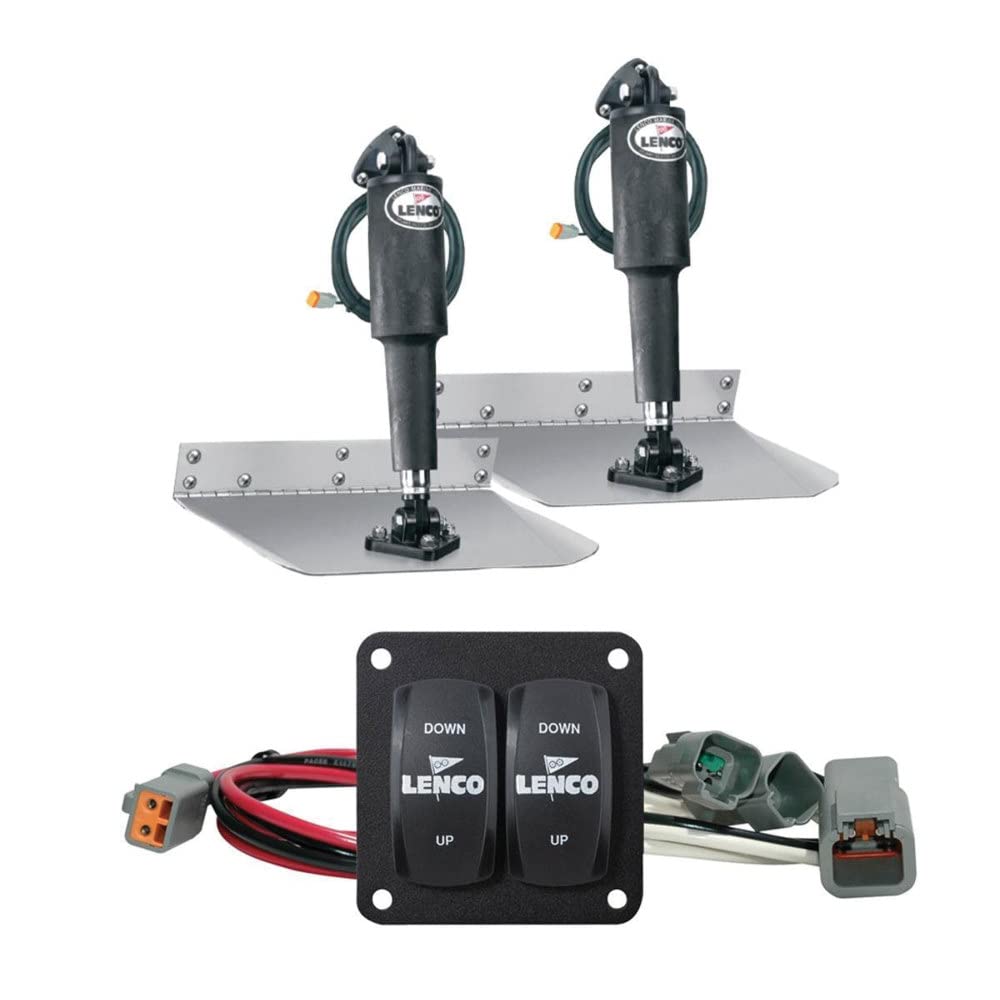

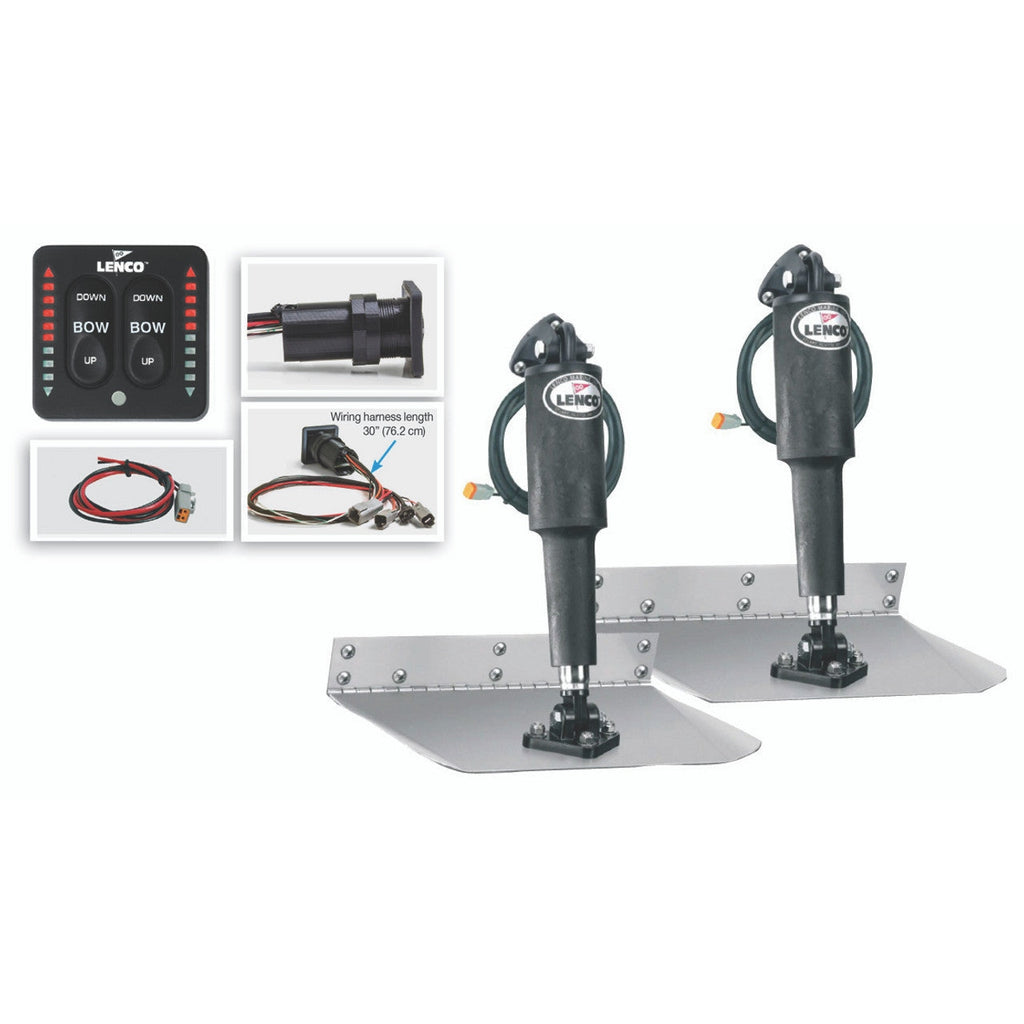

Standard & Edge Mount Trim Tab Kits (switch included)

Lenco Marine

Standard & Edge Mount Trim Tab Kits (switch included)

15101-104
Pre Order
RM6,033.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Size
Mount
Switch Kit Included

Everything you need in one box! The Standard and Edge Mount trim tab kit with the added benefit of having the integrated switch choice and power connector all included.
SIZES & DIMENSIONS
WHAT'S IN THE BOX

Kits Include:

  • Switch Kit - Choose Double Rocker, Standard Integrated or LED Integrated
  • (2) 12-gauge 304 stainless steel standard finish blades
  • (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors
  • (2) 30133-103 actuator extension wiring harnesses - 20' (6.1 m) length
  • (2) 15085-001 upper mounting brackets with gland seal
  • (2) 50014-001 lower mounting brackets
FEATURES

The Standard blades are constructed of 12-gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Edge mount blades are constructed of 12-gauge (2.7 mm) laser cut 304 stainless steel with a 1" (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Switch included.
SPECIFICATIONS
DOCUMENTATIONS

Standard Trim Tab Kits (switch included)

Everything you need in one box! The Standard Mount Trim Tab Kit includes an option of switches and all required mounting equipment.

View catalog

Edge Mount Trim Tab Kits (switch included)

Everything you need in one box! The Edge Mount Trim Tab Kit includes an option of switches and all required mounting equipment.

View catalog
