Blue Sea System

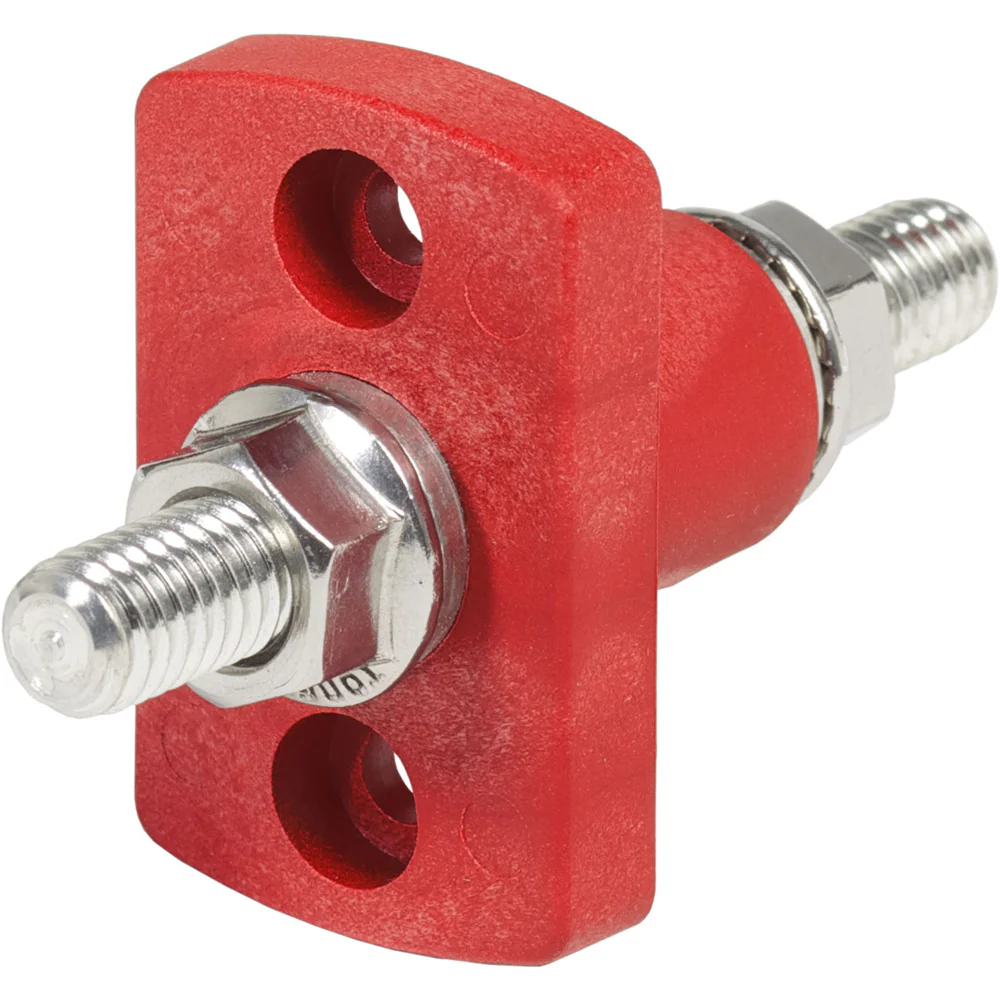

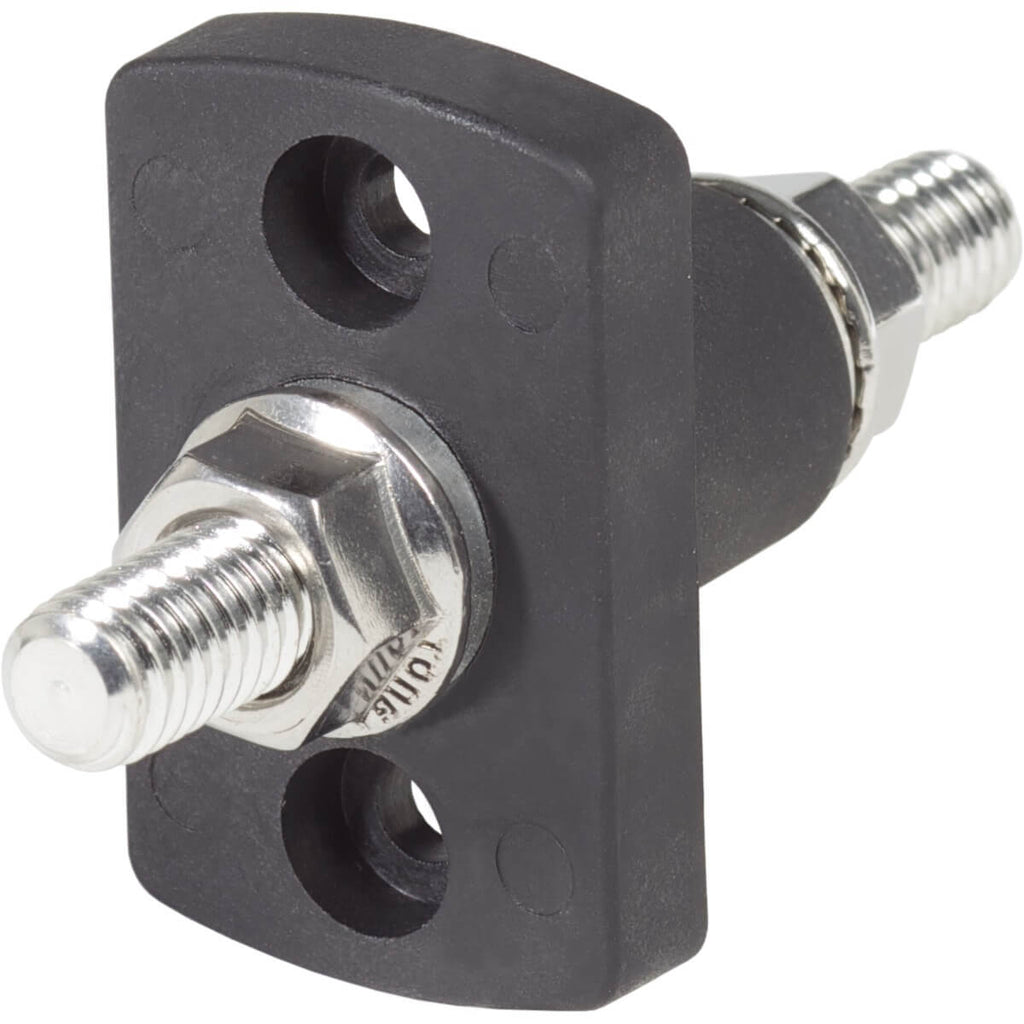

Terminal Feed Through Connector

SKU: 2202

Pre Order

RM208.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Eliminates chage and provides strain relief when passing high current through hulls, decks and bulkheads

ColorRed

Stud Size 5/16" - 18 Studs 3/8"-16 Studs

Perfect for passing high current cables through hulls, decks and bulkheads
Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable
Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation
Rated IP66 — withstands water from heavy seas

Amperage: 250A

Color: Black / Red

Maximum Voltage: 48V DC

Stud Size: 5/16"-18; 3/8" - 16

Base Material: Reinforced Thermoplastic

Recommended Torque: 100 in-lb (11.3 N·m)

Stud Material: Tin-Plated Copper Alloy

Weight: 0.30lb (0.14 kg)
