Blue Sea System

Water-Resistant - 100A BusBar

SKU: 2356

Pre Order

RM300.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Provides secure water-resistant bussing for harsh environments.

Water-resistant design with standard ring or spade type terminals allows for simple wiring with standard tools.
Accepts a wide range of wire sizes
Includes 3 wire plugs to maintain water-resistant rating if less than 4 wires are used
Nests with other Water-Resistant 100A Common BusBars and ST-Blade Water-Resistant Fuse Block for space saving wiring
Ideal for positive distribution and for the collection of negative or AC ground circuits
2356100 meets ABYC/USCG insulation requirements
Tin-plated copper busses and fuse clips
Includes four write-on circuit labels
Small format standard and custom labels available

Cover: Yes

Maximum Voltage: 300V AC; 48V DC

Terminal Stud: 1 x #10-32

Continuous Rating : 100A AC; 100A DC

Bus Material: Tin-Plated Copper C11000

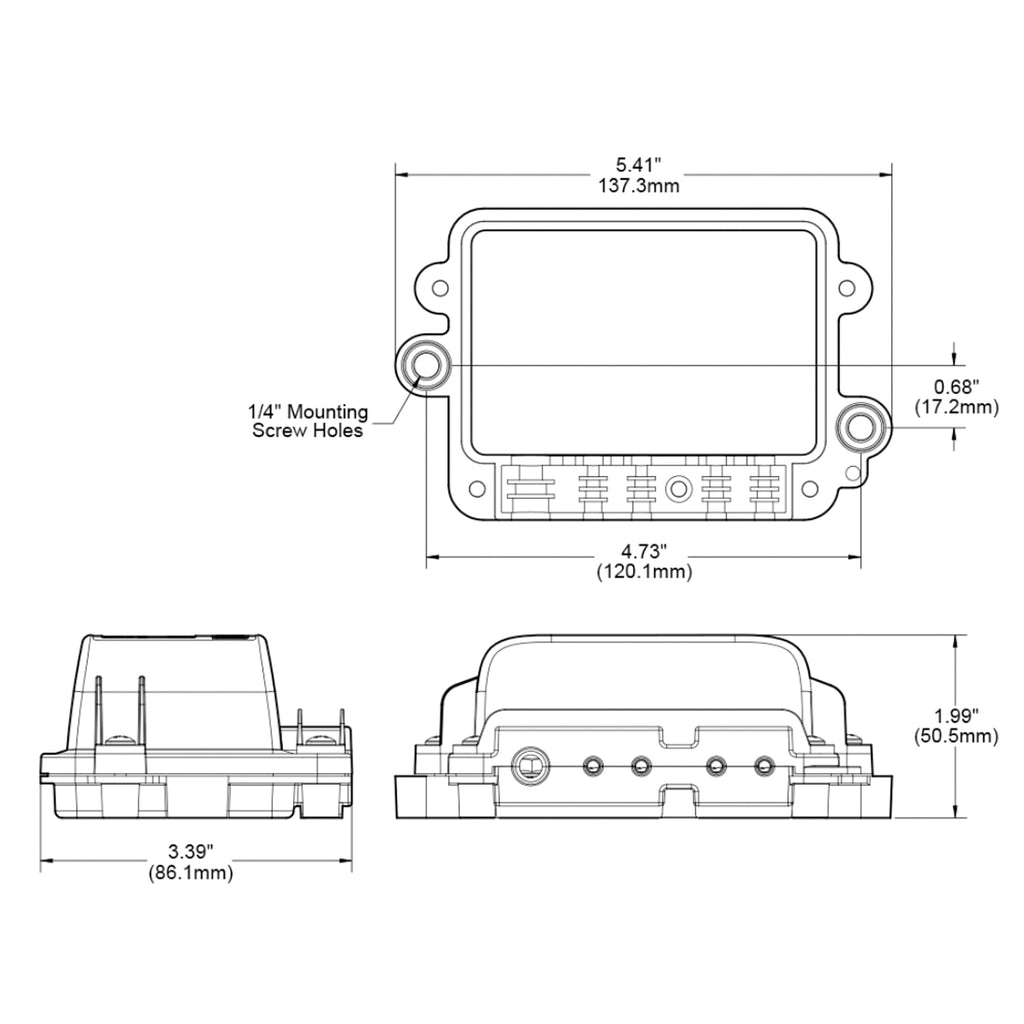

Mounting Holes: Accepts 1/4" (6mm) Screws

Terminal Screws: 4 x #8-32

Wire Size: (1) 8 AWG to 4 AWG – Input; (4) 16 AWG to 10 AWG - Load
