WeatherDeck® 12V DC Waterproof Switch Panel boatyardmalaysia

Blue Sea System

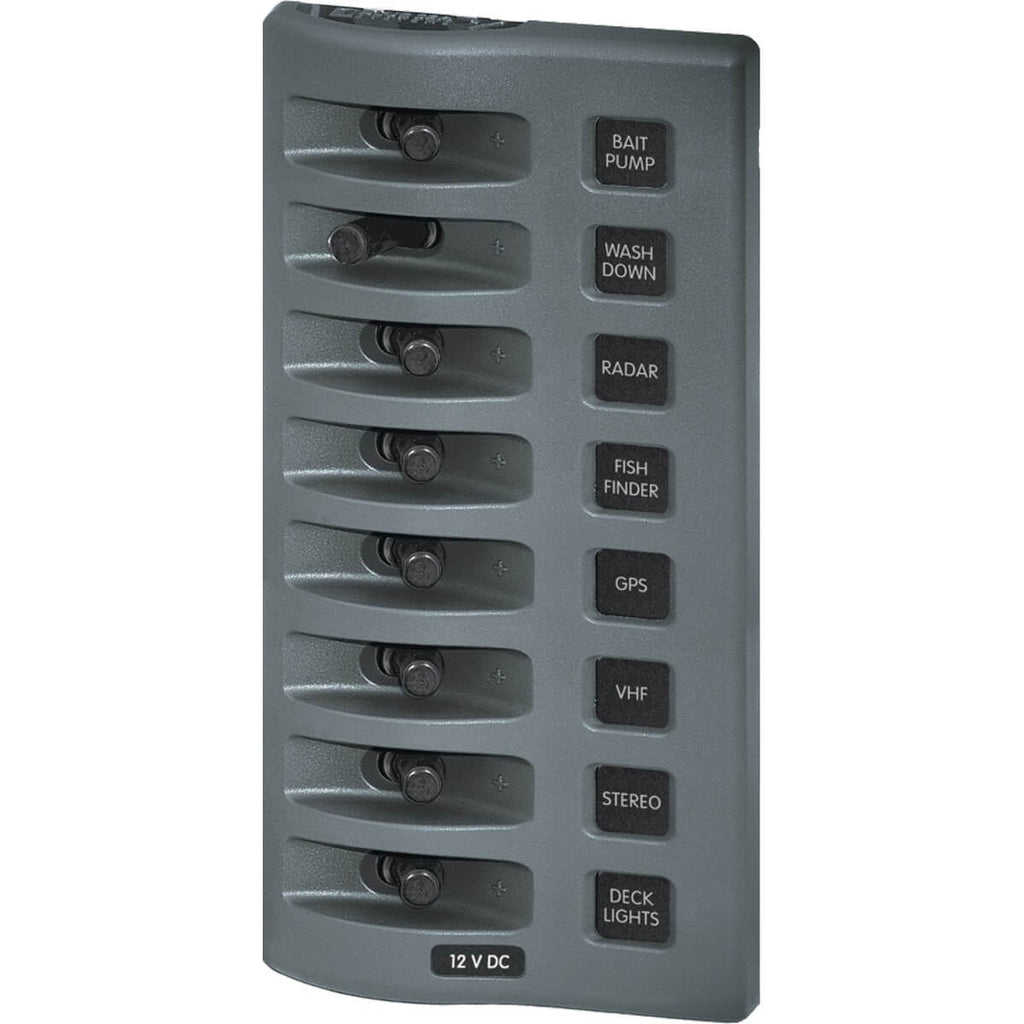

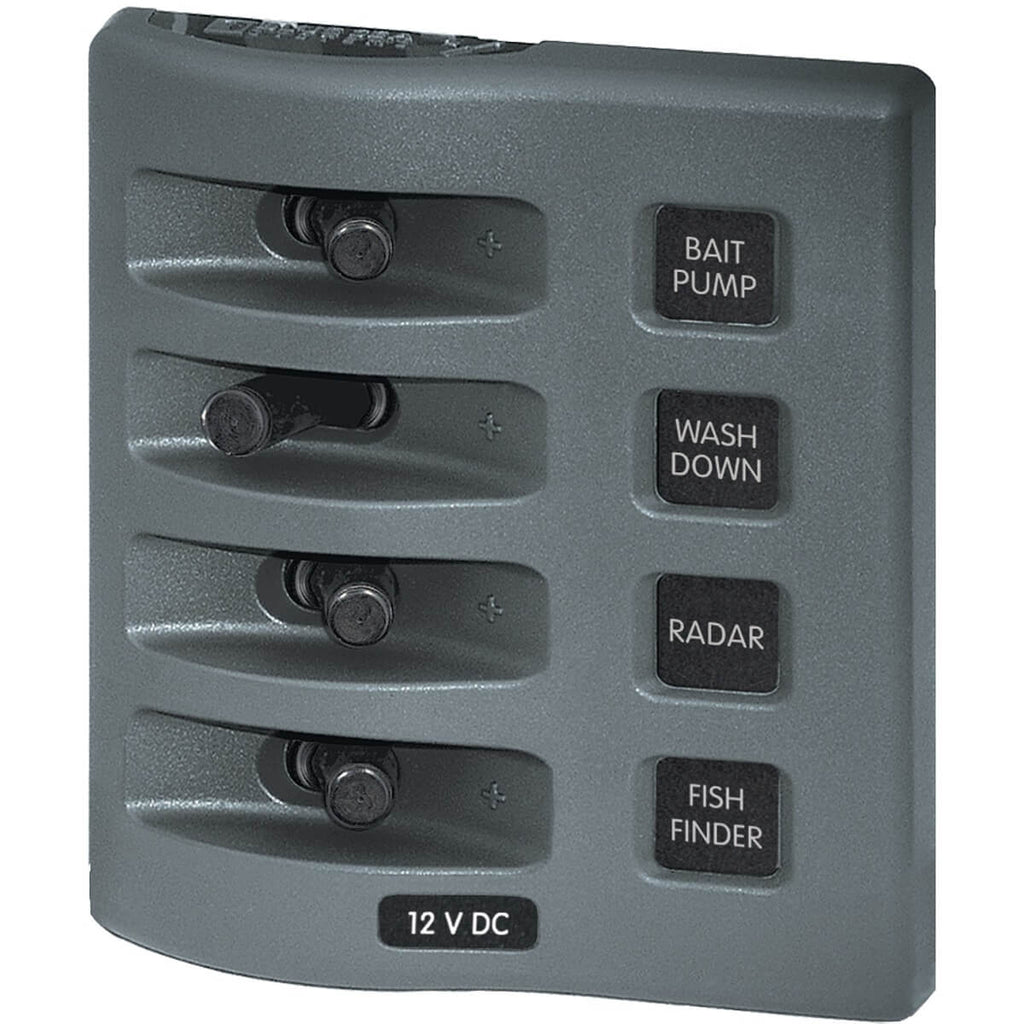

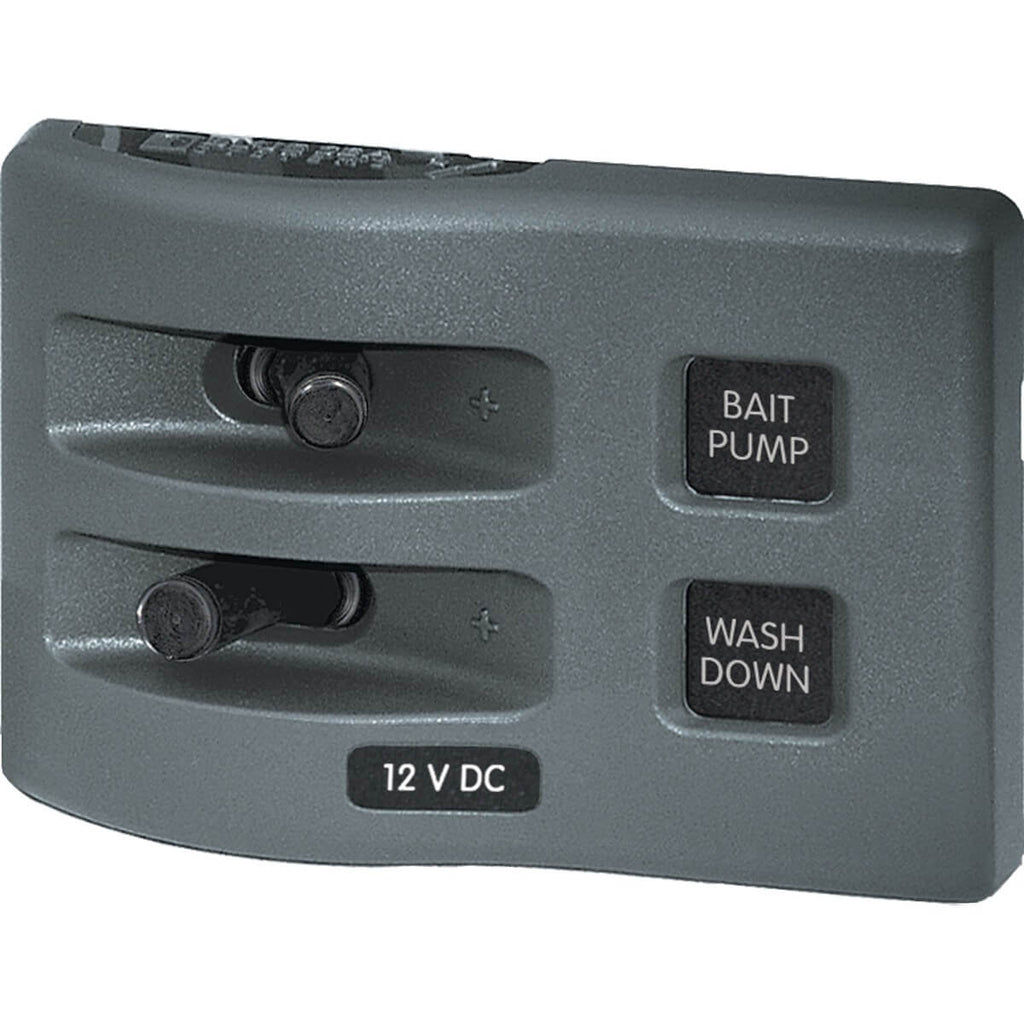

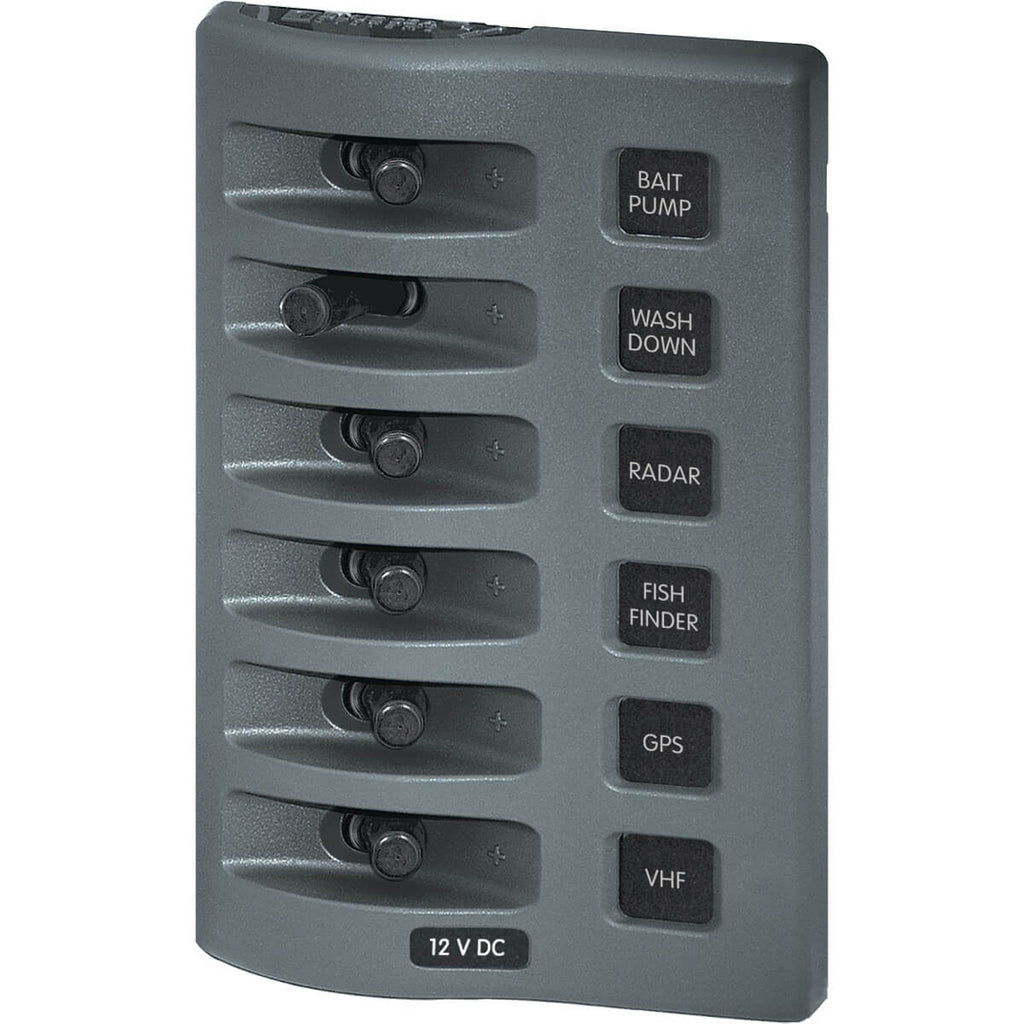

WeatherDeck® 12V DC Waterproof Switch Panel

SKU: 4303
Pre Order
RM318.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 monthsLearn more.

Many switch panels mounted on the dash or flybridge do not stand up to harsh marine environment. WeatherDeck® Switch Panels are waterproof and rated IP67 (for temporary immersion in water) and use materials that won’t deteriorate in the harsh sun, salt, and water. Many small boats, which already have circuit protection and do not run at night, simply need a switch panel which is waterproof. The WeatherDeck® Switch Panel has all the rugged features of the proven WeatherDeck® Panel family however does not have the added cost of backlighting and circuit protection.

Positions
SIZES & DIMENSIONS
WHAT'S IN THE BOX
FEATURES
  • Integrated switch guards reduce the risk of accidental switching
  • Panels can be mounted in four different orientations
  • Panel front rated IP67 when properly mounted with watertight mounting gasket
  • IP67 – protected against immersion up to 1 meter for 30 minutes
  • UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws
SPECIFICATIONS

Weatherproof : Waterproof

Positions: 2, 4, 6, 8

Nominal Voltage: 12V DC

24V DC

Circuit Protection: None

Maximum Amperage : 15A @ 12V DC (per circuit)

Material: Reinforced Polycarbonate

DOCUMENTATIONS
