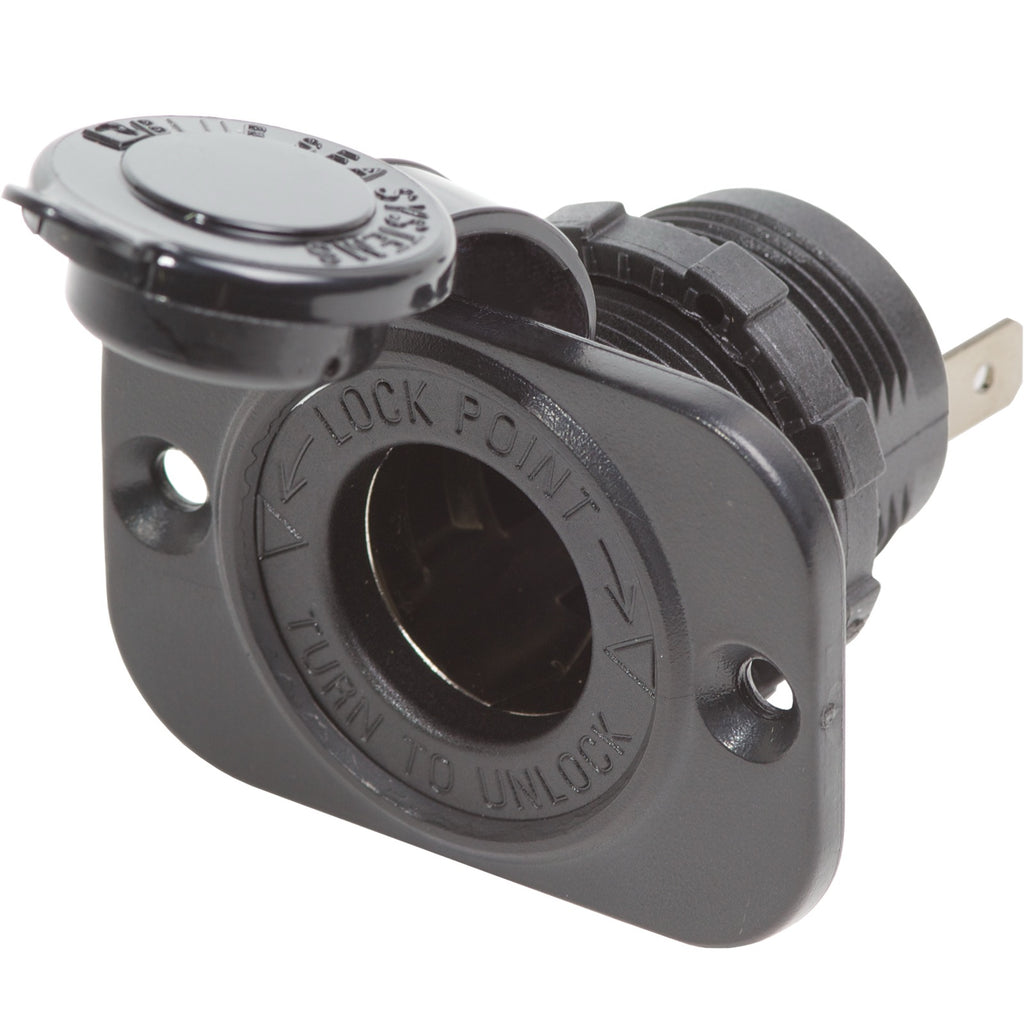

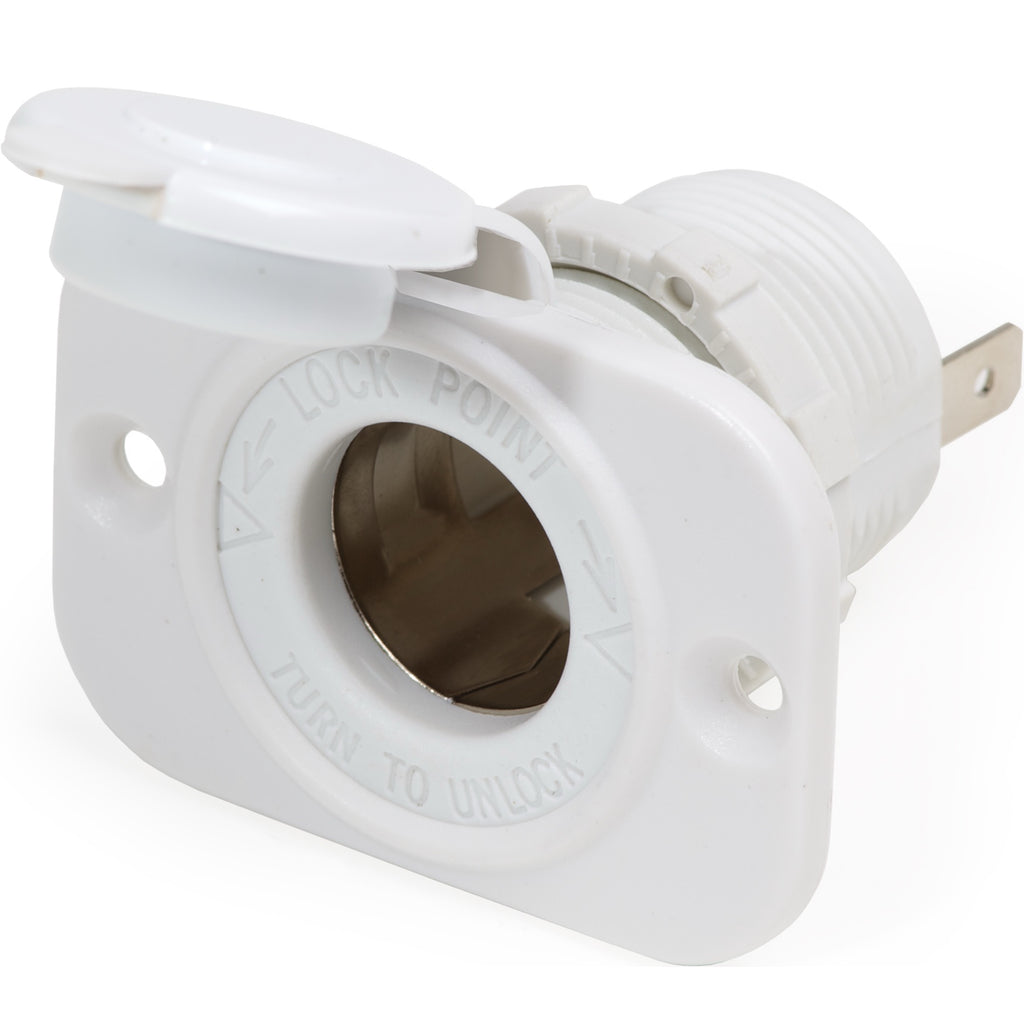

12 Volt Dash Socket with Watertight Cap

Blue Sea System

12 Volt Dash Socket with Watertight Cap

SKU: 1011200
Pre Order
RM98.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

The socket is designed to withstand the rigors of wet environments and constant vibration, making it an ideal solution in the marine world. Internally, Nickel plated copper alloy is used for all current carrying components, and externally the socket features a protective dust cap that keeps debris and moisture out. The voltage is a nominal 12v DC and its cut out dimensions are 29mm.

Color
SIZES & DIMENSIONS
WHAT'S IN THE BOX
FEATURES
  • Features watertight cap, easy installation, and twist locks securely with plug
  • Designed to withstand the rigors of wet environments and constant vibration
  • Large contact surfaces for good electrical connection
  • Twist lock system—plug locks securely into socket
  • Internal strain relief and cord seal
  • Nickel plated copper alloy used for all current carrying components
  • Front panel, rear panel, or surface mount
SPECIFICATIONS
  • Maximum Amperage: 15A
  • Maximum Voltage: 12V DC
  • Cut Out Dimensions: 1 1⁄8 in (28.58 mm) dia. hole
  • IP Rating: IP45 (with cover closed)
  • Weight: 0.10lb (0.05 kg)
DOCUMENTATIONS

Installation Illustration

Socket Dimensioned Drawing
