PiranhaMAX 4

Humminbird

PiranhaMAX 4

SKU: 410150-1
Pre Order
RM747.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

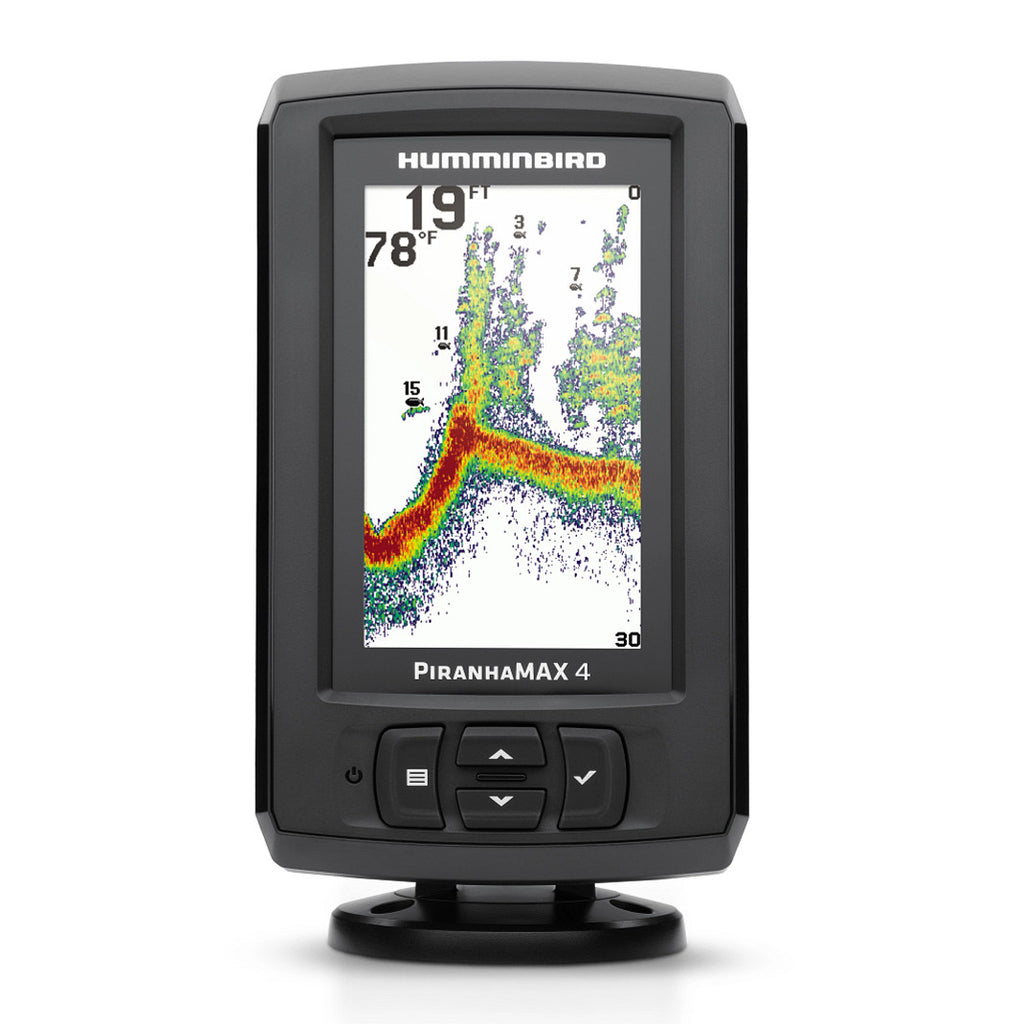

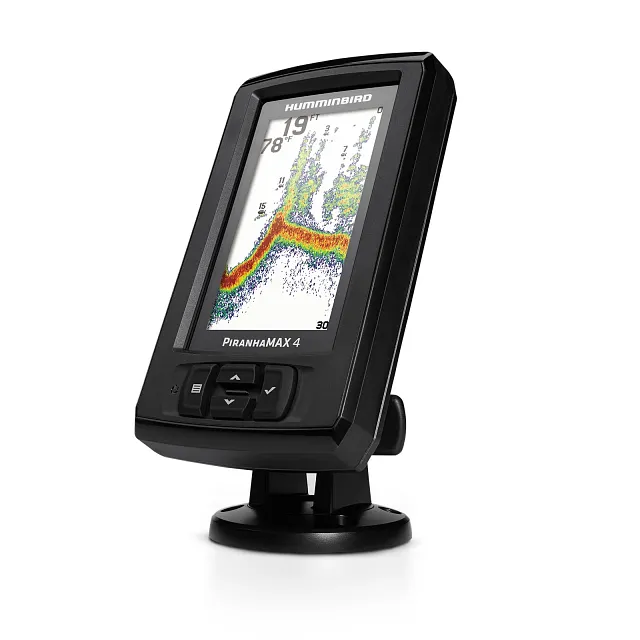

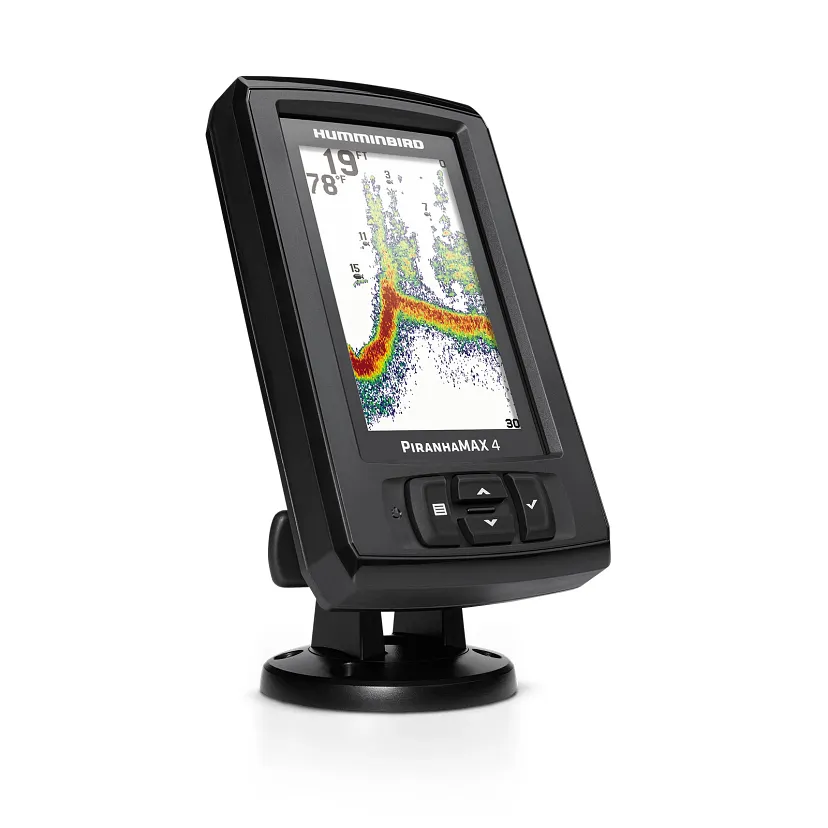

With modern styling and a larger 4.3" color LCD, the PiranhaMAX™ 4 will give you a fresh perspective on what's below your boat. Thanks to a redesigned, even easier-to-use interface, Fish ID+™, fish alarms, depth alarms and zoom has never been simpler. Feature for feature, it packs a technological chomp that no fish finder in its class can match.
SIZES & DIMENSIONS
  • Display Size - Diagonal: 4.3 in
  • Display Pixel Matrix: 272H x 480V
WHAT'S IN THE BOX
FEATURES

Dual Beam Sonar

Choose from a narrow and a wide beam for great detail or a generous coverage area, helping you identify fish, structure and contours.

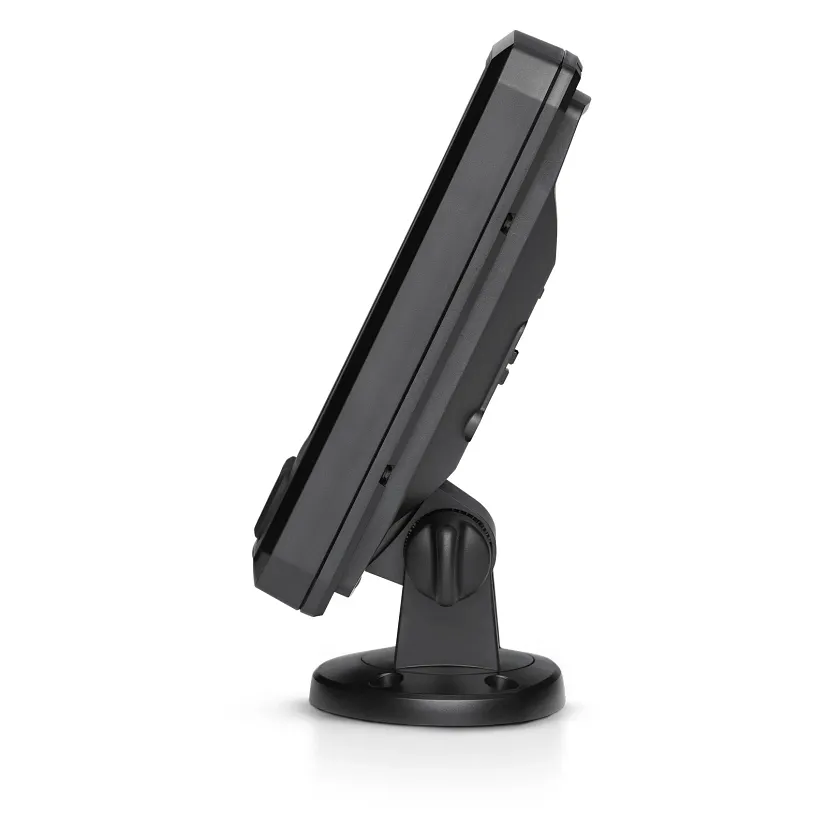

Tilt and Swivel Mount

Quickly adjust your viewing area angle.


Warranty

1-Year Limited Warranty


What's Included

PiranhaMAX 4 fish finder, Tilt and Swivel Mount , XNT 9 28 T transom-mount transducer
SPECIFICATIONS
  • Model: PiranhaMAX 4
  • Product Code: 410150-1
  • Series: PiranhaMAX
  • UPC: 0082324048708
  • As shown MSRP:
  • Display Size - Diagonal: 4.3 in
  • Display Pixel Matrix: 272H x 480V
  • Transducer Included: XNT 9 28 T
  • Memory Card Slot: None
  • Sonar-Standard: Dual Beam
  • Sonar-Coverage: 28° & 16° @ -10dB
  • Sonar-Frequencies Supported: 200/455kHz
  • Depth-Sonar: 600 ft (20) 200 kHz, 320 ft (20) 455 kHz
  • Depth-Down Imaging: 320 ft
  • Interface: Keypad Control
  • Power Draw: 180 mA
  • Power Input: 10.8-20 VDC
  • Power Output Peak-to-Peak: 2400 Watts
  • Power Output RMS: 300 Watts
  • Screen Snap Shot: Not Supported
  • Mount-Standard: Gimbal
  • Mount-Standard Size: 3.91 in W x 7.34 in H x 3.62 in D
  • Mount-Optional: In-Dash Mounting Kit
  • Mount-Optional Size: 3.91 in W x 5.875 in H x 2.5 in D
  • Transducer Mount Location: Transom
  • GPS Chartplotting: Not Supported
  • GPS Receiver: Not Supported
  • GPS Trackplotting: Not Supported
  • MEGA Live Compatibility: No
  • Humminbird Basemap: Not Supported
  • LakeMaster Compatibility: No
  • Platinum Compatibility: No
  • Target Separation: 2.5 in
  • Upgradable Software: No
  • Display Colors Grayscale: 256 Color
  • Display Type: Color TFT
  • Speed: Not Supported
  • Temperature: Built In
  • Warranty: One-Year Warranty
DOCUMENTATIONS

English Transducer Resource Guide

French Transducer Resource Guide

Accessory Resource Guide

PMAX 4 Installation Instructions

Fishin' Buddy MAX DI Installation Instructions

Fishin' Buddy MAX - French Product Manual

Fishin' Buddy MAX - English Product Manual
