B75 Chirp-ready 600W, Tilted Element™, Mix and Match™ Transducer, DT

Airmar Technology

B75 Chirp-ready 600W, Tilted Element™, Mix and Match™ Transducer, DT

SKU: B75C-20-M-MM
Pre Order
RM5,035.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Airmar’s low-profile, Chirp-ready, transducers are the perfect addition to smaller boats such as center consoles.

Tilted Element™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

The B75 is available in three Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 6 to 15° hull deadrise angles
  • Fixed 0° tilted version for 0 to 7° hull deadrise angles
Frequency
Tilt
Connection
SIZES & DIMENSIONS
  • Max Vessel LOA: Up to 8 m (26')
  • Hole Size: 70 mm (2-13/16")
  • Usable Shaft Length: 95 mm (3.75")
WHAT'S IN THE BOX

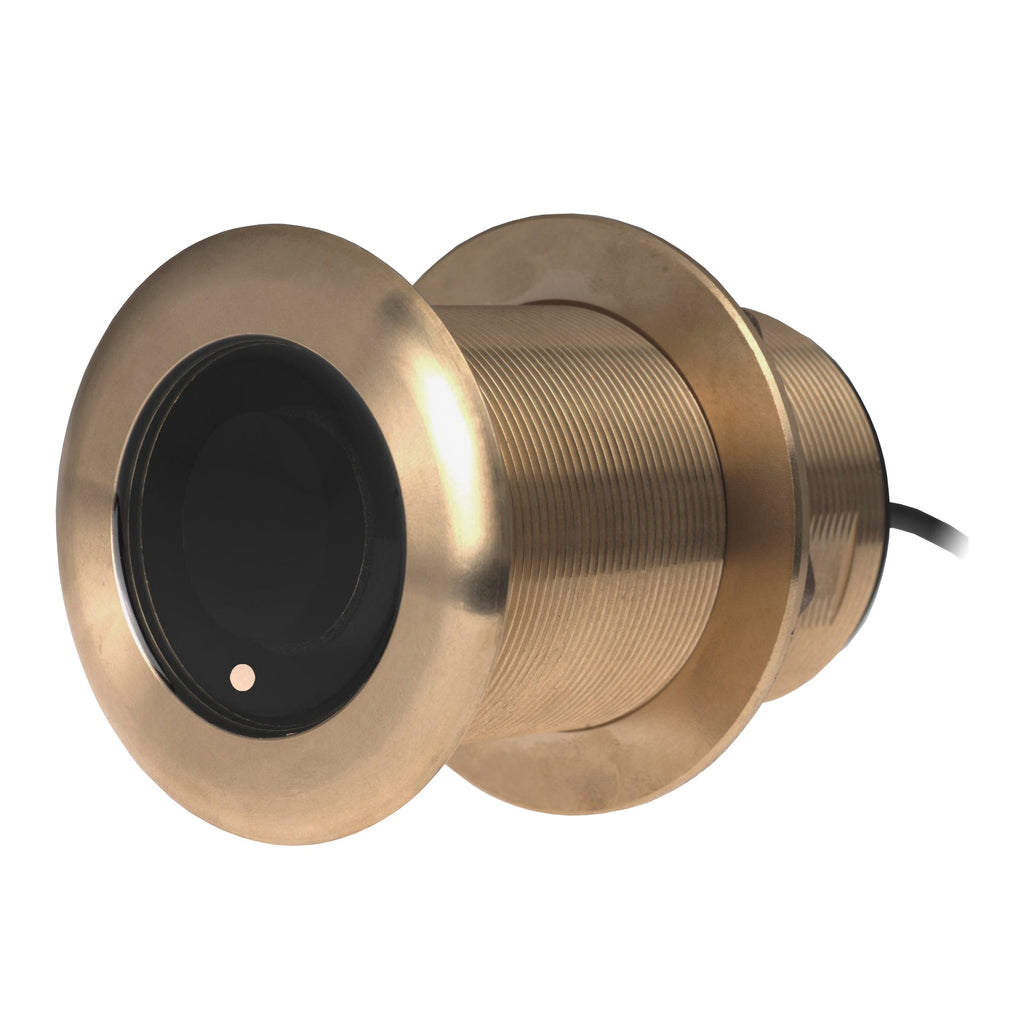

  • B75 Bronze CHIRP Thru-Hull Transducer
  • Mounting hardware
  • Fairing block (if applicable)
  • User manual
FEATURES
  • Depth and fast-response water-temperature sensing
  • 600 W of power with a maximum depth of 214 m (700')
  • High frequency: 130 to 210 kHz
  • 15° to 9° beamwidth
  • High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns
  • Low-profile, thru-hull housing provides good display resolution at speed when installed properly
  • Recommended for stepped, planing, or displacement hull
  • Bronze housing for use in a fiberglass or wood hull
  • Also available in a stainless steel housing (SS75H) for use with all hull materials
  • Patented Xducer ID® technology
SPECIFICATIONS
  • Power Rating: 600 W
  • Max Deadrise Angle: 24°
  • Housing: Bronze
  • Functions: Depth, Temperature
  • Hull Material: Fiberglass or wood
  • Max Vessel LOA: Up to 8 m (26')
  • Hole Size: 70 mm (2-13/16")
  • Usable Shaft Length: 95 mm (3.75")
  • Mounting Style: Tilted Element Thru-Hull
  • Acoustic Window: Urethane
  • Common Use: Fishing
  • High Frequency: 130-250 kHz
  • High Frequency Beamwidth: 15°-9°, 30°
  • Max Deadrise: Up to 24°
  • Max Depth: 214 m (700')
  • Retractable housing: No
  • Single or Dual Frequency: CHIRP-Ready Single-Band
  • Tilted Element: Yes
  • Weight: 1.4 kg (3 lb.)
DOCUMENTATIONS

Acoustic Data H: 130-210D

Brochure Tilted Element Chirp Transducers

Dimensions D-19055

Installation D-17-280-02

Installation D-17-280-03

Installation D-17-364-01

Installation D-17-573-01

InstallationD-19070

The B75C-12-M-MM offers accurate mid-range depth readings, excellent target separation, and reliable performance on boats up to 8 m (25’) with fiberglass or wood hulls.
