BattMan

Mastervolt

BattMan

SKU: 70405060
Pre Order
RM2,347.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

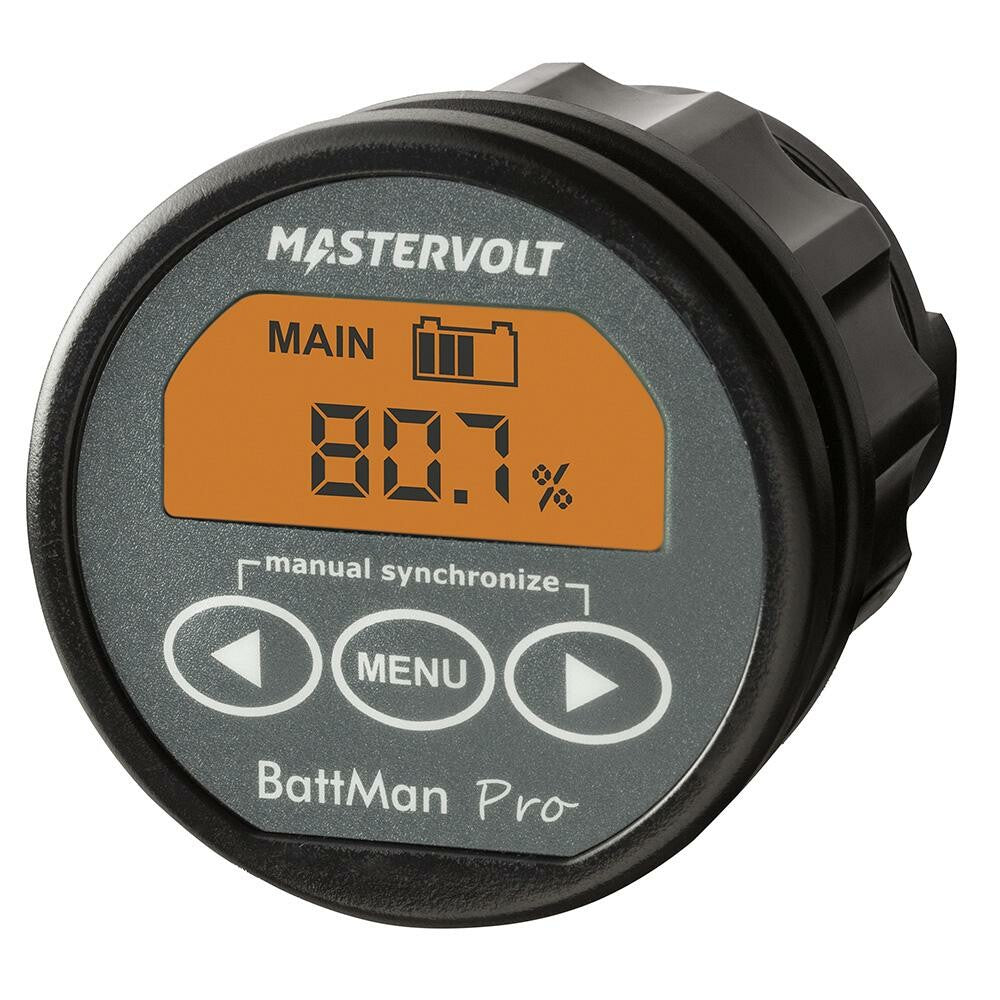

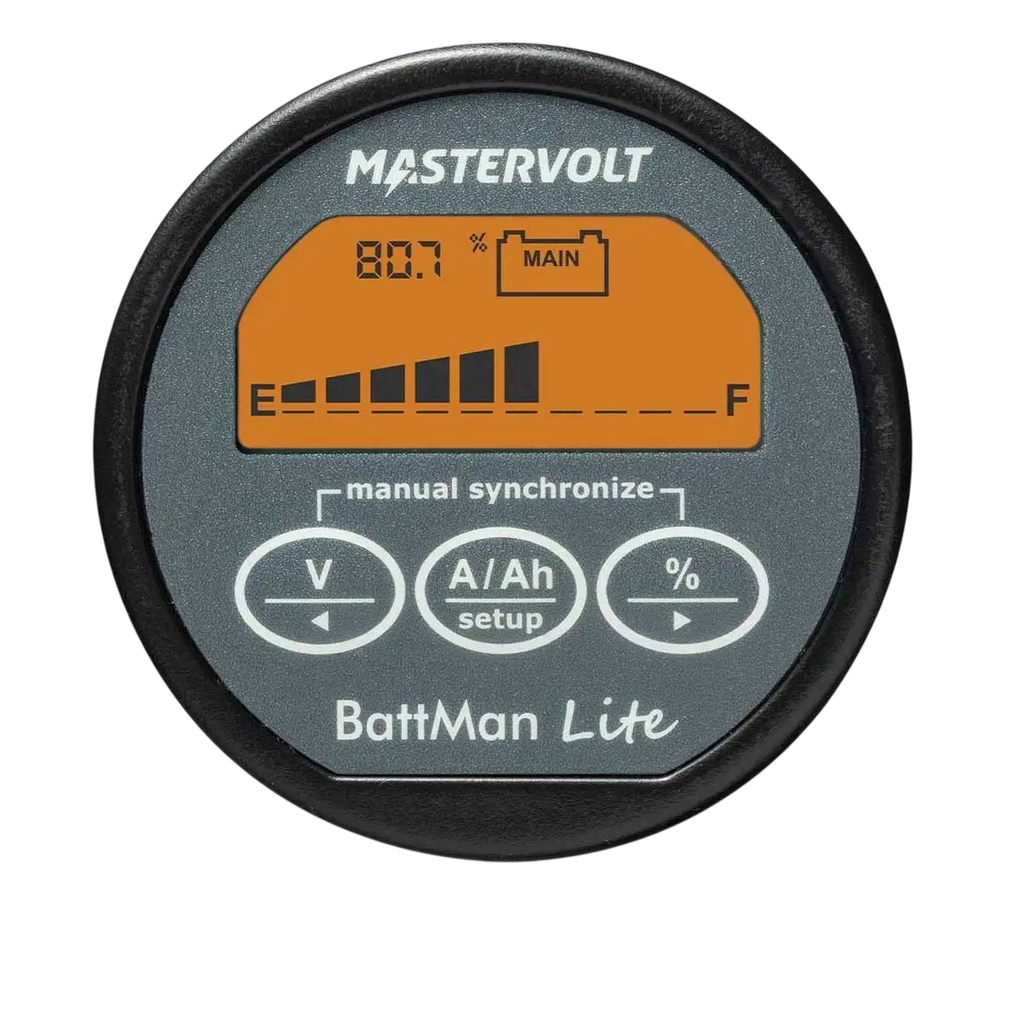

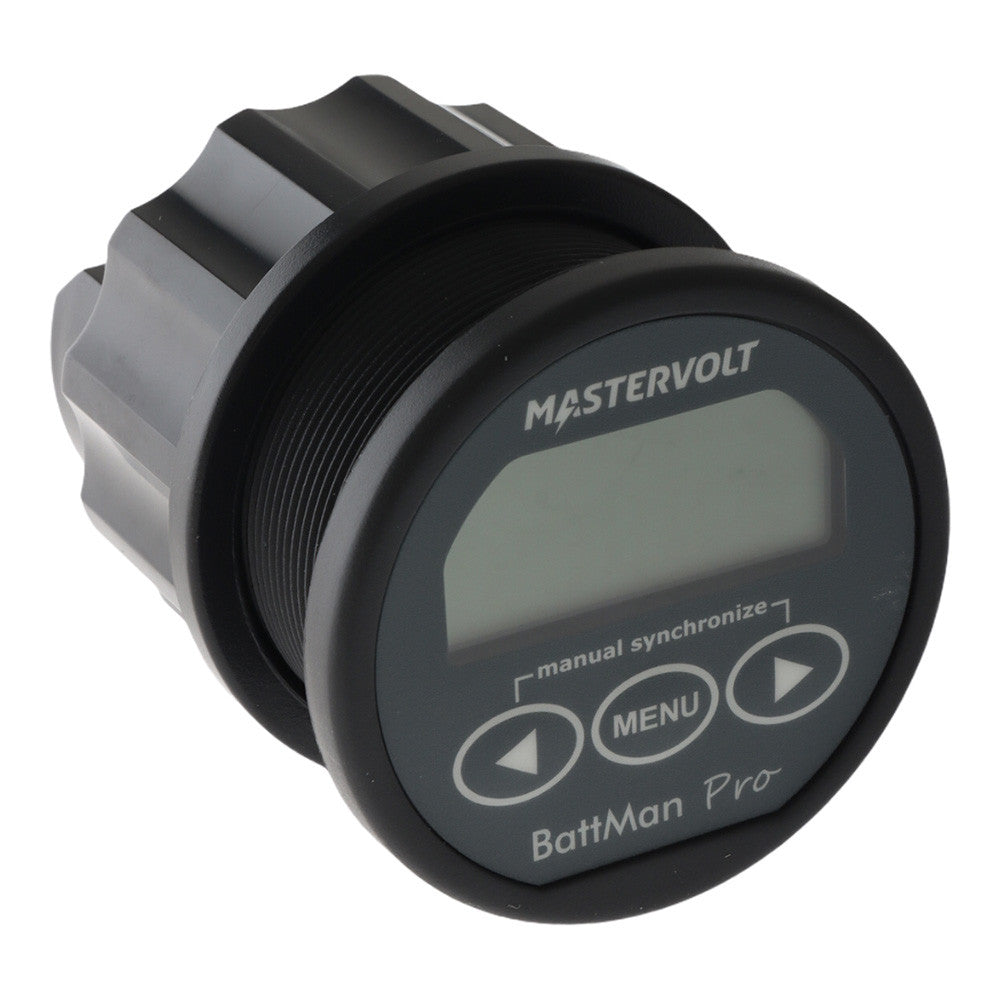

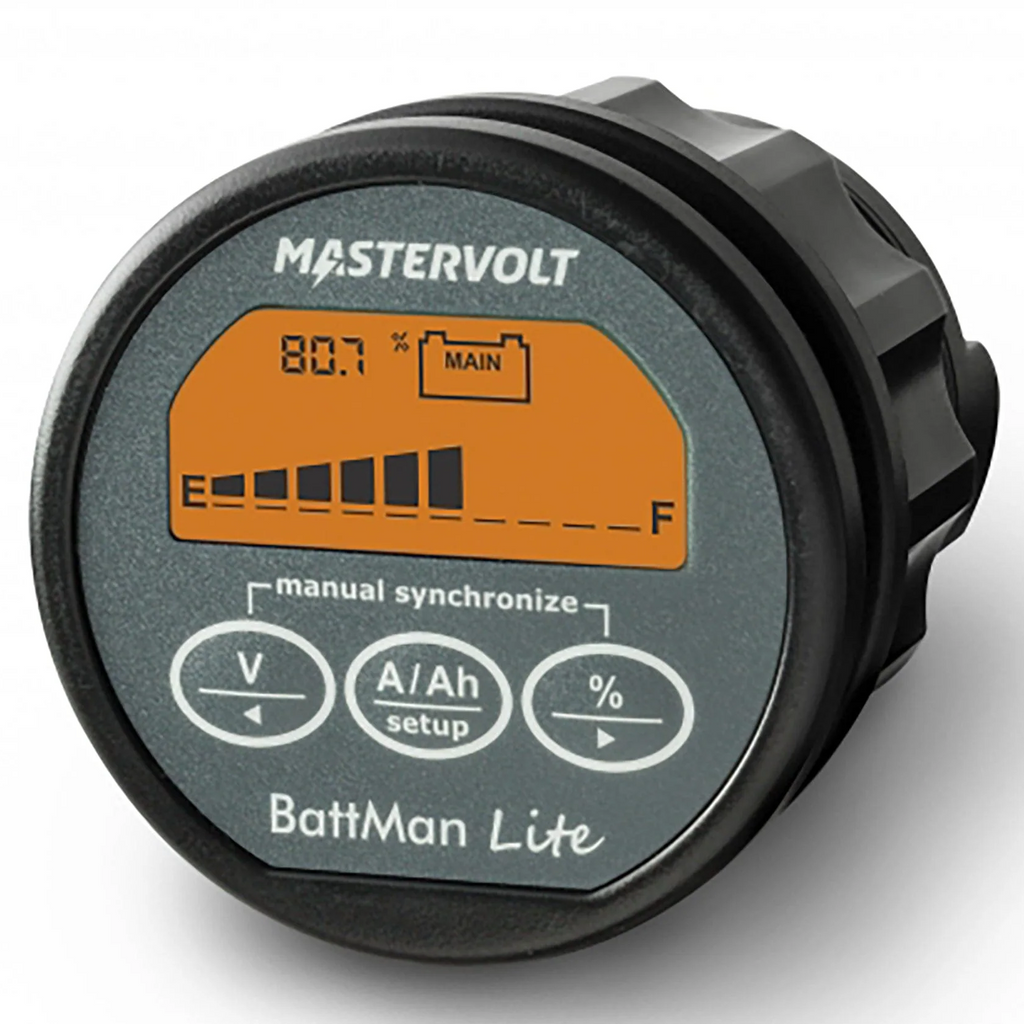

Battery monitor, 12/24 V DC with large, splash proof display (IP65) and power bar.

An affordable battery monitor that does exactly that: providing critical information about the status of your battery bank under all circumstances. Moreover it will warn you when your battery bank is empty.
Model
SIZES & DIMENSIONS

87 x 45 x 35 mm; 3.4 x 1.8 x 1.4 inch
WHAT'S IN THE BOX
FEATURES
SPECIFICATIONS

General specifications

  • Number of battery outlets: 2; service (fully), starter (voltage)
  • Display/read-out: voltage, current, amp-hours, time remaining, battery capacity in %, special battery status events* (*in Pro only)
  • Languages on display: universal
  • Built-in depth: 72.5 mm; 2.9 inch
  • Dimensions: Ø 64 mm, depth 79 mm
  • Dimensions shunt, hxwxd: 87 x 45 x 35 mm; 3.4 x 1.8 x 1.4 inch
  • Weight: 0.15 kg; 0.3 lb



Technical specifications

  • Max. Ah capacity: 9999 Ah
  • Supply voltage: 9-35 V
  • Voltage range: 0-35 V
  • Current consumption (backlight off): 8 mA/12 V, 6 mA/24 V
  • Current consumption (backlight on): 30 mA/12 V, 18 mA/24 V
  • Voltage resolution: 0.01 V
  • Voltage accuracy: ± 0.3%
  • Shunt specification: 500 A / 50 mV (service set)
  • Current measurement range: 0-500 A
  • Current accurancy: ± 0,4 %
  • Battery alarm contact: yes, potential free
  • Remaining time indication: yes
  • Historical data: yes
  • MasterBus compatible: no
  • Connection cable (6-wire) necessary: yes
  • Modular cable necessary: no
DOCUMENTATIONS

User's Manual BattMan Pro

User's Manual BattMan Lite
