Black Oak 20" Single Row 5W Combo White boatyardmalaysia

Black Oak Led

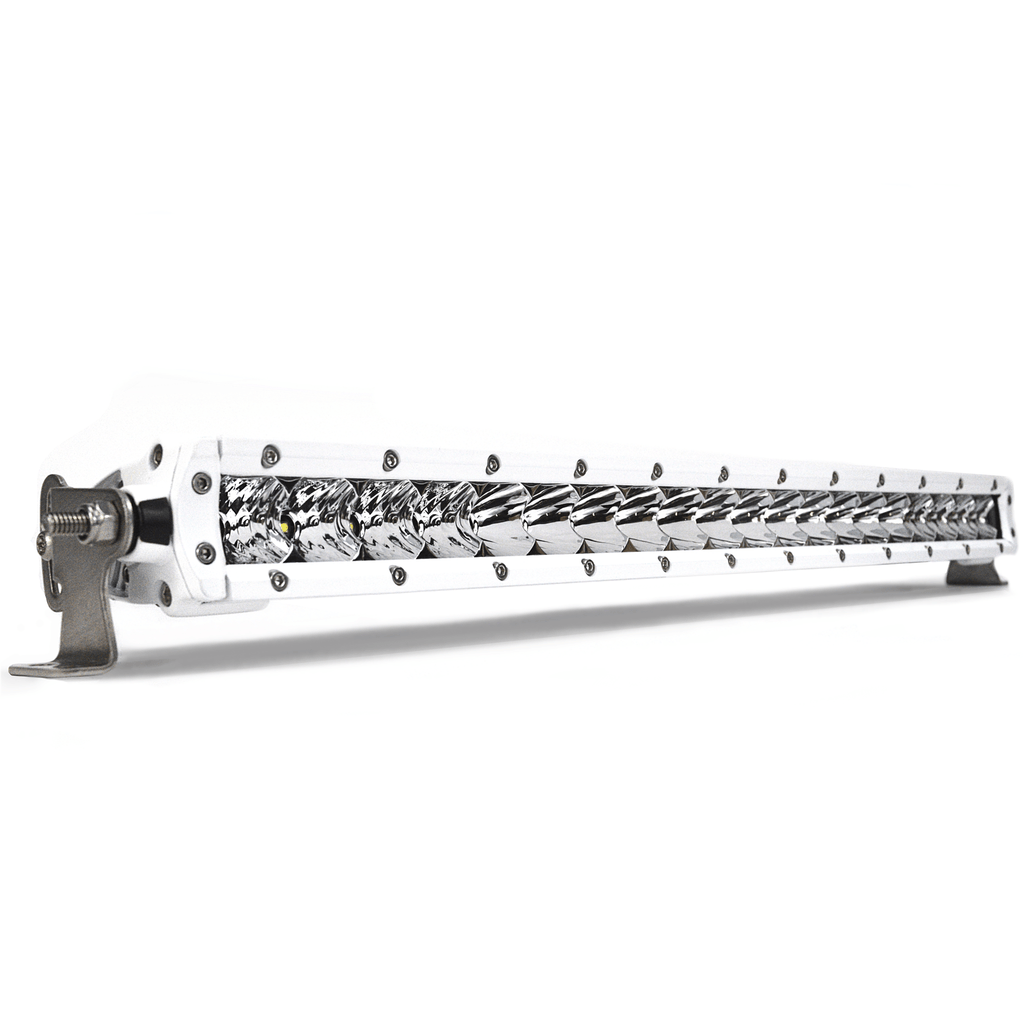

Black Oak 20" Single Row 5W Combo White

SKU: 20CM-S5OS
Pre Order
RM3,218.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 monthsLearn more.

The Marine Series Single Row is the best low-profile LED light to add on any boat or vehicle!

This light has been upgraded to the New Pro Series 3.0, See below for all the new features.

Our Marine Series lights have always been in high demand due to their ability to throw massive amounts of light and withstand the harshest elements. Plus they look amazing anywhere they're mounted. That's why we decided to bring you the 20'' Marine Single Row Series LED Light Bar! This slim, white, powder-coated 5 watt combo light bar throws a beam over 1100m and gives widespread flood lighting to help see traps or obstacles on the road and water.

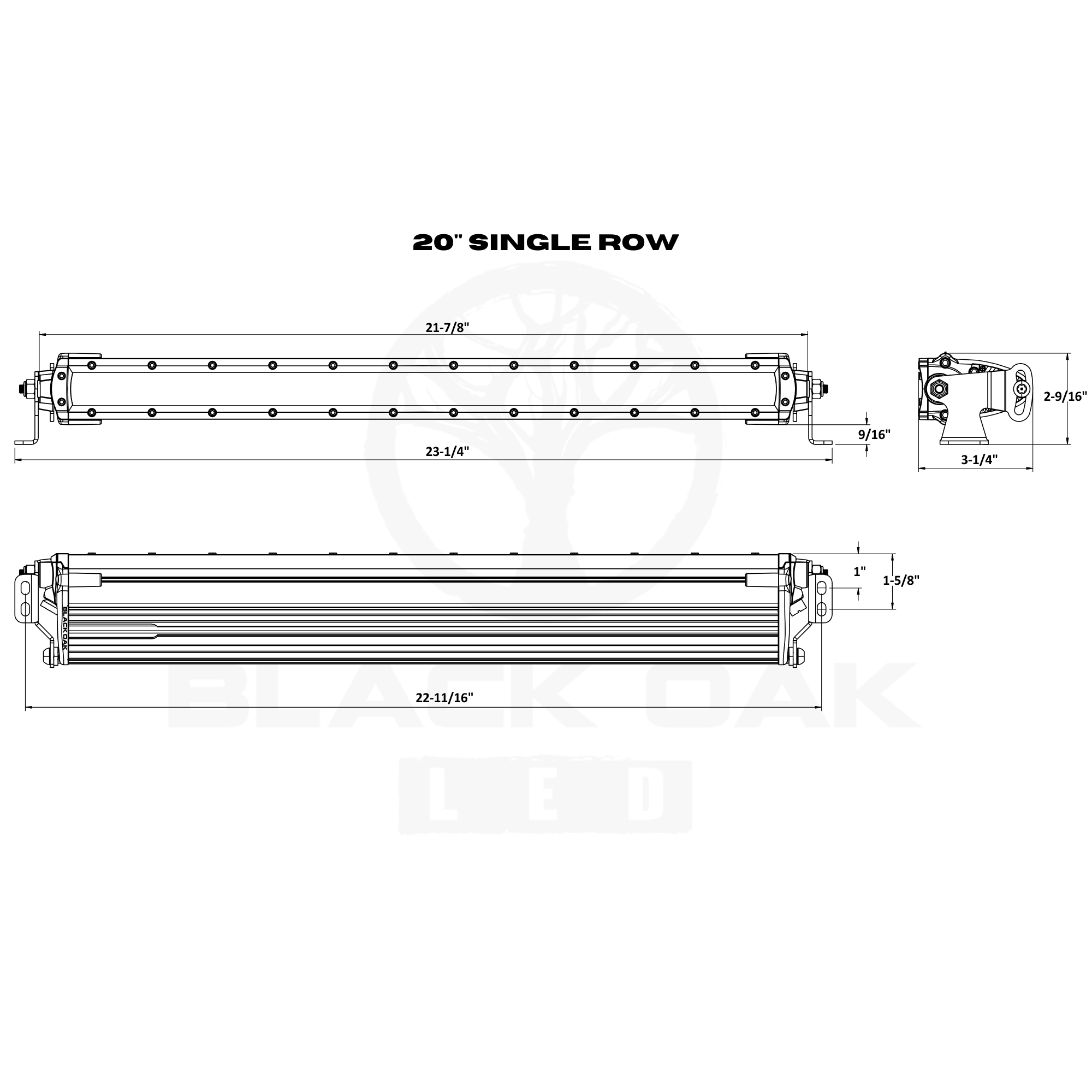

SIZES & DIMENSIONS

Height (6) x Length (25) x Width (6)

WHAT'S IN THE BOX
FEATURES

Activities & Uses:

-Mount to the T-Top of your center console without blocking or interfering with your radar.

-Ideal trail or dunes light for UTV and ATV enthusiasts.

-Perfect as a bumper or grill mount on any White Truck, SUV, or Jeep.

-Light up the water on your Jon boat, pontoon, or duck boat.

  Try a 20 Inch Marine Single Row light bar today and if you are not completely satisfied with the quality and performance, simply send the thin LED light bar back within 30 days for a full refund.

 If you have any questions give us a call at 1-800-348-1287, and if you are looking for a slightly larger bar, check out the Marine Series Dual Row Off-Road LED Flood light.

 The New Black Oak LED Pro Series 3.0 - 20" Marine Single Row Series Includes:


- Complete Wiring Harness with fuse, relay, & switch

- Mounting brackets

- All hardware ready to install!

Upgrades and Features:


360° Ceramic Protection from UV, Salt Water and Corrosions


“One of the most popular trends lately has been ceramic coating vehicles and boats. We have since added a Baricoat ceramic coating to our lights. It is an added 3-part protection from UV, saltwater, and corrosion. You'll never have to worry about what weather you put these bars through as we made sure every aspect of these lights can hold up to any environment."




2 Stage Hydrex Seal Lock IP69


“We didn’t want to limit the introduction of the new Hydrex Seal to just the Double Rows and Pods, so we added it to our Single Rows as well. It has a 2 Stage gasket redundant waterproofing seal allowing it to have a strong, waterproof seal even after taking a beating. We wanted everything we build to be as marine grade as possible, so we made sure you won't have any issues with water intrusion.”


4x Times Stronger Dynamax Housing


“Do you ever find yourself battling some rough terrain? We made sure not to skimp out on the testing of our new Dynamax housing to make sure you would never have to worry about limiting your capabilities. As shown in the testing on our double rows, our single rows can take just as much of a beating. We made sure to prove that with using our light bars as a ramp for one of our trucks.”



More Security


“With Black Oak LED Lights, there is no room for failure. That’s why we even beefed up our bolts with stronger threads to offer better protection on our bars. We wanted to make sure there were no weak links in any part of our light bars, hence the decision to upgrade our hardware.”


SPECIFICATIONS

Feature Details

Power & Performance

  • Total Wattage: 100
  • Total Amp Draw: 6.7
  • Operating Voltage: 12-30V DC
  • Raw Lumens: 13,200
  • LED Diode Qty: 20
  • LED Chip: Osram
  • Beam Pattern: Combo, Spot, Flood
  • Beam Angle: Combo (Center Spot 15° & Sides Flood 45°)
  • Mode: All On

Durability & Lifespan

  • Life Expectancy: 50,000 Hour
  • Operating Temp:-40° to 145° F-40° to 62° C
  • Waterproof Rating: IP69K
  • Warranty: Limited Lifetime
  • Guarantee: 30 Day Money Back

Wiring & Installation

  • Cord Length From Light: 16"
  • Wire Harness Included?: Yes
  • Wire Harness Length: 12'
  • Wire Gauge: 16
  • Fuse Size: 10 Amp
  • Connector Type: 2 Pin Deutsch

General

  • Weight: 4 Lbs
  • SKU - Combo: 20CM-S5OS
