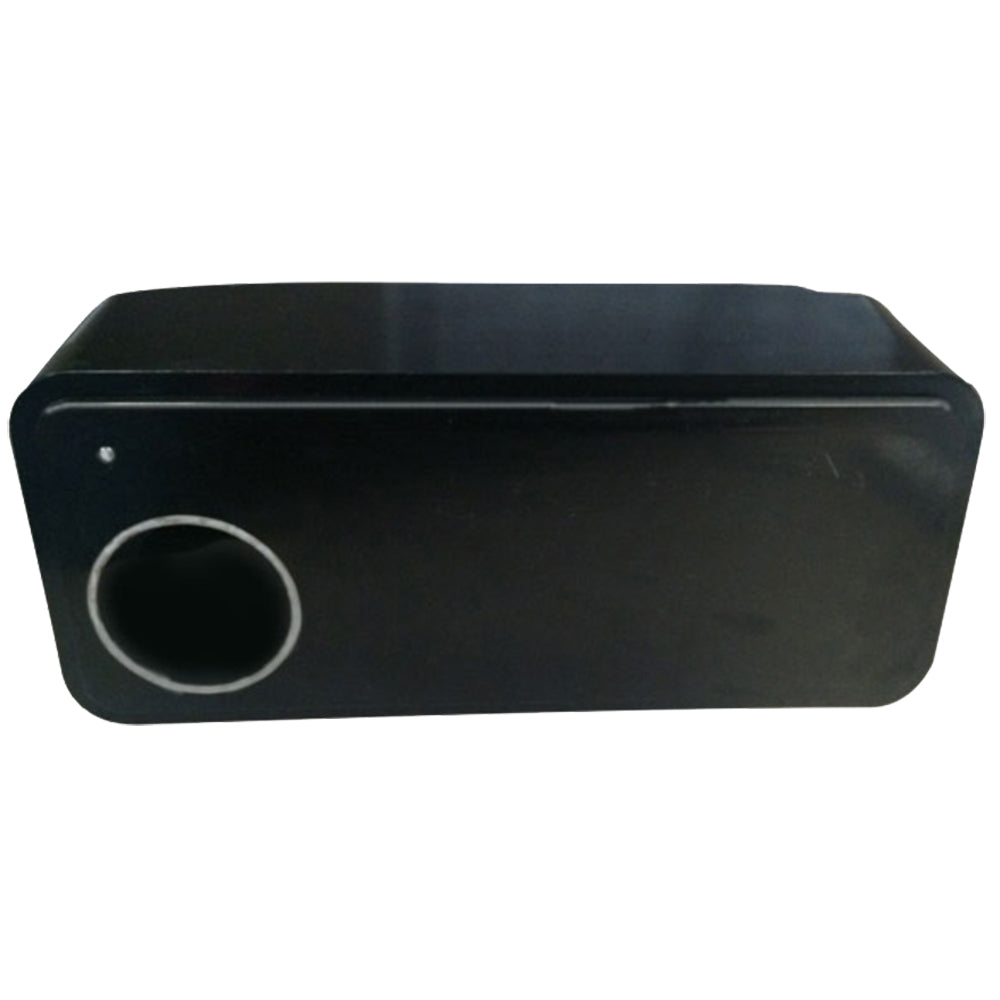

CM599 Chirp-ready Cavity Mount

Airmar Technology

CM599 Chirp-ready Cavity Mount

SKU: CM599C-LHW
Pre Order
RM30,544.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Having the right tool for the job makes the job easier and gives better results. The right tool for covering deep-water haunts of swordfish, tuna, and other species is a 2 to 3 kW, low and high-frequency transducer.
Frequency Range
SIZES & DIMENSIONS
  • Max Vessel LOA: 8 m (25') and above
WHAT'S IN THE BOX
  • R509LHW Dual-Frequency CHIRP Transducer
  • Mounting hardware
  • Installation documentation
FEATURES
  • Depth and fast-response water-temperature sensing
  • 2 to 3 kW of power for exceptional deep-water performance
  • Low frequency: 28 to 60 kHz
  • 23° to 9° port-starboard beamwidth
  • 11° to 5° fore-aft beamwidth
  • Maximum depth to 3048 m (10000')
  • High frequency: 130 to 210 kHz
  • 8° to 4° beamwidth
  • Maximum depth to 457 m (1500')
  • 112 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200  kHz plus everything else in the bandwidth
  • Resin housing with curved-edge design for wet-box installation
  • Can be installed in a cavity or welded tank
  • Also available as thru-hull external (R509LH) and in-hull (R599LH) mounts
  • Patented Xducer ID® technology
SPECIFICATIONS
  • Power Rating: 2-3 kW
  • Housing: Urethane
  • Functions: Depth, Temperature
  • Max Vessel LOA: 8 m (25') and above
  • Common Use: Fishing, Commercial Fishing
  • High Frequency: 130-210 kHz
  • High Frequency Beamwidth: 8°-4°
  • Hull Material: Fiberglass or metal
  • Low Frequency: 28-60 kHz
  • Low Frequency Beamwidth: 11°x23°-5°x9°
  • Max Deadrise: Accommodates any deadrise angle based on custom installation
  • Max Deadrise Angle: Any
  • Max Depth: Low frequency- 3048 m (10000'), High frequency- 457 m (1500')
  • Mounting Style: Tank, Cavity, Pocket/Keel Mount
  • Retractable housing: No
  • Single or Dual Frequency: CHIRP-Ready Dual-Band
  • Tilted Element: No
  • Weight: 14.2 kg (31.2 lb.)
DOCUMENTATIONS

Acoustic Data L: 28-60A H: 130-210B

Brochure Pocket/Keel Chirp Transducers

Dimensions D-18908

Installation D-17-568-01

InstallationD-17-573-01

Installation D-17-579-01

The R509LHW combines extreme deep-water capability with wide high-frequency coverage for unmatched sonar performance. Its dual-frequency design delivers crisp target detail, superior bottom tracking, and maximum coverage under the boat.
