ECHOMAP™ Ultra 2 10" & 12" Chartplotters boatyardmalaysia

Garmin

ECHOMAP™ Ultra 2 10" & 12" Chartplotters

SKU: 010-02879-00
Pre Order
RM11,856.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 monthsLearn more.

ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

Display Size
Charts and Maps
Includes Transducer
SIZES & DIMENSIONS

13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm)

WHAT'S IN THE BOX

With Transducer

  • ECHOMAP Ultra 122sv or 126sv (depending on the version selected) with optional Garmin Navionics+
  • GT56UHD-TM transducer
  • Power cable
  • Bail mount with quick release cradle
  • Protective sun cover
  • Hardware
  • Documentation

Without Transducer

  • ECHOMAP Ultra 122sv or 126sv (depending on the version selected) with optional Garmin Navionics+
  • Power cable
  • Bail mount with quick release cradle
  • Protective sun cover
  • 8-pin transducer to 12-pin sounder adapter cable
  • Hardware
  • Documentation
FEATURES
  • 10” or 12” touchscreens
  • Supports Livescope™ sonar1 and more
  • Available with built-in Garmin Navionics+ mapping
  • Wirelessly network; share sonar, waypoints and routes2
  • Capture screen recordings to share fish catches
  • Multi-band gps for improved position accuracy
SPECIFICATIONS
  • Weight: 5.5 lbs (2.5 kg)
  • Water Rating: IPX7
  • Display Type: WVGA, TN
  • Touchscreen: Yes
  • Display Size: 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal)
  • Display Resolution: 1280 x 800 pixels
  • Mounting Options: Bail or flush
  • Input: Touchscreen with Keyed Assist

Maps & Memory:

  • Accepts Data Cards: 2 microSD cards
  • Waypoints: 5,000
  • Track Points: 50,000
  • Tracks: 50 saved tracks
  • Navigation Routes: 100

Sensors:

  • GPS: Yes
  • Glonass: Yes
  • Beidou: Yes
  • Galileo: Yes
  • Has Built-in Receiver: Tes
  • Receiver: 10 Hz
  • Support WaaS: Yes
  • Supports Multi-Band, Multi-Constellation GPS: Yes
  • NMEA 2000 Compatible: Yes

Built-in Maps:

  • Built-in Auto Guidance+: yes (downloadable via ActiveCaptain app)
  • Garmin Navionics+ Inland & Coastal: yes (see Additional)
  • Tide Tables: yes (see Additional)

Optional Map Support:

  • BLUECHART G3z: yes
  • BLUECHART G3 VISION: yes
  • LAKEVÜ G3: yes
  • LAKEVÜ G3 ULTRA: yes
  • GARMIN NAVIONICS+™: yes
  • GARMIN NAVIONICS VISION+™ : yes
  • TOPO 100K : yes
  • STANDARD MAPPING: yes
  • GARMIN QUICKDRAW CONTOURS: yes

Chartplotter Features

  • ACTIVECAPTAIN® Compatible: yes
  • AIS: Yes
  • DSC: Yes
  • Support Fusion-Link™ Compatible Radios: Yes
  • Saling Features: Yes

Electrical Features

  • Power Input: 9 to 18 Vdc
  • Typical Current Draw at 12 VDC: 2.5 A
  • Maximum Current Draw At 12 VDC: 5.0 A
  • Maximum Power Usage at 10 VDC: 36 W

Sonar Features

  • Display Sonar: Yes
  • Power Output: 600 W
  • Traditional Sonar (Dual Frequency/Beam): built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
  • CLEARVÜ: Built-in 260/455/800/1000/1200 kHz
  • SIDEVÜ: Built-in 260/455/800/1000/1200 kHz
  • PANOPTIX™ SONAR: Yes
  • Livescope: Yes

Connections:

  • NMEA 2000® Ports: Yes
  • Garmin Marine Network Ports: 2 (large connector)
  • Bluetooth® Pairing: Yes
  • ANT® (Connectivity): Yes
  • Garmin Wi-Fi Network (Local Connection): yes

Additional

  • Garmin Navionics+ (Inland and Coastal): 126sv, 125sv Australia and New Zealand
  • Tide tables: 126sv, 125sv Australia and New Zealand
DOCUMENTATIONS

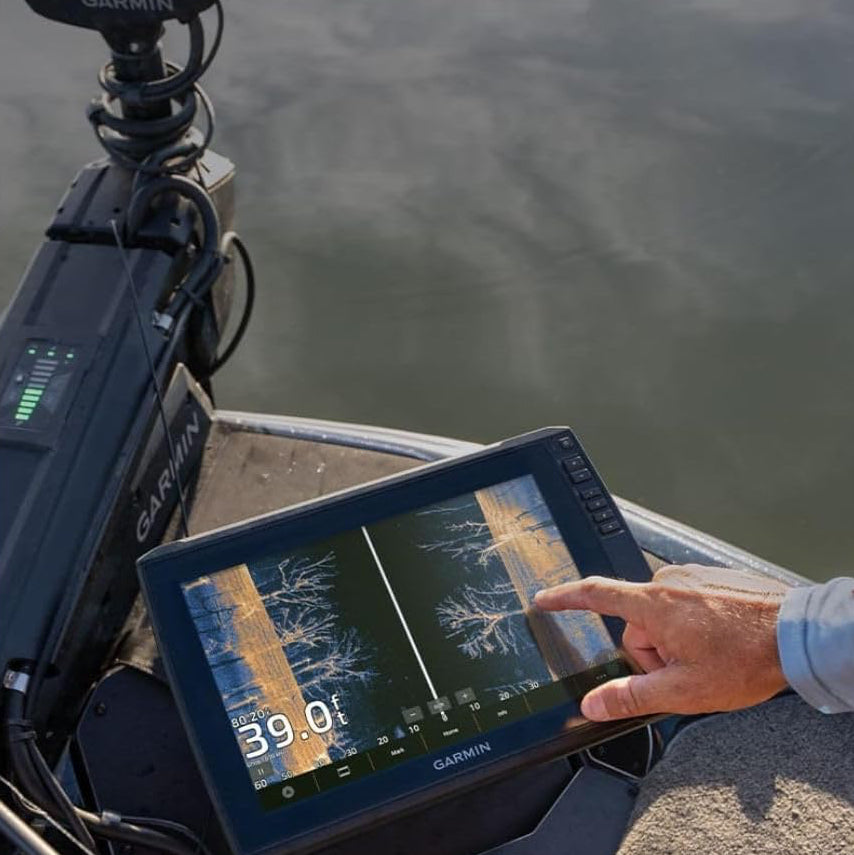

See everything with the ultra high-definition scanning sonar system.

Get improved position accuracy with multi-band GPS

Connect to heading sensors, autopilots, Fusion-Link™ audio systems and more.

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data and more4.

Wirelessly connect to your Force trolling motor to navigate to waypoints, draw and follow routes, and more.

The quick-disconnect bail mount lets you quickly install and remove your unit.
