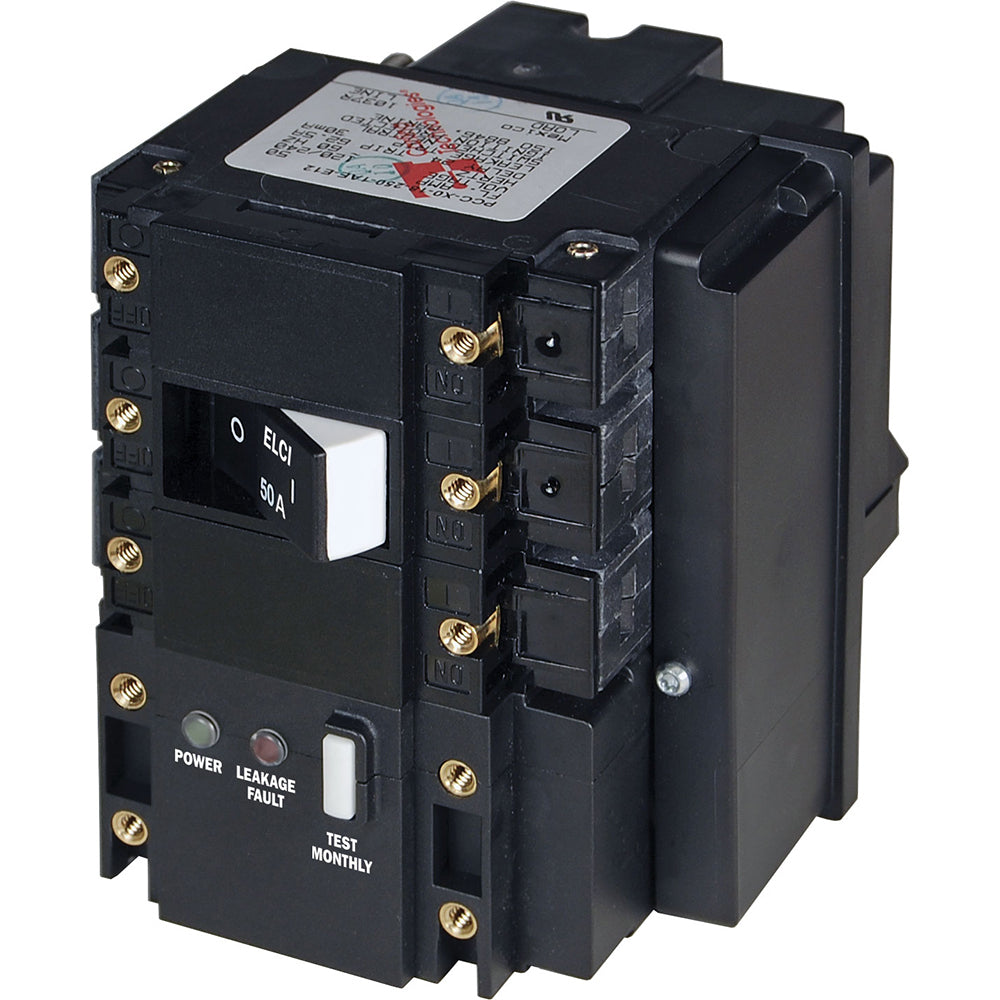

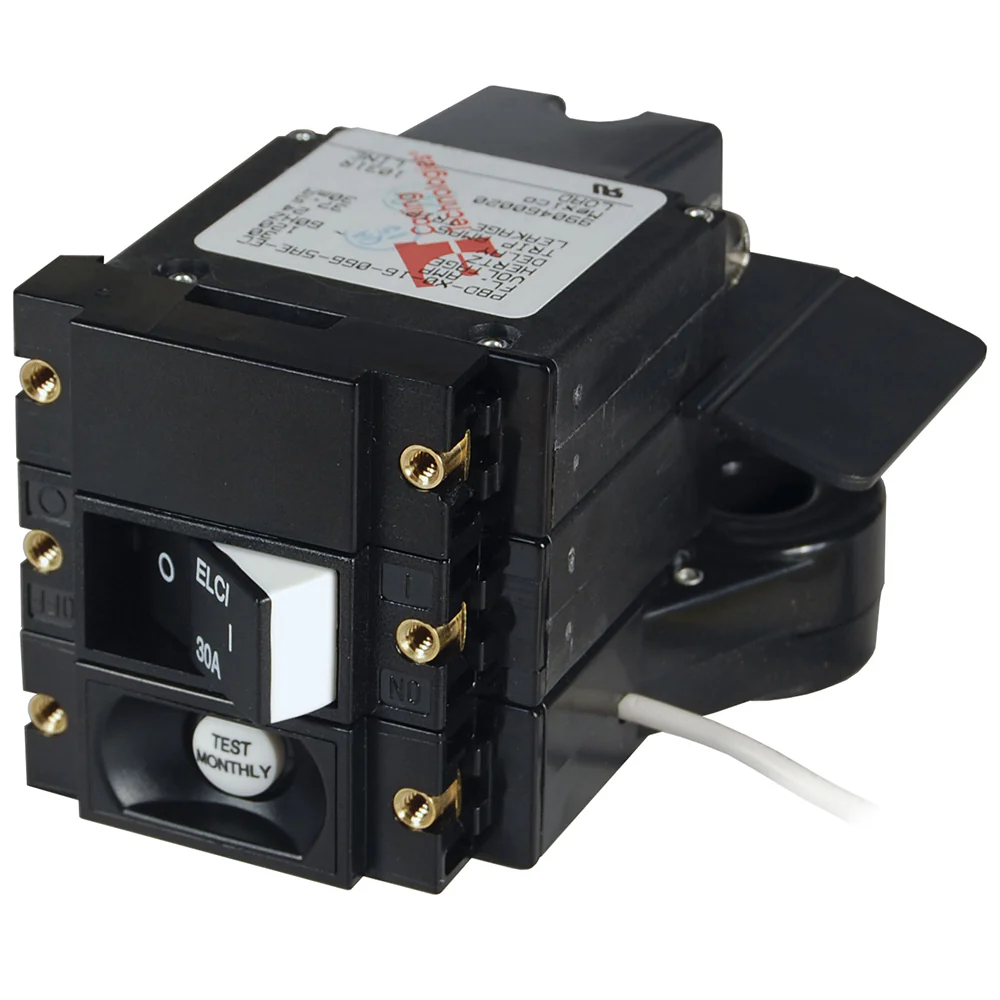

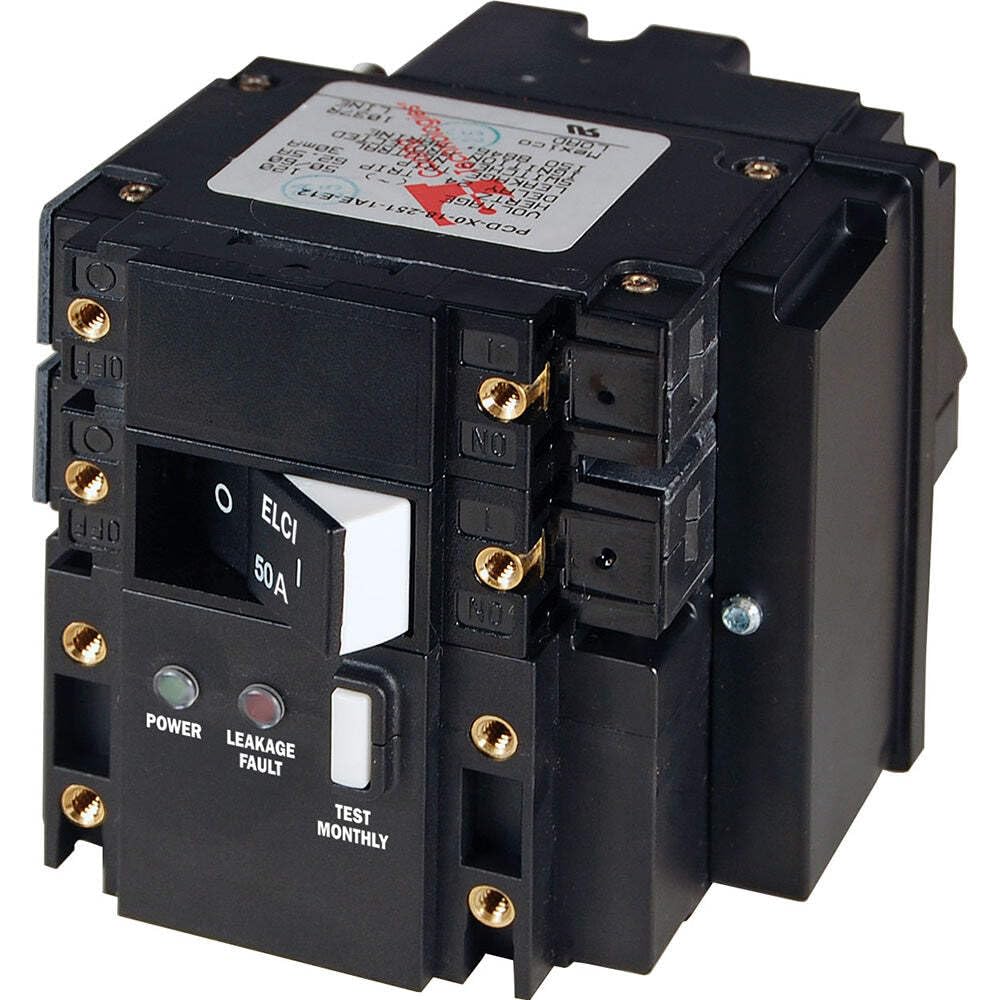

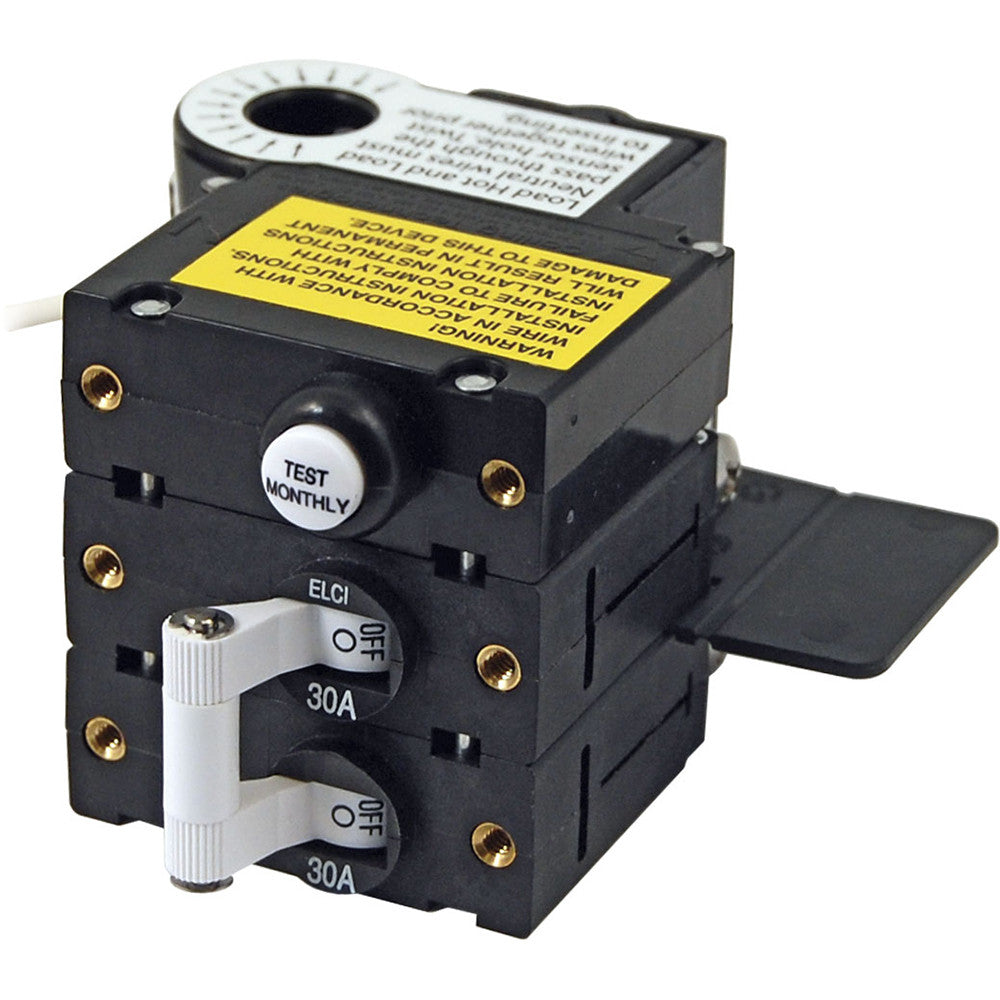

ELCI Main Circuit Breaker

Blue Sea System

ELCI Main Circuit Breaker

SKU: 3106100
Pre Order
RM3,453.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel
Current
Voltage
Actuator Style
SIZES & DIMENSIONS
WHAT'S IN THE BOX
FEATURES
SPECIFICATIONS
  • Ignition Protected : Yes
  • Maximum Voltage: 240V AC per pole
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity : 5000A
  • Minimum Operating Temperature: -35° C
  • Maximum Operating Temperature: 66° C
  • Leakage Trip Amps: 30mA
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6 in-lb (0.68 Nm)
  • Switching Cycles: 10000
  • Weight: 0.90lb (0.41 kg)
