Force® Kraken Trolling Motor

Garmin

Force® Kraken Trolling Motor

SKU: 010-02573-00

Pre Order

RM27,550.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

THERE’S A NEW LEGEND TO BEHOLD

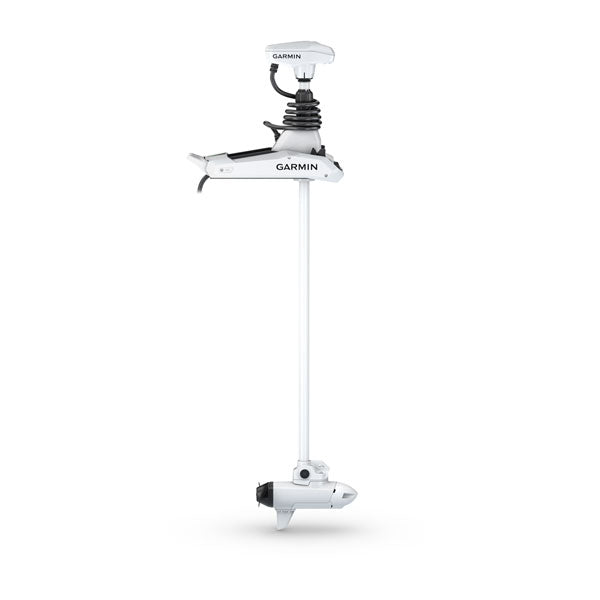

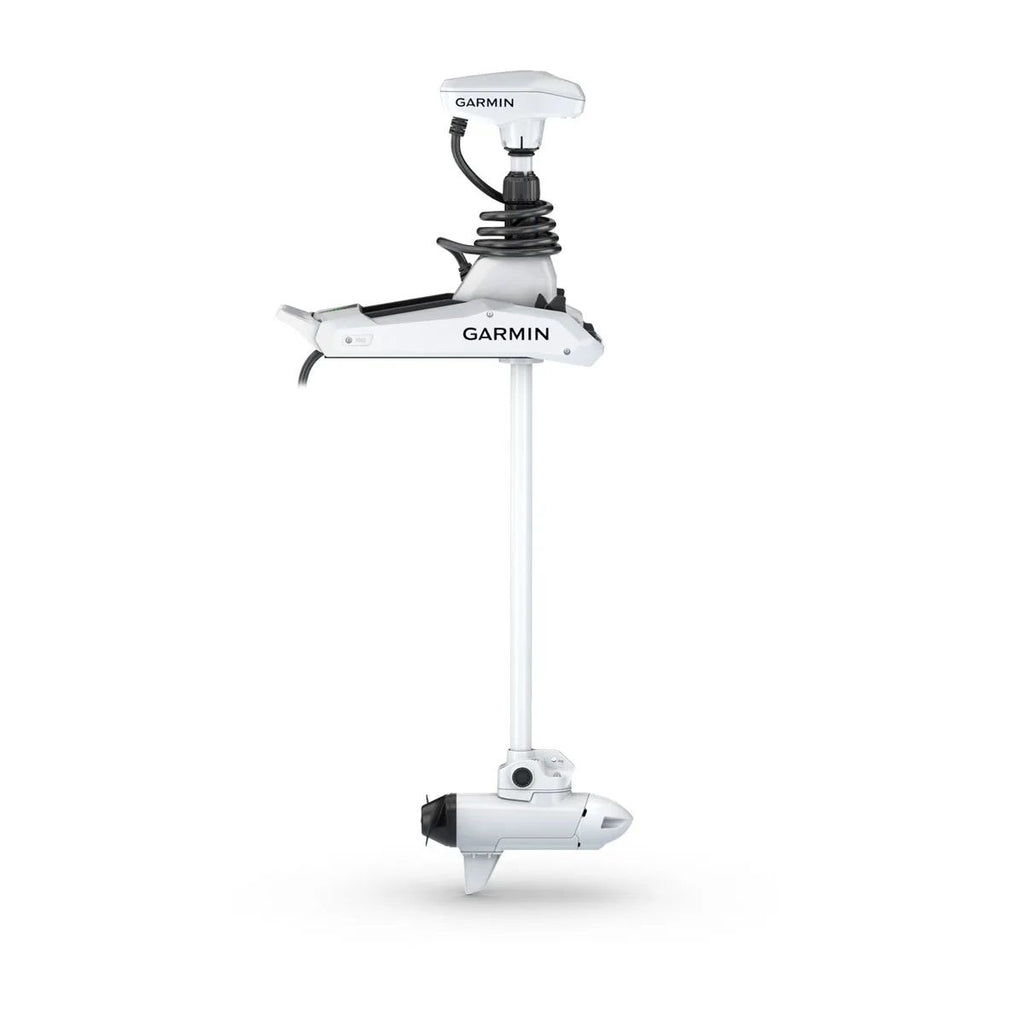

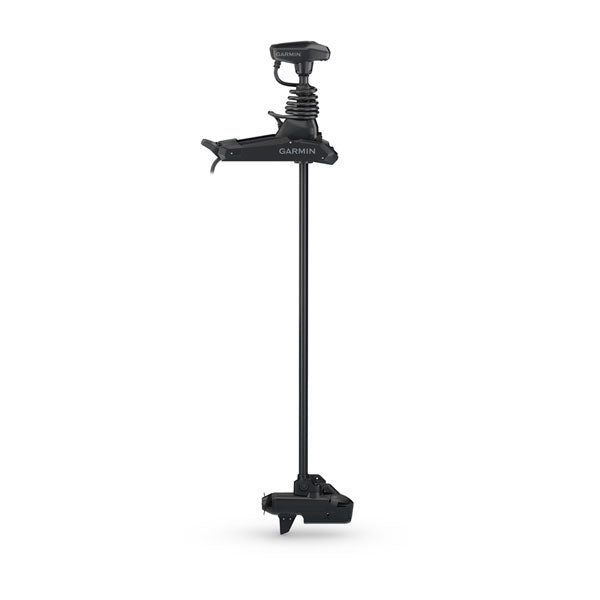

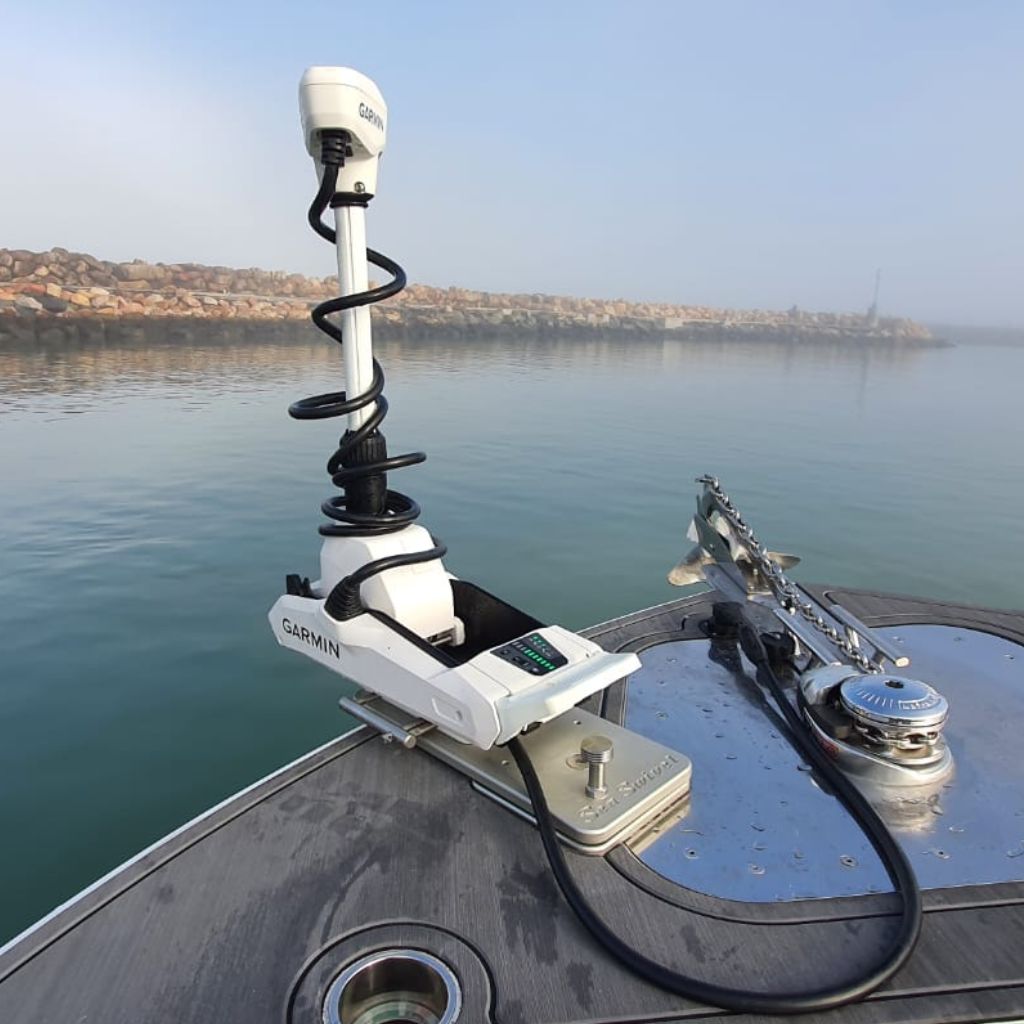

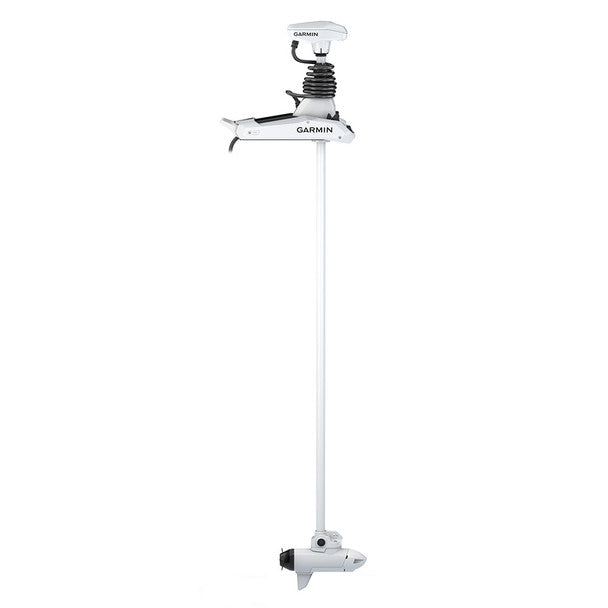

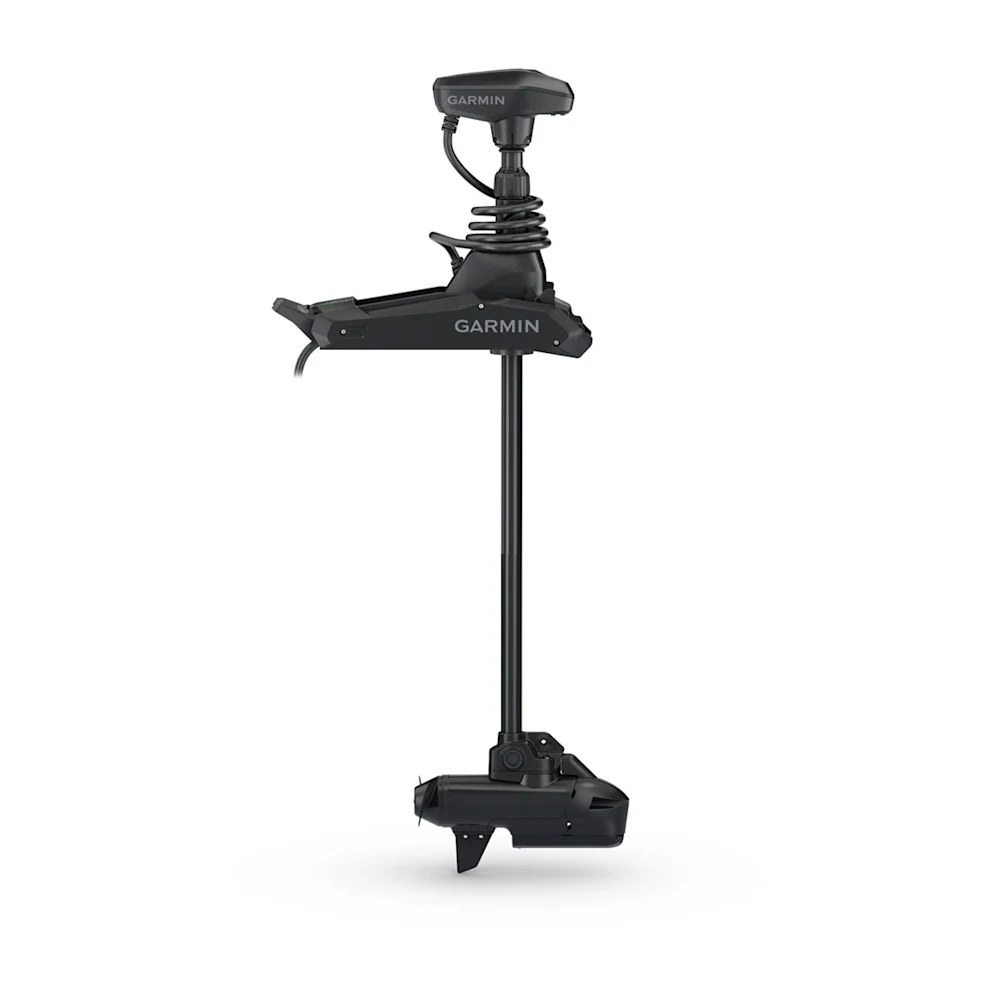

The Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited.

ColorBlack

Length 48" 63" 75" 90"

Built-in Transducer No Yes

Display Size: 1.2" (30.2 mm) diameter

Force® Kraken Trolling Motor
Remote
High efficiency propeller
Assembly and mounting hardware
Stabilizer (included with 90" and 110" only)
Documentation

Legendary power and performance; 100 lbs of thrust1
Wireless integration with Garmin chartplotters
Stay on the fish with anchor lock and multi-band gps

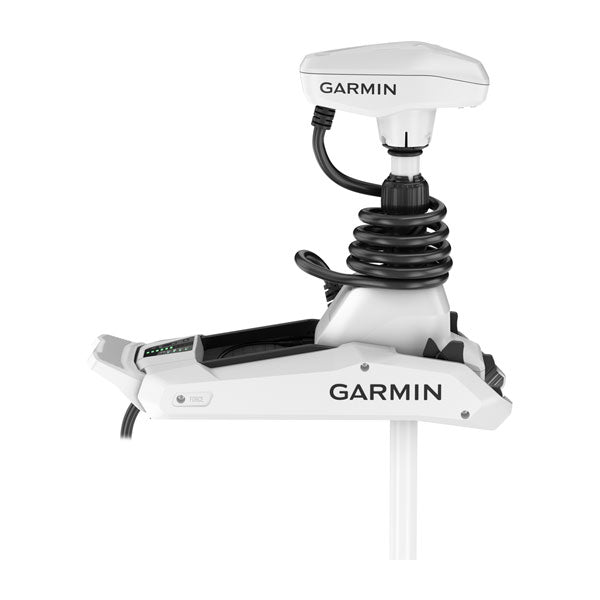

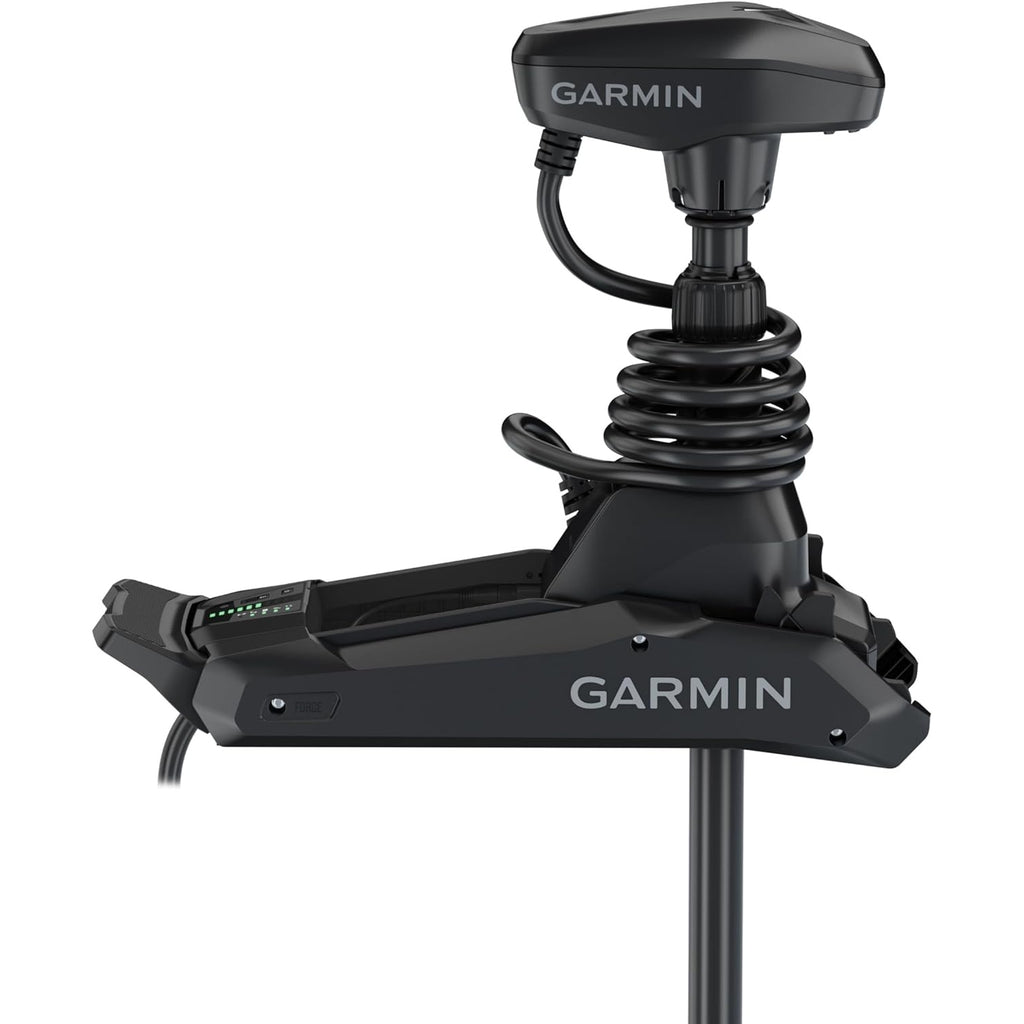

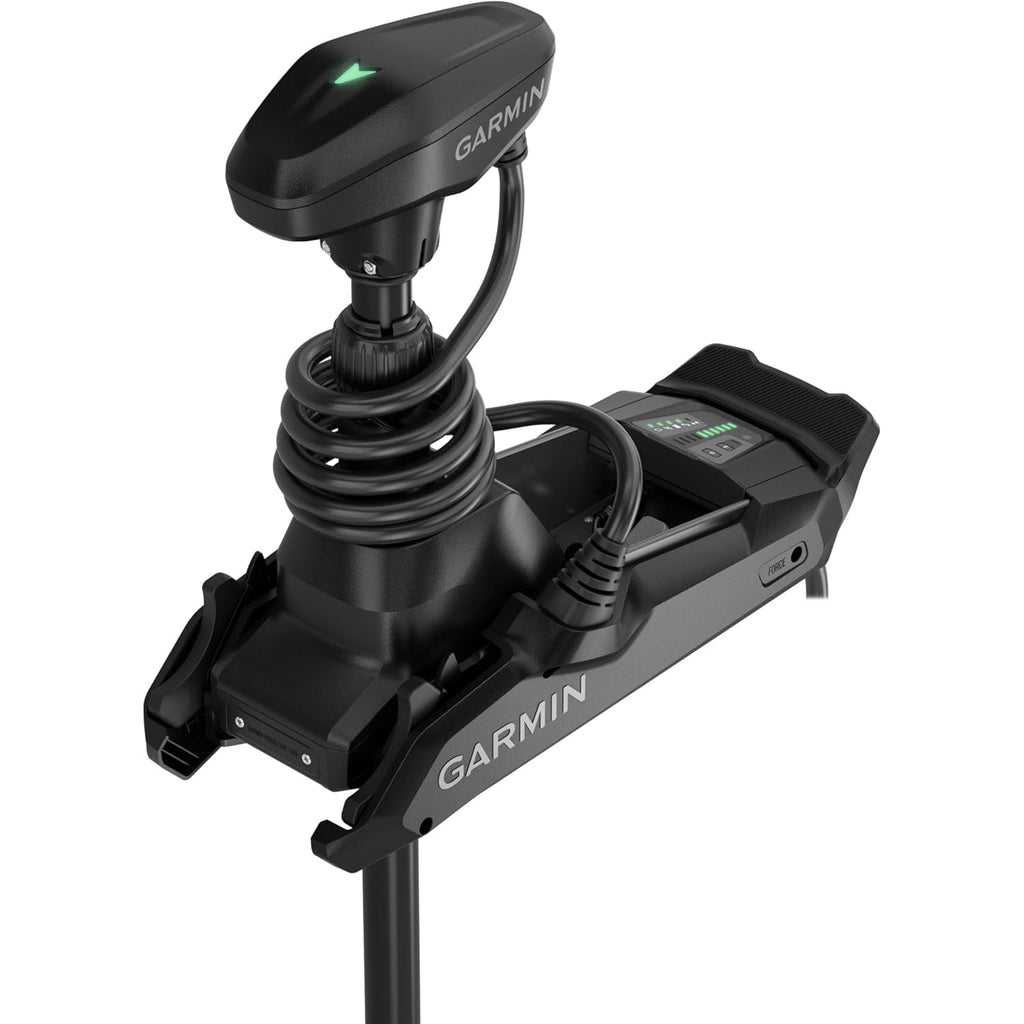

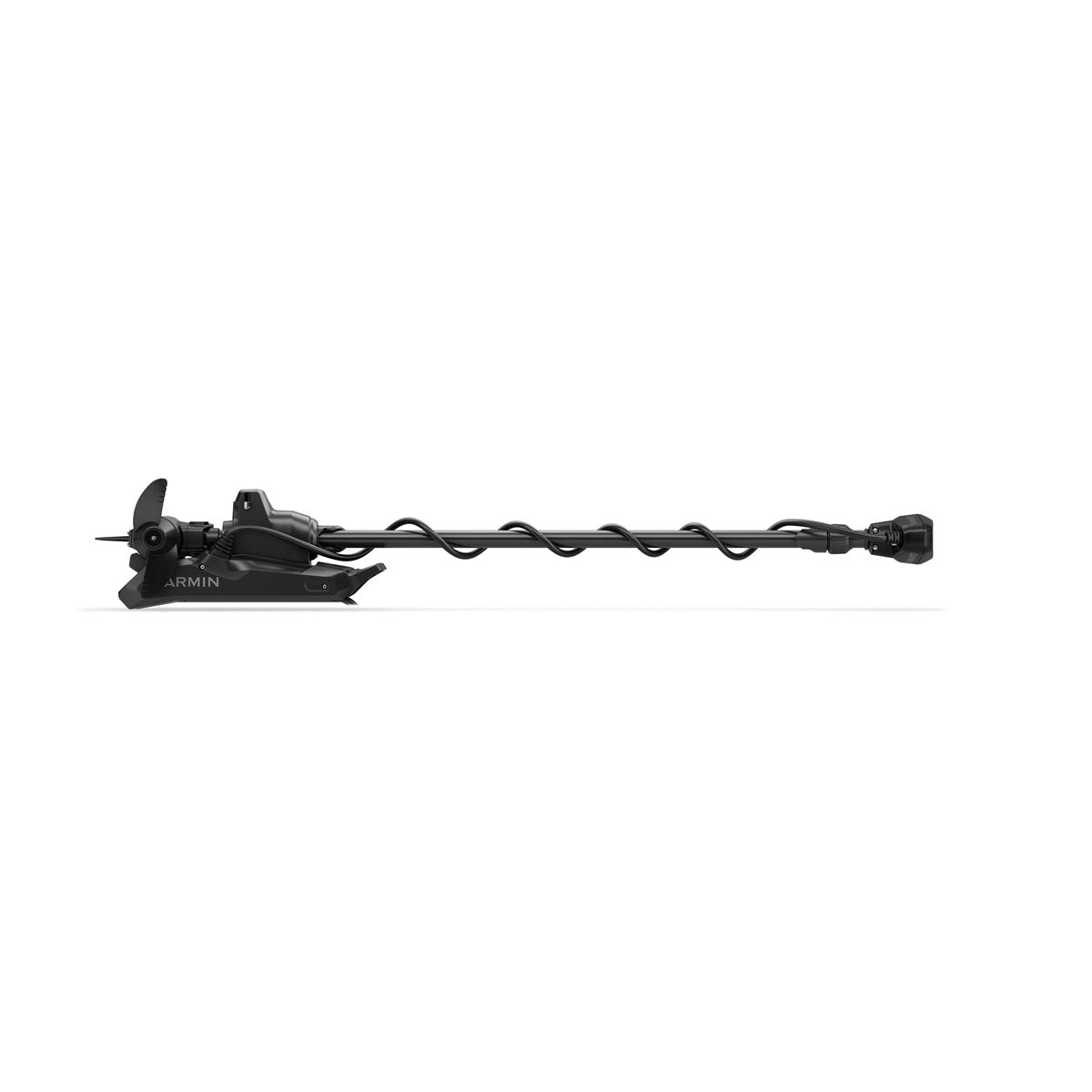

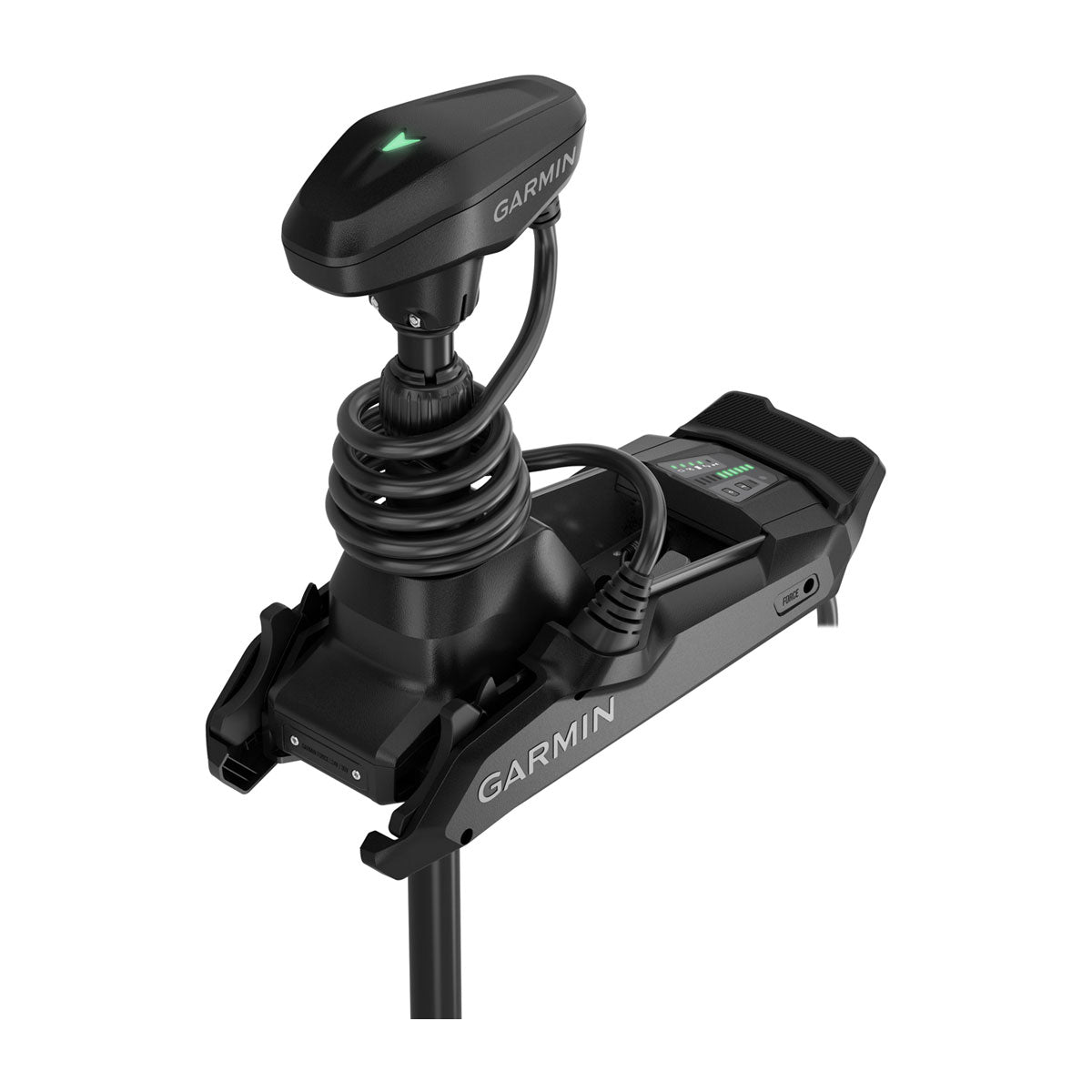

Pivot-style mount for easy installation
Available in multiple shaft lengths
Seamless cable integration with Livescope™ sonar

For Use In: Freshwater, Brackish Water And Saltwater
Mount Style: pivot-style mount
Max Thrust: 100 Lbs Per Iso 13342 Using High Efficiency Propeller At 36 V; 80 Lbs Per Iso 13342 Using High Efficiency Propeller At 24 V
Voltage: 24 V Or 36 V
Electric Steering: Yes
Built-In Heading Sensor: Yes
Built-In Gps: Yes (Dual Frequency Gps)
Warranty: 3-Year, Limited Lifetime On Shaft
Water Rating: Ipx7
Mounting Location: Bow
Wireless Remote: Yes (Included)
Foot Pedal Compatible: Yes (Included)
Battery Indicator: Yes
Variable Speed Control: Yes (20 Steps)
Lighted Direction Indicator: Yes
Quatix Remote Control Supported: Yes

Sonar Features

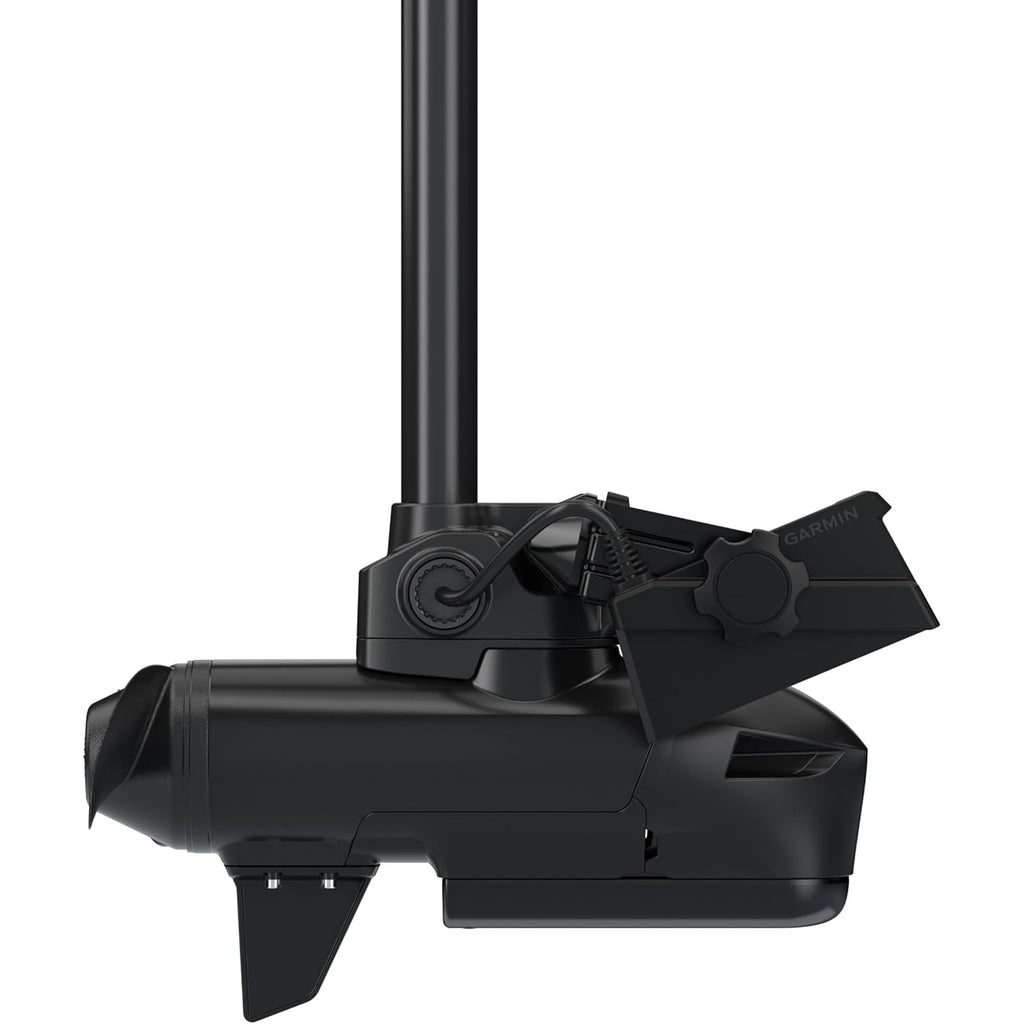

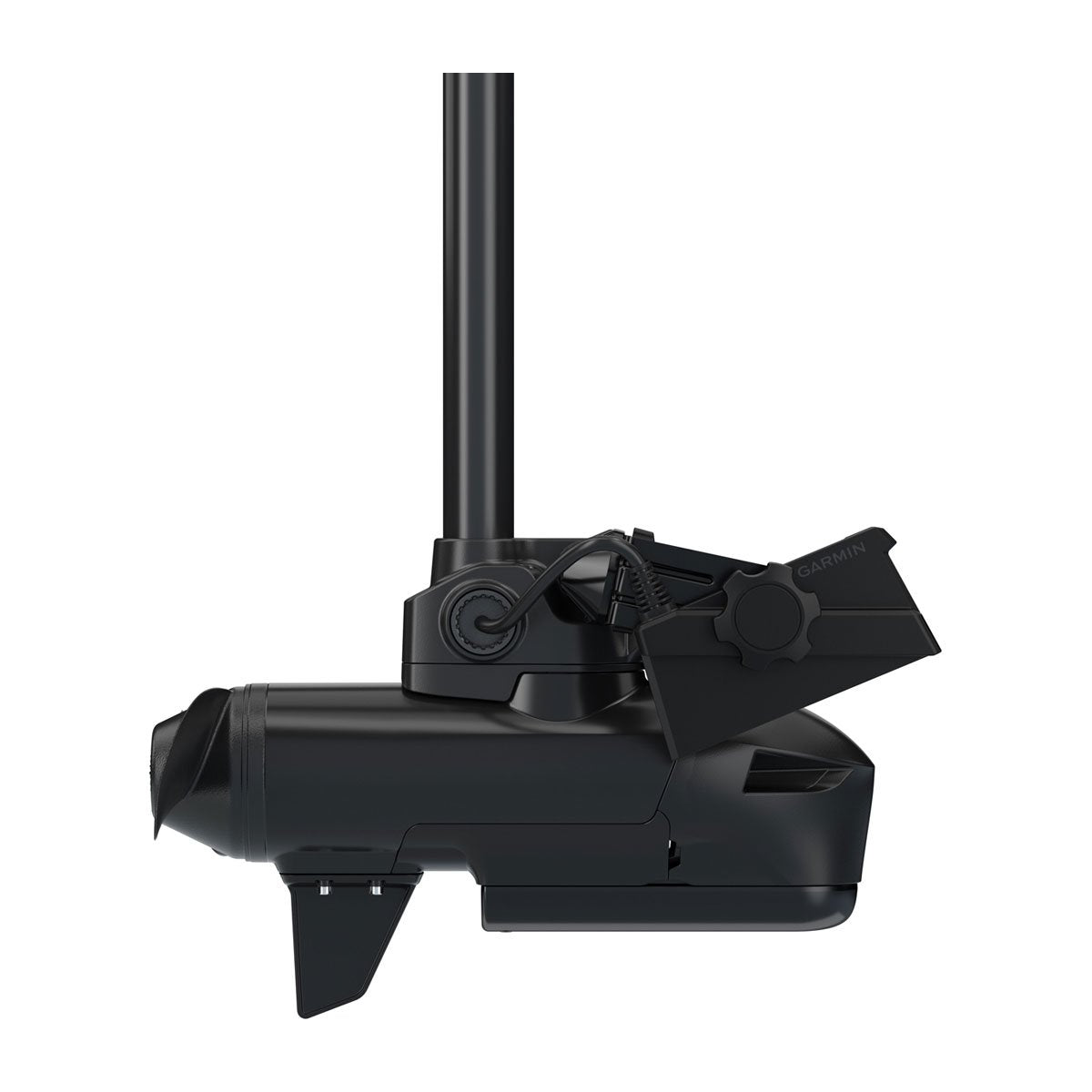

Livescope Cable Integration: yes (LiveScope transducer and Kraken Mounting Bracket purchases required)

Autopilot Features

Route Following: Yes
Anchor Lock: Yes
Smart Anchor Lock Features: Yes
Anchor Lock Jog: Yes
Heading Hold: Yes
Cruise Control: Yes
Gesture Features: Yes (Manual+, Heading Hold+, Jog+)

Remote Features

Display Size: 1.2" (30.2 Mm) Diameter
Display Resolution: 240 X 240 Pixels
Display Type: Color, Sunlight-Visible, Transflective Memory-In-Pixel (MIP)
Chartplotter User-Programmable Keys: Yes
Autopilot Feature Control: Yes
Water Rating: IPX7
Battery Life: Typical Use With Backlight At Low, 43 Weeks
Floats: Yes

Power and Precision in Every Wave

Force Kraken provides legendary power and performance with 100 lbs of thrust1.

Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing — and not running out of battery.

Don’t spook the fish; the motor is extremely quiet above and below the water.

This trolling motor is optimized to operate in rough open-water conditions, at either 24 or 36 volts, thanks to the powerful and efficient brushless motor design.

The sturdy composite shaft and all components are built to endure harsh marine environments and have advanced corrosion and saltwater protection.

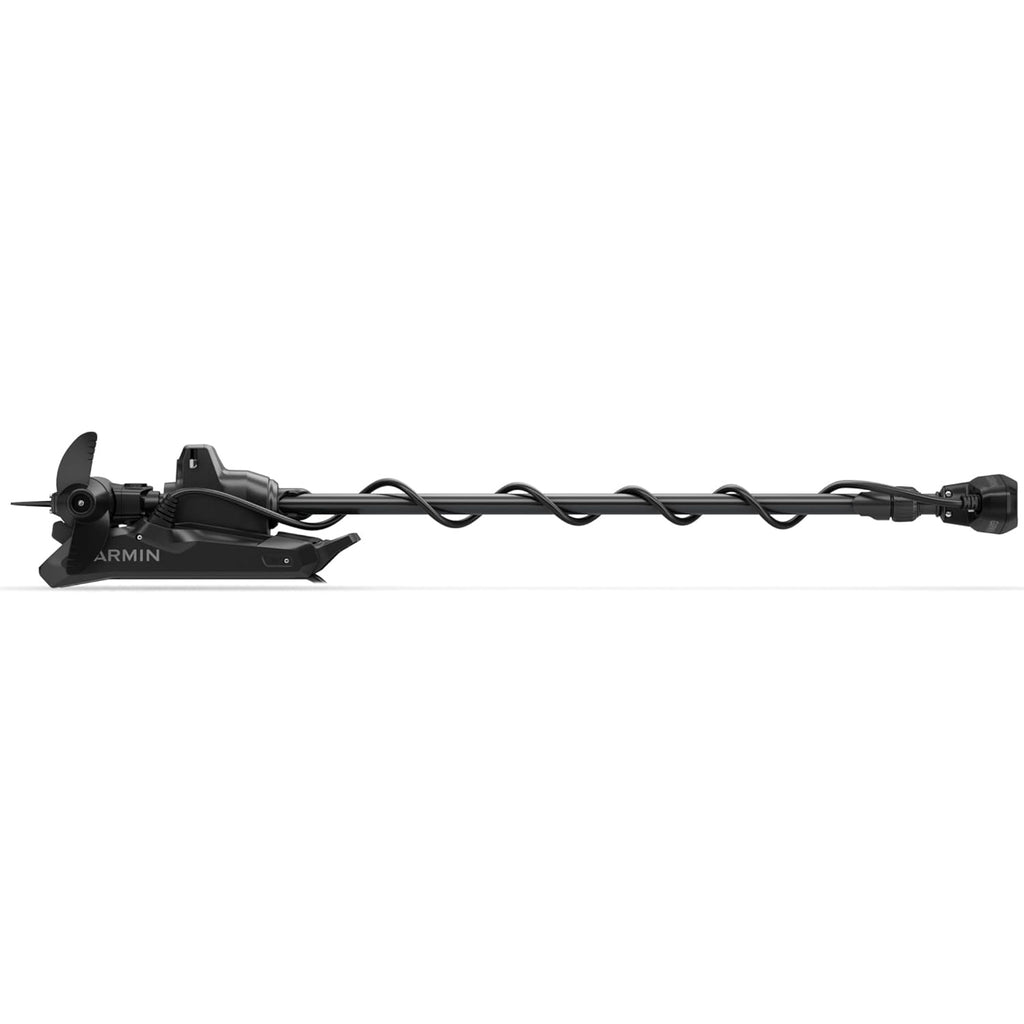

Get easy installation where bow space is limited, thanks to the pivot-style mount. The multiple shaft lengths accommodate many different boat sizes and deck configurations.
