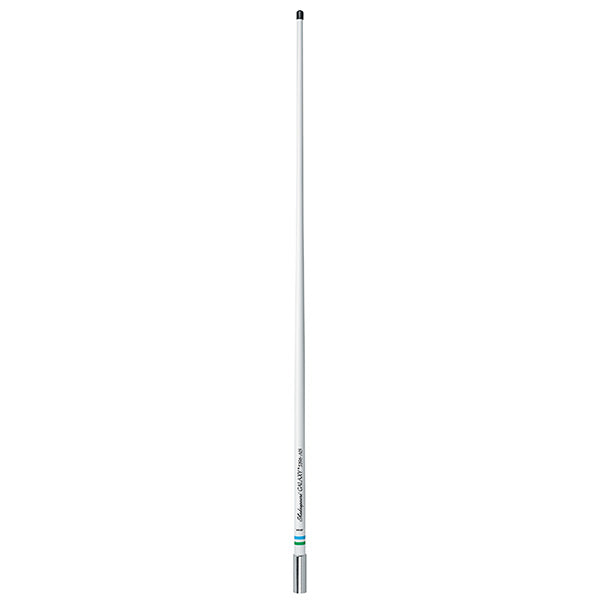

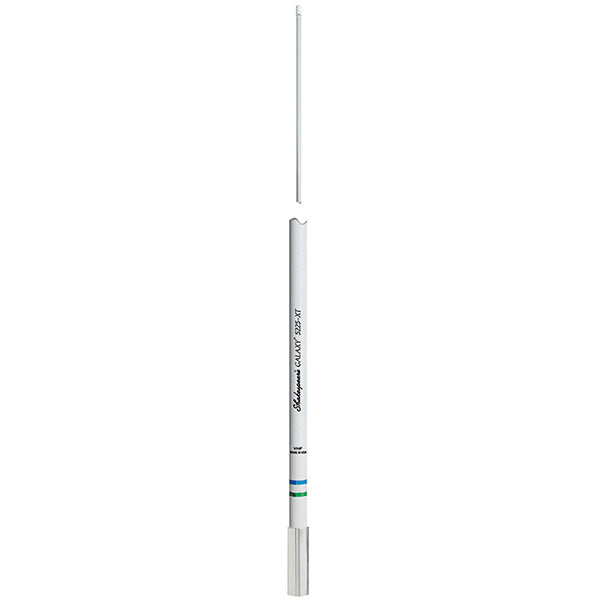

Galaxy® AIS Antenna

Shakespeare

Galaxy® AIS Antenna

5225-XT-AIS
Pre Order
RM1,333.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Height
Max Input Power

Cruise with confidence and communicate reliably over the AIS band using the Galaxy® AIS antennas. Specifically designed and tuned to work with all popular AIS transceivers, this antenna features a commercial-grade fiberglass construction to ensure performance and durability. These benefits combined with the great look of our Galaxy® high-gloss white finish signifies a standard of quality to be admired.
      SIZES & DIMENSIONS
      WHAT'S IN THE BOX
      FEATURES
      • Thick brass and copper elements provide greater range, clarity, and efficiency
      • Stainless steel ferrule prevents rust
      • 20’ RG-8/X low-loss cable plus a solder free screw-on PL-259 connector included for easy installation
      • High-gloss polyurethane finish prevents yellowing
      • Antennas come in a single section with a built-in DC connection
      • VSWR of <1.5:1 at 162 MHz
      • 5-year warranty
      • Models:5225-XT-AIS5396-AIS
      SPECIFICATIONS

      5225-XT-AIS

      • Height: 8'
      • DB: 6dB
      • Max Input Power: 100W
      • Bandwidth: 3 MHz within 2.0:1 VSWR

      5396-AIS

      • Height: 4'
      • DB: 3dB
      • Max Input Power: 50W
      • Bandwidth: 5 MHz within 2.0:1 VSWR
