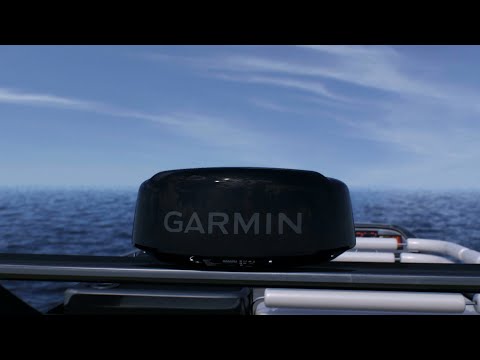

GMR™ Fantom™ 18x/24x Dome Radar

Garmin

GMR™ Fantom™ 18x/24x Dome Radar

SKU: 010-02584-00

Pre Order

RM13,999.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

STRIKINGLY POWERFUL RADAR

These incredibly powerful 18” and 24” dome radars have beauty and brains with a black color option and 50 watts of output power.

ColorWhite

Size 18" 24"

Output Power 50W

18x: 20" x 9.8" (50.8 cm x 24.8 cm)
24x: 25.4" x 9.8" (64.5 cm x 24.9 cm)

GMR Fantom 18x or 24x Dome Radar (depending on model selected)
Power cable (15 m/49.21 ft)
Network cable (15 m/49.21 ft)
Installation instructions
Mounting hardware kit and template

GMR Fantom brings the power. Fifty watts of it, actually.

See targets clearly, and adjust their sizes as needed.

With power save mode, you get to choose when to use full power and when to pull back.

Every second of power usage counts. Cut back even more by choosing your active times down to the second.

MotionScope™ technology shows targets in color as they move toward you or away.

Weight: 18x: 14.0 lbs (6.4 kg); 24x: 17.4 lbs (7.9 kg)
Water Rating: IPX7
Antenna Length: 18x: 17" (43.18 cm); 24x: 23" (58.42 cm)
Rotation Speed (RPM): Up to 60 rpm, depending on settings
Beam Width: 18x: 5.2° horizontal, 25° vertical; 24x: 3.7° horizontal, 25° vertical
Maximum Range: 48 nm
Minimum Range: 6 meters
Radar Type: Radome

Electrical Features:

Power Input: 10-32 V DC
Power Consumption (Standby): 4W
Max Power Consumption, Transmitting (Power Save): 24W
Max Power Consumption, Transmitting (Normal Mode): 33W
Transmit Power: 50 W

Radar Features

Dual Range: Yes
Overlay: Yes
Dual Radar Support: Yes
Auto Bird Gain: Yes
Auto Gain: Dynamic
Marpa Target Tracking: yes (requires heading sensor, sold separately)
Echo Trails: Yes
Motionscope: Yes
Programmable Antenna Parking: Yes
Target Size: Yes
Scan Average: Yes

See what’s coming.

Tailor your 50-watt solid-state dome radar to your boat with a white or black option — both with a range from 20’ to 48 nautical miles, even in fog or rain, and up to 60 RPM rotation speed for a refresh rate that can detect movement at any speed.

High-resolution images and high antenna gain help to pick out targets at a distance, while 8-bit true color imagery enhances target separation.

MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors, so you can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.

The power save feature lets you choose when you need more power or less, so you have power when you need it and conserve it when you don’t.
