GMR™ Fantom™ 254 boatyardmalaysia

Garmin

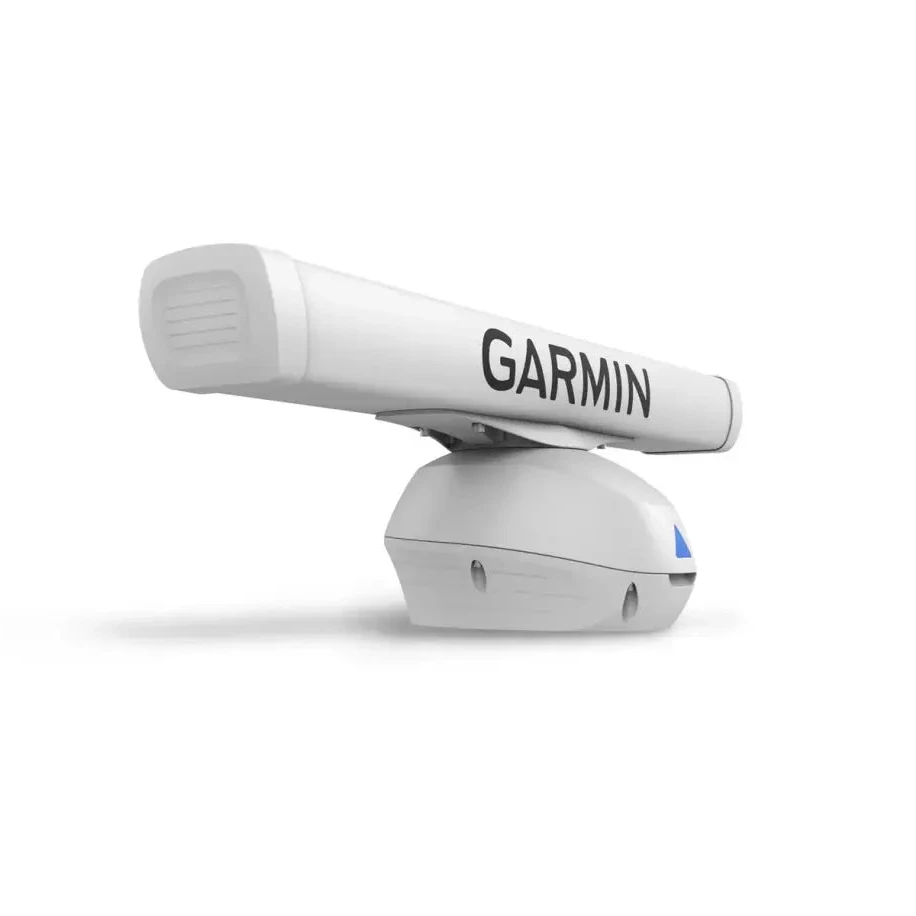

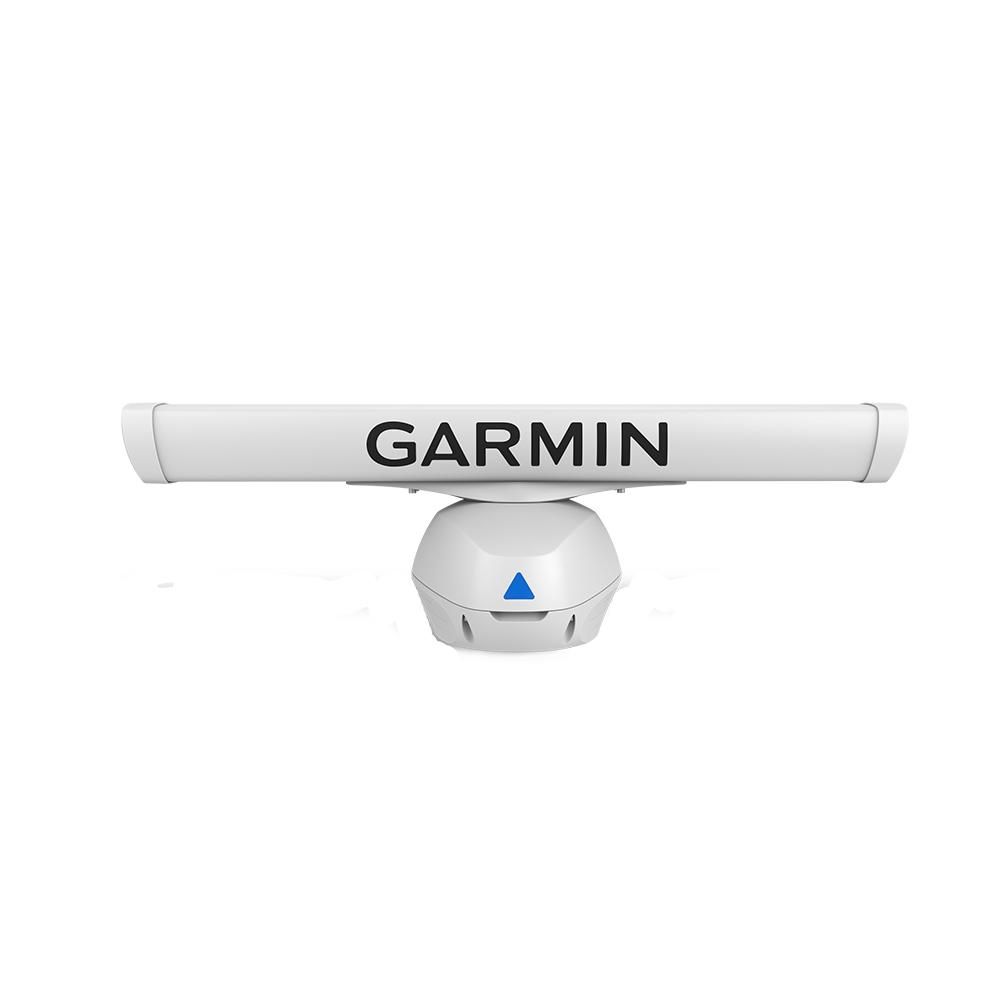

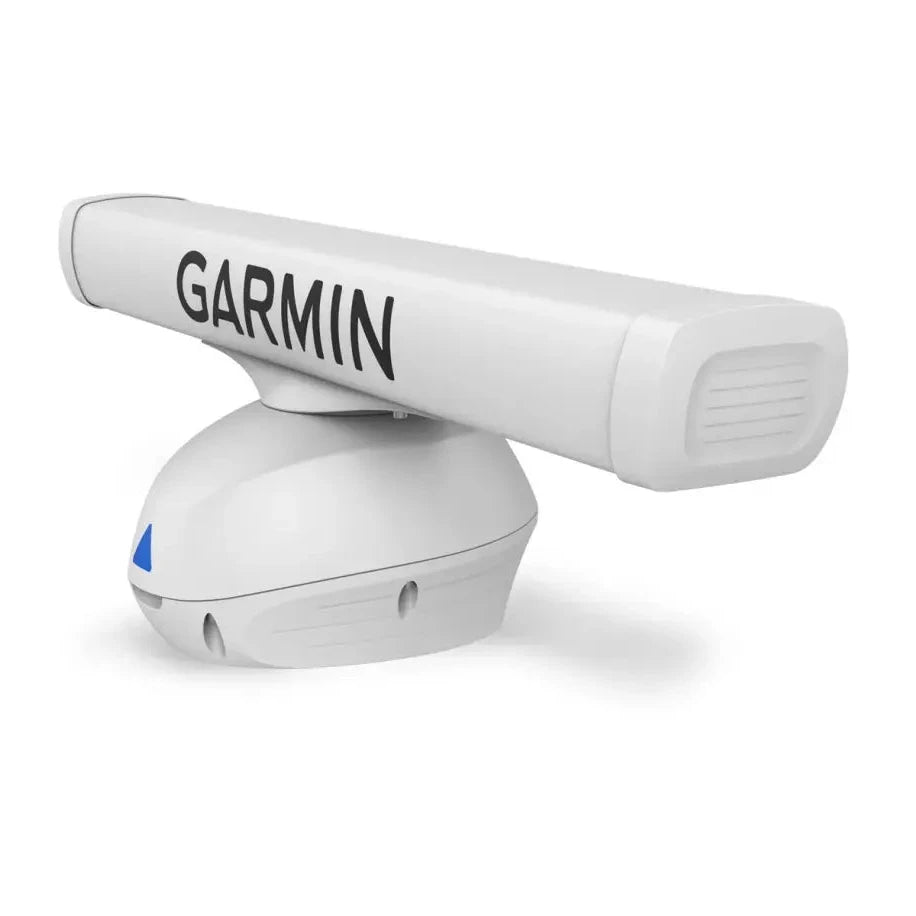

GMR™ Fantom™ 254

SKU: K10-00012-34
Pre Order
RM71,760.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 monthsLearn more.

THE POWER TO SEE MORE

GMR Fantom™ 254 is the most powerful 4’ consumer solid-state radar.

ColorBlack
Size
Output Power
SIZES & DIMENSIONS

Pedestal: 16.6" x 14.3" x 10.7" (42.1 x 36.4 x 27.1 cm)

Full assembly: 15.9" height x 51.8" diameter (40.3 cm x 131.4 cm)

WHAT'S IN THE BOX
  • GMR Fantom 254 antenna and pedestal
  • Mounting hardware kit and template
  • Right angle power cable (15 meters)
  • Right angle network cable (15 meters)
  • Voltage converter
  • Documentation
FEATURES

We’ve got the power. 250 watts of it to be exact.

Know the long and short of it with a detection range of 20’ to 96 nautical miles.

MotionScope™ highlights everything that moves so there are no surprises.

The more the merrier with MARPA. Keep track of up to 30 moving targets.

Clear the clutter with scan-to-scan averaging.

SPECIFICATIONS
  • Weight: Array: 11.4 lb (5.2 kg); Pedestal: 34.7 lb (15.7 kg)
  • Water Rating: IPX6
  • Max Wind Load: 80kt
  • Antenna Length: 48" (121.92 cm)
  • Rotation Speed (RPM): 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
  • Beam Width: 1.8° horizontal, 23° vertical
  • Maximum Range: 96 nm
  • Minimum Range: 6 meters
  • Radar Type: Open-Array

Electrical Features:

  • Power Input: 10-32 V DC
  • Transmit Power: 250 W

Radar Features

  • Dual Range: Yes
  • Overlay: Yes
  • Dual Radar Support: Yes
  • Auto Bird Gain: Yes
  • Auto Gain: Dynamic
  • Marpa Target Tracking: yes (requires heading sensor, sold separately)
  • Echo Trails: Yes
  • Motionscope: Yes
  • Programmable Antenna Parking: Yes
  • Target Size: Yes
  • Scan Average: Yes
DOCUMENTATIONS
