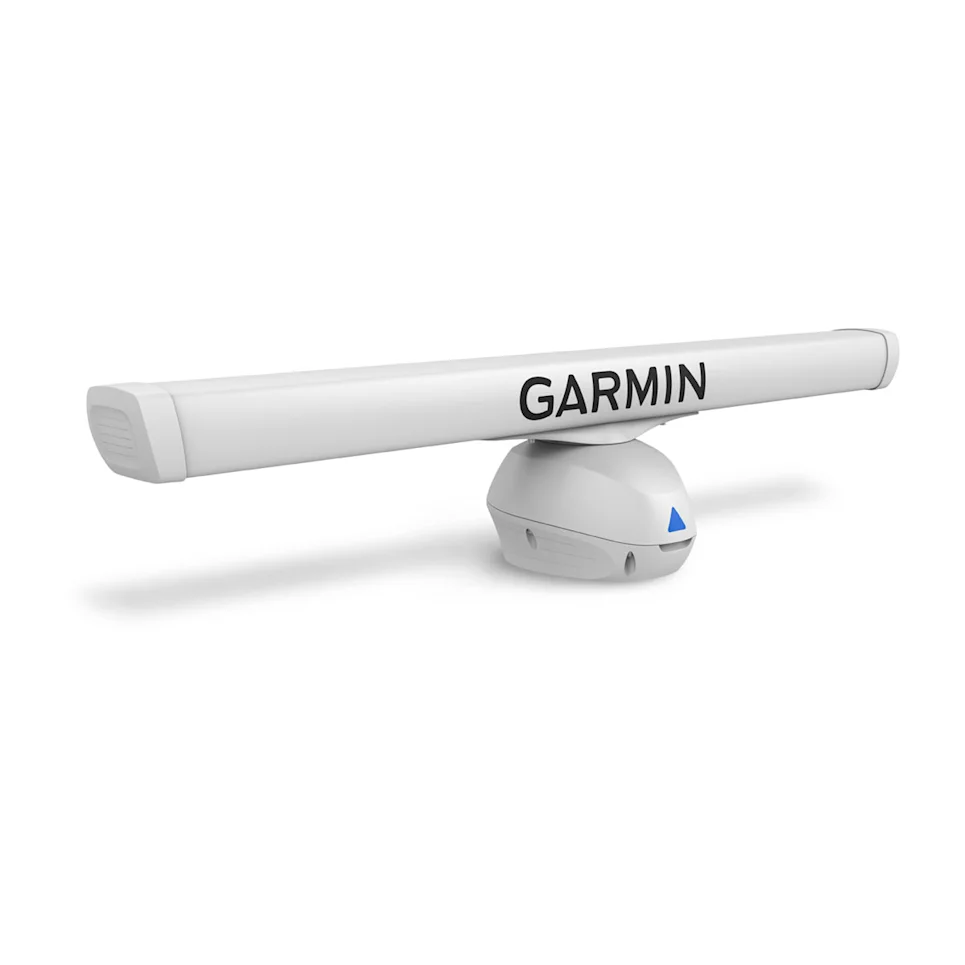

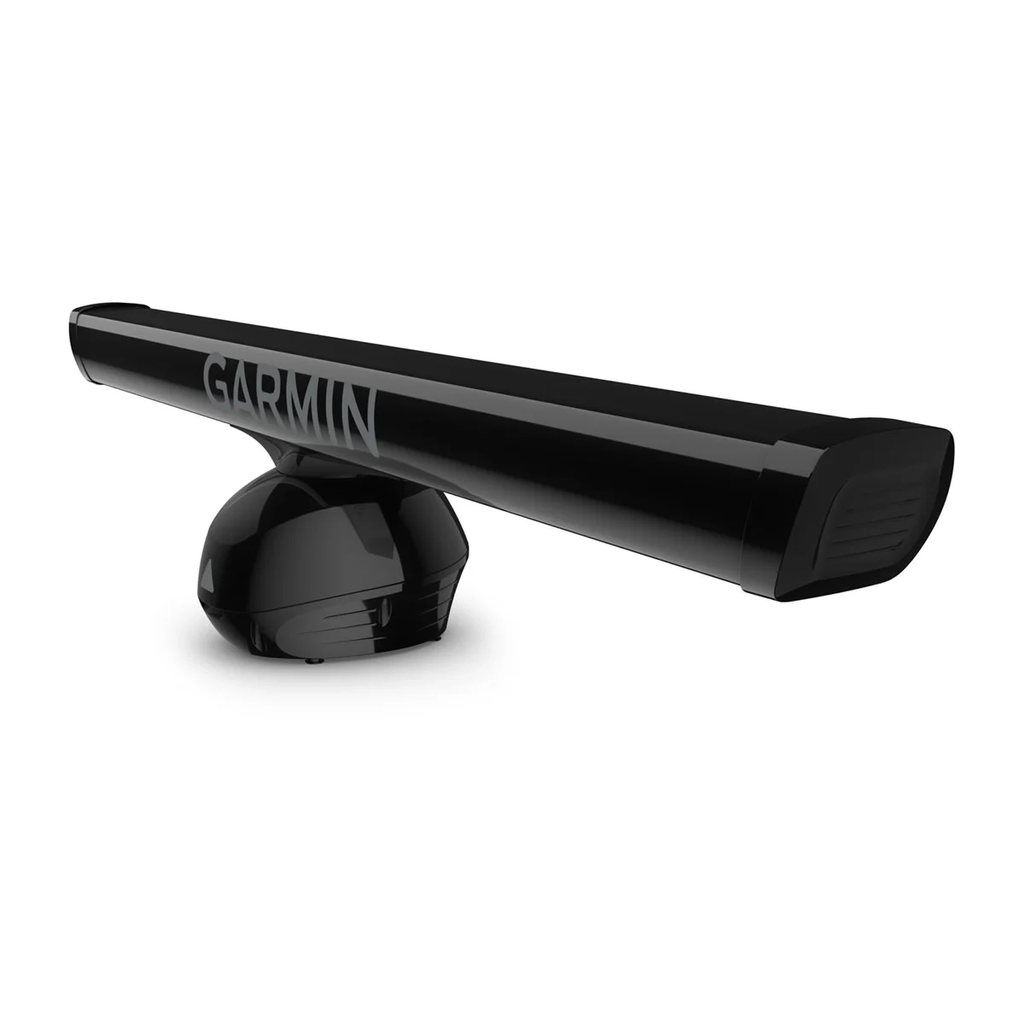

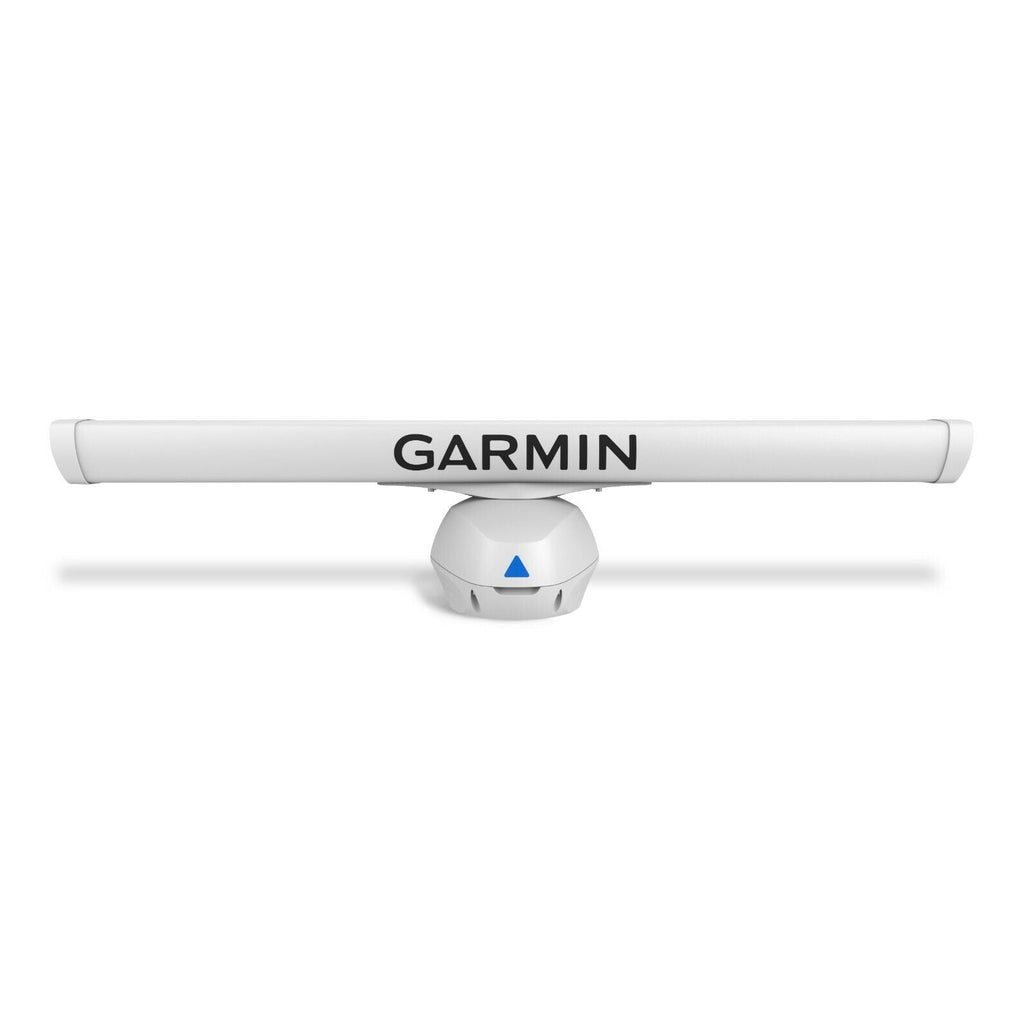

GMR™ Fantom™ 256 boatyardmalaysia

Garmin

GMR™ Fantom™ 256

SKU: K10-00012-22
Pre Order
RM73,008.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 monthsLearn more.

THE POWER TO SEE MORE

GMR Fantom™ 256 is the most powerful 6’ consumer solid-state radar.

ColorWhite
Size
Output Power
SIZES & DIMENSIONS
  • Pedestal: 16.6" x 14.3" x 10.7"
  • Pedestal: 42.1 x 36.4 x 27.1 cm
  • Full assembly: 15.9" height x 51.8" diameter
  • Full assembly: 40.3 cm height x 131.4 cm diameter
WHAT'S IN THE BOX
  • GMR Fantom 124 antenna and pedestal
  • Mounting hardware kit and template
  • Right angle power cable (15 meters)
  • Right angle network cable (15 meters)
  • Voltage converter
  • Documentation
FEATURES

Know what’s coming. MotionScope™ technology shows targets in color as they move toward you or away.

GMR Fantom brings the power. 120 watts of it, actually.

Get high resolution without wasting energy, thanks to pulse compression.

Add even more detail to your maps with radar overlay — even in a split-screen view.

SPECIFICATIONS
  • Weight: Array: 11.4 lb (5.2 kg); Pedestal: 34.7 lb (15.7 kg)
  • Water Rating: IPX6
  • Max Wind Load: 80kt
  • Antenna Length: 48" (121.92 cm)
  • Rotation Speed (RPM): 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
  • Beam Width: 1.8° horizontal, 23° vertical
  • Maximum Range: 96 nm
  • Minimum Range: 6 meters
  • Radar Type: Open-Array

Electrical Features:

  • Power Input: 10-32 V DC
  • Transmit Power: 10 W

Radar Features

  • Dual Range: Yes
  • Overlay: Yes
  • Dual Radar Support: Yes
  • Auto Bird Gain: Yes
  • Auto Gain: Dynamic
  • Marpa Target Tracking: yes (requires heading sensor, sold separately)
  • Echo Trails: Yes
  • Motionscope: Yes
  • Programmable Antenna Parking: Yes
  • Target Size: Yes
  • Scan Average: Yes
DOCUMENTATIONS

See what’s coming.

This 120-watt solid-state radar has a range from 20’ to 96 nautical miles, even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.

The 1.8-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out even weak targets at a distance.

MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so you can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.

This radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.
