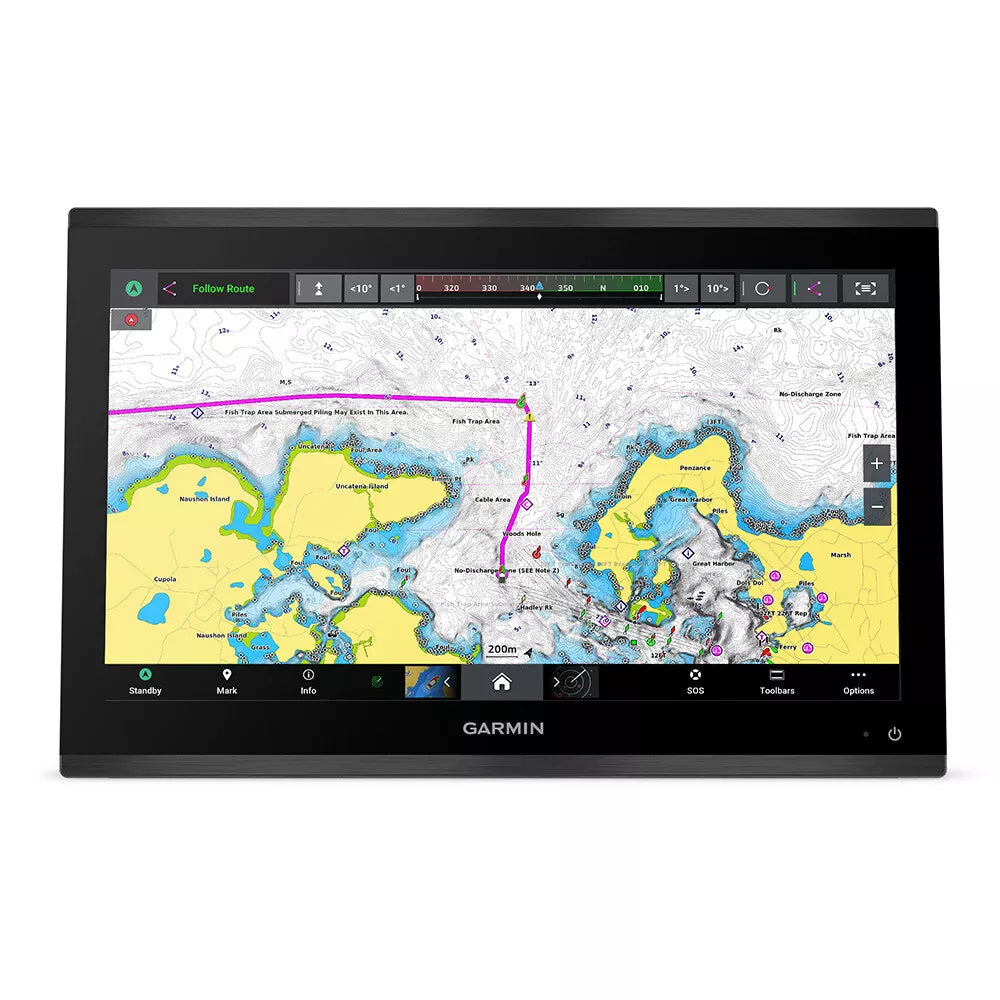

GPSMAP® 9x Premium Chartplotter

Garmin

GPSMAP® 9x Premium Chartplotter

SKU: 010-02673-01
Pre Order
RM62,400.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

WELCOME TO 4K PARADISE

It’s the industry’s first integrated 4K resolution touchscreen chartplotter. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials plus enhanced connectivity and speed.
Model
Screen Size
Charts and Maps
SIZES & DIMENSIONS

25.8" x 16.7" x 3.3" (65.5 cm x 42.3 cm x 8.5 cm)
WHAT'S IN THE BOX
  • GPSMAP 9x chartplotter
  • Trim snap cover
  • Protective cover
  • Flush mount hardware
  • Power cable
  • GPS 24xd NMEA 2000® (with pole mount, flush mount and under deck mount adapters)
  • NMEA 2000 backbone/drop cable (2 meters)
  • NMEA 2000 power cable
  • NMEA 2000 T-connector and terminator kit
  • Documentation
FEATURES
  • Premium 4K IPS sunlight-readable touchscreen display
  • Up to 7 times faster processing power than previous generations
  • Gigabit speeds on the Garmin Bluenet™ network
  • Video integration capabilities with HDCP distribution
  • See sonar targets like never before on the 4K display1
  • Network with multiple chartplotters, cameras and sonars
SPECIFICATIONS

General

  • Dimension: 25.8" x 16.7" x 3.3" (65.5 cm x 42.3 cm x 8.5 cm)
  • Weight: 27.65 lbs (12.54 kg)
  • Water Rating: IPX7
  • Touchscreen: Yes
  • Display Type: 4K, IPS
  • Display Size: 23.5" x 13.2" x 27.0" diagonal, 59.7 cm x 33.6 cm x 68.5 cm diagonal
  • Display Resolution: 3840 x 2160 pixels
  • Mounting Options: Flush or flat
  • Input: Touchscreen



Maps & Memory

  • Accepts Data Cards: 2 SD Cards
  • Waypoints: 5000
  • Track Points: 50,000
  • Tracks: 50 Saved Tracks
  • Navigation Routes: 100



Sensors

  • GPS: Yes
  • Glonass: Yes
  • Galileo: Yes
  • Has Built-In Receiver: Yes
  • Receiver: 10 Hz (included receiver)
  • Nmea 2000 Compatible: Yes
  • Nmea 0183 Compatible: Yes
  • Supports Waas: Yes



Built-In Maps

  • Built-In Auto Guidance+: Yes
  • Garmin Navionics+ Inland & Coastal: Yes
  • Tide Tables: Yes



Optional Map Support

  • Garmin Navionics+™: Yes
  • Garmin Navionics Vision+™: Yes
  • Topo 100k: Yes
  • Standard Mapping: Yes
  • Garmin Quickdraw Contours: Yes
  • Raster Chart Support: Yes



Chartplotter Features

  • Smart Mode Compatible: Yes
  • Ais: Yes
  • Dsc: Yes
  • Supports Fusion-Link™ Compatible Radios: Yes
  • Gsd Black Box Sonar Support: Yes
  • Gcv Black Box Sonar Support: Yes
  • Activecaptain® Compatible: Yes
  • Grid (Garmin Remote Input Device) Compatible: Yes
  • Wireless Remote Compatible: Yes
  • Sailing Features: Yes
  • Spoken Audio Alerts: Yes
  • Onehelm Support: Yes



Electrical Features

  • Power Input: 10 to 35 Vdc
  • Typical Current Draw At 12 Vdc: 7.2A
  • Maximum Current Draw At 12 Vdc: 8.1A
  • Maximum Power Usage At 10 Vdc: 97W



Sonar Features

  • Displays Sonar: Yes
  • Power Output: 1 kW
  • Traditional Sonar (Dual Frequency/Beam): yes (with compatible black box sonar)
  • Clearvü: yes (with compatible black box sonar)
  • Sidevü: yes (with compatible black box sonar)
  • Panoptix™ Sonar: Yes
  • Livescope: Yes



Connections

  • NMEA 2000® Ports: 1
  • NMEA 0183 Input (Rx) Ports: 1
  • NMEA 0183 Output (Tx) Ports: 1
  • Video Input Ports: 1 (BNC composite); 2 HDMI (HDCP compliant)
  • Video Output Ports: 1 HDMI
  • J1939 Ports: 1
  • Garmin Marine Network Ports: 1
  • USB Ports: yes (2x USB-C)
  • Bluetooth® Pairing: Yes
  • Ant® (Connectivity): Yes
  • Garmin Wi-Fi Network (Local Connection): Yes
