Garmin GRID™ 20 - Boatyard Malaysia

Garmin

GRID™ 20

SKU: 010-02011-00
Pre Order
RM1,685.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 monthsLearn more.

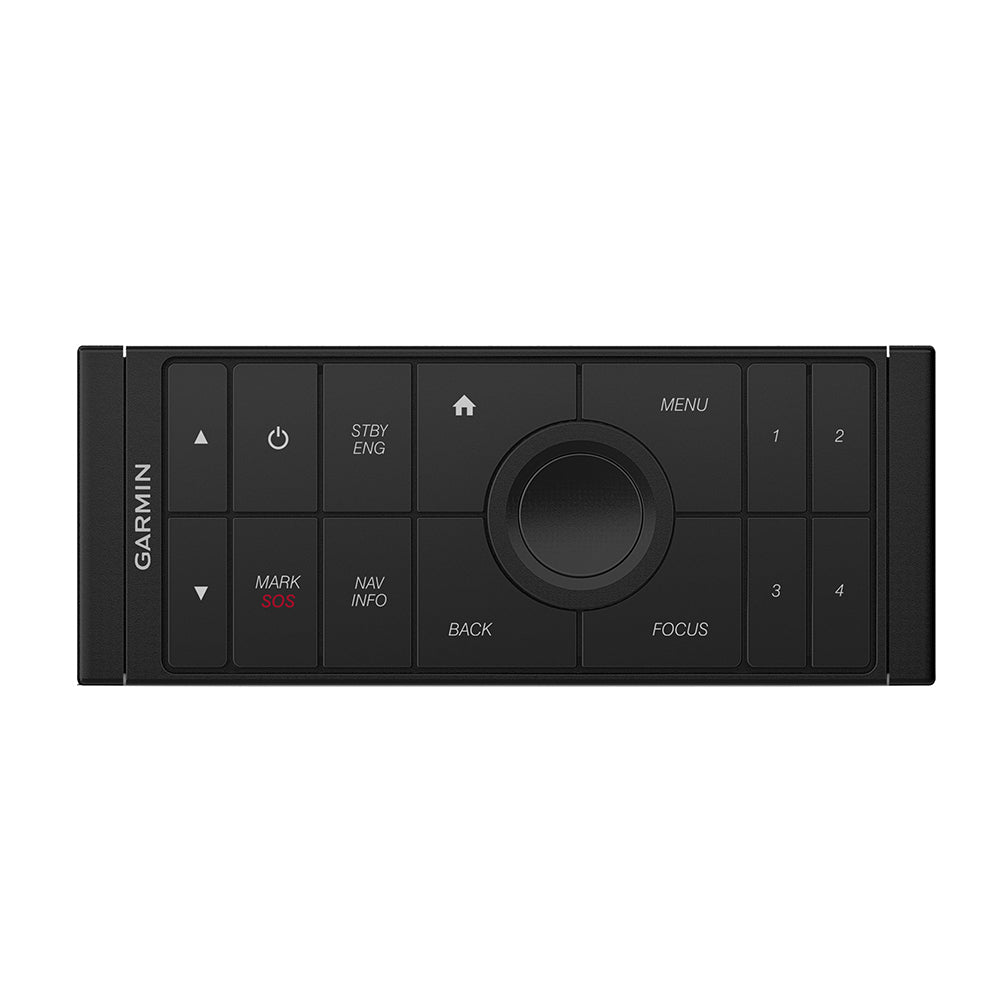

The easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system. It features a 360-degree joystick with a rotary knob and push-to-select button for easy chartplotter menu/setting navigation and fine control, even in the worst conditions. You can designate 4 favorite keys to restore your system to a previously saved configuration. There are also a variety of hard keys for quick access to important functions, including left and right screen switches, autopilot standby/engage and more. For peace of mind, there’s also a dedicated SOS key. Wired or wireless installation and vertical or horizontal options allow for a plug-and-play solution that is tailored to your marine system. Its small footprint makes it convenient to integrate into a busy helm between displays — or even into the arm of the captain’s chair.

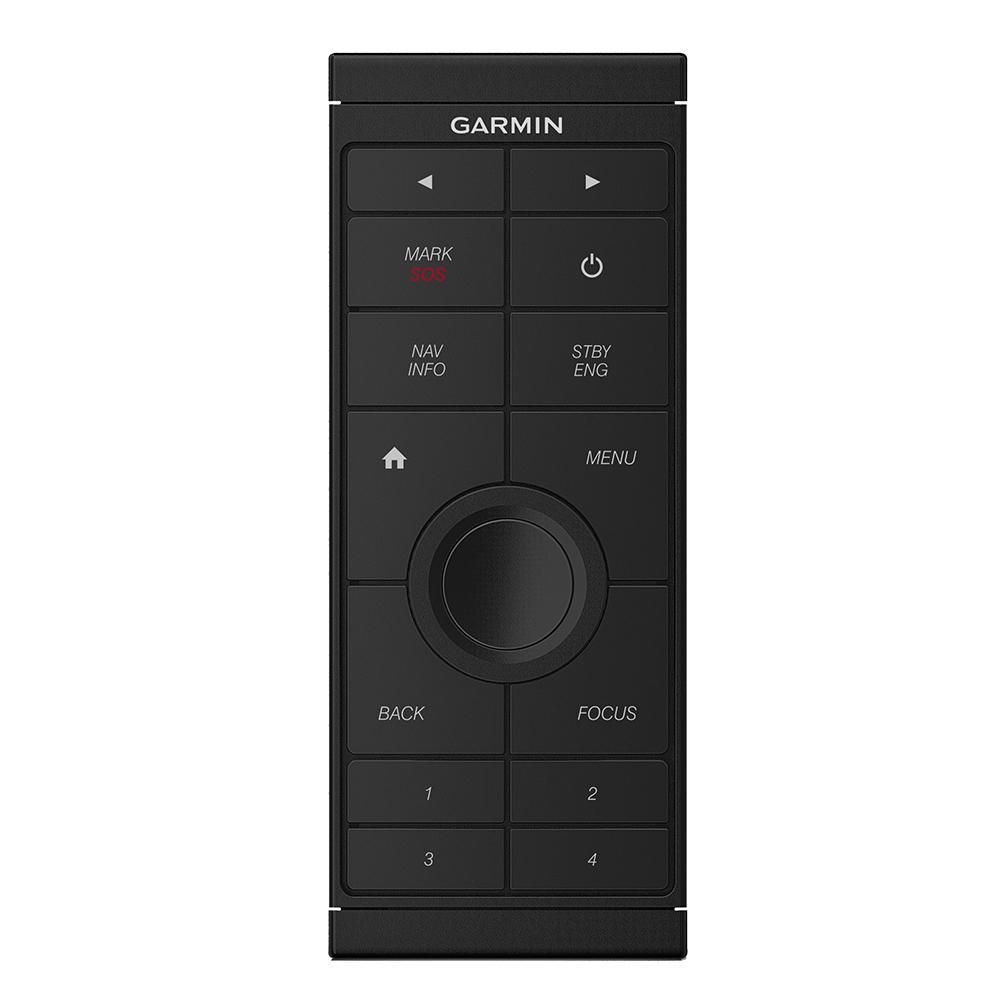

Orientation
SIZES & DIMENSIONS
  • Dimensions (W×H×D): 5.6” x 2.2” x 2.7” (14.1 x 5.6 x 6.8 cm)
WHAT'S IN THE BOX
  • GRID 20
  • Mounting hardware
  • Power cable
  • Documentation
FEATURES
  • Provides intuitive, easy-to-use remote access and control of your entire Garmin marine system
  • 360-degree, all-in-one joystick with a rotary knob and push-to-select button
  • Enables easy chartplotter menu/setting navigation and fine control, even in the worst conditions
  • 4 favorite keys can be designated to restore your system to a previously saved configuration
  • Allows wired or wireless installation options
SPECIFICATIONS
  • Dimensions (W×H×D): 5.6” x 2.2” x 2.7” (14.1 x 5.6 x 6.8 cm)
  • Weight: 6.3 oz (179 g)
  • Temperature range: From 5° to 158°F (from -15° to 70°C)
  • Material: Fully gasketed, high-impact plastic
  • Water rating: IPX7
  • Compass-safe distance: 4.5” (114 mm)
  • Power input: NMEA 2000-or-Wired power (with included power cable): Input power: 9-32 V dcFuse: 1.0 Amp, Fast BlowMaximum power usage at 9 V dc: 1.5 WTypical current draw at 12 V dc: 40 mAMaximum current draw at 12 V dc: 120 mA-or- 2x AA battery powered (not included)
DOCUMENTATIONS
