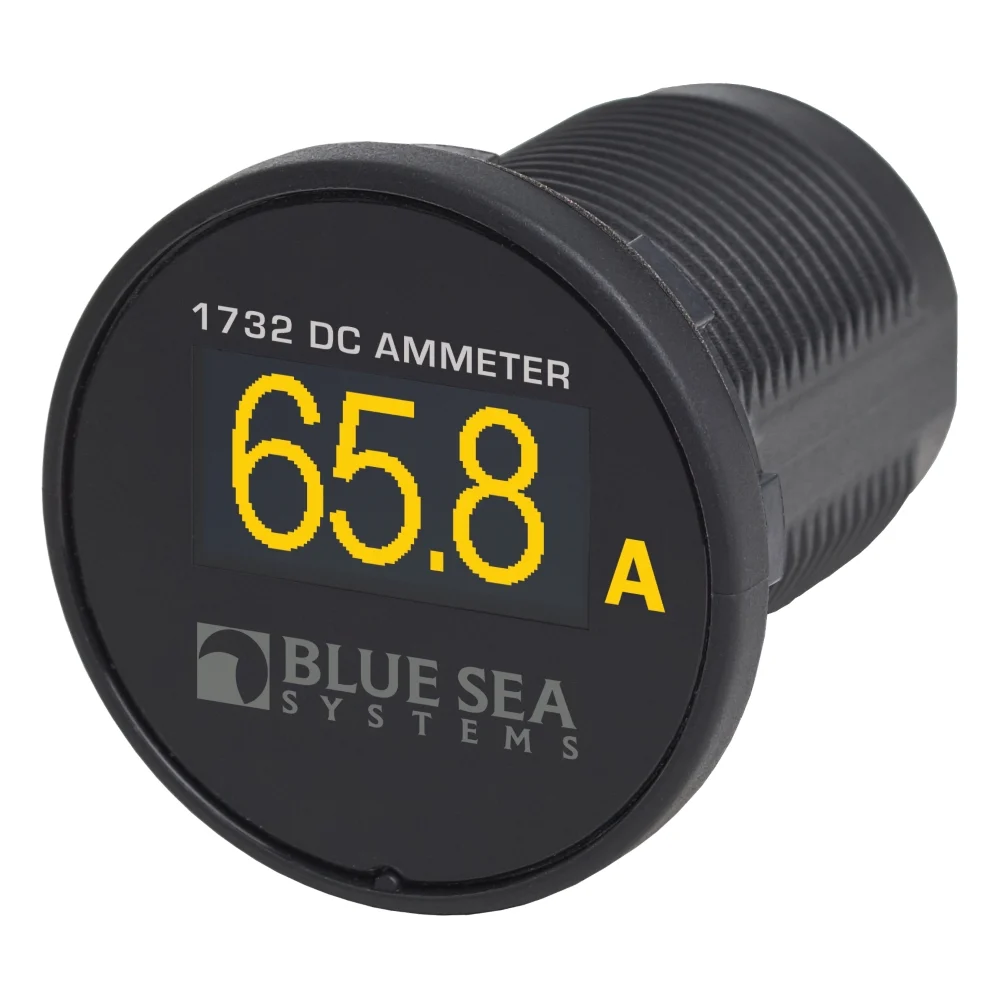

Mini OLED Ammeter

Blue Sea System

Mini OLED Ammeter

SKU: 1732
Pre Order
RM801.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Monitors essential electrical system parameters on a bright, waterproof, daylight readable OLED screen
ColorYellow
SIZES & DIMENSIONS

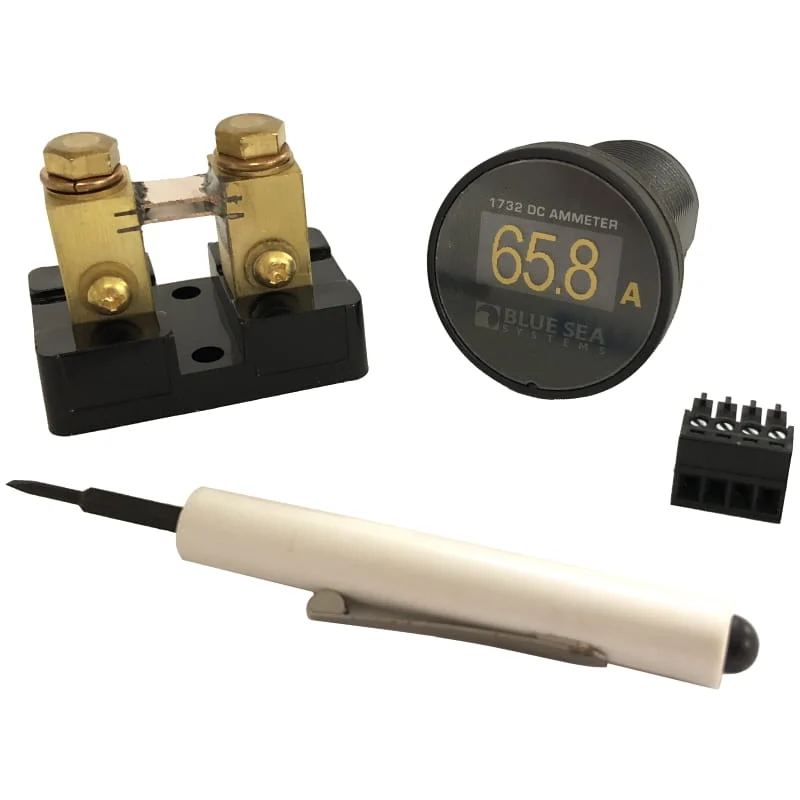

WHAT'S IN THE BOX
FEATURES
  • Compact size enables mounting in any convenient location
  • Reverse polarity protected
  • Mounts in a common 1-1/8 in hole
  • Convenient amperage monitoring
  • Monitors -100A to 100A DC
  • Positive or negative side wiring
SPECIFICATIONS
  • Color: Yellow / Blue
  • Meter: Current
  • Nominal Voltage: 12V DC24V DC
  • Resolution: 0.1A
  • Intermittent Rating: 110A
  • Cranking Rating 30 sec: 175A
  • Accuracy: ± 2%
  • Input Voltage Range: 8-36V DC
  • Lifecycles: 100,000 hours
  • Operating Current: 15mA
  • Operating Temperature Range: -40°C – 70°C (-40°F – 158°F)
  • Weight: 0.70lb (0.32 kg)
DOCUMENTATIONS

Instructions

Dimensioned Drawing
