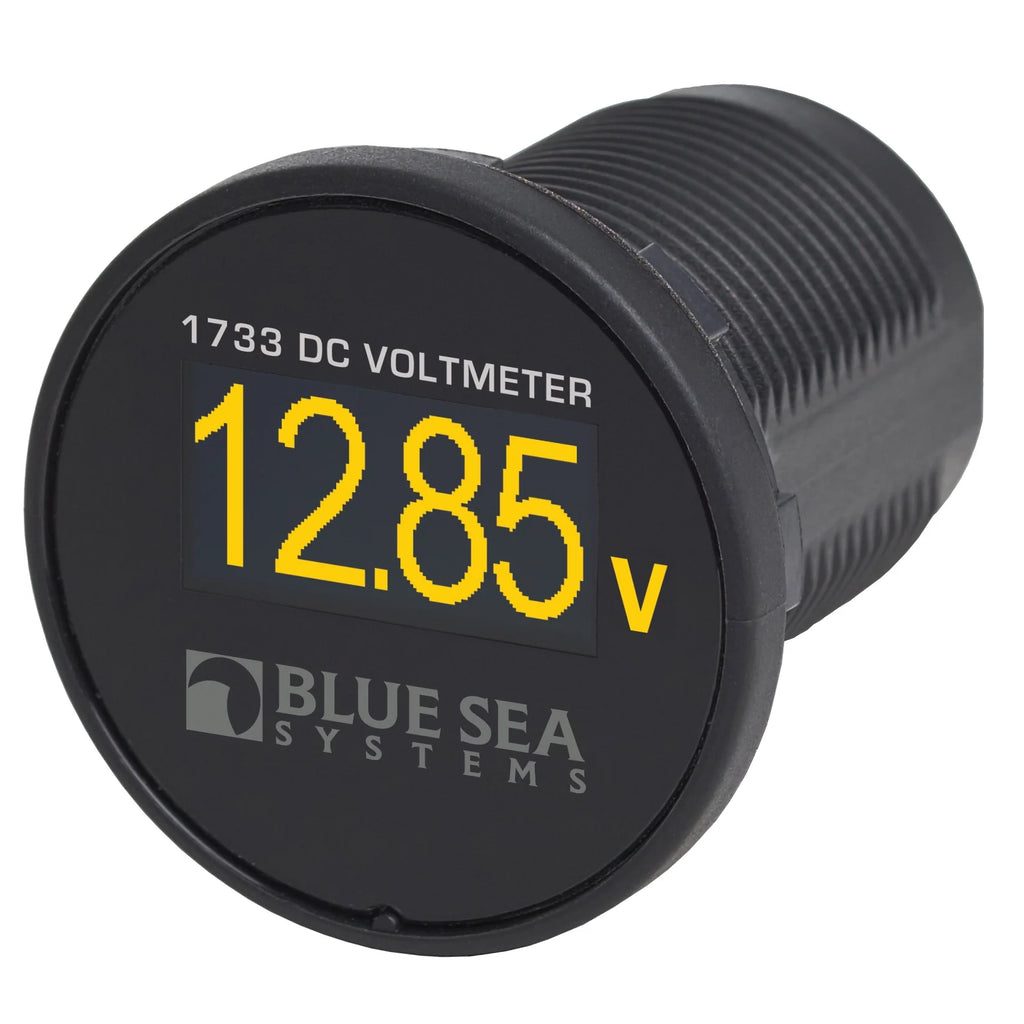

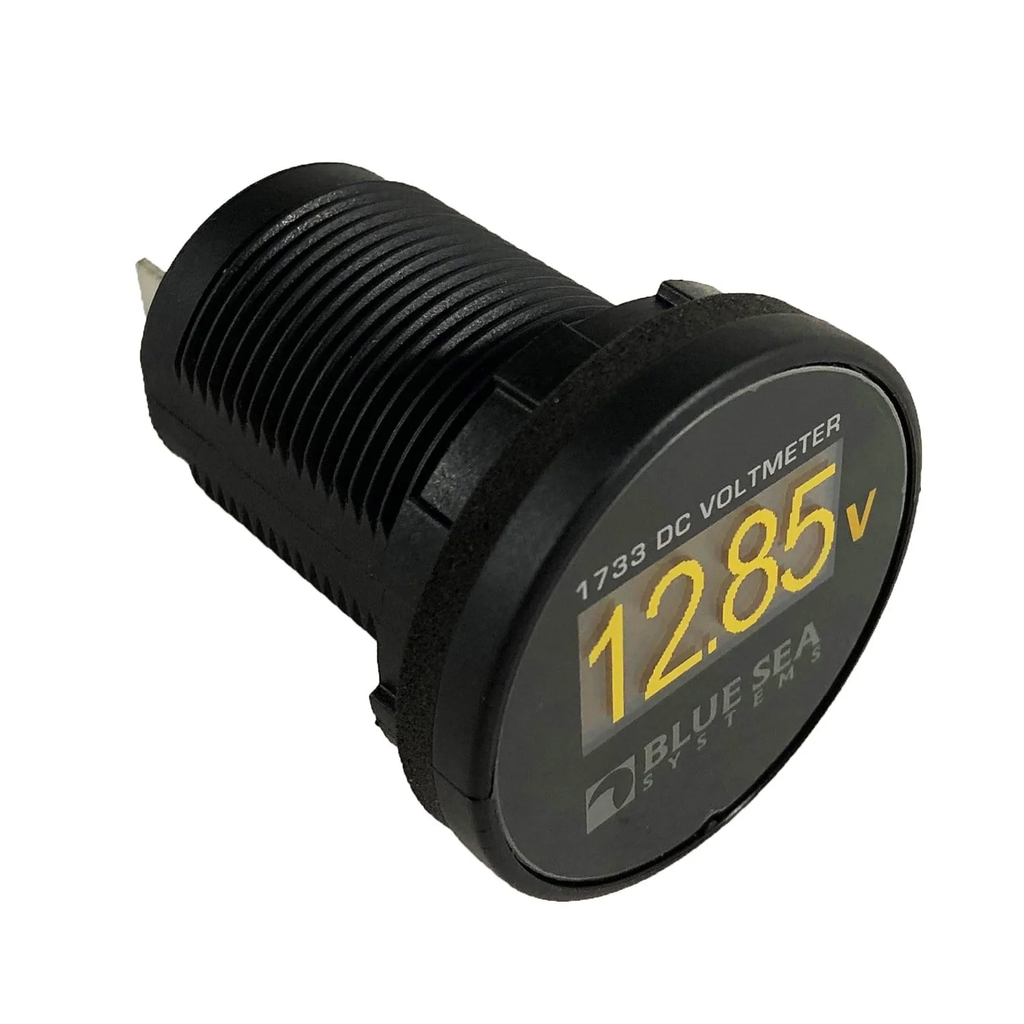

Mini OLED DC Voltmeter

Blue Sea System

Mini OLED DC Voltmeter

SKU: 1733200
Pre Order
RM440.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Monitors DC voltage on a bright, waterproof, daylight readable OLED screen
Color
SIZES & DIMENSIONS
WHAT'S IN THE BOX
FEATURES
  • Reverse polarity protected
  • Mounts in a common 1-1/8" (29mm) hole
SPECIFICATIONS
  • Color: Yellow / Blue
  • Meter: Voltage
  • Nominal Voltage: 12V DC24V DC
  • Resolution: 0.01 DC
  • Accuracy: ± 1.0%
  • Cut Out Dimensions: 1-1/8" in (28.58 mm)
  • Input Voltage Range: 8-36V DC
  • Lifecycles: 100,000 hours
  • Operating Current: 15mA
  • Operating Temperature Range: -40°C – 70°C (-40°F – 158°F)
  • Weight: 0.20lb (0.09 kg)
DOCUMENTATIONS

Dimensioned Drawing

Instructions
