Blue Sea System P12 Battery Charger - 12V DC - Boatyard Malaysia

Blue Sea System

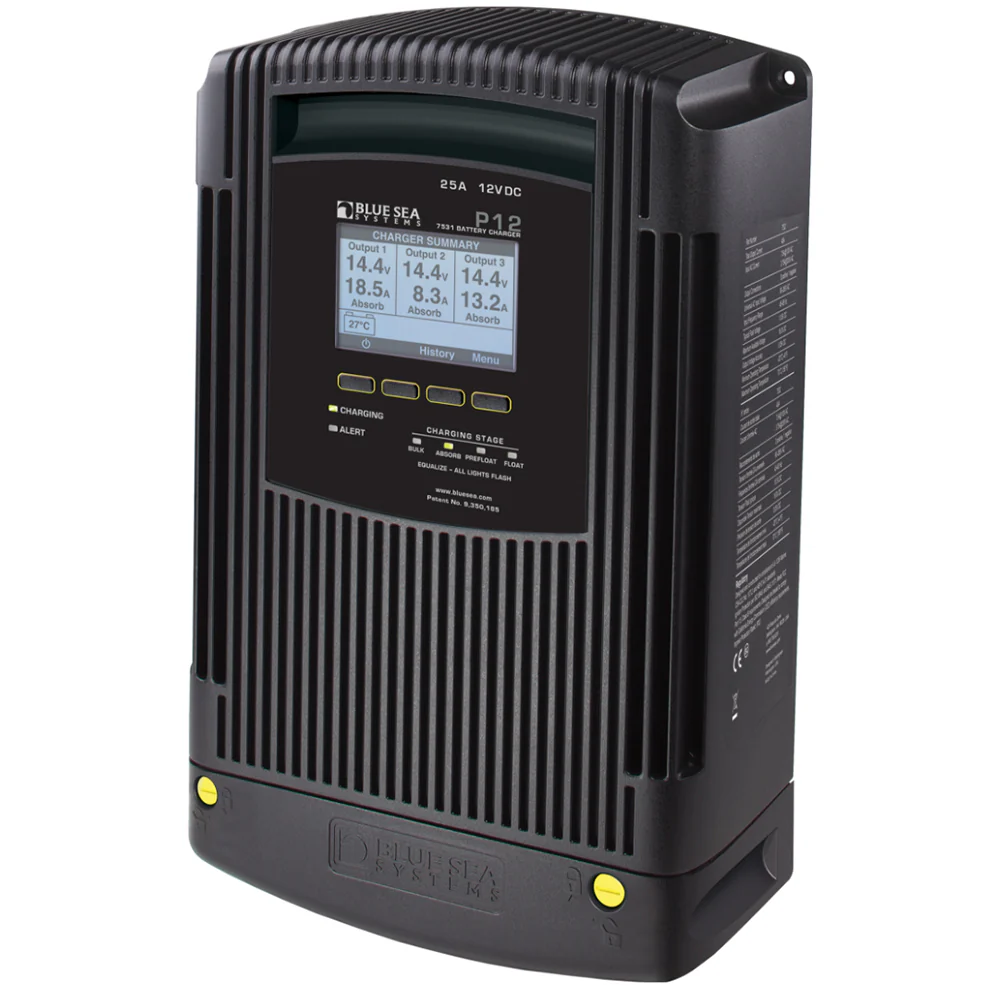

P12 Battery Charger - 12V DC

SKU: 7531
Pre Order
RM6,550.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 monthsLearn more.

Four stage, three output, dry mount design, for use in harsh environments.

Current
SIZES & DIMENSIONS
WHAT'S IN THE BOX
FEATURES
  • Rugged, finned aluminum case
  • PreFloat™ stage prevents over charging
  • Power factor corrected for efficient use of AC
  • Intuitive diagnostic screens
  • User defined charge profiles and customizable settings
  • Provides charging for up to three battery banks
  • Large, bright display
  • Multi-language: English, French, German, Italian, Spanish
  • Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
  • Battery Temperature Compensation - adjusts charge voltage based on battery temperature
  • AC over and under voltage shut down and automatic restart
  • Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
  • DC over voltage and reverse polarity protection
  • Surge and short circuit protection
SPECIFICATIONS

Total Output Current: 25A / 40A

Input AC Current: 4.5A @ 100V AC; 2.25A @ 200V AC

Maximum Output Voltage: 16V DC

Nominal Voltage: 12V DC

Ignition Protected : Yes

Number of Outputs: 1 negative; 3 positive

Stud Size: M6

Universal AC Input Voltage: 115-230V AC

AC Input Frequency: 45-65Hz

Output Voltage Accuracy: 0.05V

Typical Float Voltage: 13.5V DC

Minimum Operating Temperature: -20° C

Maximum Operating Temperature: 70° C

Minimum Storage Temperature: -30° C

Maximum Storage Temperature: 80° C

Battery Types: AGM / Flooded Lead Acid / Gel / TPPL (Thin Plate Pure Lead)

Recommended for Battery Bank Sizes: 330Ah Maximum / 60Ah Minimum

Screw Terminal Torque: 10 in-lb (1.13 Nm) M3
