Par-Max Series Marine Freshwater Delivery Pumps

Jabsco

Par-Max Series Marine Freshwater Delivery Pumps

SKU: Q401J-118S-3A
Pre Order
RM1,554.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Need a freshwater supply pump? Our Jabsco Par-Max Series has got you covered. Pressure controlled diaphragm pumps provide boat owners with a freshwater system that’s as easy to use as the one in their homes.

With our lineup of Jabsco freshwater supply pumps, not only are we sure we’ll have a pump to meet your needs, we’re certain you’ll get years of satisfactory service out of it.

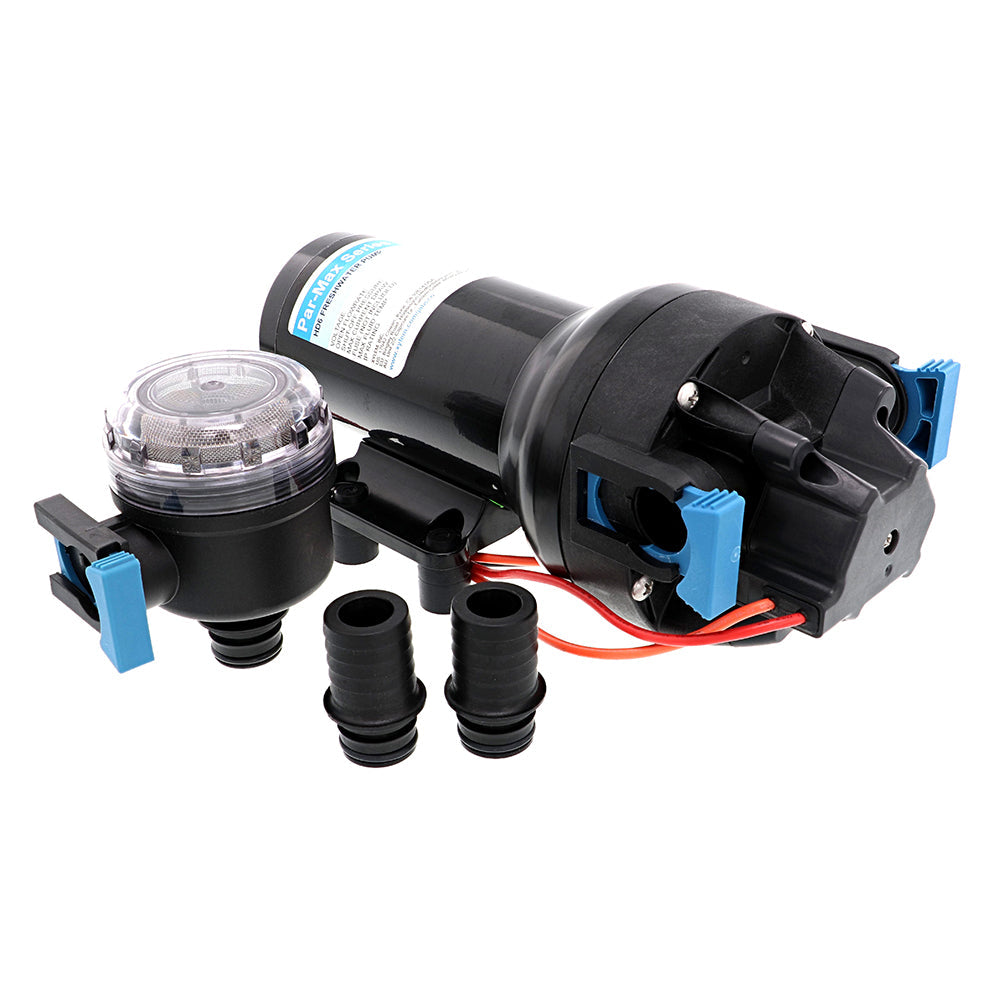

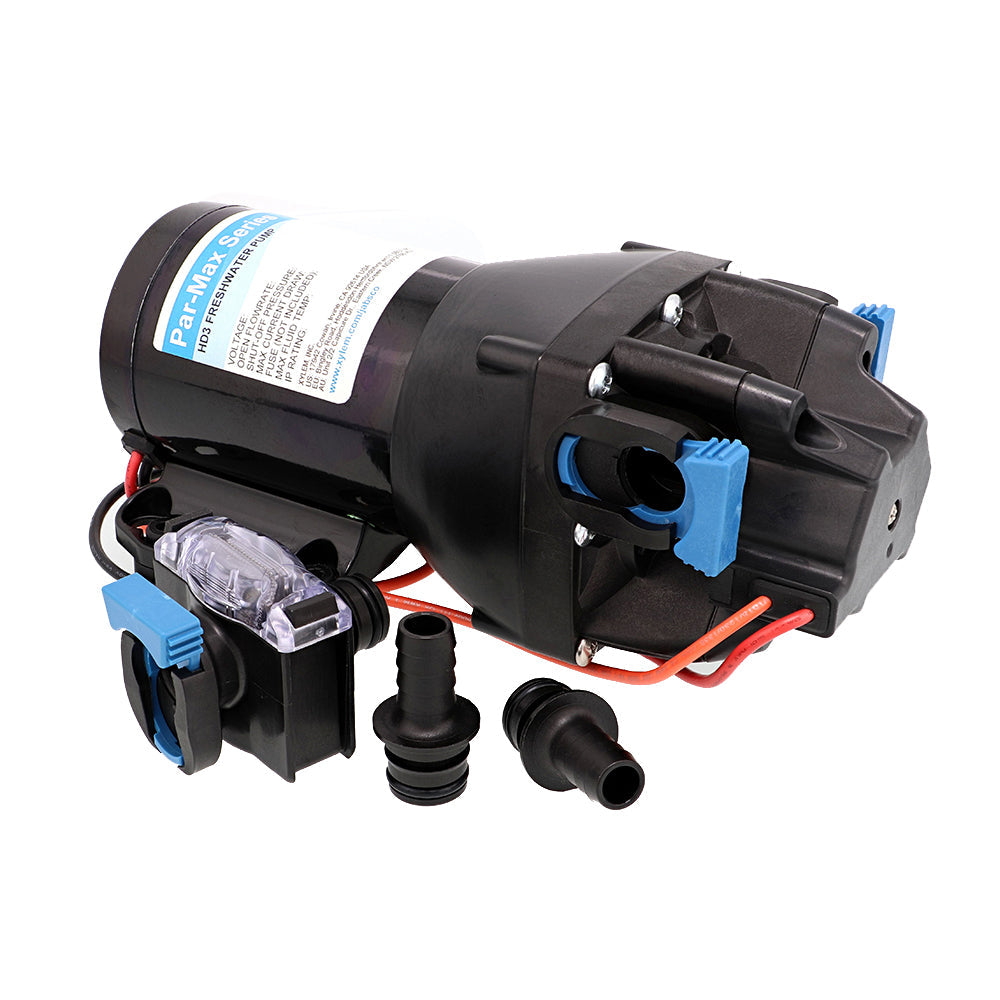

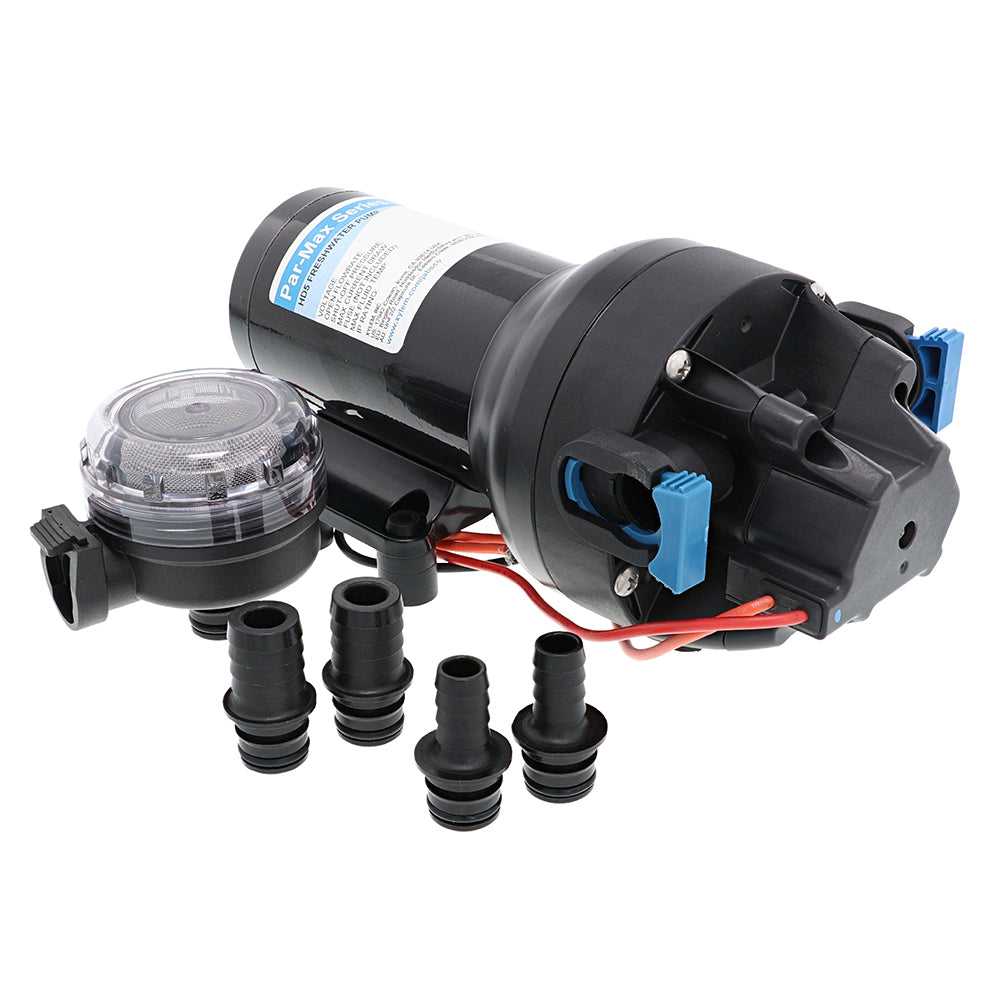

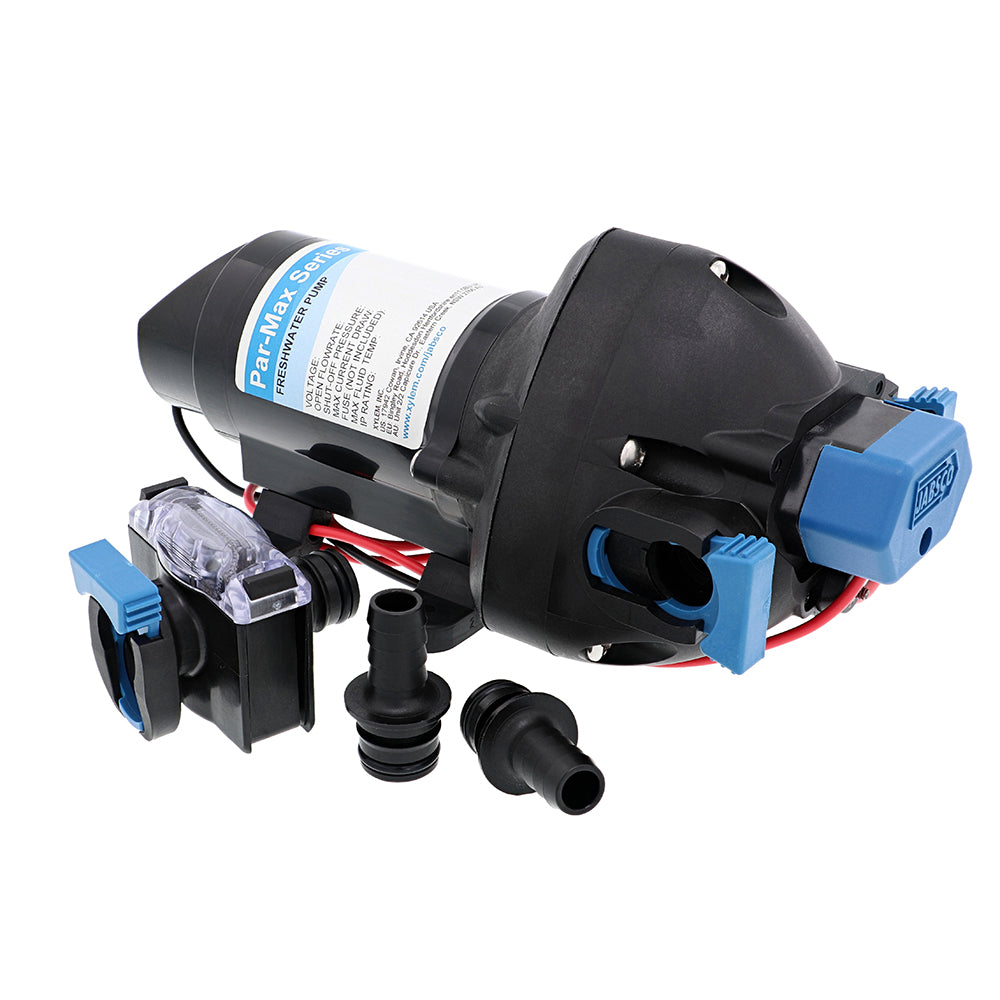

Our HD Par-Max Series of pumps, including the Par-Max HD3, Par-Max HD4, Par-Max HD5, and Par-Max HD6, include a wide diameter motor with a powder coated shell, cast aluminum endbells, and lower housing to improve pressure capability. Our standard models, including the Par-Max 1, Par-Max 2, and Par-Max 3, provide good performance in an economical footprint. With configurations available in 1-6 GPM (3.8-22.7 LPM), the Par-Max Series is perfect for vessels with 1-6 outlets.
Model
Flow Rate & Pressure
Voltage
SIZES & DIMENSIONS
WHAT'S IN THE BOX

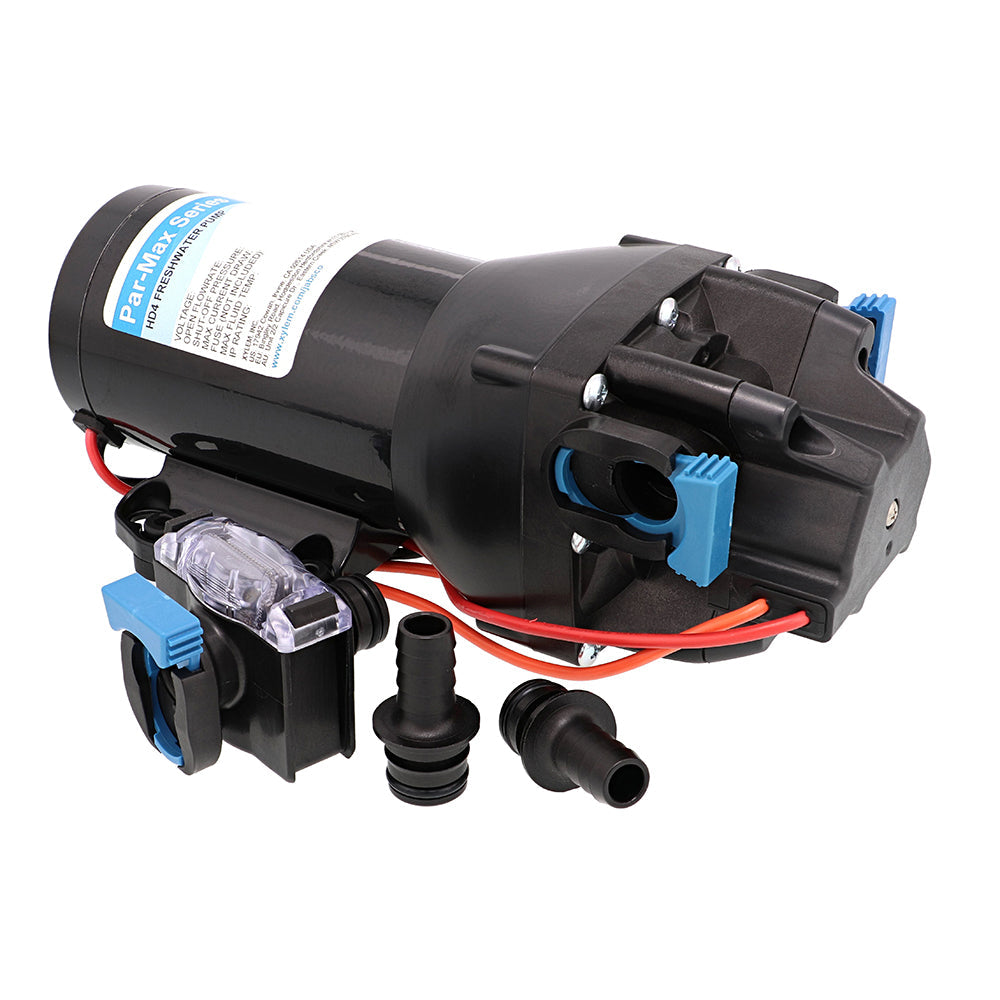

Pump Unit: PARMAX HD4 12V/24V 4GPM 40PSI/60PSI

Port Fittings: 2 x 1/2" (13mm) Straight Hosebarb

Strainer: Inline Quick Connect; 40 mesh
FEATURES
  • Accommodating flows from 1 GPM (3.8 LPM) to 6 GPM (22.7 LPM)
  • Co-molded diaphragm technology ensures long life and durability
  • Heavy duty (HD) models feature motors and cast aluminum lower housings for longer life even at high pressures
  • Efficient and quiet operation and no vibration thanks to dampening mounting feet
  • Integrated, sealed pressure switch for on-demand operation
  • Versatile installation thanks to its self-priming capability
  • Running dry without damage
  • Quick-connect ports make for easy installation and servicing
  • Reduced cycling and smoother flow thanks to integrated bypass module
SPECIFICATIONS

Brochure

Specification
DOCUMENTATIONS

Manual

Parts

Specification

Technical Brochure
