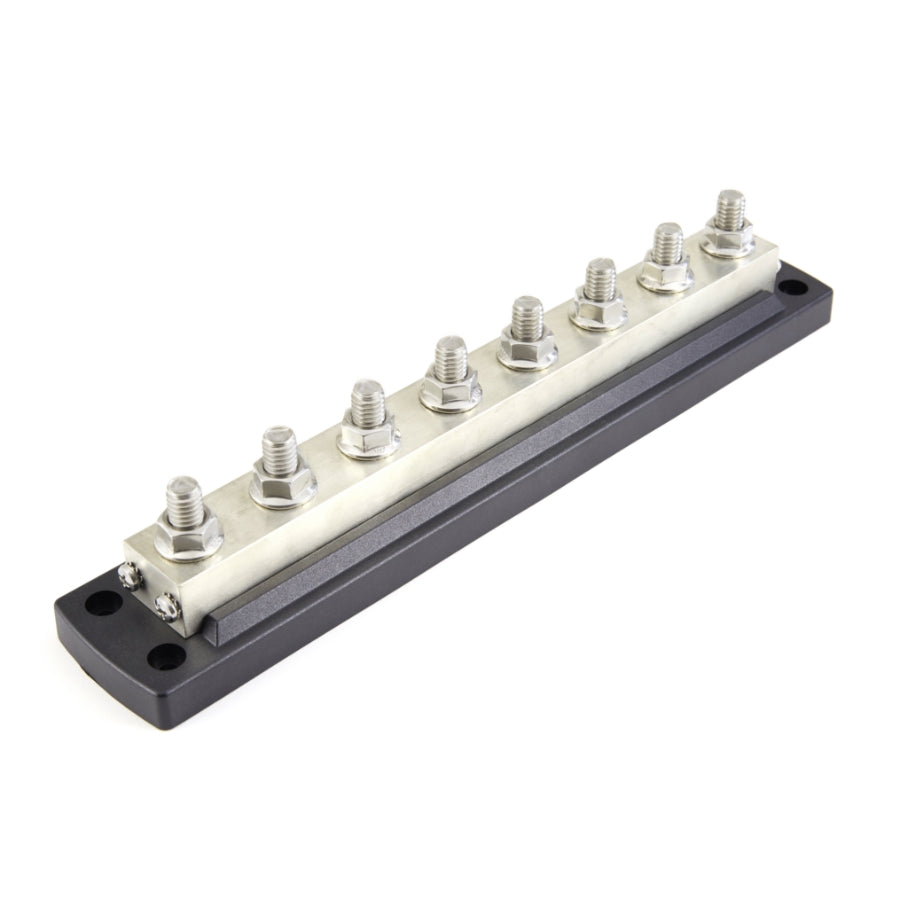

PowerBar 600A BusBar

Blue Sea System

PowerBar 600A BusBar

2104
Pre Order
RM996.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Number of Stud Terminals
SIZES & DIMENSIONS
WHAT'S IN THE BOX
FEATURES
SPECIFICATIONS
  • Maximum Voltage: 300V AC, 48V DC
  • Number of Terminal Studs: 4, 8
  • Terminal Type: 3/8"-16 Stud
  • Terminal Stud Torque: 140 in-lb (15.82 Nm)
  • Continuous Rating : 545A AC, 600A DC
  • Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
  • Bus Material: Tin-Plated Copper CDA 110/UNS11000
  • Screw Terminal Torque: 15 in-lb (1.69 Nm)
  • Stud Torque: 140 in-lb (15.82 Nm)
  • Weight: 1.71lb (0.78 kg), 2.75lb (1.25 kg)
DOCUMENTATIONS

Product Drawings in DXF Format - PN 2104

Dimensioned Drawing
